iFlightPlanner



...

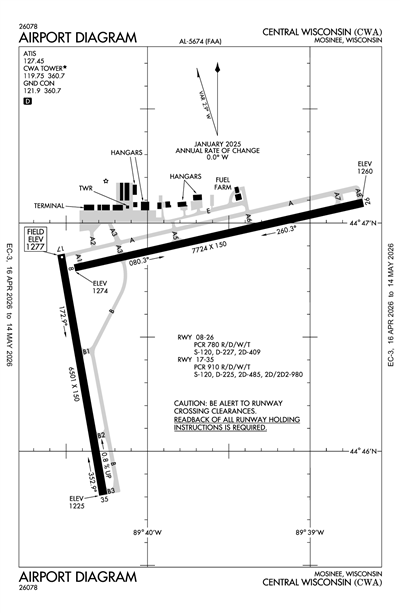

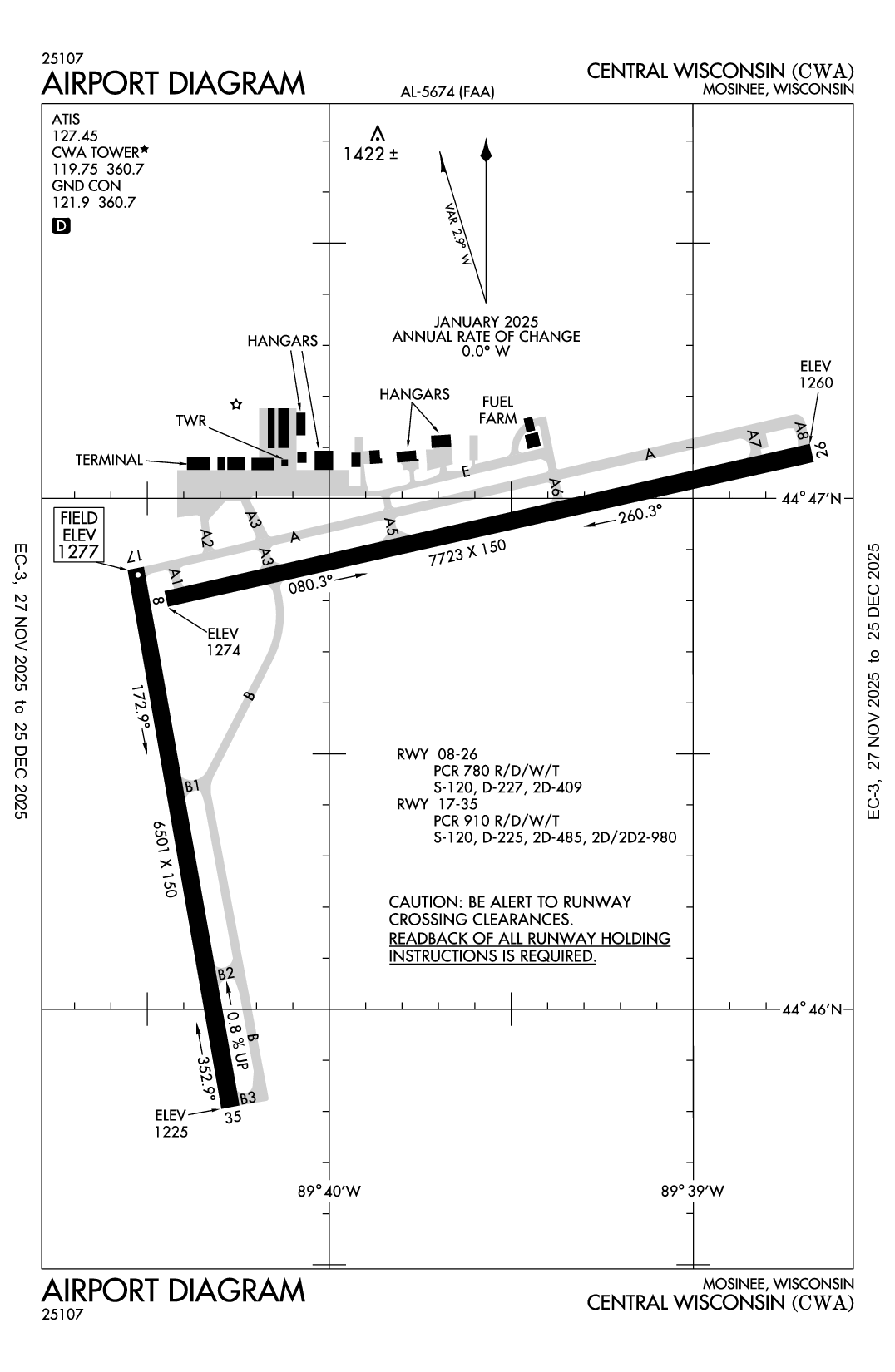

CENTRAL WISCONSIN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCWA
CENTRAL WISCONSIN
PublicPUB

3 miles SE of MOSINEE, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 46' 40"N 89° 39' 57"W
1277' MSL
2277' MSL
00E
JET A, 100LL
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
11/28/24-12/26/24
KCWA MVFR
6:36 AM CST
Light Snow
Scattered 6,500'
5sm
30°F
25°F
29.96"Hg
140° 4kts
KCWA 231236Z 14004KT 5SM -SN SCT065 M01/M04 A2996
Add Your Business

KCWA FBOs

Promote Listing
Ovation CWA
UNICOM: 122.95
Phone: (715) 693-6111
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66, World Fuel
As of 12/19
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.39 5.69 5.79
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.75

ATIS

ATIS
 127.45

AWOS-3

AWOS-3
715-693-1116
 127.45

Ground

GND/P
 121.9

Tower

LCL/P
 119.75

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCWA
Mon, 12/23 5:40 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 8:00 AM CST
Overcast 4,000'
6sm
150° 3kts
MVFR
Temporary 6:00 AM CST - 8:00 AM CST
Light Snow
Broken 2,500'
4sm
Calm
IFR
8:00 AM CST - 12:00 PM CST
Light Snow
Overcast 2,200'
1.5sm
VRB° 3kts
MVFR
12:00 PM CST - 4:00 PM CST
Light Snow
Overcast 1,300'
5sm
360° 4kts
MVFR
4:00 PM CST - 9:00 PM CST
Broken 1,700'
6sm
360° 4kts
MVFR
9:00 PM CST - 6:00 AM CST
Broken 3,000'
6sm
360° 2kts
KCWA 231140Z 2312/2412 15003KT P6SM OVC040
   TEMPO 2312/2314 4SM -SN BKN025
   FM231400 VRB03KT 1 1/2SM -SN OVC022
   FM231800 36004KT 5SM -SN OVC013
   FM232200 36004KT P6SM BKN017
   FM240300 36002KT P6SM BKN030
KCWA
Domestic
12/23/241239Z !CWA 12/174 CWA AD AP ALL SFC WIP SNOW REMOVAL 2412231239-2412241300
12/23/241238Z !CWA 12/173 CWA TWY ALL FICON 1/8IN WET SN OBS AT 2412231238. 2412231238-2412241238
12/23/241237Z !CWA 12/172 CWA APRON ALL FICON 1/8IN WET SN OBS AT 2412231237. 2412231237-2412241237
12/23/241236Z !CWA 12/171 CWA RWY 17 FICON 5/5/5 100 PCT 1/8IN WET SN OBS AT 2412231236. 2412231236-2412241236
12/23/241236Z !CWA 12/170 CWA RWY 08 FICON 5/5/5 100 PCT 1/8IN WET SN OBS AT 2412231236. 2412231236-2412241236
12/19/241853Z !CWA 12/143 CWA OBST TOWER (ASR UNKNOWN) 445027.82N0895010.63W (8.2NM WNW CWA) 1491FT (240FT AGL) U/S 2412191853-2502021845
12/2/241417Z !CWA 12/025 CWA NAV ILS RWY 35 DME NOT MNT 2412021417-2501032000EST
10/28/242342Z !CWA 10/026 CWA OBST TOWER LGT (ASR 1309981) 444604.80N0892617.90W (9.73NM E CWA) 1539FT (285FT AGL) U/S 2410282342-2501312359
6/1/240016Z !CWA 06/001 CWA OBST TOWER LGT (ASR 1212230) 443839.00N0895112.00W (11.3NM SW CWA) 2000.0FT (799.9FT AGL) U/S 2406010016-2501272359
FDC
2/16/241426Z !FDC 4/6201 CWA IAP CENTRAL WISCONSIN, MOSINEE, WI.
ILS OR LOC RWY 8, AMDT 15...
NOTE: ILS OR LOC RWY 8 AMDT15
AUTOPILOT COUPLED APPROACH NA BELOW 1600.
2402161426-2602161426EST
Yes
ALL
MARATHON AND PORTAGE CO
100 CWA DR. SUITE 227
MOSINEE, WI 54455
Phone: 715-693-2147
BRIAN GREFE
100 CWA DR. SUITE 227
MOSINEE, WI 54455
Phone: 715-693-2147
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
CWA
--
WHEN ATCT CLSD, HIRL RWY 8/26 PRESET LOW; TO INCR INTST AND ACTVT MALSR RWY 8 & 35; REIL RWY 17 & 26; HIRL RWY 8/26 & 17/35 - CTAF. RWY 8, 17, 26 & 35 PAPI OPRS CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 08/26

7723 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
227,000lbs
409,000lbs
--
  Runway 08 Runway 26
True Heading 77°257°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD FAIR
Latitude 44° 46' 48"N 44° 47' 05"N
Longitude 89° 40' 27"W 89° 38' 42"W
Elevation 1,274' 1,260'
Threshold Crossing Height 55 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 17/35

6501 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH

120,000lbs
225,000lbs
485,000lbs
980,000lbs
  Runway 17 Runway 35
True Heading 170°350°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 44° 46' 52"N 44° 45' 49"N
Longitude 89° 40' 32"W 89° 40' 16"W
Elevation 1,277' 1,225'
Threshold Crossing Height 45 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes
A110-2TWY E NORTH OF TWY A NOT AVBL FOR ACR OPS; GA & CARGO ACFT RSTRD TO LESS THAN 100000 LBS.
A110-3LANDING FEE FOR ACFT PROVIDING COMMERICAL SVCS.
CENTRAL WISCONSIN (ICAO: KCWA, IATA: CWA) is a public airport located in MOSINEE, WI.
