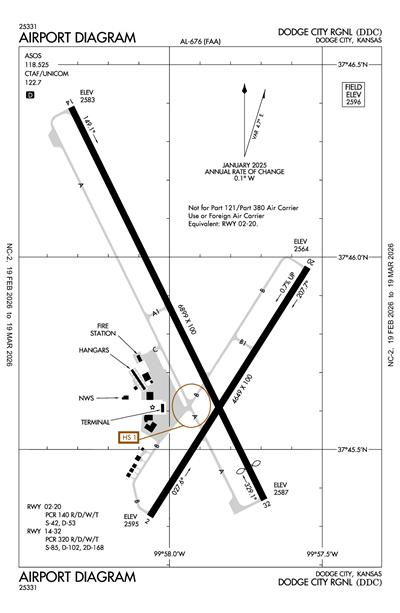

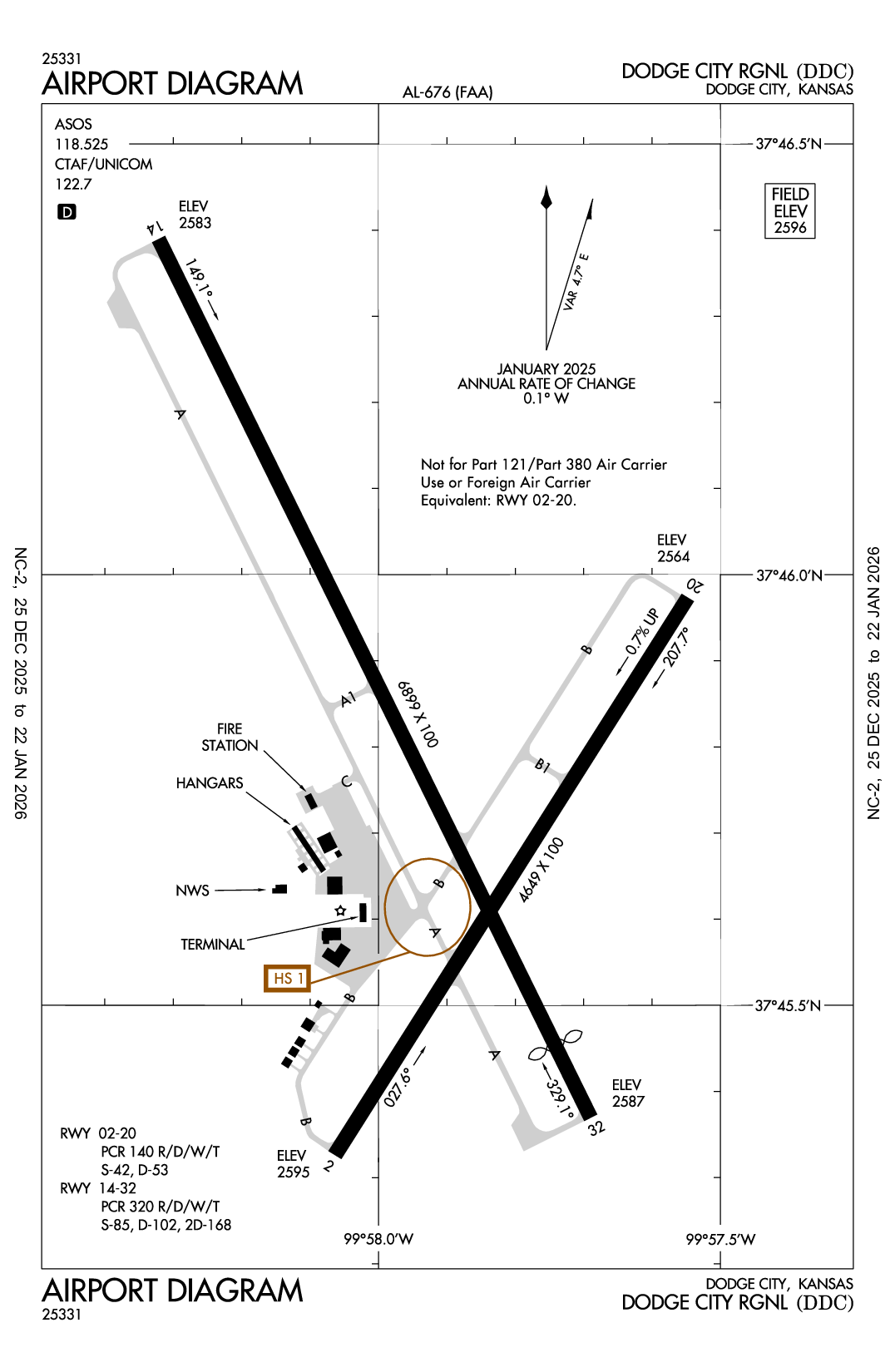

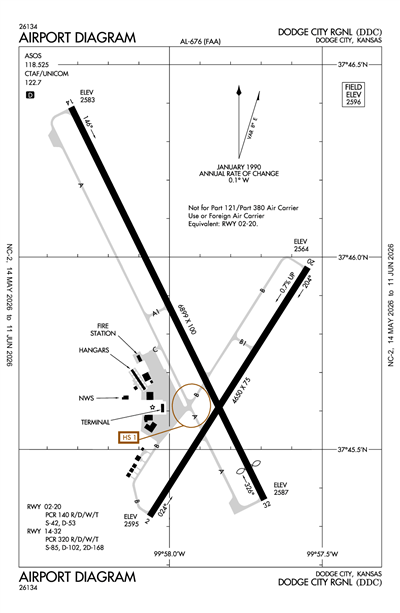

DODGE CITY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDDC
DODGE CITY RGNL
PublicPUB

3 miles E of DODGE CITY, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 45' 47"N 99° 57' 56"W
2596' MSL
3596' MSL
08E
JET A, 100LL
WICHITA (ICT)
WICHITA
KANSAS CITY (ZKC)
1/23/25-2/20/25
KDDC VFR
1:52 AM CST
Clear
10sm
35°F
24°F
29.91"Hg
320° 6kts
AO2 SLP127 T00171044 $
KDDC 020752Z AUTO 32006KT 10SM CLR 02/M04 A2991 RMK AO2 SLP127 T00171044 $
Add Your Business

KDDC FBOs

Promote Listing
Crotts Aircraft Service
UNICOM: 122.7
Phone: (620) 227-3553
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 1/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.31 4.63
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

ASOS

ASOS
620-227-9721
 118.525

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDDC
Sat, 2/1 11:20 PM CST
Sun, 2/2 12:00 AM CST - Mon, 2/3 12:00 AM CST
VFR
12:00 AM CST - 11:00 AM CST
Sky Clear
6sm
VRB° 6kts
VFR
11:00 AM CST - 5:00 PM CST
Sky Clear
6sm
170° 12kts
Gusts 20kts
VFR
5:00 PM CST - 12:00 AM CST
Sky Clear
6sm
180° 10kts
KDDC 020520Z 0206/0306 VRB06KT P6SM SKC
   FM021700 17012G20KT P6SM SKC
   FM022300 18010KT P6SM SKC
KDDC
Domestic
1/24/251858Z !DDC 01/058 DDC OBST WIND TURBINE LGT (ASN 2011-WTE-17938-OE) 374959N0994821W (8.7NM ENE DDC) 2862FT (403FT AGL) U/S 2501241858-2502242359
1/24/251857Z !DDC 01/057 DDC OBST WIND TURBINE LGT (ASN 2011-WTE-17928-OE) 374846N0995026W (6.6NM ENE DDC) 2889FT (403FT AGL) U/S 2501241857-2502242359
1/24/251856Z !DDC 01/056 DDC OBST WIND TURBINE LGT (ASN 2011-WTE-17910-OE) 375057N0995319W (6.3NM NE DDC) 2862FT (403FT AGL) U/S 2501241856-2502242359
1/24/251856Z !DDC 01/055 DDC OBST WIND TURBINE LGT (ASN 2011-WTE-17888-OE) 375034N0995222W (6.5NM NE DDC) 2850FT (403FT AGL) U/S 2501241856-2502242359
1/24/251855Z !DDC 01/054 DDC OBST WIND TURBINE LGT (ASN 2011-WTE-17918-OE) 374939N0995233W (5.8NM NE DDC) 2867FT (403FT AGL) U/S 2501241855-2502242359
1/24/251854Z !DDC 01/053 DDC OBST WIND TURBINE LGT (ASN 2011-WTE-17917-OE) 375021N0995034W (7.4NM NE DDC) 2860FT (403FT AGL) U/S 2501241854-2502242359
1/22/251646Z !DDC 01/050 DDC OBST TOWER LGT (ASR 1307838) 374726.89N1000837.53W (8.6NM W DDC) 2931FT (295FT AGL) U/S 2501221646-2503081646
1/3/251935Z !DDC 01/004 DDC APRON TERMINAL RAMP WIP CONST 2501031935-2506130001
3/20/241701Z !DDC 03/012 DDC RWY 32 RWY END ID LGT U/S 2403201701-PERM
FDC
11/14/241403Z !FDC 4/4162 DDC IAP DODGE CITY RGNL, DODGE CITY, KS.
ILS OR LOC RWY 14, AMDT 3B...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
DDC VORTAC OUT OF SERVICE. 2411141403-2506261403EST
9/4/241641Z !FDC 4/0004 DDC IAP DODGE CITY RGNL, DODGE CITY, KS.
VOR RWY 14, AMDT 19B...
MISSED APPROACH: CLIMB TO 4200 THEN CLIMBING LEFT TURN TO 4300 DIRECT DDC VORTAC AND HOLD.
2409041641-2609041639EST
No
0600-2200
CITY OF DODGE CITY
PO BOX 880
DODGE CITY, KS 67801
Phone: 620-225-8100
MR ELIEL MARIN
100 AIRPORT RD
DODGE CITY, KS 67801
Phone: 620-225-8280
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
DDC
--
DUSK-DAWN. ACTVT MALSR RWY 14; REIL RWY 32; PAPI RWY 02 & 20, VASI RWY 14 & 32; MIRL RWY 14/32 & 02/20 - CTAF
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
Low Pressure
Crop Dusting
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

4649 ft. x 100 ft.
ASPH
Fair
NONE
MED
9 /F/D/X/T
24,000lbs
--
--
--
  Runway 02 Runway 20
True Heading 32°212°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 37° 45' 20"N 37° 45' 58"N
Longitude 99° 58' 04"W 99° 57' 33"W
Elevation 2,595' 2,564'
Threshold Crossing Height 37 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 14/32

6899 ft. x 100 ft.
ASPH
Fair
NONE
MED
32 /F/D/X/T
81,000lbs
103,000lbs
168,000lbs
--
  Runway 14 Runway 32
True Heading 154°334°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 37° 46' 23"N 37° 45' 22"N
Longitude 99° 58' 19"W 99° 57' 41"W
Elevation 2,583' 2,586'
Threshold Crossing Height 55 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1RWY ENDS 02 & 20 NOT VSB FM OPPOSITE ENDS.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY ARTCC AT 913-254-8508.
A110-4RWY 02/20, TWY B BTN E SIDE RWY 14/32 & APCH END RWY 20, TWY B SOUTH END OF S APRON & APCH APCH END OF RWY 02 & TWY B1 UNUSBL BY ACR.
DODGE CITY RGNL (ICAO: KDDC, IATA: DDC) is a public airport located in DODGE CITY, KS.
