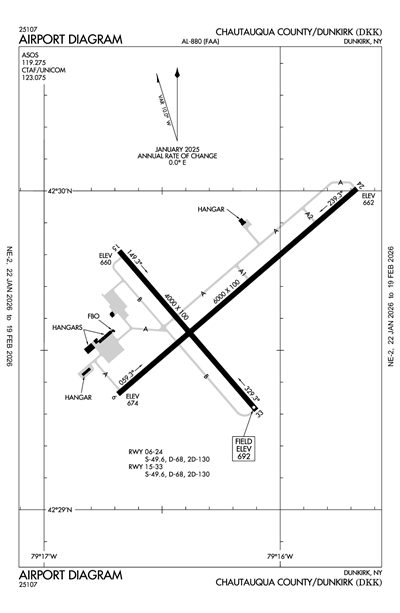

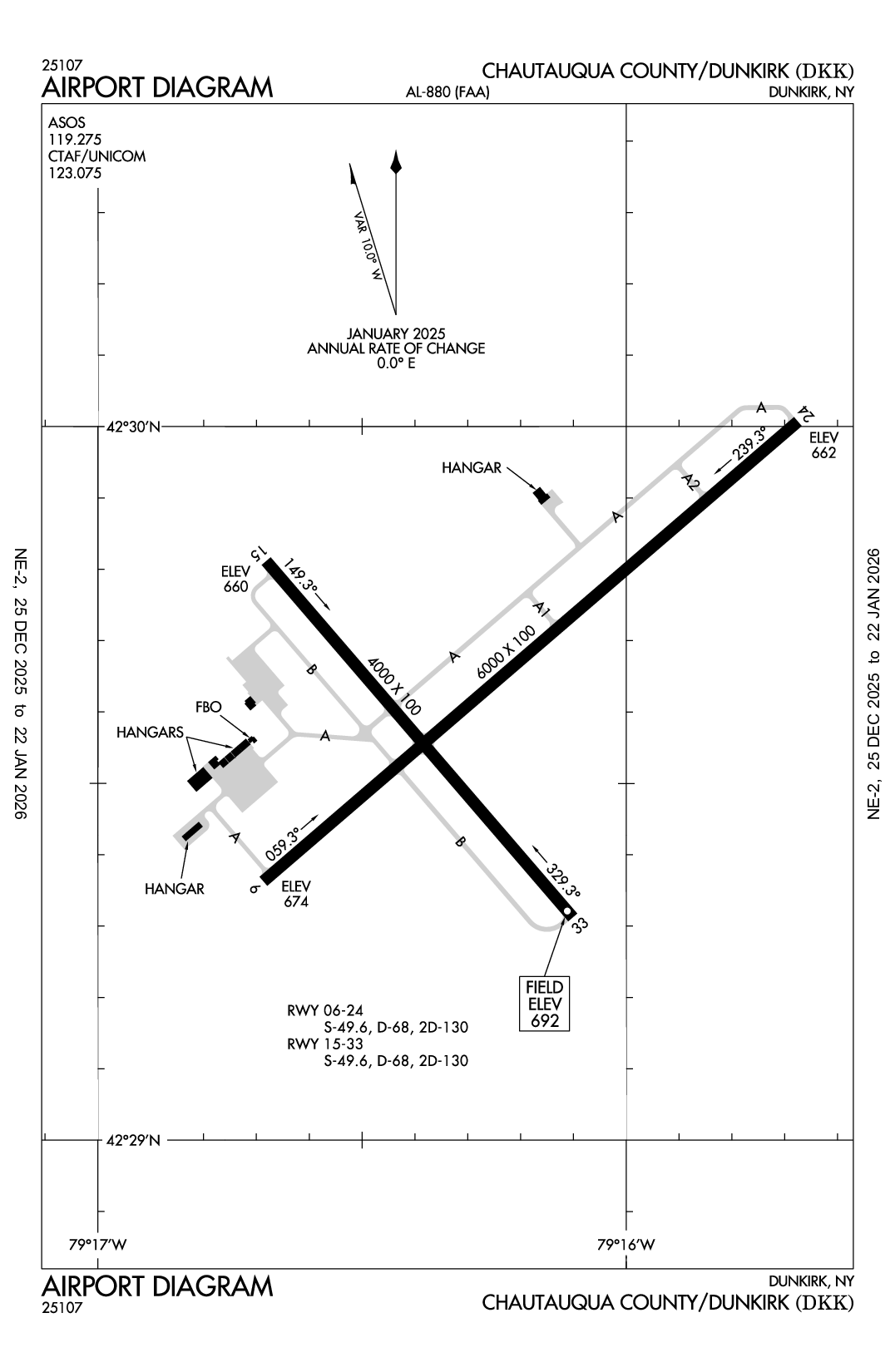

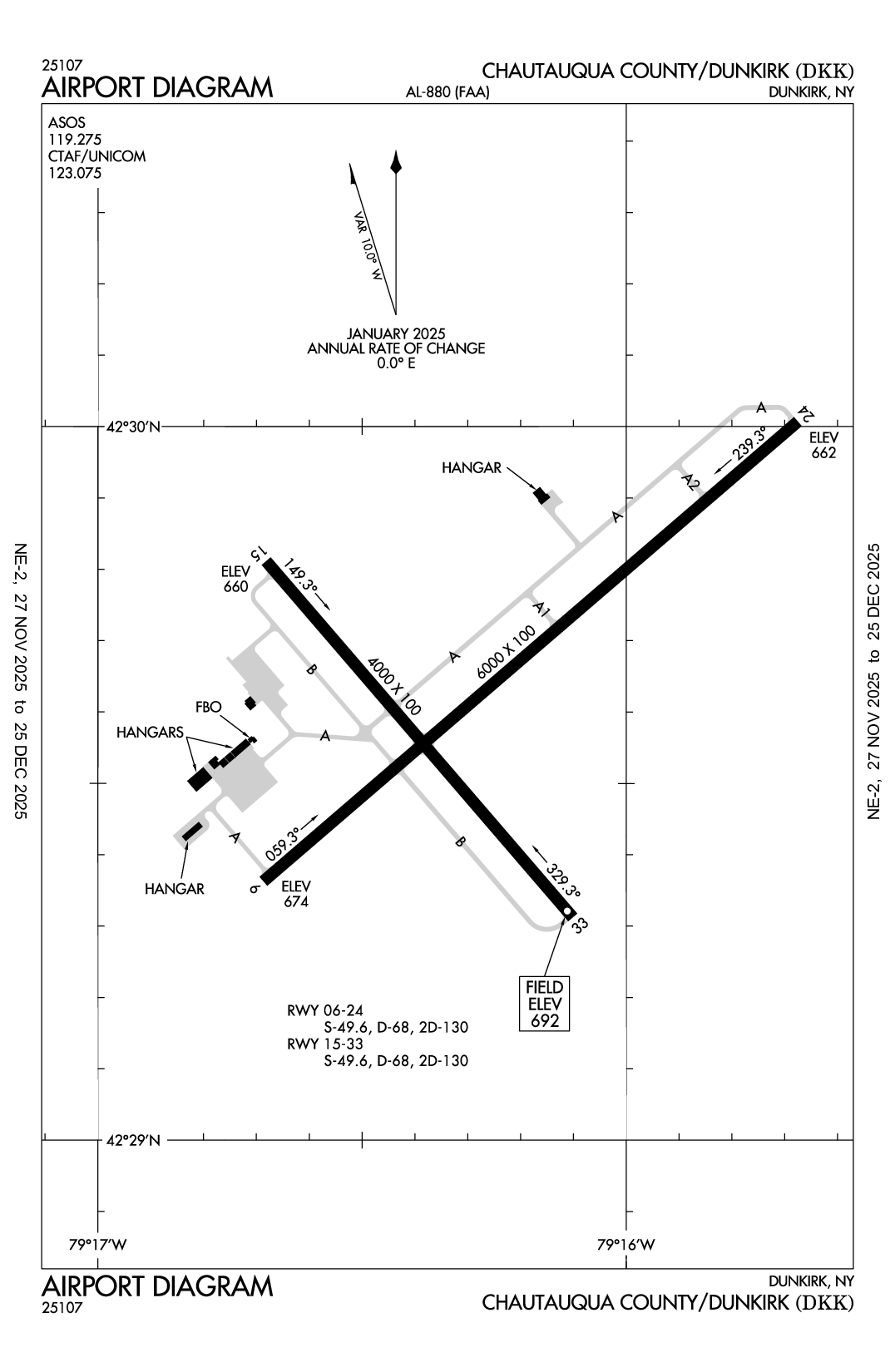

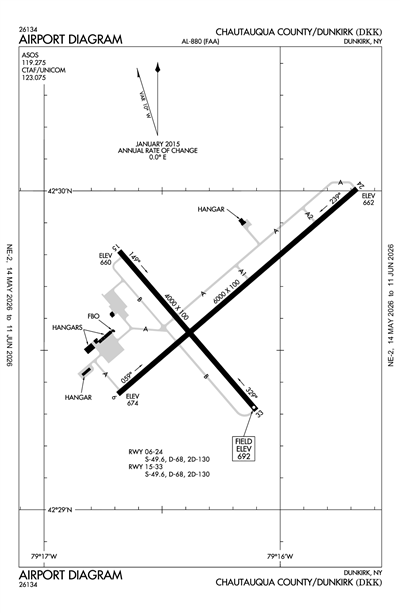

CHAUTAUQUA COUNTY/DUNKIRK - Airport Diagram

KDKK

CHAUTAUQUA COUNTY/DUNKIRK

PublicPUB

3 miles E of DUNKIRK, NY

View on Map

Status

Operational

Coordinates

42° 29' 38"N 79° 16' 16"W

Elevation

692' MSL

Pattern Alt

1692' MSL

Mag Variation

10W

Fuel

JET A, JET A (FSII), 100LL

FSS

BUFFALO (BUF)

Sectional

DETROIT

ARTCC

CLEVELAND (ZOB)

Data Effective

2/20/25-3/20/25

KDKK VFR

9:53 AM EDT RAW

Clear

Viz

10sm

Temp

37°F

Dew

28°F

Pres

29.90"Hg

Wind

250° 13kts

Gusts 21kts

RMK

AO2 SLP133 T00281022

KDKK 091353Z AUTO 25013G21KT 10SM CLR 03/M02 A2990 RMK AO2 SLP133 T00281022

Add Your Business

KDKK FBOs

Promote Listing

Centric Aviation

UNICOM: 123.075

Phone: (716) 203-6478

0 Reviews (Read | Sign In To Write)

Avfuel

As of 3/4	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.99
Full Serve	6.95	6.39	6.49

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 123.075 CTAF 123.075

ASOS

716-366-7664

119.275

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KJHW (20nm)

RAW

Reported

Sun, 3/9 7:25 AM EDT

Valid

Sun, 3/9 8:00 AM EDT - Mon, 3/10 8:00 AM EDT

MVFR

8:00 AM EDT - 10:00 AM EDT

Broken 3,000'

Viz

6sm

Wind

230° 10kts

VFR

10:00 AM EDT - 5:00 PM EDT

Broken 5,000'

Viz

6sm

Wind

270° 12kts

Gusts 19kts

VFR

5:00 PM EDT - 9:00 PM EDT

Few 14,000'

Viz

6sm

Wind

260° 13kts

Gusts 21kts

VFR

9:00 PM EDT - 4:00 AM EDT

Scattered 10,000'

Viz

6sm

Wind

230° 9kts

Shear 250° 40kts @ 2000'

VFR

4:00 AM EDT - 8:00 AM EDT

Scattered 20,000'

Viz

6sm

Wind

240° 9kts

KJHW 091125Z 0912/1012 23010KT P6SM BKN030
   FM091400 27012G19KT P6SM BKN050
   FM092100 26013G21KT P6SM FEW140
   FM100100 23009KT P6SM SCT100 WS020/25040KT
   FM100800 24009KT P6SM SCT200

KDKK

Domestic
3/7/251930Z	!DKK 03/005 DKK AD AP SFC COND NOT REP 2503071930-2503101000
2/21/251404Z	!DKK 02/045 DKK AD AP WINDCONE FOR RWY 24 NOT STD 2502211404-2503311930
2/13/251417Z	!DKK 02/019 DKK OBST TOWER LGT (ASR 1009129) 422336.00N0791343.00W (6.3NM SSE DKK) 2847.1FT (1059.1FT AGL) U/S 2502131417-2505132359
11/12/241403Z	!DKK 11/005 DKK RWY 06 PAPI UNUSABLE 2411121403-2505122111EST
11/12/241403Z	!DKK 11/004 DKK RWY 33 PAPI UNUSABLE 2411121403-2505122111EST
11/12/241402Z	!DKK 11/003 DKK RWY 15 PAPI UNUSABLE 2411121402-2505122111EST
10/24/241336Z	!DKK 10/010 DKK RWY 24 PAPI U/S 2410241336-2504282111EST
9/27/241129Z	!DKK 09/012 DKK RWY 06 RWY END ID LGT U/S 2409271129-2503272111EST

ATC Tower

Attendance

0800-1700
EXC FEDERAL HOLS.

Owner

CHAUT CO
3163 AIRPORT DR
JAMESTOWN, NY 14701
Phone: 716-484-0204

Manager

SHANNON A FISCHER
3163 AIRPORT DR
JAMESTOWN, NY 14701
Phone: 716-661-8930

FSS

BUFFALO FSS (BUF)
Toll Free: 1-800-WX-BRIEF

NOTAM

DKK

Light Schedule

Lights

ACTVT HIRL RWY 06/24, MIRL RWY 15/33, PAPI 06, 24, 15, & 33, & REIL RWY 6 & 24 -CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Minor

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

High & Low Pressure

Other Services

None

Runway 06/24

Dimensions

6000 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

50,000lbs

Double Wheel

68,000lbs

Double Tandem

130,000lbs

Dual Dbl Tand

	Runway 06	Runway 24
True Heading	49°	229°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	42° 29' 22"N	42° 30' 00"N
Longitude	79° 16' 41"W	79° 15' 41"W
Elevation	674'	662'
Threshold Crossing Height	43 ft. AGL	44 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 15/33

Dimensions

4000 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

50,000lbs

Double Wheel

68,000lbs

Double Tandem

130,000lbs

Dual Dbl Tand

	Runway 15	Runway 33
True Heading	139°	319°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	42° 29' 49"N	42° 29' 19"N
Longitude	79° 16' 41"W	79° 16' 06"W
Elevation	660'	692'
Threshold Crossing Height	36 ft. AGL	45 ft. AGL
Visual Glide Path Angle	3°	3.1°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights		No

A110-2	DEER & BIRDS INVOF AIRPORT
A110-3	FICONS NOT RGLRLY MNT.
A110-5	COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -22C.
A110-6	FOR CD CTC BUFFALO ATCT AT 716-626-6939/6919.

CHAUTAUQUA COUNTY/DUNKIRK (ICAO: KDKK, IATA: DKK) is a public airport located in DUNKIRK, NY.
