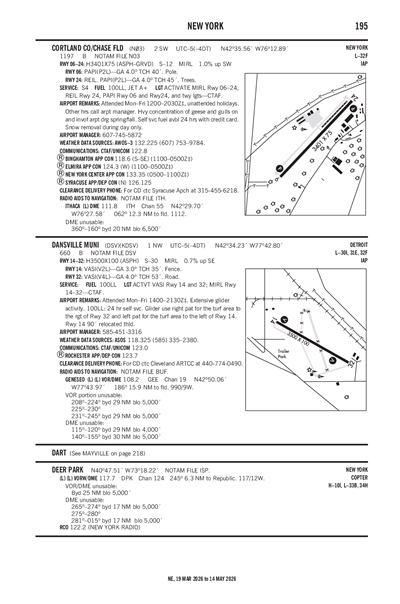

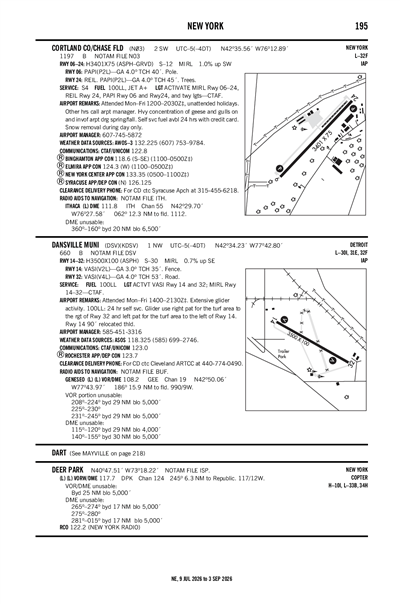

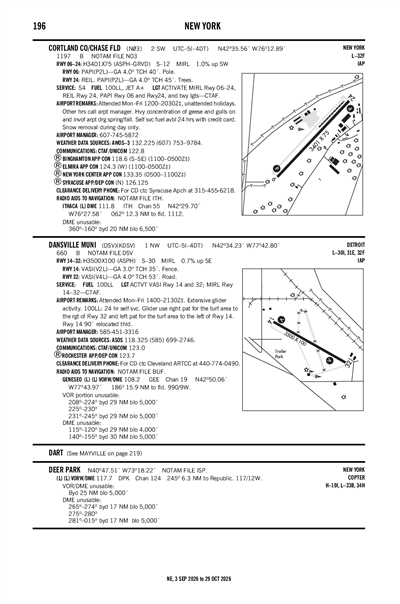

DANSVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDSV
DANSVILLE MUNI
PublicPUB

1 miles NW of DANSVILLE, NY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 34' 14"N 77° 42' 48"W
660' MSL
1660' MSL
09W
100LL
BUFFALO (BUF)
DETROIT
CLEVELAND (ZOB)
5/16/24-6/13/24
KDSV VFR
9:10 PM EDT
Light Rain
Overcast 5,500'
Broken 4,700'
Few 500'
7sm
58°F
55°F
29.67"Hg
100° 3kts
AO2 P0000 T01440128 $
KDSV 100110Z AUTO 10003KT 7SM -RA FEW005 BKN047 OVC055 14/13 A2967 RMK AO2 P0000 T01440128 $
Add Your Business

KDSV FBOs

Promote Listing
Dansville Aero
UNICOM: 123.0
Phone: (585) 330-8840
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
585-335-2380
 118.325

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KROC (33nm)
Sun, 6/9 7:20 PM EDT
Sun, 6/9 8:00 PM EDT - Mon, 6/10 8:00 PM EDT
VFR
8:00 PM EDT - 10:00 PM EDT
Overcast 3,500'
6sm
270° 6kts
VFR
10:00 PM EDT - 5:00 AM EDT
Overcast 4,000'
6sm
270° 6kts
MVFR
5:00 AM EDT - 11:00 AM EDT
Broken 1,500'
6sm
260° 9kts
VFR
11:00 AM EDT - 7:00 PM EDT
Broken 3,500'
Scattered 1,500'
6sm
280° 11kts
Gusts 17kts
MVFR
7:00 PM EDT - 8:00 PM EDT
Overcast 2,500'
6sm
290° 8kts
KROC 092320Z 1000/1024 27006KT P6SM OVC035
   FM100200 27006KT P6SM OVC040
   FM100900 26009KT P6SM BKN015
   FM101500 28011G17KT P6SM SCT015 BKN035
   FM102300 29008KT P6SM OVC025
KDSV
Domestic
6/9/241620Z !DSV 06/002 DSV OBST TOWER LGT (ASR 1053927) 423106.70N0772948.90W (10.0NM ESE DSV) 2271.0FT (310.0FT AGL) U/S 2406091620-2409070400
12/8/230213Z !DSV 12/002 DSV RWY 32 VASI U/S 2312080213-2504012000EST
FDC
6/16/231454Z !FDC 3/2279 DSV ODP DANSVILLE MUNI, DANSVILLE, NY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2A...
TAKEOFF MINIMUMS: RWY 14, STANDARD WITH A MINIMUM CLIMB GRADIENT OF 513 FEET PER NM TO 3000, OR 2000-3 FOR CLIMB IN VISUAL CONDITIONS.
TAKEOFF MINIMUMS: RWY 32, 700-2 1/2 WITH A MINIMUM CLIMB GRADIENT OF 419 FEET PER NM TO 2400, OR 2000-3 FOR CLIMB IN VISUAL CONDITIONS.
ALL OTHER DATA REMAINS AS PUBLISHED. 2306161454-2506161452EST
7/19/221240Z !FDC 2/5210 DSV IAP DANSVILLE MUNI, DANSVILLE, NY.
RNAV (GPS)-A, ORIG-A...
MSA VETUC 25 NM 4100.
2207191240-2407191240EST
7/19/221240Z !FDC 2/5208 DSV IAP DANSVILLE MUNI, DANSVILLE, NY.
RNAV (GPS) RWY 14, ORIG-C...
MSA YICUP 25 NM 4100.
2207191240-2407191240EST
No
MON - FRI 0900-1630
TOWN OF NORTH DANSVILLE
TOWN HALL, 14 CLARA BARTON ST
DANSVILLE, NY 14437
Phone: 585-335-2330
JEFF SHAVER
176 FRANKLIN STREET
DANSVILLE, NY 14437
Phone: 585-330-8840
BUFFALO FSS (BUF)
Toll Free: 1-800-WX-BRIEF
DSV
--
ACTVT VASI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
15
1
0
0
0
0
Minor
Minor
None
None
Crop Dusting
Charter Service
Glider Service
Pilot Instruction
Glider Towing

Runway 14/32

3500 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 128°308°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 42° 34' 25"N 42° 34' 03"N
Longitude 77° 43' 06"W 77° 42' 29"W
Elevation 635' 660'
Threshold Crossing Height 35 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator V2L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-2EXTSV GLIDER ACTVTY. GLIDER USE RIGHT PAT FOR THE TURF AREA RIGHT OF RWY 32 & LEFT PAT FOR THE TURF AREA LEFT OF RWY 14.
A110-3CALL AMGR FOR FUEL AVAILABILITY.
A110-4FOR CD CTC CLEVELAND ARTCC AT 440-774-0490.
A110-5RWY 14 90 FT RELCTD THLD.
DANSVILLE MUNI (ICAO: KDSV, IATA: DSV) is a public airport located in DANSVILLE, NY.
