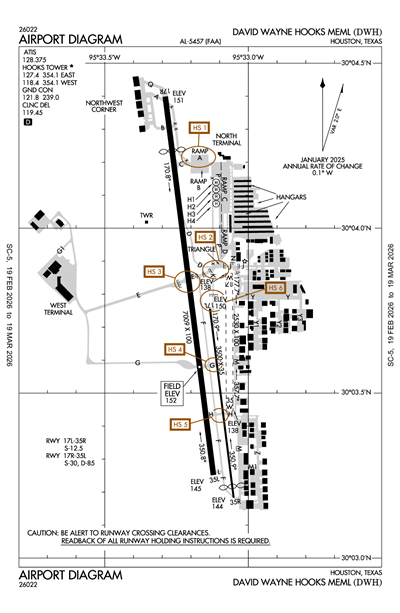

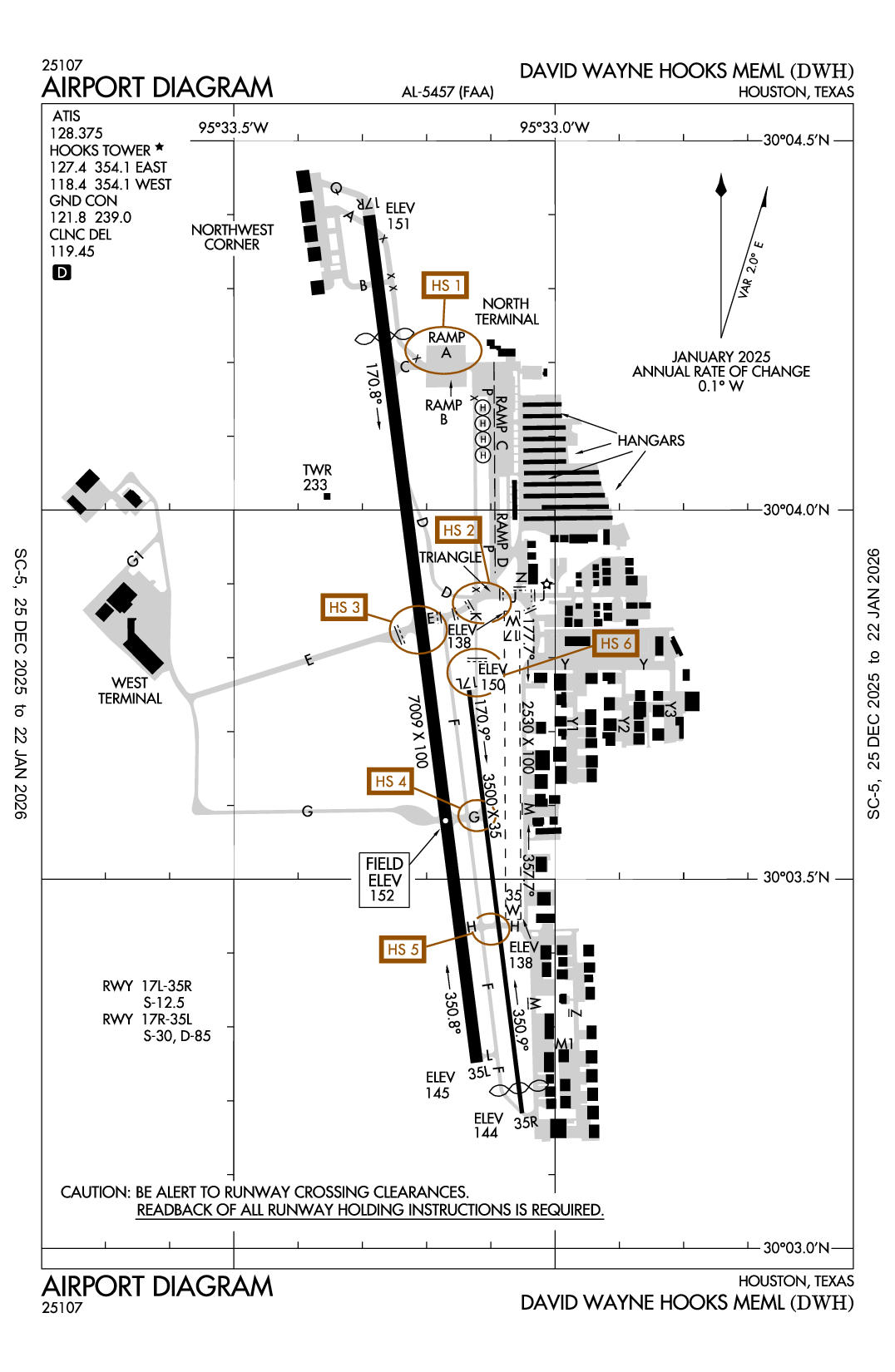

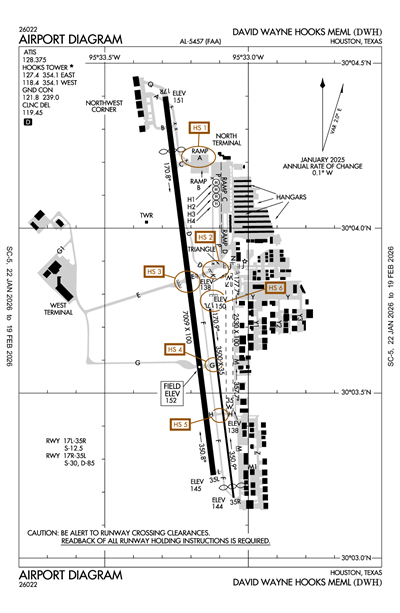

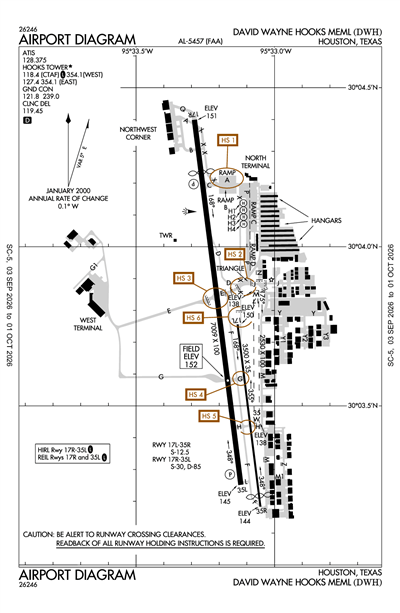

DAVID WAYNE HOOKS MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDWH
DAVID WAYNE HOOKS MEML
PublicPUB

17 miles NW of HOUSTON, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 03' 42"N 95° 33' 10"W
152' MSL
1152' MSL
05E
JET A, JET A-1+, 100LL
MONTGOMERY COUNTY (CXO)
HOUSTON
HOUSTON (ZHU)
1/23/25-2/20/25
KDWH VFR
1:53 AM CST
Clear
7sm
47°F
44°F
30.14"Hg
Calm
AO2 SLP205 T00830067
KDWH 020753Z AUTO 00000KT 7SM CLR 08/07 A3014 RMK AO2 SLP205 T00830067
Add Your Business

KDWH FBOs

Promote Listing
Gill Aviation
UNICOM: 122.95
Phone: (281) 376-5436
Other: (800) 624-7394
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 1/31
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.60
Full Serve 6.09 5.35
Fuel Notes
Prices include tax

KDWH Aircraft Service & Maintenance

Promote Listing
Rite-Way Aviation
Phone: (281) 376-4011
Fax: (281) 229-1329
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Helicopter Services Inc.
Phone: (281) 370-4354
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Jones Aircraft Services LLC
Phone: (281) 433-6077
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Terminal Area Forecast

KIAH (11nm)
Sat, 2/1 11:20 PM CST
Sun, 2/2 12:00 AM CST - Mon, 2/3 6:00 AM CST
VFR
12:00 AM CST - 4:00 AM CST
Sky Clear
6sm
VRB° 4kts
VFR
4:00 AM CST - 8:00 AM CST
Mist
Sky Clear
6sm
Calm
VFR
8:00 AM CST - 12:00 PM CST
Few 3,000'
6sm
VRB° 4kts
VFR
12:00 PM CST - 2:00 AM CST
Few 25,000'
6sm
190° 7kts
MVFR
2:00 AM CST - 6:00 AM CST
Mist
Few 1,000'
4sm
170° 5kts
KIAH 020520Z 0206/0312 VRB04KT P6SM SKC
   FM021000 00000KT 6SM BR SKC
   FM021400 VRB04KT P6SM FEW030
   FM021800 19007KT P6SM FEW250
   FM030800 17005KT 4SM BR FEW010
KDWH
Domestic
2/3/250400Z !DWH 01/064 DWH RWY 17R/35L CLSD DLY 0400-1200 2502030400-2502081200
1/31/250609Z !DWH 01/062 DWH OBST TOWER LGT (ASR 1304686) 300516.45N0953049.77W (2.6NM NE DWH) 326FT (184FT AGL) U/S 2501310609-2503172359
1/28/252059Z !DWH 01/059 DWH OBST TOWER LGT (ASN 2009-ASW-2008-OE) 300444N0953322W (1.0NM N DWH) 213FT (67FT AGL) U/S 2501282059-2502122059
1/27/251618Z !DWH 01/054 DWH SVC PCL ALL U/S EXC MEDIUM INTST ON CONS 2501271618-2503011300
1/27/251616Z !DWH 01/053 DWH TWY F BTN TWY H AND TWY L CLSD 2501271616-2508011200
1/27/251615Z !DWH 01/052 DWH AD AP WINDCONE FOR RWY 17R LEFT SIDE U/S 2501271615-2508011200
1/27/251614Z !DWH 01/051 DWH TWY G BTN TWY F AND RWY 17R/35L CLSD 2501271614-2508011200
1/26/251805Z !DWH 01/050 DWH OBST POWER LINE LGT (ASN 2022-ASW-1732-OE) 295616N0953205W (7.4NM S DWH) 323FT (208FT AGL) U/S 2501261805-2502101805
1/26/251626Z !DWH 01/049 DWH OBST TOWER LGT (ASN 2011-ASW-6519-OE) 300920N0952544W (8.6NM NE DWH) 619FT (500FT AGL) U/S 2501261626-2502101626
1/21/251404Z !DWH 01/037 DWH OBST TOWER LGT (ASR 1000181) 301331.00N0953711.00W (10.3NM NNW DWH) 522.0FT (307.1FT AGL) U/S 2501211404-2504210500
12/18/240006Z !DWH 12/013 DWH OBST TOWER LGT (ASR 1050449) 300728.60N0953558.60W (4.5NM NNW DWH) 453.4FT (288.7FT AGL) U/S 2412180006-2503172359
10/26/241750Z !DWH 10/038 DWH OBST TOWER LGT (ASR 1045585) 301135.00N0953541.00W (8.1NM NNW DWH) 565.6FT (359.6FT AGL) U/S 2410261750-2504302359
10/26/241750Z !DWH 10/037 DWH OBST TOWER LGT (ASR 1045586) 301135.00N0953541.00W (8.1NM NNW DWH) 563.0FT (356.0FT AGL) U/S 2410261750-2504302359
10/26/241749Z !DWH 10/036 DWH OBST TOWER LGT (ASR 1045587) 301133.00N0953544.00W (8.1NM NNW DWH) 566.3FT (364.2FT AGL) U/S 2410261749-2504302359
9/26/241028Z !DWH 09/060 DWH NAV ILS RWY 17R U/S 2409261028-2505012000EST
FDC
1/27/251447Z !FDC 5/7005 DWH SID DAVID WAYNE HOOKS MEML, HOUSTON, TX.
PALACIOS THREE DEPARTURE...
FORT STOCKTON TRANSITION AND SAN ANTONIO TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
THX VOR OUT OF SERVICE. 2501271447-2509081447EST
12/20/241625Z !FDC 4/9608 DWH SID DAVID WAYNE HOOKS MEML, HOUSTON, TX.
PALACIOS THREE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PSX VORTAC OUT OF SERVICE. 2412201625-2508011625EST
11/20/241431Z !FDC 4/6597 DWH SID DAVID WAYNE HOOKS MEML, HOUSTON, TX.
LEONA FOUR DEPARTURE...
ARDMORE TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ADM VORTAC OUT OF SERVICE. 2411201431-2503311700EST
5/14/241428Z !FDC 4/3527 DWH SID DAVID WAYNE HOOKS MEML, HOUSTON, TX.
LEONA FOUR DEPARTURE...
BONHAM TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CQY VOR OUT OF SERVICE. 2405141428-2506251428EST
5/14/241428Z !FDC 4/3524 DWH SID DAVID WAYNE HOOKS MEML, HOUSTON, TX.
CRIED ONE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CQY VOR OUT OF SERVICE. 2405141428-2506251428EST
4/30/242359Z !FDC 4/5015 DWH STAR DAVID WAYNE HOOKS MEMORIAL, HOUSTON, TX. HUDZY
FOUR ARR... SWB TRANSITION N/A EXC FOR ACFT EQUIPPED WITH SUITABLE
RNAV SYSTEM WITH GPS, SWB VOR U/S 2404302359-2504302359
4/12/241648Z !FDC 4/0245 DWH SID DAVID WAYNE HOOKS MEML, HOUSTON, TX.
HOODO SEVEN DEPARTURE (RNAV)...
DEPARTURE PROCEDURE GPS REQUIRED,
LEV VORTAC OUT OF SERVICE. 2404121648-2504231648EST
Yes
ALL
JAG GILL
20803 STEUBNER AIRLINE, NR 0
SPRING, TX 77379
Phone: 281-376-5436
ROGER SCHMIDT
20803 STEUBNER AIRLINE, NR 0
SPRING, TX 77379
Phone: 281-376-5436
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
DWH
--
WHEN ATCT CLSD ACTVT REIL RWYS 17R & 35L; HIRL RWY 17R/35L - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
Low Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 17L/35R

3500 ft. x 35 ft.
ASPH
Good
NONE


12,000lbs
--
--
--
  Runway 17L Runway 35R
True Heading 173°353°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 30° 03' 45"N 30° 03' 11"N
Longitude 95° 33' 08"W 95° 33' 03"W
Elevation 150' 144'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17R/35L

7009 ft. x 100 ft.
ASPH
Good
NONE
HIGH

30,000lbs
85,000lbs
--
--
  Runway 17R Runway 35L
True Heading 173°353°
Traffic Pattern Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 04' 24"N 30° 03' 15"N
Longitude 95° 33' 17"W 95° 33' 07"W
Elevation 150' 145'
Threshold Crossing Height 52 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17W/35W

2530 ft. x 100 ft.
WATER
Good
NONE


--
--
--
--
  Runway 17W Runway 35W
True Heading 180°360°
Traffic Pattern Left Right
Markings NONE NONE
Markings Condition GOOD GOOD
Latitude 30° 03' 52"N 30° 03' 27"N
Longitude 95° 33' 04"W 95° 33' 04"W
Elevation 138' 138'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

50 ft. x 50 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway H1 Runway
True Heading 87°267°
Traffic Pattern
Markings BSC
Markings Condition FAIR
Latitude 30° 04' 08"N N/A
Longitude 95° 33' 07"W N/A
Elevation 147' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

50 ft. x 50 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway H2 Runway
True Heading 87°267°
Traffic Pattern
Markings BSC
Markings Condition FAIR
Latitude 30° 04' 07"N N/A
Longitude 95° 33' 07"W N/A
Elevation 148' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H3

50 ft. x 50 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway H3 Runway
True Heading 87°267°
Traffic Pattern
Markings BSC
Markings Condition FAIR
Latitude 30° 04' 06"N N/A
Longitude 95° 33' 07"W N/A
Elevation 148' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H4

50 ft. x 50 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway H4 Runway
True Heading 87°267°
Traffic Pattern
Markings BSC
Markings Condition FAIR
Latitude 30° 04' 05"N N/A
Longitude 95° 33' 07"W N/A
Elevation 148' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TWYS UNLGTD.
A110-11TWYS A & B CLSD EAST OF RWY 17R INDEFLY.
A110-13NOISE SENSITIVE AREA SW OF ARPT. ALL MIL ACFT DEPARTING RWY 17R CLIMB RWY HDG TO 650 FT MSL PRIOR TO TURNS OR REJOIN.
A110-14ACFT 25000 LBS & OVR ARE RSTRD TO TWYS C, P, E (BTN TWYS P & G), TWY G (NORTH OF TWY E), RAMPS A AND C AND THE TOMBALL JET CNTR RAMP. ALL OTHER TWYS RSTRD TO ACFT BLW 25000 LBS.
A110-15TWYS D & K RSTRD TO ACFT 12500 LBS AND BLW.
A110-16INT WHERE TXYS PAPA, ECHO, JULIETTE & KILO MEET IS REFERRED TO AS THE TRIANGLE.
A110-17FOR CD WHEN ATCT CLSD, CTC HOUSTON APCH ON CD FREQ OR CALL 281-443-5844. FOR IFR CANCELLATION WHEN ATCT CLSD, CALL 281-443-5888.
A110-18BIRDS & DEER ON & INVOF ARPT.
A110-2AFT SUNSET LARGE ACFT USE TWY P BTN TWYS E & C.
A110-3HEL PRACTICE AREA WEST OF ATCT AT OR BLW 600 FT.
A110-8FOUR HEL PRKG SPOTS LCTD EAST OF TWY K.
A110-9TWY K RSTRD TO PISTON ACFT ONLY.
DAVID WAYNE HOOKS MEML (ICAO: KDWH, IATA: DWH) is a public airport located in HOUSTON, TX.
