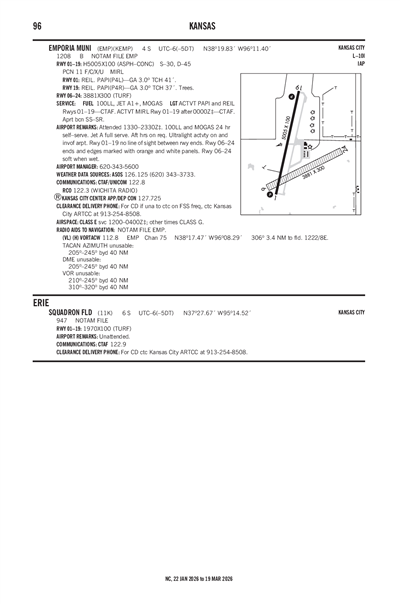

EMPORIA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEMP
EMPORIA MUNI
PublicPUB

4 miles S of EMPORIA, KS
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 19' 50"N 96° 11' 24"W
1208' MSL
2208' MSL
05E
JET A, 100LL, MOGAS
WICHITA (ICT)
KANSAS CITY
KANSAS CITY (ZKC)
11/28/24-12/26/24
KEMP MVFR
5:53 AM CST
Overcast 2,100'
10sm
45°F
33°F
30.04"Hg
200° 8kts
AO2 SLP178 T00720006 10078 20056 53010
KEMP 231153Z AUTO 20008KT 10SM OVC021 07/01 A3004 RMK AO2 SLP178 T00720006 10078 20056 53010

KEMP FBOs

Emporia Aviation Center
UNICOM: 122.8
Phone: (620) 343-5600
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/18
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.99 3.99
Full Serve 5.20 4.95
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
620-343-3733
126.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFOE (45nm)
Mon, 12/23 5:29 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
MVFR
6:00 AM CST - 11:00 AM CST
Broken 2,100'
6sm
230° 6kts
MVFR
Temporary 6:00 AM CST - 10:00 AM CST
Broken 1,600'
N/A
Calm
VFR
11:00 AM CST - 6:00 AM CST
Broken 8,000'
Scattered 3,000'
6sm
320° 4kts
KFOE 231129Z 2312/2412 23006KT P6SM BKN021
   TEMPO 2312/2316 BKN016
   FM231700 32004KT P6SM SCT030 BKN080
KEMP
Domestic
12/10/241952Z !EMP 12/003 EMP RWY 19 PAPI HIGH INTST DECOMMISSIONED 2412101952-2412311800
12/10/241932Z !EMP 12/002 EMP TWY ALL LGT DECOMMISSIONED 2412101932-PERM
11/29/240147Z !EMP 11/007 EMP OBST TOWER LGT (ASR 1257315) 382657.60N0960759.30W (7.6NM NNE EMP) 1597.1FT (415.0FT AGL) U/S 2411290147-2501312359
11/24/241753Z !EMP 11/005 EMP OBST TOWER LGT (ASR 1326859) 382421.06N0960050.16W (9.5NM ENE EMP) 1413FT (271FT AGL) U/S 2411241753-2501081753
FDC
10/3/231827Z !FDC 3/9341 EMP ODP EMPORIA MUNI, EMPORIA, KS.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG-A...
TAKE-OFF MINIMUMS RWY 19: STANDARD WITH MINIMUM CLIMB OF 225 FT/NM TO 1800.
TAKEOFF OBSTACLE NOTES: NOTE: RWY 1: APPROACH LIGHTS BEGINNING 10 FT FROM DER, 31 FT RIGHT OF CENTERLINE, UP TO 2 FT AGL/1195 FT MSL. TRAVERSE WAY, LIGHT POLES BEGINNING 13 FT FROM DER, 125 FT LEFT OF CENTERLINE, UP TO 1206 FT MSL. NOTE: RWY 19: LIGHT POLES 33 FT FROM DER, 90 FT RIGHT OF CENTERLINE, 4 FT AGL/1207 FT MSL. LIGHT POLES 34 FT FROM DER, 89 FT LEFT OF CENTERLINE, 3 FT AGL/1206 FT MSL. TREE 58 FT FROM DER, 396 FT LEFT OF CENTERLINE, 7 FT AGL/1209 FT MSL. TREES BEGINNING 233 FT FROM DER, 283 FT LEFT OF CENTERLINE, UP TO 1216 FT MSL. TREE 274 FT FROM DER, 393 FT RIGHT OF CENTERLINE, 1215 FT MSL. TREE 322 FT FROM DER, 448 FT LEFT OF CENTERLINE, 1227 FT MSL. TREES BEGINNING 428 FT FROM DER, 275 FT LEFT OF CENTERLINE, UP TO 1232 FT MSL. TREE 514 FT FROM DER, 278 FT RIGHT OF CENTERLINE, 29 FT AGL/1219 FT MSL. TREES BEGINNING 1004 FT FROM DER, 202 FT LEFT OF CENTERLINE, UP TO 58 FT AGL/1241 FT MSL. TREE 1006 FT FROM DER, 288 FT RIGHT OF CENTERLINE, 44 FT AGL/1233 FT MSL. TREE 1339 FT FROM DER, 484 FT LEFT OF CENTERLINE, 61 FT AGL/1248 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2310031827-2510031827EST
No
MAR-OCT 0730-1800
NOV-FEB 0730-1730
CITY OF EMPORIA
P O BOX 928
EMPORIA, KS 66801
Phone: 620-342-5105
KEN ADAMS
1005 COUNTY RD 120
EMPORIA, KS 66801
Phone: 620-343-5600
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
EMP
--
ACTVT PAPI & REIL RY 01/19 - CTAF. ACTVT MIRL RY 01/19 AFT 1800 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 01/19

5005 ft. x 100 ft.
ASPH CONC
Good
NONE
MED
11 /F/C/X/U
30,000lbs
45,000lbs
--
--
  Runway 01 Runway 19
True Heading 12°192°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 19' 31"N 38° 20' 20"N
Longitude 96° 11' 35"W 96° 11' 22"W
Elevation 1,204' 1,193'
Threshold Crossing Height 41 ft. AGL 37 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 06/24

3881 ft. x 300 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 06 Runway 24
True Heading 65°245°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition
Latitude 38° 19' 35"N 38° 19' 51"N
Longitude 96° 11' 40"W 96° 10' 56"W
Elevation 1,204' 1,201'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3ULTRALIGHT ACTVTY ON & INVOF ARPT.
A110-4ASOS MAST 27 FT AGL LCTD APRXLY 700 FT W OF RY 01/19 & 1,150 FT N OF AER 01.
A110-5WINDSOCK AT SEGMENTED CIRCLE NOT LIGHTED. WINDSOCK LIGHTED APRXLY 250 FT E OF RY 1/19 & 1000 FT S OF AER 19.
A110-633 FT TREE OUTSIDE OF AND ADJ TO APCH SFC 100 FT FRM RWY 24 THLD.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY ARTCC AT 913-254-8508.
EMPORIA MUNI (ICAO: KEMP, IATA: EMP) is a public airport located in EMPORIA, KS.
