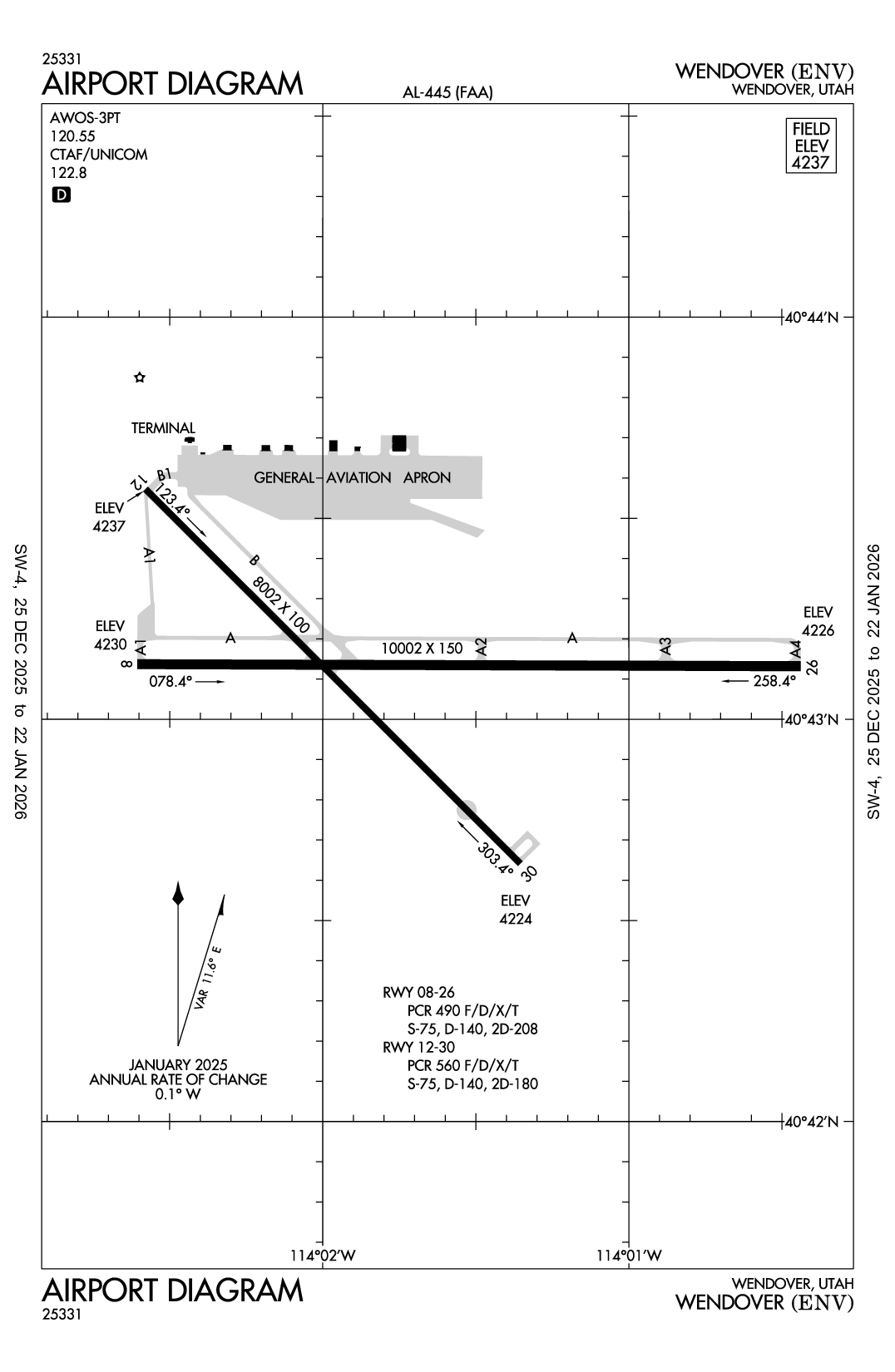

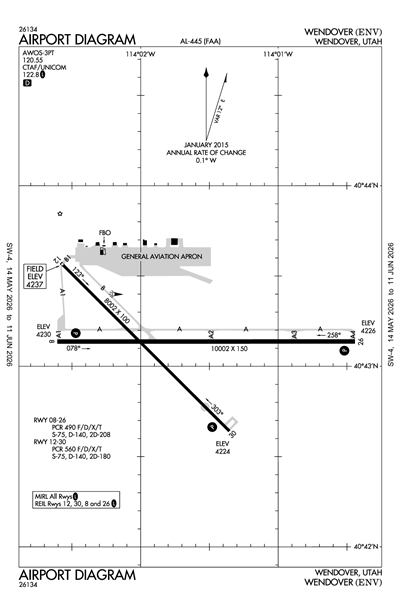

WENDOVER - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KENV
WENDOVER
PublicPUB

1 miles SE of WENDOVER, UT
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 43' 07"N 114° 01' 43"W
4237' MSL
5237' MSL
12E
JET A, 100
CEDAR CITY (CDC)
SALT LAKE CITY
SALT LAKE CITY (ZLC)
5/16/24-6/13/24
KENV VFR
8:56 PM MDT
Clear
10sm
73°F
24°F
29.97"Hg
050° 3kts
AO2 SLP117 T02281044 56005
KENV 010256Z AUTO 05003KT 10SM CLR 23/M04 A2997 RMK AO2 SLP117 T02281044 56005
Add Your Business

KENV FBOs

Promote Listing
Wendover Airport
UNICOM: 122.8
Phone: (435) 843-3360
Other: (435) 240-0000
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.30
Full Serve 6.50 6.15 6.20
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
435-665-2521
 120.55

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KENV
Fri, 5/31 5:20 PM MDT
Fri, 5/31 6:00 PM MDT - Sat, 6/1 6:00 PM MDT
VFR
6:00 PM MDT - 11:00 PM MDT
Sky Clear
6sm
120° 8kts
VFR
11:00 PM MDT - 2:00 AM MDT
Scattered 15,000'
6sm
VRB° 5kts
VFR
2:00 AM MDT - 10:00 AM MDT
Broken 15,000'
6sm
330° 8kts
VFR
10:00 AM MDT - 6:00 PM MDT
Broken 20,000'
Scattered 15,000'
6sm
140° 6kts
KENV 312320Z 0100/0124 12008KT P6SM SKC
   FM010500 VRB05KT P6SM SCT150
   FM010800 33008KT P6SM BKN150
   FM011600 14006KT P6SM SCT150 BKN200
KENV
Domestic
5/28/242353Z !ENV 05/009 ENV RWY 08 HLDG PSN SIGN S SIDE LGT U/S 2405282353-2406072359
5/25/240844Z !ENV 05/008 ENV OBST TOWER LGT (ASR 1219052) 404402.00N1134721.60W (10.9NM E ENV) 4484.9FT (270.0FT AGL) U/S 2405250844-2406240001
5/24/242319Z !ENV 05/007 ENV TWY A1 HLDG PSN SIGN FOR APCH END RWY 12 LGT U/S 2405242319-2406072359
5/24/242313Z !ENV 05/006 ENV RWY 26 PAPI U/S 2405242313-2406072359
5/21/240420Z !ENV 05/005 ENV OBST TOWER LGT (ASR 1219404) 404343.60N1133337.80W (21.3NM E ENV) 4486.2FT (262.1FT AGL) U/S 2405210420-2406050320
No
0800-1800
TOOELE COUNTY
P.O. BOX 159
WENDOVER, UT 84083
Phone: 435-665-2308
LISA DUNN
P.O. BOX 159
WENDOVER, UT 84083
Phone: 435-843-3360
CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF
ENV
--
ACTVT REIL RWY 08, 12, 26, 30; PAPI RWY 08, 26, 30; MIRL RWY 08/26 & 12/30 - CTAF.
N/A
Yes
Yes
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
10
3
2
0
0
0
Minor
Minor
None
None
None

Runway 08/26

10002 ft. x 150 ft.
ASPH
Good
GRVD
MED
49 /F/C/X/T
75,000lbs
140,000lbs
208,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 43' 08"N 40° 43' 08"N
Longitude 114° 02' 36"W 114° 00' 26"W
Elevation 4,230' 4,226'
Threshold Crossing Height 40 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 12/30

8002 ft. x 100 ft.
ASPH
Fair
GRVD
MED
73 /F/C/X/T
75,000lbs
140,000lbs
180,000lbs
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 43' 34"N 40° 42' 38"N
Longitude 114° 02' 35"W 114° 01' 21"W
Elevation 4,237' 4,224'
Threshold Crossing Height -- 45 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -13C.
WENDOVER (ICAO: KENV, IATA: ENV) is a public airport located in WENDOVER, UT.
