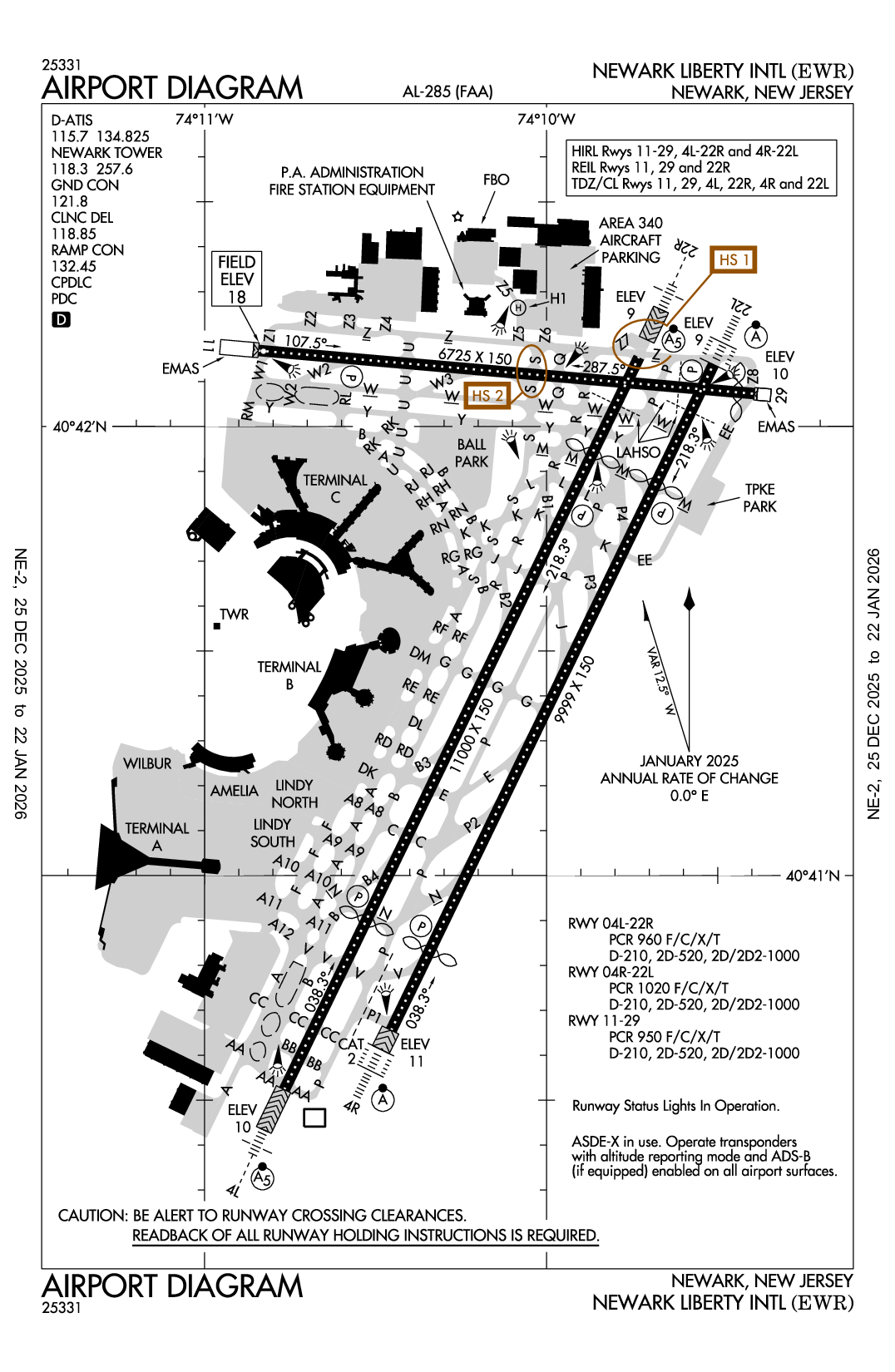

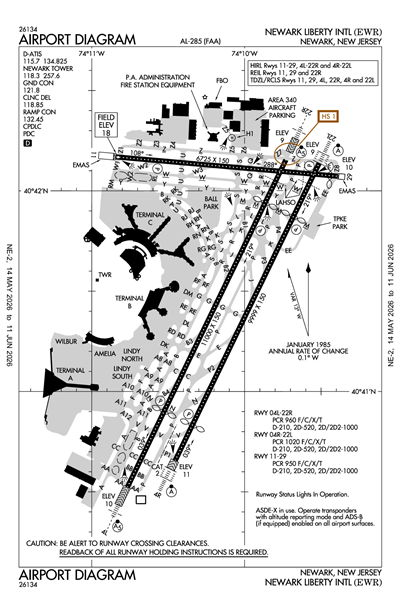

NEWARK LIBERTY INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEWR
NEWARK LIBERTY INTL
PublicPUB

3 miles S of NEWARK, NJ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 41' 33"N 74° 10' 07"W
17' MSL
1017' MSL
13W
JET A, 100LL
NEW YORK (ISP)
NEW YORK
NEW YORK (ZNY)
11/28/24-12/26/24
KEWR VFR
6:51 AM EST
Few 25,000'
Few 6,000'
10sm
11°F
1°F
30.66"Hg
020° 6kts
AO2 SLP381 4/001 T11171172 11106 21117 53008 $
KEWR 231151Z 02006KT 10SM FEW060 FEW250 M12/M17 A3066 RMK AO2 SLP381 4/001 T11171172 11106 21117 53008 $
Add Your Business

KEWR FBOs

Promote Listing
Signature Aviation
UNICOM: 130.85
Phone: (973) 624-1660
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/19
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.90 9.15
Fuel Notes
Prices include tax

KEWR Ground Transportation (Taxi, Limo, Car Service)

Bermuda Limousine International
Phone: (212) 647-8400
Fax: (212) 633-2685
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Terminal Area Forecast

KEWR
Mon, 12/23 6:32 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 1:00 PM EST
VFR
7:00 AM EST - 8:00 AM EST
Few 25,000'
6sm
010° 6kts
VFR
8:00 AM EST - 4:00 PM EST
Scattered 25,000'
6sm
VRB° 5kts
VFR
4:00 PM EST - 1:00 AM EST
Broken 15,000'
6sm
190° 6kts
VFR
1:00 AM EST - 8:00 AM EST
Broken 15,000'
6sm
230° 6kts
MVFR
6:00 AM EST - 8:00 AM EST
Light Snow
Overcast 5,000'
Scattered 1,500'
5sm
Calm
VFR
8:00 AM EST - 1:00 PM EST
Overcast 5,000'
6sm
270° 10kts
IFR
8:00 AM EST - 1:00 PM EST
Light Snow
Broken 1,200'
2sm
Calm
KEWR 231132Z 2312/2418 01006KT P6SM FEW250
   FM231300 VRB05KT P6SM SCT250
   FM232100 19006KT P6SM BKN150
   FM240600 23006KT P6SM BKN150
   PROB30 2411/2413 5SM -SN SCT015 OVC050
   FM241300 27010KT P6SM OVC050
   PROB30 2413/2418 2SM -SN BKN012
KEWR
Domestic
12/23/240156Z !EWR 12/221 EWR APRON TERMINAL A RAMP TXL A12 W OF TXL F3 CLSD 2412230156-2412231400
12/17/240847Z !EWR 12/164 EWR TWY W HLDG PSN SIGN SOUTHWEST SIDE FOR RWY 04L/22R LGT U/S 2412170847-2501311200
12/15/240902Z !EWR 12/147 EWR TWY RD LOCATION SIGN BTN TWY A AND TERMINAL B RAMP LGT U/S 2412150902-2501311859
12/15/240900Z !EWR 12/146 EWR TWY B LOCATION SIGN FOR TWY E LGT U/S 2412150900-2501311859
12/14/241031Z !EWR 12/141 EWR TWY G HLDG PSN SIGN NORTH SIDE BTN RWY 04L/22R AND TWY B LGT U/S 2412141031-2501311859
12/10/241817Z !EWR 12/097 EWR OBST TOWER LGT (ASR 1044317) 404404.00N0740958.00W (2.6NM NE EWR) 465.9FT (445.9FT AGL) U/S 2412101817-2501090001
12/9/242200Z !EWR 12/086 EWR RWY 04L 7000FT DIST REMAINING SIGN E SIDE MISSING 2412092200-2503100359
12/9/242158Z !EWR 12/085 EWR RWY 22R 4000FT DIST REMAINING SIGN E SIDE MISSING 2412092158-2503100359
12/1/241928Z !EWR 12/006 EWR RWY 04R/22L CL MARKINGS OBSC 2412011928-2504302300
11/14/241100Z !EWR 11/119 EWR OBST TWR (ASN 2024-AEA-3145-NRA) 404216N0741010W (0.7NM N EWR) 138FT (136FT AGL) FLAGGED AND TGTD THU FRI MON TUE WED 1100-2300 2411141100-2412312300
11/11/240035Z !EWR 11/101 EWR OBST CRANE (ASN 2024-AEA-5664-OE) 404215N0740904W (1.1NM NE EWR) 136FT (128FT AGL) FLAGGED AND LGTD 2411110035-2501010500
11/11/240034Z !EWR 11/100 EWR OBST CRANE (ASN 2024-AEA-5994-OE) 404210N0740905W (1.0NM NE EWR) 138FT (128FT AGL) FLAGGED AND LGTD 2411110034-2501010500
11/11/240032Z !EWR 11/098 EWR OBST CRANE (ASN 2024-AEA-5667-OE) 404214N0740904W (1.1NM NE EWR) 116FT (108FT AGL) FLAGGED AND LGTD 2411110032-2501010500
11/11/240023Z !EWR 11/097 EWR OBST CRANE (ASN 2024-AEA-5666-OE) 404216N0740905W (1.1NM NE EWR) 116FT (108FT AGL) FLAGGED AND LGTD 2411110023-2501010500
11/10/240936Z !EWR 11/088 EWR TWY N HLDG PSN MARKINGS BTN RWY 04L/22R AND TWY B NOT STD 2411100936-2412311859
10/20/242236Z !EWR 10/212 EWR TWY Z1 HLDG PSN MARKINGS FOR APCH END RWY 11 SOUTH SIDE NOT STD 2410202236-2412271000
10/15/240948Z !EWR 10/150 EWR TWY A DCT ACCESS TO GATE 85 TWY DIRECTION SIGN LGT U/S 2410150948-2501160459
10/10/242034Z !EWR 10/100 EWR TWY P3 SHOULDER MARKINGS BTN RWY 04R/22L AND TWY P EAST SIDE NOT STD 2410102034-2504110359
10/10/242032Z !EWR 10/099 EWR TWY P SHOULDER MARKINGS BTN TWY J AND TWY P3 EAST SIDE NOT STD 2410102032-2504110359
10/10/241629Z !EWR 10/098 EWR TWY P2 CL MARKINGS FOR RWY 04R/22L NOT STD 2410101629-2507311859
10/1/242150Z !EWR 10/015 EWR TWY F TWY END SIGN NORTH SIDE MISSING 2410012150-2501020459
9/1/241800Z !EWR 09/001 EWR TWY W HLDG PSN MARKINGS BTN RWY 04R/22L AND TWY P NOT STD 2409011800-2503152300
7/31/241824Z !EWR 07/372 EWR TWY P4 SFC PAINTED HLDG PSN SIGNS BTN RWY 04R/22L AND TWY P NOT STD 2407311824-2412312300
1/16/242055Z !EWR 01/170 EWR AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF 404000N0741232W (2NM SW EWR) SFC-200FT AGL 2401162055-2501010500
FDC
12/16/241246Z !FDC 4/7221 EWR IAP NEWARK LIBERTY INTL, NEWARK, NJ.
RNAV (GPS) W RWY 29 ORIG ...
VDA AFISK TO RW29: 3.00/60. THIS IS RNAV (GPS) W RWY 29 ORIG A.
2412161246-PERM
12/5/242127Z !FDC 4/2521 EWR SID NEWARK LIBERTY INTL, NEWARK, NJ.
NEWARK FIVE DEPARTURE...
COATE, NEWEL DEPARTURES: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
DEPARTING RWY 4L/R: ELIOT AND ZIMMZ DEPARTURES: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, SAX VORTAC OUT OF SERVICE. 2412052127-2507172127EST
12/5/242127Z !FDC 4/2520 EWR SID NEWARK LIBERTY INTL, NEWARK, NJ.
LIBERTY FIVE DEPARTURE...
COATE, ELIOT, ZIMMZ, NEWEL DEPARTURES: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, SAX VORTAC OUT OF SERVICE. 2412052127-2507172127EST
12/5/242127Z !FDC 4/2510 EWR IAP NEWARK LIBERTY INTL, NEWARK, NJ.
RNAV (RNP) Z RWY 29, ORIG-G...
RNP 0.30 DA 609/HAT 599 ALL CATS. *RNP 0.30 DA 531/HAT 521 ALL CATS. *MISSED APPROACH REQUIRES MINIMUM CLIMB OF 340 FEET PER NM TO 800. PERM CRANE (34-000846) 439FT MSL (4A) 404104.88N/0740905.09W.
2412052127-2612052116EST
12/5/241430Z !FDC 4/2166 EWR IAP NEWARK LIBERTY INTL, NEWARK, NJ.
RNAV (GPS) X RWY 29, ORIG-C...
LNAV MDA 560/HAT 550 ALL CATS. VISIBILITY CAT C/D 1 5/8.
PERM CRANE (34-000846) 439FT MSL (4A) 404104.88N/0740905.09W.
2412051430-2612051430EST
12/5/241428Z !FDC 4/2160 EWR IAP NEWARK LIBERTY INTL, NEWARK, NJ.
RNAV (RNP) Y RWY 29, AMDT 1E...
RNP 0.30 DA 609/HAT 599 ALL CATS. **RNP 0.30 DA 530/HAT 520 ALL CATS. **MISSED APPROACH REQUIRES MINIMUM CLIMB OF 417 FEET PER NM TO 800. PERM CRANE (34-000846) 439FT MSL (4A) 404104.88N/0740905.09W.
2412051428-2612051428EST
6/26/241611Z !FDC 4/3961 EWR SID NEWARK LIBERTY INTL, NEWARK, NJ.
NEWARK FIVE DEPARTURE...
NOTE: PARKE DEPARTURE VIA BWZ R-250 NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BWZ VOR/DME OUT OF SERVICE. 2406261611-2502051611EST
4/3/241636Z !FDC 4/6224 EWR SPECIAL NEWARK LIBERTY INTL, NEWARK, NJ.
RNAV VISUAL RWY 29, ORIG...
PROCEDURE NA.
2404031636-2604051635EST
11/30/231329Z !FDC 3/8519 EWR SID NEWARK LIBERTY INTL, NEWARK, NJ.
DEVIL ONE DEPARTURE...
NEWARK FIVE DEPARTURE...
DIXIE TRANSITION, WHITE TRANSITION: NOTE: FIX NECCK AND COL VOR/DME ARE COLLOCATED AND EITHER CAN BE UTILIZED.
ALL OTHER DATA REMAINS AS PUBLISHED. 2311301329-2511301329EST
6/15/231644Z !FDC 3/1670 EWR IAP NEWARK LIBERTY INTL, NEWARK, NJ.
COPTER ILS Y OR LOC Y RWY 4L, AMDT 2...
MISSED APPROACH: CLIMB TO 520, THEN CLIMBING RIGHT TURN TO 2000 DIRECT TYNIE AND ON TRACK 015 TO NEBTE, CROSS NEBTE AT OR BELOW 2000, THEN CLIMBING LEFT TURN TO 3000 ON TRACK 313 TO FLYRS AND HOLD.
2306151644-2506151644EST
6/15/231602Z !FDC 3/1541 EWR IAP NEWARK LIBERTY INTL, NEWARK, NJ.
RNAV (RNP) Z RWY 4R, AMDT 1 ...
ALTERNATE MINIMUMS NA 2306151602-2506151601EST
6/15/231302Z !FDC 3/1247 EWR IAP NEWARK LIBERTY INTL, NEWARK, NJ.
ILS OR LOC RWY 11, AMDT 3...
NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 350FT.
DISREGARD PROFILE NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.08/TCH 58).
2306151302-2506151302EST
Yes
ALL
PORT AUTHORITY OF NY & NJ
4 WTC 150 GREENWICH ST, 18TH FLOOR
NEW YORK, NY 10006
Phone: 212-435-3720
AIDAN O'DONNELL
BUILDING #1- CONRAD ROAD
NEWARK, NJ 07114
Phone: 973-961-6161
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
EWR
--
--
N/A
Yes - Lighted
No
Yes
Hangar
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High Pressure
None
Air Freight
Cargo Handling

Runway 04L/22R

11000 ft. x 150 ft.
ASPH CONC
Excellent
GRVD
HIGH

--
210,000lbs
520,000lbs
1,000,000lbs
  Runway 04L Runway 22R
True Heading 26°206°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 40' 31"N 40° 42' 09"N
Longitude 74° 10' 46"W 74° 09' 44"W
Elevation 10' 9'
Threshold Crossing Height 77 ft. AGL 70 ft. AGL
Visual Glide Path Angle 3.1° 3.1°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 04R/22L

10000 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

--
210,000lbs
520,000lbs
1,000,000lbs
  Runway 04R Runway 22L
True Heading 26°206°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 40' 39"N 40° 42' 08"N
Longitude 74° 10' 27"W 74° 09' 31"W
Elevation 11' 9'
Threshold Crossing Height 71 ft. AGL 60 ft. AGL
Visual Glide Path Angle 2.95° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 11/29

6726 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

--
210,000lbs
520,000lbs
1,000,000lbs
  Runway 11 Runway 29
True Heading 95°275°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 40° 42' 10"N 40° 42' 04"N
Longitude 74° 10' 51"W 74° 09' 24"W
Elevation 17' 10'
Threshold Crossing Height 60 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4R
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes

Runway H1

54 ft. x 54 ft.
ASPH
Excellent
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading 100°280°
Traffic Pattern
Markings NPI
Markings Condition GOOD
Latitude 40° 42' 16"N N/A
Longitude 74° 10' 05"W N/A
Elevation 8' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10RWY 4R & 4L DEP USE UPPER ANT FOR ATC COM.
A110-11HIGH VOLUME OF LOW LEVEL HEL TFC ARR AND DEP HELO KEARNY HELI (65NJ) LCTD 3.5 MILES NE OF ARPT.
A110-12RWY STATUS LIGHTS IN OPR.
A110-14CPDLC DEPARTURE CLEARANCE SERVICE AVAILABLE.
A110-17ADG IV ACFT RSTR FM PSG TWY Z3 ON Z.
A110-18TWY Z EAST OF TWY U ACFT SPEED RSTR OF 17 KTS/20 MPH MAX FOR ALL ACFT WITH WINGSPANS IN EXCESS OF 171 FT.
A110-2FLOCKS OF BIRDS ON & INVOF ARPT.
A110-20ALL TWYS SURROUNDING "BALLPARK" PRKG AREA (TWY Y BTN TWY S AND TWY U, TWY S BTN TWY Y AND TWY K, TWAY K BTN TWY S AND TWY B, TWY B BTN TWY K AND TWY U, AND TWY U BTN TWY B AND TWY Y) ACFT SPEED RSTR OF 17KTS/20MPH FOR ALL AFCT WITH WINGSPANS IN EXCESS OF 171 FT.
A110-21TWY EE BTN RWY 4R-22L AND RWY 11-29 CLSD TO AFCT WITH WINGSPANS IN EXCESS OF 171 FT.
A110-23TWY Y BTN RM AND TWY U, SPEED RESTRICTION OF 17KT (20MPH).
A110-25TWY Z5 CLSD TO ACFT WITH WINGSPANS IN EXCESS OF 118 FT.
A110-26TWY A BTN TWY AA AND RAMP CLSD TO ACFT WITH WINGSPANS IN EXCESS OF 171 FT.
A110-27TWY A11 W OF TWY A ACFT SPD RSTR OF 17 KTS/20 MPH MAX FOR ALL ACFT WITH WINGSPANS IN EXCESS OF 171 FT.
A110-28ACFT WITH WINGSPANS IN EXCESS OF 118 FEET PROHIBITED FROM TURNING S ON TWY R FROM TWY B1.
A110-29DURNG ATC ZERO EVENTS; ARPT OPS WILL MNT 118.3 AND PROVIDE EMERG NOTIFICATIONS TO ARFF.
A110-3NOISE RSTR CALL 212-435-3784 DRG NML BUS HRS.
A110-30WHEN RWY 04R/L IN USE, ACFT PRKG AT TRML A CAN EXP TO ENTER RAMP VIA TWY A8, UNLESS ADZD BY ATC.
A110-31WHEN RWY 22L/R IN USE, ACFT PRKG AT TRML A CAN EXP TO ENTER RAMP VIA TWY A10 OR A12, UNLESS ADZD BY ATC.
A110-4PARA-SAIL & BANNER TOWING OPS 1000 FT & BLO IN UPPER & LOWER NY BAYS INCLUDING ROCKAWAY INLET INDEF.
A110-8TWY Z BTN TWY Z2 & Z4 CLSD TO ACFT WITH WINGSPANS IN EXCESS OF 171 FT.
NEWARK LIBERTY INTL (ICAO: KEWR, IATA: EWR) is a public airport located in NEWARK, NJ.
