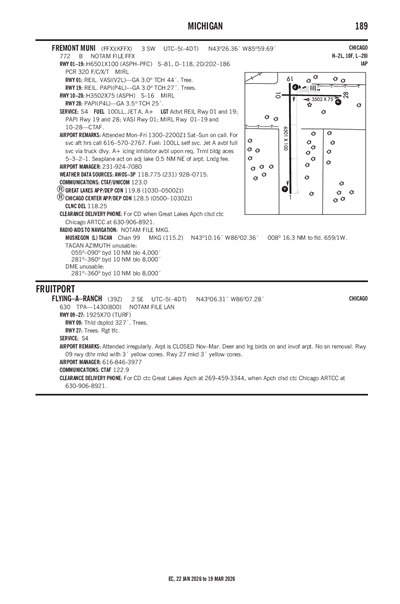

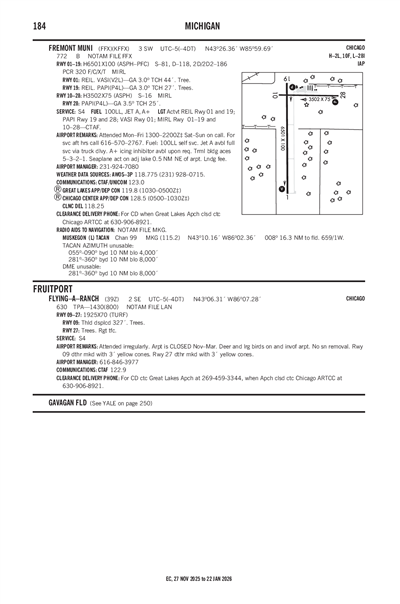

FREMONT MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFFX
FREMONT MUNI
PublicPUB

3 miles SW of FREMONT, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 26' 22"N 85° 59' 42"W
772' MSL
1772' MSL
04W
JET A, 100LL
LANSING (LAN)
CHICAGO
CHICAGO (ZAU)
11/28/24-12/26/24
KMKG (19nm) VFR
6:55 AM EST
Overcast 5,500'
10sm
32°F
21°F
30.12"Hg
160° 8kts
AO2 SLP208 4/002 T00001061 10000 21017 56027
KMKG 231155Z 16008KT 10SM OVC055 00/M06 A3012 RMK AO2 SLP208 4/002 T00001061 10000 21017 56027
Add Your Business

KFFX FBOs

Promote Listing
Heritage Flight Support
UNICOM: 123.0
Phone: (231) 924-7080
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.50 5.50
Full Serve 5.50
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3

AWOS-3
 118.775

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMKG (19nm)
Mon, 12/23 6:20 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 9:00 AM EST
Broken 10,000'
6sm
150° 8kts
MVFR
9:00 AM EST - 3:00 PM EST
Light Snow
Overcast 2,500'
6sm
170° 15kts
Gusts 23kts
IFR
3:00 PM EST - 6:00 PM EST
Light Snow and Mist
Overcast 1,500'
2sm
200° 12kts
IFR
6:00 PM EST - 12:00 AM EST
Light Rain and Snow
Overcast 700'
1.5sm
210° 10kts
MVFR
12:00 AM EST - 7:00 AM EST
Mist
Broken 1,000'
5sm
330° 5kts
KMKG 231120Z 2312/2412 15008KT P6SM BKN100
   FM231400 17015G23KT P6SM -SN OVC025
   FM232000 20012KT 2SM -SN BR OVC015
   FM232300 21010KT 1 1/2SM -RASN OVC007
   FM240500 33005KT 5SM BR BKN010
KFFX
Domestic
12/11/242040Z !FFX 12/008 FFX RWY 28 PAPI UNUSABLE 2412112040-2506162111EST
12/8/240603Z !FFX 12/007 FFX OBST TOWER LGT (ASR 1216189) 432535.60N0855314.30W (4.7NM E FFX) 1032.8FT (257.9FT AGL) U/S 2412080603-2504070603
No
MON-FRI 0800-1700
SAT-SUN ON CALL
FOR SVC AFT HRS CALL AMGR.
CITY OF FREMONT
101 E MAIN ST
FREMONT, MI 49412-1287
Phone: 231-924-2101
LORI LAYNE
7756 W 60TH ST
FREMONT, MI 49412-8128
Phone: 231-924-7080
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
FFX
--
ACTVT REIL RWY 01 & 19; PAPI RWY 19 & 28; VASI RWY 01; MIRL RWY 01/19 & 10/28 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
None

Runway 01/19

6501 ft. x 100 ft.
ASPH
Good
PFC
MED

30,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 360°180°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 43° 25' 41"N 43° 26' 45"N
Longitude 85° 59' 47"W 85° 59' 48"W
Elevation 753' 769'
Threshold Crossing Height 44 ft. AGL 27 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V2L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 10/28

3502 ft. x 75 ft.
ASPH
Good
NONE
MED

16,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 91°271°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 43° 26' 38"N 43° 26' 37"N
Longitude 85° 59' 54"W 85° 59' 07"W
Elevation 767' 770'
Threshold Crossing Height -- 25 ft. AGL
Visual Glide Path Angle -- 3.5°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-4SEAPLANE ACT ON ADJ LAKE 0.5 NM NE OF ARPT.
A110-5TRML BLDG ACES 5-3-2-1.
A110-6FOR CD WHEN GREAT LAKES APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921.
FREMONT MUNI (ICAO: KFFX, IATA: FFX) is a public airport located in FREMONT, MI.
