iFlightPlanner



...

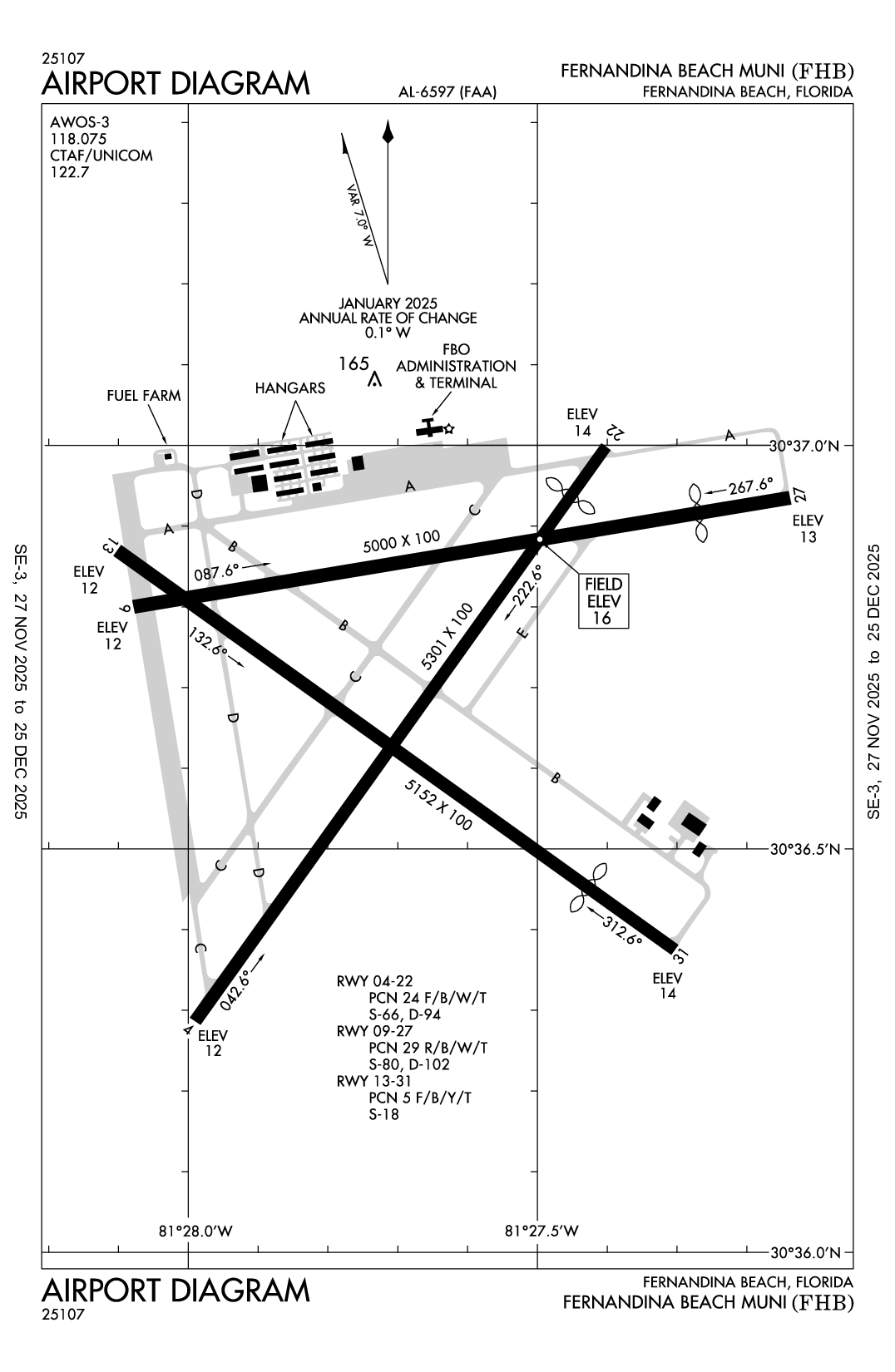

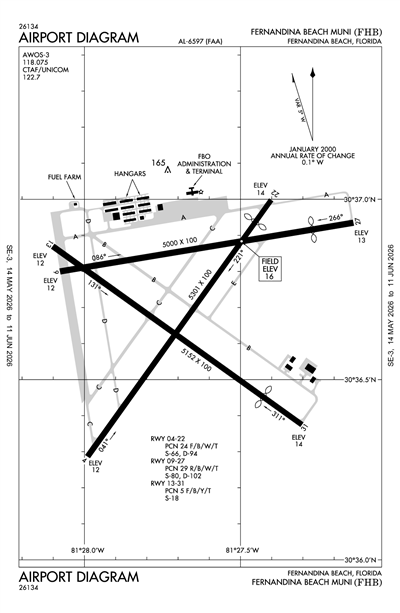

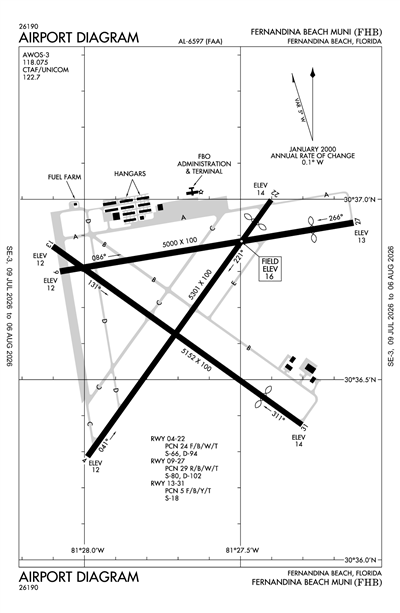

FERNANDINA BEACH MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFHB
FERNANDINA BEACH MUNI
PublicPUB

3 miles S of FERNANDINA BEACH, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 36' 43"N 81° 27' 40"W
16' MSL
1016' MSL
05W
JET A, 100LL
GAINESVILLE (GNV)
JACKSONVILLE
JACKSONVILLE (ZJX)
12/26/24-1/23/25
KFHB MVFR
11:35 AM EST
Overcast 1,100'
10sm
32°F
28°F
30.41"Hg
360° 14kts
Gusts 19kts
AO2
KFHB 221635Z AUTO 36014G19KT 10SM OVC011 00/M02 A3041 RMK AO2
Add Your Business

KFHB FBOs

Promote Listing
Bent Wing Flight Services
UNICOM: 122.7
Phone: (904) 849-4321
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 1/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.29
Full Serve 6.79 6.39 6.43
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
904-277-7323
 118.075

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KNRB (13nm)
Wed, 1/22 10:16 AM EST
Wed, 1/22 10:00 AM EST - Thu, 1/23 10:00 AM EST
MVFR
10:00 AM EST - 7:00 PM EST
Overcast 2,500'
Broken 1,500'
6sm
30.30"Hg
010° 13kts
Gusts 24kts
MVFR
7:00 PM EST - 1:00 AM EST
Overcast 4,500'
Broken 2,000'
6sm
30.27"Hg
036° 10kts
Gusts 20kts
VFR
1:00 AM EST - 10:00 AM EST
Scattered 4,500'
Scattered 2,000'
6sm
30.24"Hg
360° 14kts
Gusts 24kts
TAF KNRB 2215/2315 01013G24KT 9999 BKN015 OVC025 QNH3030INS
   FM230000 036010G20KT 9999 BKN020 OVC045 QNH3028INS
   FM230600 36014G24KT 9999 SCT020 SCT045 QNH3023INS AUTOMATED SENSOR METWATCH 2215 TIL 2219 TX05/2217Z TNM01/2215Z FN00264
KFHB
Domestic
1/22/251000Z !GNV 01/308 FHB OBST TOWER LGT (ASR 1064316) 304631.30N0813926.00W (13.9NM NW FHB) 323.2FT (307.1FT AGL) U/S 2501221000-2504220500
1/22/250100Z !GNV 01/269 FHB AD AP SFC COND NOT REP 2501220100-2501221700
1/21/251620Z !GNV 01/263 FHB AIRSPACE PJE WI AN AREA DEFINED AS 1NM RADIUS OF 303408N0812635W (3NM SSE FHB) SFC-13500FT 2501211620-2512312359
1/17/251345Z !GNV 01/209 FHB APRON B RAMP N 60FT FM S ENTRANCE CLSD LGTD AND BARRICADED 2501171345-2502202359
1/17/251345Z !GNV 01/208 FHB APRON T HANGER RAMP N 60FT FM S ENTRANCE CLSD LGTD AND BARRICADED 2501171345-2502202359
1/16/252221Z !GNV 01/202 FHB TWY A BTN TWY C AND APCH END RWY 22 CLSD 2501162221-2502202359
1/16/252027Z !GNV 01/201 FHB TWY C BTN RWY 09/27 AND TWY A CLSD 2501162027-2502202359
1/8/252305Z !GNV 01/110 FHB RWY 31 RTHL U/S 2501082305-2502012359
1/8/252304Z !GNV 01/108 FHB RWY 13/31 RWY END ID LGT U/S 2501082304-2502012359
1/8/252303Z !GNV 01/107 FHB RWY 13/31 REDL U/S 2501082303-2502012359
12/18/242027Z !GNV 12/210 FHB TWY D EDGE LGT U/S 2412182027-2502282359
11/6/242248Z !GNV 11/070 FHB OBST TOWER LGT (ASR 1206280) 303640.00N0813626.20W (7.6NM W FHB) 307.1FT (279.9FT AGL) U/S 2411062248-2503062248
No
0700-1900
CITY OF FERNANDINA BEACH
204 ASH ST
FERNANDINA BEACH, FL 32034
Phone: 904-310-3101
SAM CARVER
700 AIRPORT ROAD
FERNANDINA BEACH, FL 32034
Phone: 904-310-3436
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
GNV
--
ACTVT REIL RWY 04 & 13; PAPI RWY 04, 09, 13, 22, 27; MIRL RWY 04/22, 09/27 & 13/31 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Avionics
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 04/22

5301 ft. x 100 ft.
ASPH
Excellent
GRVD
MED
24 /F/B/W/T
66,000lbs
94,000lbs
--
--
  Runway 04 Runway 22
True Heading 36°216°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 36' 17"N 30° 36' 60"N
Longitude 81° 27' 59"W 81° 27' 24"W
Elevation 12' 14'
Threshold Crossing Height 47 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 09/27

5000 ft. x 100 ft.
CONC
Good
WC
MED
29 /R/B/W/T
80,000lbs
102,000lbs
--
--
  Runway 09 Runway 27
True Heading 81°261°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 30° 36' 48"N 30° 36' 56"N
Longitude 81° 28' 05"W 81° 27' 08"W
Elevation 12' 13'
Threshold Crossing Height 45 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

5152 ft. x 100 ft.
ASPH
Fair
NONE
MED
5 /F/B/Y/T
18,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 126°306°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 30° 36' 52"N 30° 36' 23"N
Longitude 81° 28' 06"W 81° 27' 18"W
Elevation 12' 14'
Threshold Crossing Height 49 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-10NOISE ABATEMENT PROC IN EFCT - 904-310-3436.
A110-11PRCHT OPS DLY NW CORNER OF FLD. AVOID OVERFLYING ARPT DURG PRCHT OPS.
A110-12DRG CALM WINDS USE RWY 22.
A110-13RWY 13/31 SUBJ FLOODING DURG HVY RAIN.
A110-6BIRDS ON & INVOF ARPT.
A110-7CAUTION: ACFT ON RWY 31 NOT VSBL TO ACFT ON RWY 22 OR RWY 27.
A110-9FOR CD CTC JACKSONVILLE APCH AT 904-741-0284.
FERNANDINA BEACH MUNI (ICAO: KFHB, IATA: FHB) is a public airport located in FERNANDINA BEACH, FL.
