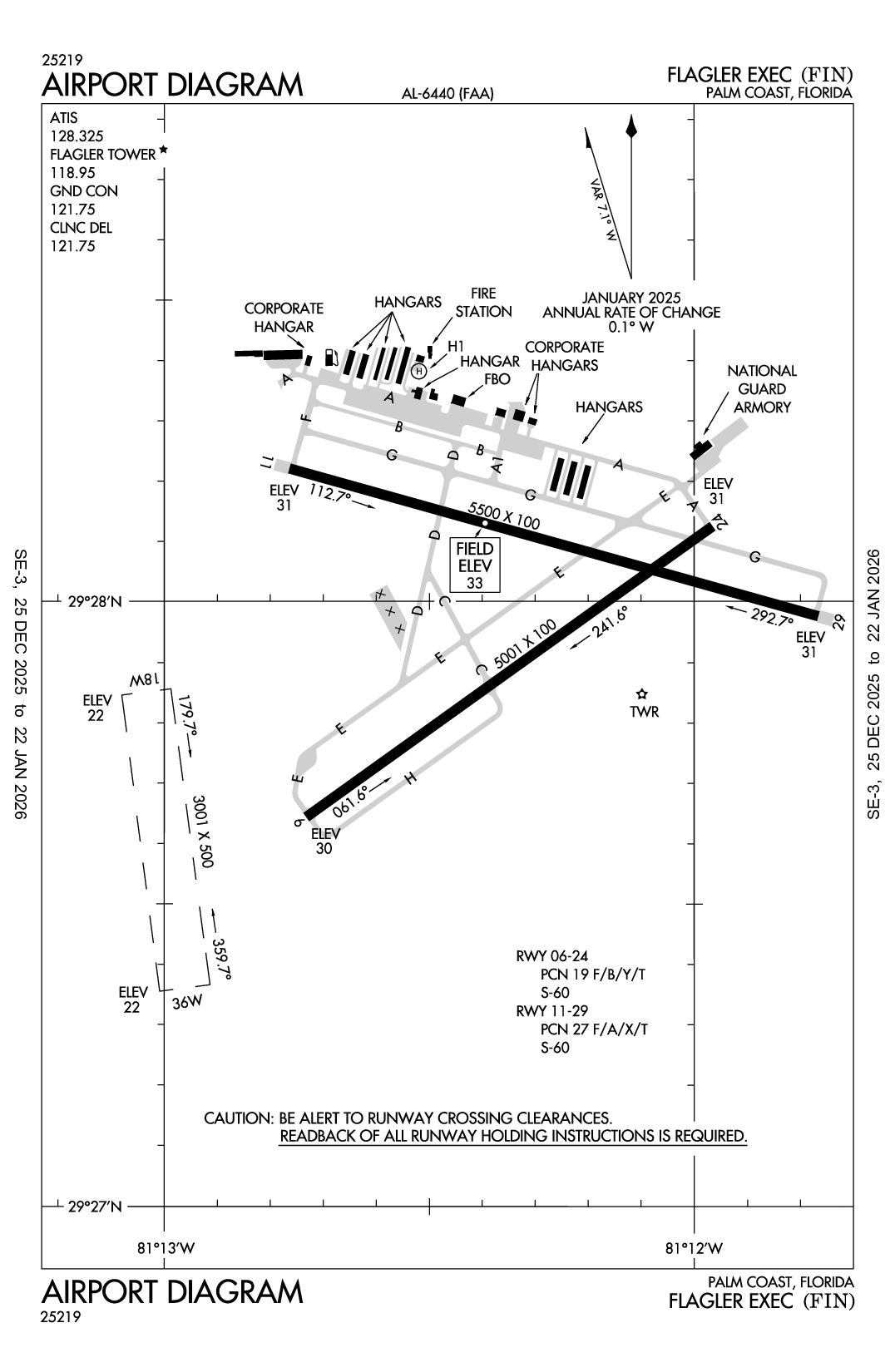

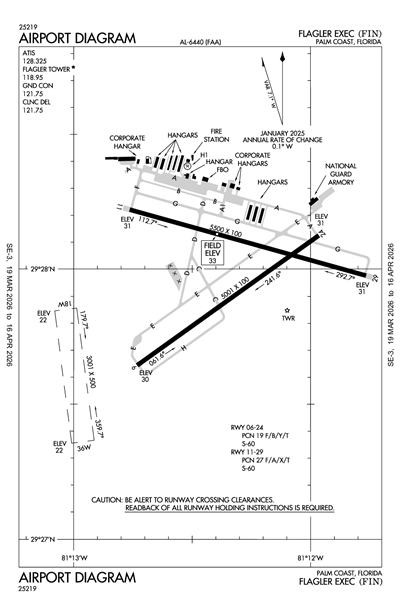

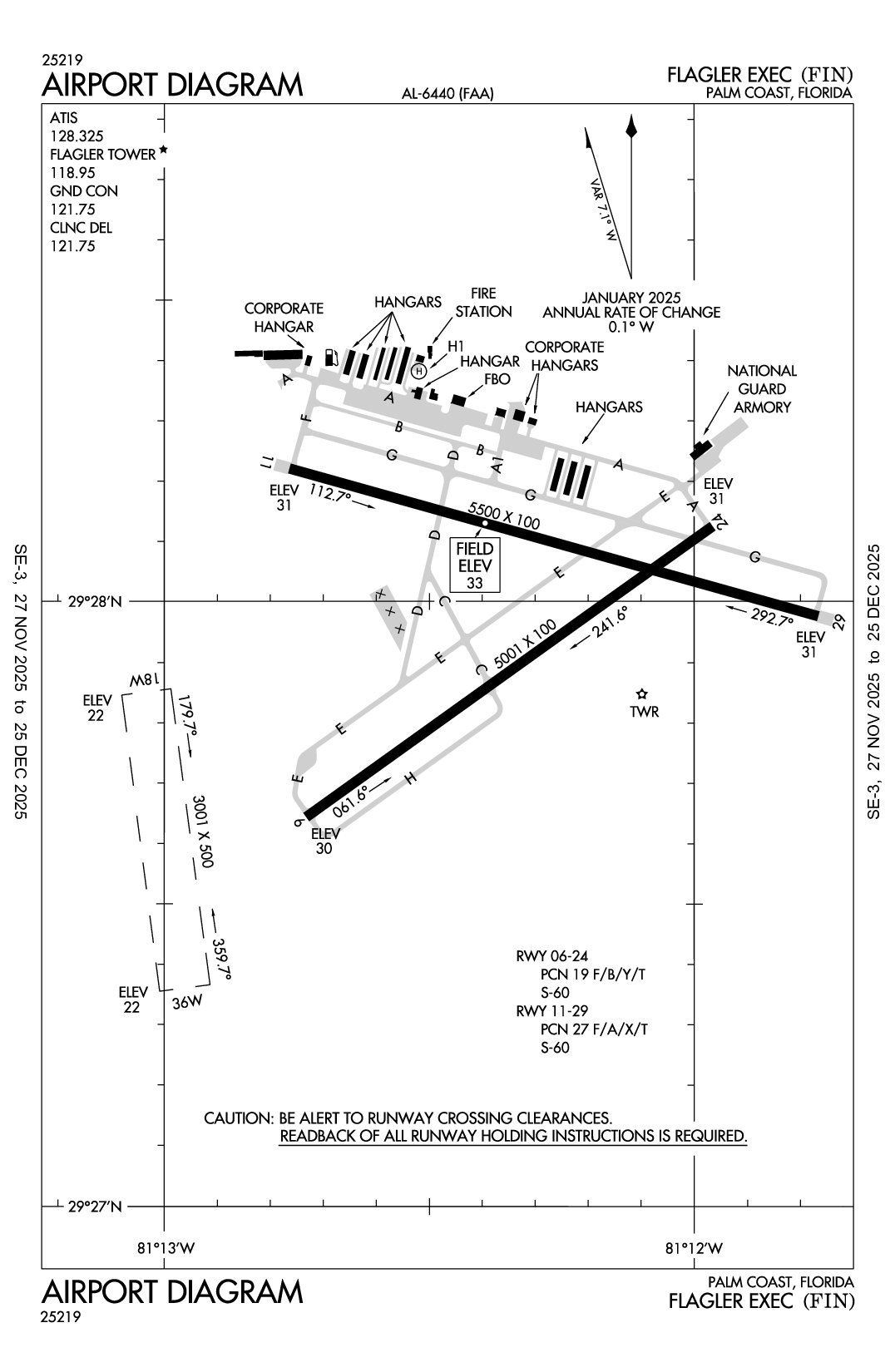

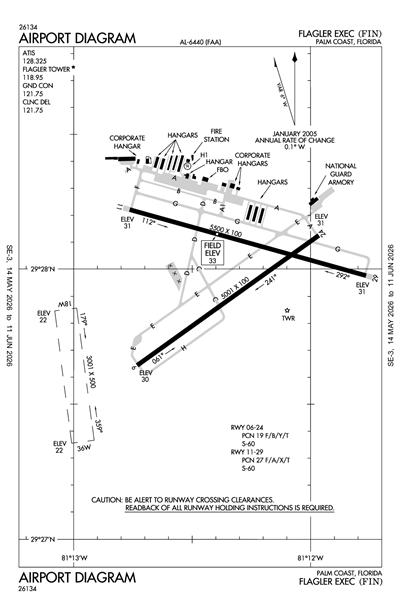

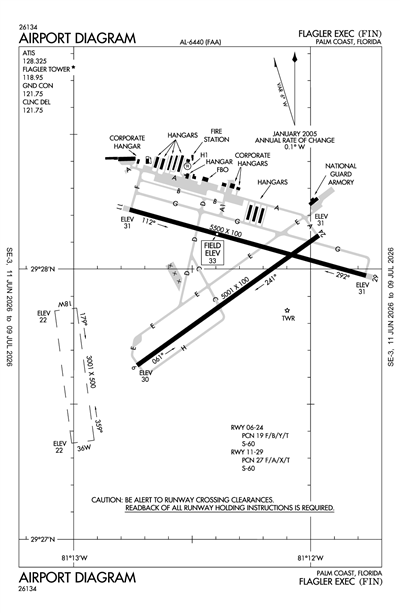

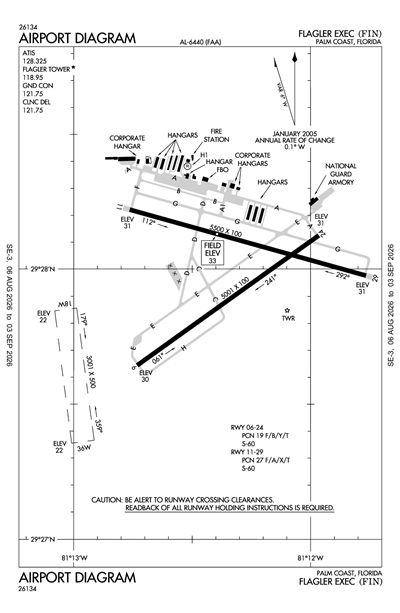

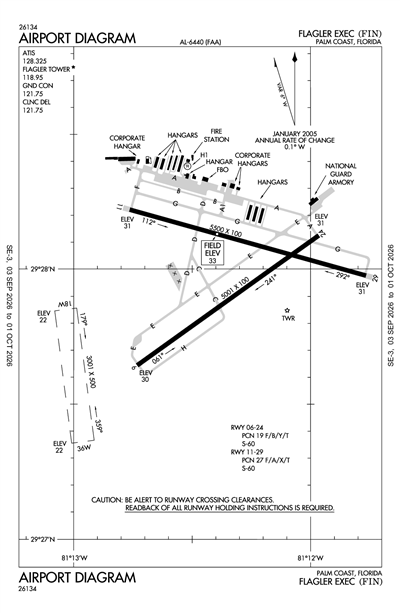

FLAGLER EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFIN
FLAGLER EXEC
PublicPUB

6 miles S of PALM COAST, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 27' 55"N 81° 12' 28"W
33' MSL
1033' MSL
06W
JET A, 100LL
GAINESVILLE (GNV)
JACKSONVILLE
JACKSONVILLE (ZJX)
12/26/24-1/23/25
KFIN IFR
10:50 AM EST
Overcast 800'
7sm
36°F
34°F
30.37"Hg
350° 8kts
Gusts 16kts
KFIN 221550Z 35008G16KT 7SM OVC008 02/01 A3037
Add Your Business

KFIN FBOs

Flagler Executive Airport
UNICOM: 123.0
Phone: (386) 437-0401
Fax: (386) 437-7459
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 1/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.70
Full Serve 5.20 4.71
Fuel Notes
Prices include tax

KFIN Ground Transportation (Taxi, Limo, Car Service)

Enterprise Rent-A-Car
Phone: (386) 437-0350
No Rating Available
0 Reviews (Read | Sign In To Write)

KFIN Hotels

Hilton Garden Inn
Phone: (386) 586-2463
No Rating Available
0 Reviews (Read | Sign In To Write)

KFIN Restaurants

Highjackers Restaurant
Phone: (386) 586-6078
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 118.95

ATIS

ATIS
 128.325

AWOS-3

AWOS-3
386-437-7334
 128.325

Clearance Delivery

CD/P
 121.75

Ground

GND/P
 121.75

Tower

LCL/P
 118.95

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDAB (19nm)
Wed, 1/22 6:38 AM EST
Wed, 1/22 7:00 AM EST - Thu, 1/23 7:00 AM EST
IFR
7:00 AM EST - 9:00 AM EST
Light Rain and Mist
Overcast 800'
4sm
330° 12kts
Gusts 20kts
IFR
9:00 AM EST - 12:00 PM EST
Light Showers and Rain
Overcast 1,000'
Broken 800'
6sm
350° 15kts
Gusts 25kts
MVFR
12:00 PM EST - 7:00 PM EST
Overcast 1,500'
6sm
350° 15kts
Gusts 25kts
MVFR
7:00 PM EST - 1:00 AM EST
Overcast 1,000'
Scattered 800'
6sm
360° 12kts
Gusts 18kts
IFR
1:00 AM EST - 7:00 AM EST
Overcast 1,000'
Broken 800'
6sm
340° 9kts
KDAB 221138Z 2212/2312 33012G20KT 4SM -RA BR OVC008
   FM221400 35015G25KT P6SM -SHRA BKN008 OVC010
   FM221700 35015G25KT P6SM OVC015
   FM230000 36012G18KT P6SM SCT008 OVC010
   FM230600 34009KT P6SM BKN008 OVC010
KFIN
Domestic
1/20/252017Z !FIN 01/010 FIN TWY E EDGE LGT U/S 2501202017-2501231700
1/19/251324Z !FIN 01/008 FIN OBST TOWER LGT (ASR 1272793) 292905.90N0812732.80W (13.2NM W FIN) 260.2FT (247.0FT AGL) U/S 2501191324-2505191324
1/15/250625Z !FIN 01/007 FIN OBST TOWER LGT (ASR 1276662) 292820.00N0811202.60W (0.6NM NE FIN) 177.8FT (152.9FT AGL) U/S 2501150625-2501300525
1/14/251637Z !FIN 01/005 FIN OBST TOWER LGT (ASR 1029146) 293108.00N0811901.00W (6.5NM WNW FIN) 1249.0FT (1204.1FT AGL) U/S 2501141637-2504152359
1/9/251400Z !FIN 01/002 FIN OBST CRANE (ASN UNKNOWN) 292859N0811229W (1NM N FIN) UNKNOWN (250FT AGL) FLAGGED AND LGTD 2501091400-2510092359
12/26/241343Z !FIN 12/010 FIN OBST TOWER LGT (ASR 1031096) 292738.00N0811524.80W (2.6NM W FIN) 448.5FT (429.8FT AGL) U/S 2412261343-2504251342
8/3/151306Z !FIN 08/001 FIN RWY 11 RIGHT PATTERN 1508031306-PERM
FDC
11/6/231919Z !FDC 3/7620 FIN IAP FLAGLER EXEC, PALM COAST, FL.
RNAV (GPS) RWY 29, AMDT 1B...
NOTE: CIRCLING TO RWY 11, 24 NA AT NIGHT.
2311061919-2511061919EST
11/6/231919Z !FDC 3/7618 FIN IAP FLAGLER EXEC, PALM COAST, FL.
RNAV (GPS) RWY 24, AMDT 1A...
DISREGARD NOTE: CIRCLING RWY 11, 29 NA AT NIGHT.
NOTE: CIRCLING RWY 11, 24 NA AT NIGHT.
CHANGE HELICOPTER NOTE TO READ: RWY 24 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA.
NOTE: VDP NA.
2311061919-2511061919EST
11/6/231919Z !FDC 3/7617 FIN IAP FLAGLER EXEC, PALM COAST, FL.
RNAV (GPS) RWY 6, AMDT 2C...
DISREGARD NOTE: CIRCLING RWY 11, 29 NA AT NIGHT.
NOTE: CIRCLING RWY 11, 24 NA AT NIGHT.
2311061919-2511061919EST
11/6/231919Z !FDC 3/7615 FIN IAP FLAGLER EXEC, PALM COAST, FL.
RNAV (GPS) RWY 11, AMDT 2A...
NOTE: CIRCLING RWY 11, 24 NA AT NIGHT.
CHANGE HELICOPTER NOTE TO READ: RWY 11 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA.
NOTE: VDP NA.
2311061919-2511061919EST
Yes
MON-SAT 0700-1800
SUN 0800-1500
FLAGLER COUNTY
1769 EAST MOODY BOULEVARD, #2, SUITE 302
BUNNELL, FL 32110
Phone: (386) 313-4220
ROY SIEGER
201 AIRPORT ROAD
PALM COAST, FL 32164
Phone: (386) 313-4220
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
FIN
--
WHEN ATCT CLSD, ACTVT REIL RWY 6, 11, 24, & 29; PAPI RWY 6, 24, 11 & 29; MIRL RWYS 6/24 & 11/29 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 06/24

5001 ft. x 100 ft.
ASPH
Excellent
GRVD
MED
19 /F/B/Y/T
60,000lbs
--
--
--
  Runway 06 Runway 24
True Heading 55°235°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 29° 27' 39"N 29° 28' 07"N
Longitude 81° 12' 44"W 81° 11' 58"W
Elevation 30' 31'
Threshold Crossing Height 41 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 11/29

5500 ft. x 100 ft.
ASPH
Excellent
GRVD
MED
27 /F/A/X/T
60,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 106°286°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 29° 28' 13"N 29° 27' 59"N
Longitude 81° 12' 46"W 81° 11' 46"W
Elevation 31' 31'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18W/36W

3001 ft. x 500 ft.

WATER
NONE


--
--
--
--
  Runway 18W Runway 36W
True Heading 173°353°
Traffic Pattern
Markings
Markings Condition
Latitude 29° 27' 51"N 29° 27' 22"N
Longitude 81° 13' 02"W 81° 12' 58"W
Elevation 22' 22'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

36 ft. x 36 ft.
CONC GRVL
Fair
NONE


--
--
--
--
  Runway H1 Runway
True Heading 94°274°
Traffic Pattern
Markings
Markings Condition
Latitude 29° 28' 23"N N/A
Longitude 81° 12' 31"W N/A
Elevation 31' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10NOISE ABATEMENT PROCS IN EFCT, VOLUNTARY RESTRAINT FROM TGL OPS 0300-1200Z.
A110-14TWY B BTN TWY A1 & D CLSD TO FIXED WING ACFT.
A110-15FOR CD OR TO CNL IFR WHEN ATCT IS CLSD CTC DAB APCH AT 386-226-3939.
A110-16HEL OPS CONDUCTED WI ARPT BNDRY 500 FT OR BLW UNLESS DRCTD BY ATC; HEL OPS RWY 06 & 29 LEFT TFC; HEL OPS RWY 11 & 24 RIGHT TFC.
A110-17NOISE SENSITIVE AREA ALL QUADS OF THE ARPT.
FLAGLER EXEC (ICAO: KFIN, IATA: FIN) is a public airport located in PALM COAST, FL.
