KFMN
FOUR CORNERS RGNL
Public
PUB
1 miles NW of FARMINGTON, NM
View on
Map
Status
Operational
Coordinates
36° 44' 29"N
108° 13' 48"W
Elevation
5507' MSL
Pattern Alt
6507' MSL
Mag Variation
12E
Fuel
JET A, JET A-1+, 100LL
FSS
ALBUQUERQUE (ABQ)
Sectional
DENVER
ARTCC
DENVER (ZDV)
Data Effective
11/28/24-12/26/24
KFMN
VFR
4:53 AM MST
RAW
Overcast 9,000'
Viz
10sm
Temp
37°F
Dew
14°F
Pres
30.14"Hg
Wind
Calm
RMK
AO2 SLP202 T00281100 10044 20011 58003
KFMN 231153Z AUTO 00000KT 10SM OVC090 03/M10 A3014 RMK AO2 SLP202 T00281100 10044 20011 58003
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KFMN FBOs
Promote Listing
Atlantic Aviation
UNICOM: 122.95
Phone: (505) 325-2867
0 Reviews
(
Read
|
Sign In To Write
)
Independent
As of
12/16
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
Full Serve
6.39
6.78
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.95
CTAF
118.9
ATIS
ATIS
127.15
ASOS
ASOS
505-325-9268
127.15
Emergency
EMERG
121.5
Ground
GND/P
121.7
Tower
LCL/P
118.9
FAA A/FD Pages
FAA A/FD Page
Airport Diagrams

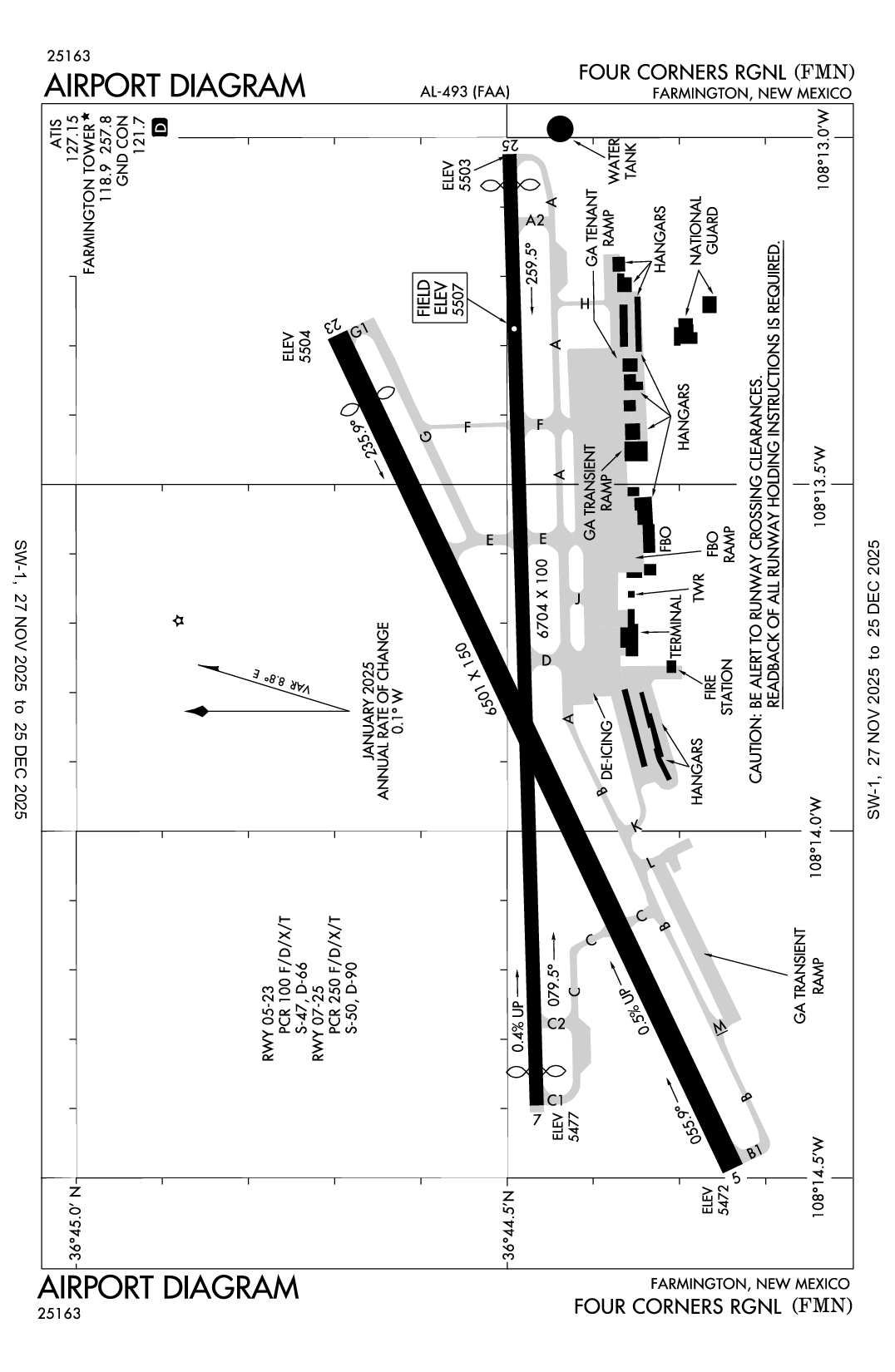

AIRPORT DIAGRAM
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
CHACO ONE
PLATA ONE
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
ILS OR LOC RWY 25
RNAV (GPS) RWY 05
RNAV (GPS) RWY 07
RNAV (GPS) RWY 23
RNAV (GPS) RWY 25
VOR RWY 25
VOR/DME RWY 05
VOR/DME RWY 07
Terminal Area Forecast
KFMN
RAW
Reported
Mon, 12/23 4:38 AM MST
Valid
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
VFR
5:00 AM MST - 8:00 AM MST
Broken 10,000'
Viz
6sm
Wind
VRB° 5kts
VFR
8:00 AM MST - 11:00 AM MST
Scattered 20,000'
Scattered 10,000'
Viz
6sm
Wind
100° 6kts
VFR
11:00 AM MST - 6:00 PM MST
Scattered 20,000'
Few 10,000'
Viz
6sm
Wind
260° 11kts
VFR
Temporary
2:00 PM MST - 5:00 PM MST
No Clouds
Viz
N/A
Wind
280° 11kts
Gusts 21kts
VFR
6:00 PM MST - 1:00 AM MST
Sky Clear
Viz
6sm
Wind
300° 8kts
VFR
1:00 AM MST - 5:00 AM MST
Sky Clear
Viz
6sm
Wind
070° 5kts
KFMN 231138Z 2312/2412 VRB05KT P6SM BKN100
FM231500 10006KT P6SM SCT100 SCT200
FM231800 26011KT P6SM FEW100 SCT200
TEMPO 2321/2324 28011G21KT
FM240100 30008KT P6SM SKC
FM240800 07005KT P6SM SKC
KFMN
Domestic
12/11/24
1018Z
!FMN 12/001 FMN OBST TOWER LGT (ASR 1002463) 364016.00N1081356.00W (4.2NM S FMN) 6348.1FT (322.8FT AGL) U/S 2412111018-2501112359
ATC Tower
Yes
Attendance
0600-2200
Owner
CITY OF FARMINGTON
800 MUNICIPAL DRIVE
FARMINGTON, NM 87401
Phone: 505-599-1100
Manager
MICHAEL LEWIS
800 MUNICIPAL DRIVE
FARMINGTON, NM 87401
Phone: 505-599-1394
FSS
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
NOTAM
FMN
Light Schedule
--
Lights
WHEN ATCT CLSD ACTVT REIL RWY 23 & 25; PAPI RWY 05 & 23; VASI RWY 07 & 25; MIRL RWY 05/23 & 07/25 - CTAF. REIL RWY 25 & MIRL RWY 07/25 PRESET LOW INTST.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
Low Pressure
Bulk Oxygen
Low Pressure
Other Services
Air Freight
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Runway 05/23
Dimensions
6501 ft. x 150 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
GRVD
Rwy Edge Lgts
MED
Pavement Class
29 /F/C/X/T
Single Wheel
47,000lbs
Double Wheel
66,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 05
Runway 23
True Heading
65°
245°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
36° 44' 14"N
36° 44' 42"N
Longitude
108° 14' 29"W
108° 13' 17"W
Elevation
5,472'
5,504'
Threshold Crossing Height
42 ft. AGL
42 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Runway 07/25
Dimensions
6704 ft. x 100 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
PFC
Rwy Edge Lgts
MED
Pavement Class
29 /F/C/X/T
Single Wheel
50,000lbs
Double Wheel
90,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 07
Runway 25
True Heading
88°
268°
Traffic Pattern
Left
Left
Markings
PIR
PIR
Markings Condition
GOOD
GOOD
Latitude
36° 44' 28"N
36° 44' 30"N
Longitude
108° 14' 24"W
108° 13' 01"W
Elevation
5,477'
5,503'
Threshold Crossing Height
50 ft. AGL
55 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
V4L
V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
A110-1
FOR CD CTC FARMINGTON ATCT GROUND CONTROL 121.7, WHEN ATCT CLSD CTC DENVER ARTCC AT 303-651-4257
A110-2
ARPT SURFACE CONDITIONS ARE NOT MONITORED OUTSIDE OF ATTENDED HOURS.
FOUR CORNERS RGNL (ICAO: KFMN, IATA: FMN) is a public airport located in FARMINGTON, NM.
