FLORA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFOA
FLORA MUNI
PublicPUB

2 miles E of FLORA, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 39' 54"N 88° 27' 11"W
473' MSL
1473' MSL
01W
JET A, 100LL
SAINT LOUIS (STL)
ST LOUIS
KANSAS CITY (ZKC)
5/16/24-6/13/24
KOLY (13nm) VFR
9:50 PM CDT
Clear
10sm
70°F
49°F
30.11"Hg
110° 5kts
AO2 T02090096
KOLY 010250Z AUTO 11005KT 10SM CLR 21/10 A3011 RMK AO2 T02090096
Add Your Business

KFOA FBOs

Promote Listing
Flora Municipal Airport
UNICOM: 122.7
Phone: (618) 662-2823
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.00 4.90
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
618-662-8355
 120.175

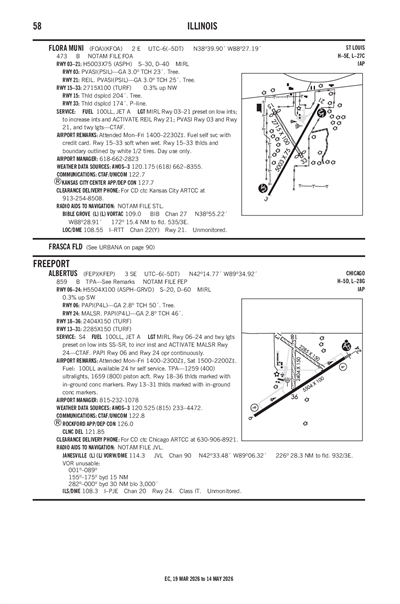

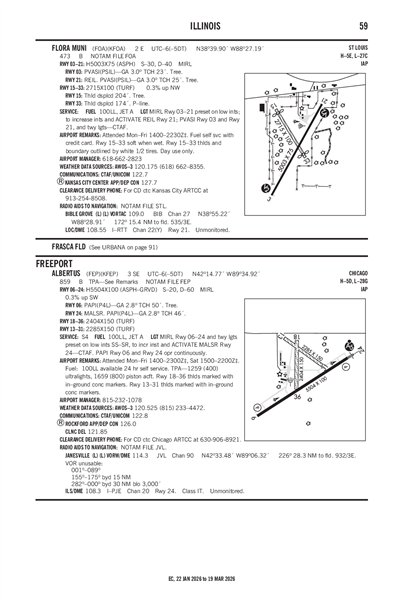

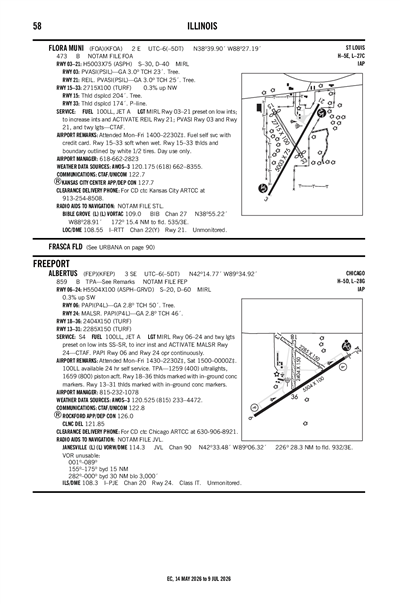

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMVN (28nm)
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 1:00 AM CDT
Broken 25,000'
6sm
110° 8kts
VFR
1:00 AM CDT - 3:00 AM CDT
Broken 6,000'
6sm
110° 5kts
MVFR
3:00 AM CDT - 7:00 AM CDT
Light Showers and Rain
Overcast 2,500'
6sm
120° 7kts
IFR
7:00 AM CDT - 4:00 PM CDT
Showers and Rain and Mist
Overcast 800'
4sm
130° 10kts
IFR
4:00 PM CDT - 7:00 PM CDT
Showers in vicinity
Overcast 900'
6sm
170° 8kts
KMVN 312320Z 0100/0124 11008KT P6SM BKN250
   FM010600 11005KT P6SM BKN060
   FM010800 12007KT 6SM -SHRA OVC025
   FM011200 13010KT 4SM SHRA BR OVC008
   FM012100 17008KT P6SM VCSH OVC009
KFOA
Domestic
5/27/241303Z !FOA 05/015 FOA OBST TOWER LGT (ASR 1005619) 384105.80N0883319.90W (4.9NM WNW FOA) 1030.2FT (498.0FT AGL) U/S 2405271303-2409241303
5/27/240418Z !FOA 05/014 FOA OBST TOWER LGT (ASR 1287967) 384039.40N0882130.40W (4.5NM E FOA) 720.8FT (253.9FT AGL) U/S 2405270418-2406110318
5/27/240105Z !FOA 05/007 FOA OBST TOWER LGT (ASR 1255736) 383935.90N0882929.50W (1.8NM W FOA) 636.8FT (154.9FT AGL) U/S 2405270105-2408240400
5/27/240100Z !FOA 05/006 FOA OBST TOWER LGT (ASR 1254971) 384630.30N0883101.30W (7.2NM NNW FOA) 745.1FT (268.7FT AGL) U/S 2405270100-2408240400
5/27/240056Z !FOA 05/005 FOA OBST TOWER LGT (ASR 1013995) 384653.00N0883509.00W (9.3NM NW FOA) 928.1FT (408.1FT AGL) U/S 2405270056-2407110056
5/9/241316Z !FOA 05/002 FOA RWY 21 PULSATING VASI U/S 2405091316-2411122111EST
5/9/241315Z !FOA 05/001 FOA RWY 03 PULSATING VASI U/S 2405091315-2411122111EST
No
MON-FRI 0800-1630
FLORA AIRPORT AUTHORITY
ONE AIRPORT ROAD
FLORA, IL 62839
Phone: 618-662-2174
KAREN PICKEL
ONE AIRPORT ROAD
FLORA, IL 62839
Phone: 618-662-2823
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
FOA
--
MIRL RY 03/21 PRESET ON LOW INTST; TO INCR INTST & ACTVT REIL RY 21; PLASI RYS 03/21 & TWY LGTS - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
10
0
0
5
0
0
None
None
None
None
Aircraft Rental

Runway 03/21

5003 ft. x 75 ft.
ASPH
Fair
NONE
MED

30,000lbs
40,000lbs
--
--
  Runway 03 Runway 21
True Heading 30°210°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 38° 39' 30"N 38° 40' 13"N
Longitude 88° 27' 26"W 88° 26' 54"W
Elevation 472' 466'
Threshold Crossing Height 23 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator PSIL PSIL
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 15/33

2715 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 150°330°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 38° 40' 11"N 38° 39' 47"N
Longitude 88° 27' 22"W 88° 27' 05"W
Elevation 472' 465'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RY 15/33 SOFT WHEN WET.
A110-2FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
FLORA MUNI (ICAO: KFOA, IATA: FOA) is a public airport located in FLORA, IL.
