KFOK
FRANCIS S GABRESKI
Public
PUB
3 miles N of WESTHAMPTON BEACH, NY
View on
Map
Status
Operational
Coordinates
40° 50' 37"N
72° 37' 55"W
Elevation
66' MSL
Pattern Alt
1066' MSL
Mag Variation
13W
Fuel
JET A, 100LL
FSS
NEW YORK (ISP)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
11/28/24-12/26/24
KFOK
VFR
6:53 AM EST
RAW
Clear
Viz
10sm
Temp
2°F
Dew
-2°F
Pres
30.65"Hg
Wind
Calm
RMK
AO2 SLP379 T11671189 11106 21172 53012
KFOK 231153Z AUTO 00000KT 10SM CLR M17/M19 A3065 RMK AO2 SLP379 T11671189 11106 21172 53012
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KFOK FBOs
Promote Listing
Modern Aviation
UNICOM: 130.2
Phone: (631) 288-9866
0 Reviews
(
Read
|
Sign In To Write
)
Titan
As of
12/13
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
Full Serve
8.78
8.01
8.11
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
125.3
ASOS
ASOS
631-288-0588
119.925
Emergency
EMERG
121.5
Ground
GND/P
121.8
Tower
LCL/P
125.3
FAA A/FD Pages
FAA A/FD Page

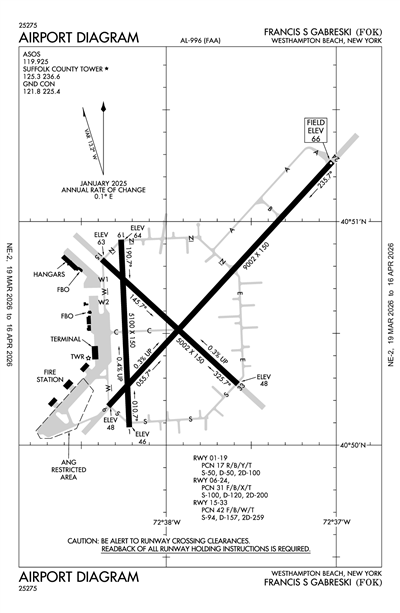

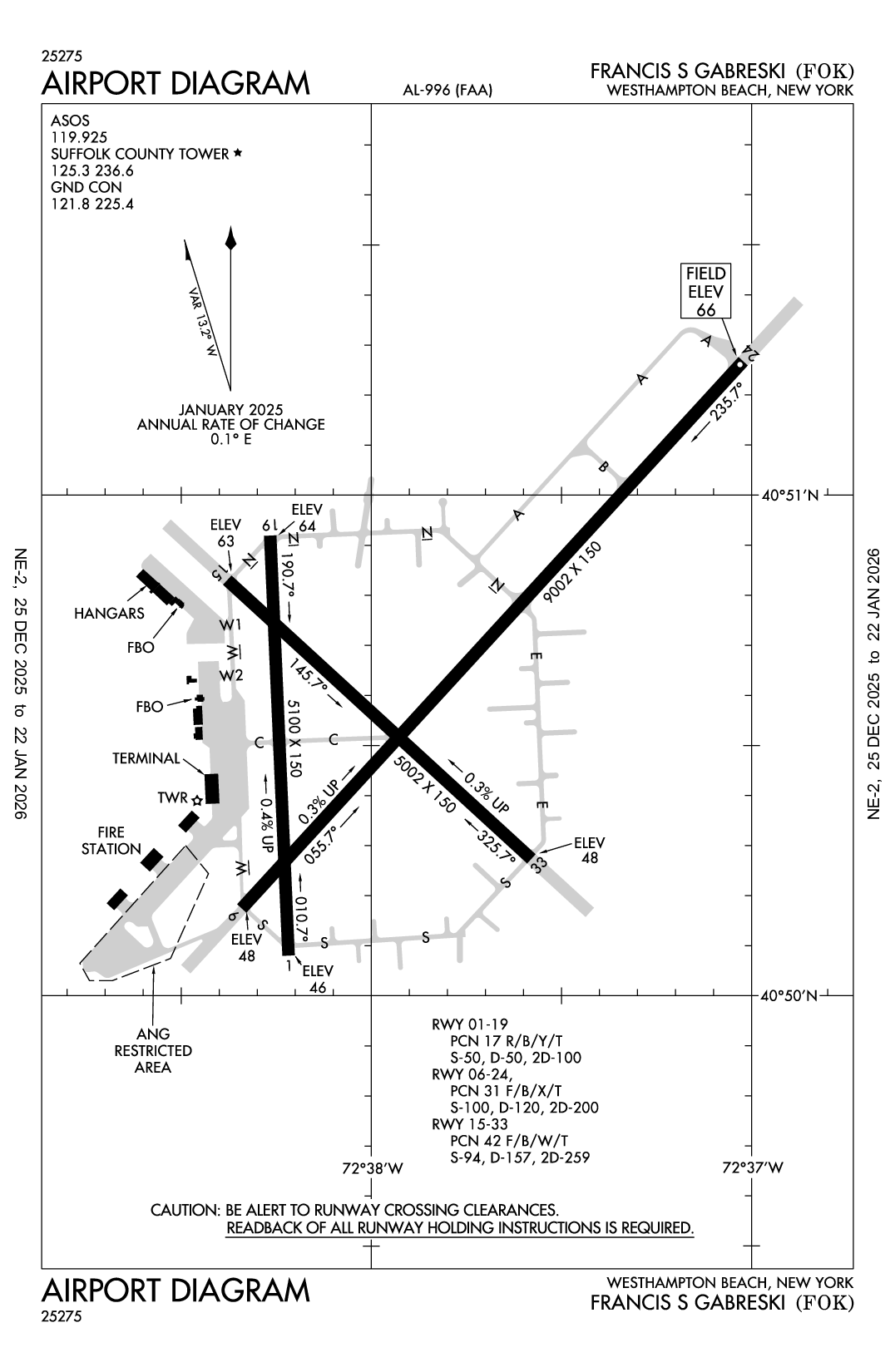

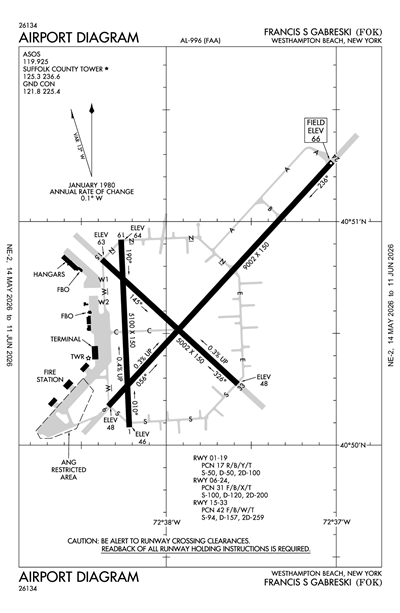

Airport Diagrams
AIRPORT DIAGRAM
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
NELIE THREE (RNAV)
Instrument Approach
ILS OR LOC RWY 24
RNAV (GPS) RWY 06
RNAV (GPS) RWY 24
TACAN RWY 06
TACAN RWY 24
Terminal Area Forecast
KISP (22nm)
RAW
Reported
Mon, 12/23 6:32 AM EST
Valid
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 4:00 PM EST
Few 25,000'
Viz
6sm
Wind
VRB° 4kts
VFR
4:00 PM EST - 3:00 AM EST
Broken 15,000'
Viz
6sm
Wind
200° 5kts
VFR
3:00 AM EST - 7:00 AM EST
Broken 10,000'
Few 4,000'
Viz
6sm
Wind
230° 5kts
KISP 231132Z 2312/2412 VRB04KT P6SM FEW250
FM232100 20005KT P6SM BKN150
FM240800 23005KT P6SM FEW040 BKN100
KFOK
Domestic
12/11/24
1400Z
!FOK 12/024 FOK OBST TOWER LGT (ASR 1003626) 405210.00N0723435.00W (3.0NM ENE FOK) 349.7FT (169.9FT AGL) U/S 2412111400-2501122300
FDC
8/27/24
1452Z
!FDC 4/6505 FOK IAP FRANCIS S GABRESKI, WESTHAMPTON BEACH, NY.
ILS OR LOC RWY 24, AMDT 11A...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HTO VOR
OUT OF SERVICE
. 2408271452-2504081452EST
4/19/23
1450Z
!FDC 3/3830 FOK IAP FRANCIS S GABRESKI, Westhampton Beach, NY.
ILS OR LOC RWY 24, AMDT 11A...
TERMINAL ROUTE FROM HTO VOR/DME (IAF) TO MATTY INT NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
HTO VOR R-308 UNUSABLE.
2304191450-2504201450EST
ATC Tower
Yes
Attendance
0700-2300
Owner
COUNTY OF SUFFOLK
COUNTY CENTER
RIVERHEAD, NY 11901
Phone: (631) 852-8095
Manager
JOSHUA SMITH
GABRESKI AIRPORT, ADMINISTRATION BLDG #1
WESTHAMPTON, NY 11978
Phone: 631-852-8095
FSS
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
NOTAM
FOK
Light Schedule
--
Lights
WHEN ATCT CLSD ACTVT MALSR RWY 24; REIL RWY 06, 15, & 33; PAPI RWY 06, 15 & 24; VASI RWY 33; HIRL RWY 06/24; MIRL RWY 15/33 - CTAF.
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
Yes
Parking
Hanger, Tie-Down
Int'l Operations
Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
High & Low Pressure
Bulk Oxygen
None
Other Services
Avionics
Charter Service
Aircraft Sales
Runway 01/19
Dimensions
5100 ft. x 150 ft.
Surface Type
ASPH CONC
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
17 /R/B/Y/T
Single Wheel
50,000lbs
Double Wheel
50,000lbs
Double Tandem
100,000lbs
Dual Dbl Tand
--
Runway 01
Runway 19
True Heading
357°
177°
Traffic Pattern
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
40° 50' 05"N
40° 50' 55"N
Longitude
72° 38' 13"W
72° 38' 16"W
Elevation
46'
64'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway 06/24
Dimensions
9002 ft. x 150 ft.
Surface Type
ASPH CONC
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
HIGH
Pavement Class
31 /F/B/X/T
Single Wheel
100,000lbs
Double Wheel
120,000lbs
Double Tandem
200,000lbs
Dual Dbl Tand
--
Runway 06
Runway 24
True Heading
43°
223°
Traffic Pattern
Left
Right
Markings
PIR
PIR
Markings Condition
GOOD
GOOD
Latitude
40° 50' 10"N
40° 51' 16"N
Longitude
72° 38' 20"W
72° 37' 01"W
Elevation
48'
66'
Threshold Crossing Height
66 ft. AGL
77 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P4L
Approach Lights
MALSR
Centerline Lights
Runway End Identifier Lights
Yes
Runway 15/33
Dimensions
5002 ft. x 150 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
42 /F/B/W/T
Single Wheel
94,000lbs
Double Wheel
157,000lbs
Double Tandem
259,000lbs
Dual Dbl Tand
--
Runway 15
Runway 33
True Heading
132°
313°
Traffic Pattern
Left
Right
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
40° 50' 50"N
40° 50' 16"N
Longitude
72° 38' 23"W
72° 37' 35"W
Elevation
63'
48'
Threshold Crossing Height
62 ft. AGL
57 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-10
OIL - O-148-156(MIL) SOAP.
A110-11
RSTD - NO 180 DEG TURNS PMTD ON ASPH SECTION OF RWY 06/24.
A110-12
CAUTION: BIRDS AND DEER HAZ. PJE VCNTY OF ARPT.
A110-13
CSTMS/AG/IMG: US CSTMS CLNC SVC AVBL WITH PN (FRG) 631-753-2691 (MIL FLTS WILL COORD THRU BASE OPNS 631-723-7362/7364). MIN 24 HR PN ON RGLR BUS DAY PRECDNG SVC RQR DATE, MAX PAX 15. US CSTMS HRS BTN 0800 AND 2200 LOCAL.
A110-14
CLASS D AIRSPACE EFF 1200-0400Z++; OT CLASS G.
A110-15
MILITARY: ANG: PPR OFFL BUS. FOR USE OF ANG RAMP. OFFL BUS ONLY PPR ALL ACFT, 48 HR PN, CTC AFLD OPS DSN 456-7362, C631-723-7362 DRG DUTY HR. TUE-FRI PPR DRG OFF-DUTY HR. 106 OG/CC APVL REQUIRED NML DUTY HR. NML DUTY HR 1200-2130++ MON-FRI. CLSD SAT, SUN, HOL AND EV OTR MON. LTD RAMP SPACE. TRAN ACFT MAY BE DIVERTED TO CIV FBO DRG NON-DUTY HR. NON-STANDARD MARKINGS ON HH-60 APRON; WHITE PAINTED LINES DENOTING A ROADWAY ON THE APRON BY THE PODS INDICATING WHERE A VEHICLE MUST DRIVE IN ORDER TO MAINTAIN ALL NECESSARY WINGTIP CLEARANCES.
A110-17
VOLUNTARY NOISE ABATEMENT PROCS IN EFCT; SEE ARPT WEBSITE.
A110-18
ANG: ADVSY FOR TRAN AIRCREWS - WING TIP CLNC WAIVER IN EFFECT ON GUARD C-130 RAMP.
A110-19
FUEL: A++ (MIL) AVBL.
A110-2
BEARING STRENGTH RWY 01-19: S50 T50 ST175 TT100.
A110-20
FOR CD WHEN ATCT CLSD CTC NEW YORK APCH AT 516-683-2449.
A110-21
RCMDD RSVN WITH FBO PRIOR TO ARR.
A110-22
WHEN SAFETY AND OPNS ALLOW, RWY 24 PREF FOR NOISE ABATEMENT.
A110-3
BEARING STENGTH RWY 06-24: S54 T110 ST175 SBTT600 TT300 TDT900 DDT850 TRT720.
A110-4
BEARING STENGTH RWY 15-33: S54 T120 ST175 SBTT430 TT250 TDT740 DDT540 TRT580.
A110-7
JASU: AVBL DUR ANG OPR HR. (A/M32A-86) 2(MA-1A).
A110-8
FUEL: AVBL DUR ANG OPR HR. J8(MIL) (NC-100LL, A).
A110-9
FLUID - SP DE-ICE LOX.
FRANCIS S GABRESKI (ICAO: KFOK, IATA: FOK) is a public airport located in WESTHAMPTON BEACH, NY.
