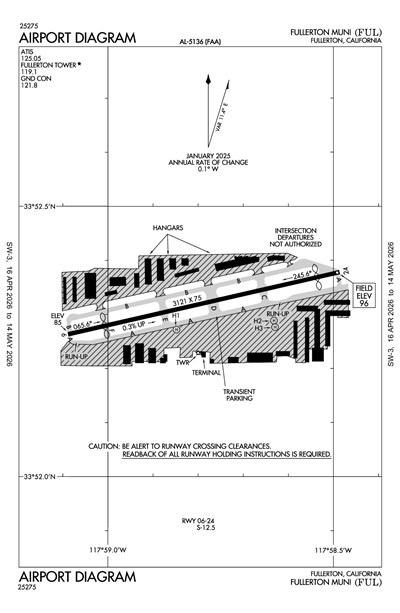

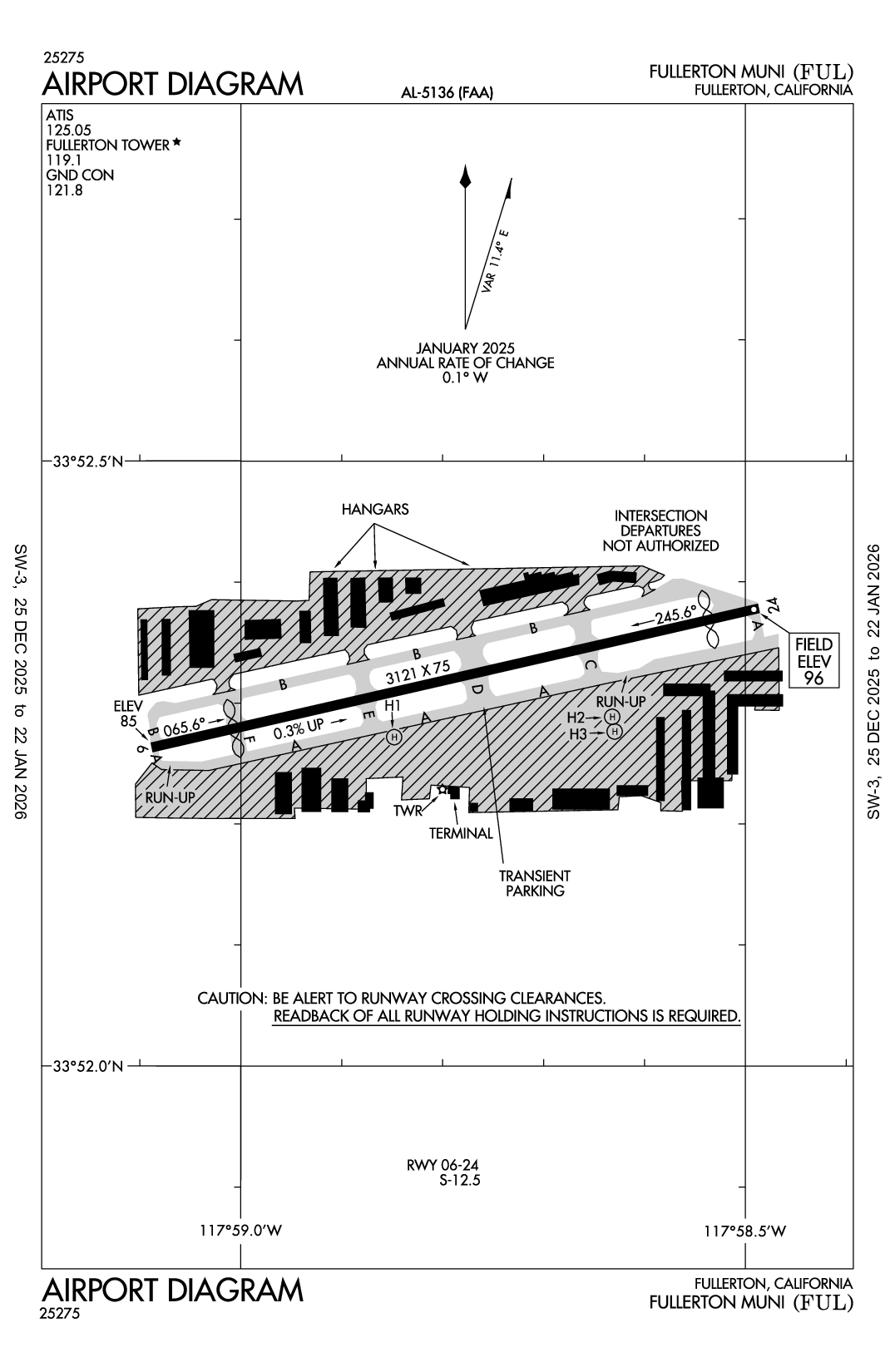

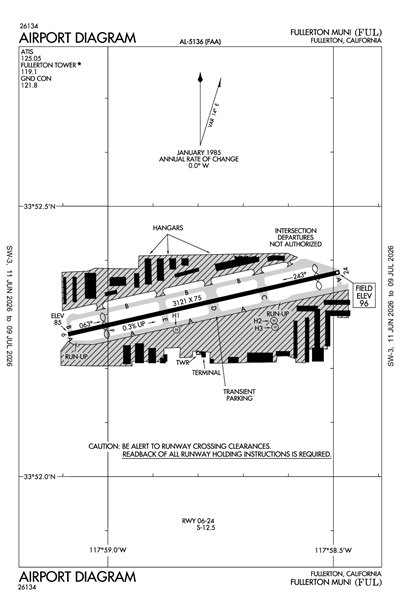

FULLERTON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFUL
FULLERTON MUNI
PublicPUB

3 miles W of FULLERTON, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 52' 19"N 117° 58' 47"W
96' MSL
1100' MSL
14E
JET A, 100LL
RIVERSIDE (RAL)
LOS ANGELES
LOS ANGELES (ZLA)
12/26/24-1/23/25
KFUL VFR
8:53 AM PST
Clear
10sm
57°F
25°F
30.21"Hg
Calm
AO2 SLP230 T01391039
KFUL 221653Z 00000KT 10SM CLR 14/M04 A3021 RMK AO2 SLP230 T01391039
Add Your Business

KFUL FBOs

Promote Listing
General Aviation Company
UNICOM: 122.95
Phone: (714) 526-6611
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 1/7
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.65 6.50
Full Serve 7.00 7.00 7.12
Fuel Notes
Prices include tax

KFUL Other Aviation Services

Promote Listing
Thales Aerospace Communications
Phone: (714) 870-2420
Fax: (714) 870-5133
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.1

ATIS

ATIS
714-870-6222
 125.05

Ground

GND/P
 121.8

Tower

LCL/P
 119.1

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KSLI (6nm)
Wed, 1/22 5:00 AM PST
Wed, 1/22 5:00 AM PST - Thu, 1/23 11:00 AM PST
VFR
5:00 AM PST - 11:00 AM PST
Few 29,000'
6sm
30.18"Hg
VRB° 6kts
TAF KSLI 221300Z 2213/2319 VRB06KT 9999 FEW290 QNH3017INS TX21/2301Z TN08/2215Z
KFUL
Domestic
1/12/252247Z !FUL 01/011 FUL OBST POWER LINE LGT (ASN 2011-AWP-5710-OE) 335805N1175451W (6.6NM NNE FUL) 865FT (252FT AGL) U/S 2501122247-2501272247
1/10/251514Z !FUL 01/010 FUL OBST TOWER LGT (ASR 1011538) 335246.80N1180049.70W (1.8NM WNW FUL) 750.0FT (684.1FT AGL) U/S 2501101514-2502241513
12/10/241808Z !FUL 12/009 FUL OBST TOWER LGT (ASR 1015730) 335128.10N1175150.20W (5.9NM E FUL) 464.9FT (253.9FT AGL) U/S 2412101808-2501241808
FDC
1/17/251637Z !FDC 5/4497 FUL SID FULLERTON MUNI, FULLERTON, CA.
ANAHEIM ONE DEPARTURE...
LAKE HUGHES TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
POM VOR OUT OF SERVICE. 2501171637-2505071637EST
12/25/240909Z !FDC 4/0728 FUL SID FULLERTON MUNI, FULLERTON, CA.
ANAHEIM ONE DEPARTURE...
VENTURA TRANSITION DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FIM VOR OUT OF SERVICE. 2412250909-2504012000EST
10/25/241449Z !FDC 4/4421 FUL SID FULLERTON MUNI, FULLERTON, CA.
ANAHEIM ONE DEPARTURE...
LAKE HUGHES TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LHS VORTAC OUT OF SERVICE. 2410251449-2502261449EST
Yes
0700-2100
CITY OF FULLERTON
303 W. COMMONWEALTH AVE
FULLERTON, CA 92832
Phone: 714-738-6310
BRENDAN O'REILLY
4011 W COMMONWEALTH AVE
FULLERTON, CA 92833-2537
Phone: 714-738-6323
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
FUL
--
WHEN ATCT CLSD ACTVT REIL RWY 06 & 24; PVASI RWY 06; PAPI RWY 24; MIRL RWY 06/24; TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High Pressure
High Pressure
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

3121 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 06 Runway 24
True Heading 77°257°
Traffic Pattern Left Right
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 33° 52' 16"N 33° 52' 23"N
Longitude 117° 59' 05"W 117° 58' 29"W
Elevation 85' 96'
Threshold Crossing Height 32 ft. AGL 33 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator PSIL P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway H1

45 ft. x 45 ft.

CONC
NONE


--
--
--
--
  Runway H1 Runway
True Heading 74°254°
Traffic Pattern
Markings
Markings Condition
Latitude 33° 52' 16"N N/A
Longitude 117° 58' 51"W N/A
Elevation 89' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

45 ft. x 45 ft.

CONC
NONE


--
--
--
--
  Runway H2 Runway
True Heading 74°254°
Traffic Pattern
Markings
Markings Condition
Latitude 33° 52' 17"N N/A
Longitude 117° 58' 38"W N/A
Elevation 91' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H3

45 ft. x 45 ft.

CONC
NONE


--
--
--
--
  Runway H3 Runway
True Heading 74°254°
Traffic Pattern
Markings
Markings Condition
Latitude 33° 52' 17"N N/A
Longitude 117° 58' 38"W N/A
Elevation 91' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ARPT HAS NOISE ABATEMENT PROCEDURES CTC AMGR (714) 738-6323.
A110-10PORTIONS OF TWY A ADJACENT TO THE APCH END OF RWY 24 NOT VSBL FM ATCT.
A110-2RY 06 CALM WIND RY.
A110-5PORTIONS OF TWY A BTN INTERSECTION F & WEST END NOT VSBL FM ATCT.
A110-6FOR NOISE ABATEMENT RY 06 PREFERRED FOR TKOF; FOLLOW RR TRACKS TO EAST WITH NO TURNS BLO 1000 FT AGL. RY 24 DEP CLIMB TO 700 FT AGL PRIOR TO TURNS.
A110-7(84) SEGMENTED CIRCLE LGTD.
A110-8LGTD 750 FT TOWER 1.75 MILES WEST OF ARPT ON HEADING OF 285 DEG FROM ARPT.
A110-9FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
FULLERTON MUNI (ICAO: KFUL, IATA: FUL) is a public airport located in FULLERTON, CA.
