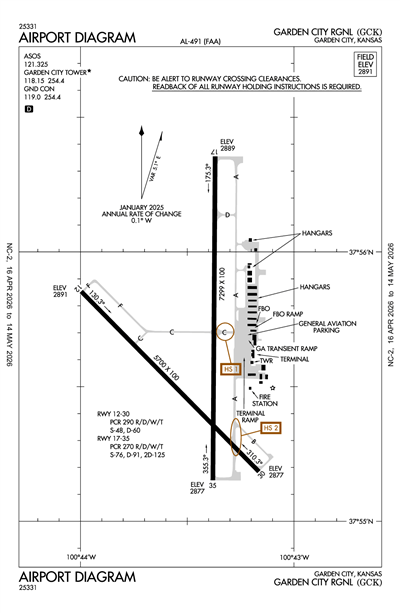

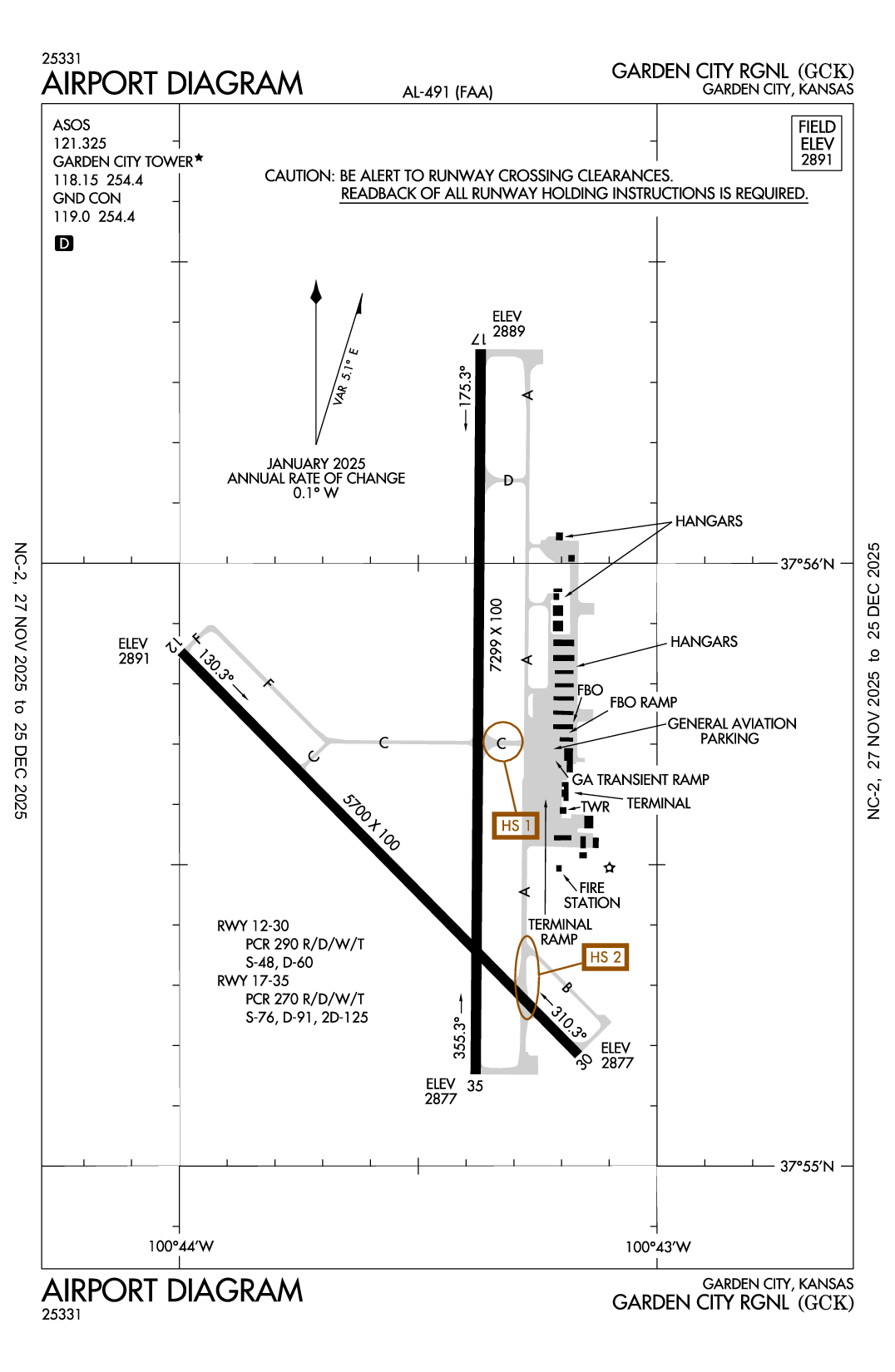

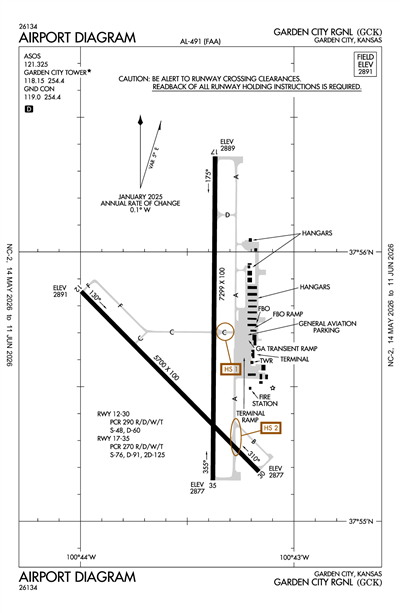

GARDEN CITY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGCK
GARDEN CITY RGNL
PublicPUB

8 miles SE of GARDEN CITY, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 55' 39"N 100° 43' 28"W
2891' MSL
3891' MSL
05E
JET A, 100LL
WICHITA (ICT)
WICHITA
KANSAS CITY (ZKC)
12/26/24-1/23/25
KGCK VFR
9:54 AM CST
Clear
10sm
34°F
12°F
30.17"Hg
350° 23kts
Gusts 29kts
AO2 PK WND 34029/1542 SLP241 T00111111
KGCK 221554Z 35023G29KT 10SM CLR 01/M11 A3017 RMK AO2 PK WND 34029/1542 SLP241 T00111111
Add Your Business

KGCK FBOs

Promote Listing
Crosby Flying Services
UNICOM: 122.95
Phone: (620) 275-5055
Other: (620) 272-1933
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 1/6
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.80 4.75
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.15

ASOS

ASOS
620-275-0803
 121.325

Ground

GND/P
 119.0

Tower

LCL/P
 118.15

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGCK
Wed, 1/22 5:20 AM CST
Wed, 1/22 6:00 AM CST - Thu, 1/23 6:00 AM CST
VFR
6:00 AM CST - 8:00 AM CST
Sky Clear
6sm
340° 14kts
Shear 350° 45kts @ 2000'
VFR
8:00 AM CST - 9:00 AM CST
Few 25,000'
6sm
330° 20kts
Gusts 29kts
Shear 350° 45kts @ 2000'
VFR
9:00 AM CST - 5:00 PM CST
Few 25,000'
6sm
330° 21kts
Gusts 31kts
VFR
5:00 PM CST - 6:00 AM CST
Few 25,000'
6sm
330° 20kts
Gusts 28kts
KGCK 221120Z 2212/2312 34014KT P6SM SKC WS020/35045KT
   FM221400 33020G29KT P6SM FEW250 WS020/35045KT
   FM221500 33021G31KT P6SM FEW250
   FM222300 33020G28KT P6SM FEW250
KGCK
Domestic
12/15/240934Z !GCK 12/004 GCK OBST TOWER LGT (ASR 1032520) 374836.00N1003909.00W (7.8NM SSE GCK) 3148.0FT (342.8FT AGL) U/S 2412150934-2501290933
FDC
1/4/251419Z !FDC 5/0431 GCK IAP GARDEN CITY RGNL, GARDEN CITY, KS.
ILS OR LOC RWY 35, AMDT 3...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GCK VOR OUT OF SERVICE. 2501041419-2502041419EST
8/11/231303Z !FDC 3/2710 GCK ODP GARDEN CITY RGNL, GARDEN CITY, KS.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKEOFF OBSTACLE NOTES: RWY 12, POLE 112 FT FROM DER, 495 FT LEFT OF CENTERLINE, 33 FT AGL/2907 FT MSL. TREE 578 FT FROM DER, 442 FT LEFT OF CENTERLINE, 45 FT AGL/2917 FT MSL..
ALL OTHER DATA REMAINS AS PUBLISHED. 2308111303-2508111303EST
Yes
0700-2100
FOR SVC AFTER HRS CALL 620-275-5055.
CITY OF GARDEN CITY
CITY HALL, BOX 499
GARDEN CITY, KS 67846
Phone: 620-276-1190
MS. RACHELLE POWELL
2225 S. AIR SERVICE RD. 112
GARDEN CITY, KS 67846
Phone: 620-276-1190
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
GCK
--
ACTVT MIRL RY 12/30 & HIRL RY 17/35; REIL RYS 17; 12; 30 & MALSR RY 35 - CTAF. PAPI RYS 12 & 30 AND VASI RYS 17 & 35 ON 24 HRS.
N/A
Yes - Lighted
N/A
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
Low Pressure
Crop Dusting
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 12/30

5700 ft. x 100 ft.
CONC
Good
NONE
MED
35 /R/C/W/T
48,000lbs
60,000lbs
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 55' 51"N 37° 55' 11"N
Longitude 100° 43' 60"W 100° 43' 10"W
Elevation 2,891' 2,877'
Threshold Crossing Height 47 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17/35

7299 ft. x 100 ft.
CONC
Good
GRVD
HIGH
38 /R/C/W/T
76,000lbs
91,000lbs
125,000lbs
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 37° 56' 21"N 37° 55' 09"N
Longitude 100° 43' 22"W 100° 43' 23"W
Elevation 2,889' 2,877'
Threshold Crossing Height 39 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1RY 35 DESIGNATED THE CALM WIND RY.
A110-2AIR CARRIER OPS ARE NOT AUTHORIZED IN EXCESS OF 15 MINUTES BEFORE OR AFTER SCHEDULED ARRIVAL/DEPARTURE TIMES WITHOUT PRIOR COORDINATION WITH AMGR AND CONFIRMATION THAT ARFF IS AVBL PRIOR TO LDNG OR TKOF.
A110-3IN THE EVENT OF AN AIR CARRIER DIVERSION OR OTHER IRREGULAR OPERATIONS EVENTS, AIRCRAFT OPERATORS SHOULD CONTACT AMGR 620-290-3810. FACILITY CONSTRAINTS INCLUDE: LACK OF INTERNATIONAL PASSENGER PROCESSING FACILITIES, LIMITED NUMBER OF PARKING POSITIONS AND LIMITED TERMINAL SPACE FOR PASSENGERS.
A110-4ATCT BLIND SPOT ON THE NORTH TWY A HOLD BAY.
A110-5FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY ARTCC AT 913-254-8508.
GARDEN CITY RGNL (ICAO: KGCK, IATA: GCK) is a public airport located in GARDEN CITY, KS.
