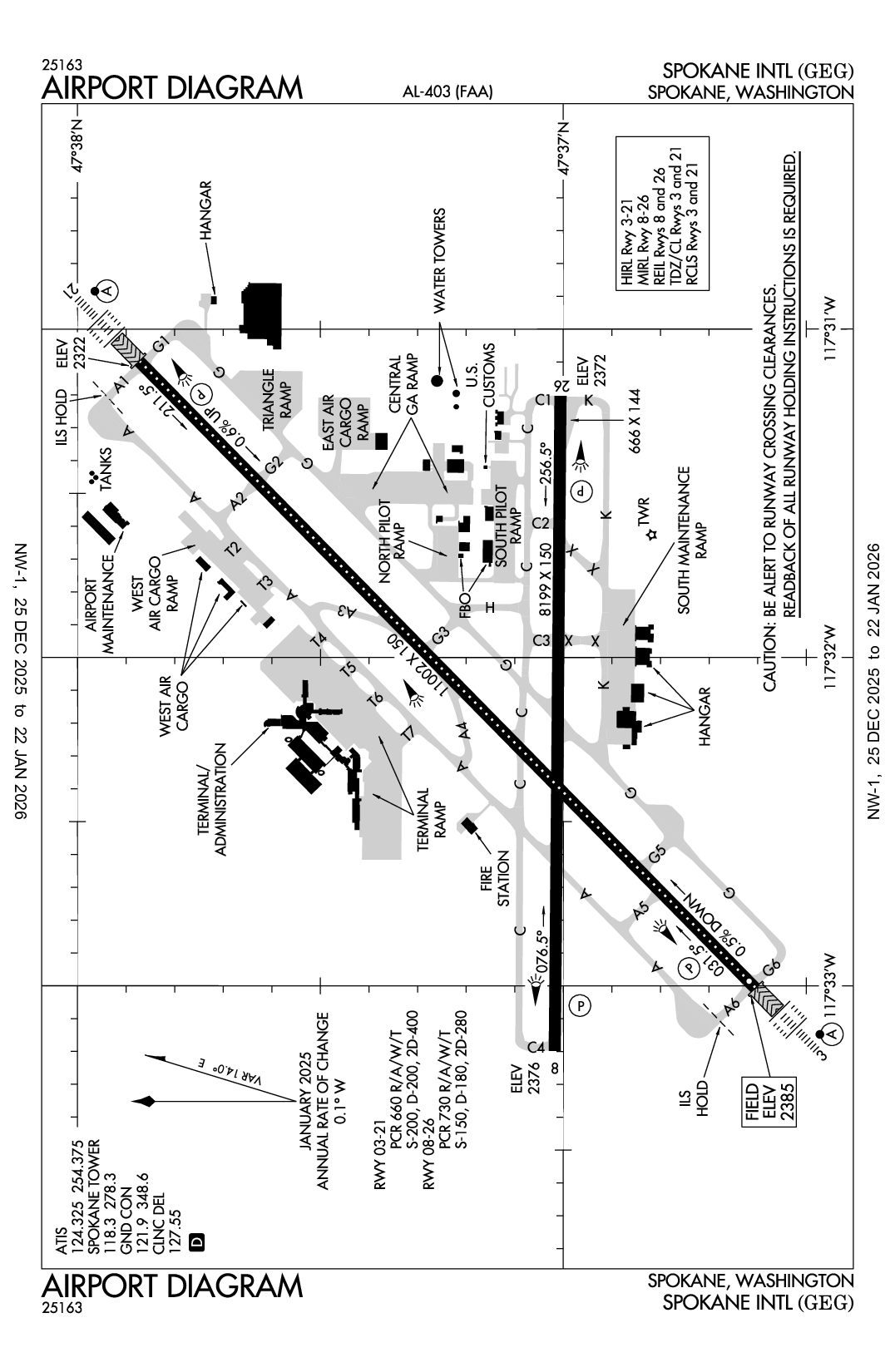

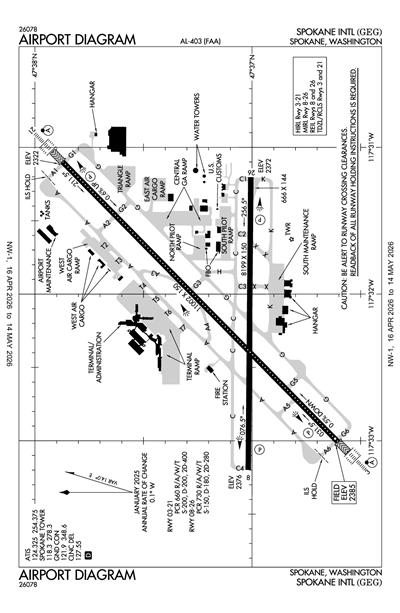

SPOKANE INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGEG
ICAO KGEGIATA GEGLocal GEG
SPOKANE INTL
PublicPUB

5 miles SW of SPOKANE, WA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 37' 08"N 117° 32' 07"W
Elevation
2385' MSL
Pattern Alt
3385' MSL
Mag Variation
14°E
Declination
14°E
Fuel
JET A, 100LL, 100
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
4/16/26-5/14/26
KGEG VFR
7:53 AM PDT
Few 18,000'
10sm
52°F
41°F
29.98"Hg
180° 4kts
AO2 SLP145 T01110050 51022
METAR KGEG 071453Z 18004KT 10SM FEW180 11/05 A2998 RMK AO2 SLP145 T01110050 51022
+ Add Your Business

KGEG FBOs

Promote Listing
Aero Center
UNICOM: 129.225
Phone: (509) 206-9256
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 4/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.35 9.41 9.49
Fuel Notes
Prices include tax
Promote Listing
Signature Aviation
UNICOM: 122.775
Phone: (509) 455-5204
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/7
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.68 9.65
Fuel Notes
Prices include tax

KGEG Aircraft Service & Maintenance

Promote Listing
Absolute Aviation Services
Phone: (509) 747-2904
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.325
(509) 838-0895
ASOS (509) 742-2544

Common

UNICOM 122.95

Clearance

Clearance Delivery 127.55

Ground

SPOKANE GROUND 121.9

Tower

SPOKANE TOWER 118.3

Arrival

HILIE STAR 133.35
ZOOMR STAR 123.75

Approach

SPOKANE APPROACH 123.75
Initial Contact - 205-025
SPOKANE APPROACH 133.35
Initial Contact - 026-204

Departure

SPOKANE DEPARTURE 123.75
Initial Contact - 205-025
SPOKANE DEPARTURE 133.35
Initial Contact - 026-204

Flight Service

Flight Service 122.2
(SEA)

Emergency

Emergency 121.5

Other

CLASS C 123.75
205-025
CLASS C 133.35
026-204

Terminal Area Forecast

KGEG
Thu, 5/7 4:20 AM PDT
Thu, 5/7 5:00 AM PDT - Fri, 5/8 5:00 AM PDT
VFR
5:00 AM PDT - 1:00 PM PDT
Few 20,000'
6sm
210° 9kts
VFR
1:00 PM PDT - 8:00 PM PDT
Scattered 6,000'
6sm
230° 8kts
VFR
8:00 PM PDT - 5:00 AM PDT
Sky Clear
6sm
200° 8kts
TAF KGEG 071120Z 0712/0812 21009KT P6SM FEW200
   FM072000 23008KT P6SM SCT060
   FM080300 20008KT P6SM SKC
KGEG
EffectiveExpiresCategoryNOTAM
Domestic
5/7/26
1439Z
!GEG 05/022 GEG TWY A BTN TWY C AND TWY A1 WIP INSPECTION 2605071439-2605071800EST
4/29/26
1942Z
!GEG 04/102 GEG OBST SILO (ASN UNKNOWN) 473718N1173245W (.47NM NW GEG)
2455FT (90FT AGL) FLAGGED AND LGTD 2604291942-2609302359EST
4/29/26
1130Z
6/30/26
2359Z
!GEG 04/101 GEG TWY A CL MARKINGS BTN TWY T7 AND TWY C NOT STD 2604291130-2606302359
4/29/26
1130Z
6/30/26
2359Z
!GEG 04/100 GEG TWY A1 HLDG PSN SIGN FOR ILS FOR APCH END RWY 21 NOT STD 2604291130-2606302359
4/29/26
1129Z
6/30/26
2300Z
!GEG 04/099 GEG TWY T4, T5, TWY A BTN TWY A3 AND TWY T5 SFC MARKINGS NOT STD 2604291129-2606302300
3/23/26
2146Z
6/30/26
2359Z
!GEG 03/228 GEG TWY A BTN TWY T4 AND TWY T7 CLSD LGTD AND BARRICADED 2603232146-2606302359
3/23/26
1912Z
6/30/26
2300Z
!GEG 03/226 GEG TWY A CL LGT U/S 2603231912-2606302300
3/23/26
1500Z
6/30/26
2359Z
!GEG 03/201 GEG APRON TERMINAL RAMP BTN TWY T4 AND TWY T7 CLSD TO ACFT WINGSPAN MORE THAN 118FT 2603231500-2606302359
3/23/26
1500Z
6/30/26
2359Z
!GEG 03/200 GEG TWY T7 CLSD TO ACFT WINGSPAN MORE THAN 118FT 2603231500-2606302359
3/23/26
1500Z
6/30/26
2359Z
!GEG 03/199 GEG TWY T5, T6 CLSD 2603231500-2606302359
1/20/26
1946Z
!GEG 01/471 GEG OBST CRANE (ASN 2025-ANM-7197-OE) 473500N1173410W (2.6NM SSW GEG) 2662FT (230FT AGL) FLAGGED AND LGTD 2601201946-2610312359EST
FDC
4/9/26
0504Z
!FDC 6/0123 GEG IAP SPOKANE INTL, SPOKANE, WA.
RNAV (RNP) Z RWY 21, AMDT 1C...
RNP 0.11 NA. TEMPORARY CRANE 2615FT MSL 3760FT S OF RWY 21 (2023-ANM-3703-NRA), TEMPORARY CRANE 2490 MSL 1540FT NW OF RWY 21 (2023-ANM-5476-NRA).
2604090504-2611190504EST
3/30/26
1320Z
!FDC 6/5718 GEG IAP SPOKANE INTL, SPOKANE, WA.
RNAV (GPS) Y RWY 26, AMDT 4B...
LPV DA 2753/HAT 381 ALL CATS. VIS ALL CATS 1 1/8. TEMPORARY CRANE 2615FT MSL 1529FT N OF RWY 26 (2023-ANM-3703-NRA).
2603301320-2611092355EST
3/30/26
1318Z
!FDC 6/5714 GEG IAP SPOKANE INTL, SPOKANE, WA.
RNAV (RNP) Z RWY 21, AMDT 1C...
RNP 0.11 NA. TEMPORARY CRANE 2615FT MSL 3760FT S OF RWY 21 (2023-ANM-3703-NRA), TEMPORARY CRANE 2490 MSL 1540FT NW OF RWY 21 (2023-ANM-5476-NRA).
2603301318-2611092355EST
3/16/26
0258Z
!FDC 6/8622 GEG SID SPOKANE INTL, SPOKANE, WA.
SPOKANE EIGHT DEPARTURE...
GEG VORTAC MSA SECTOR 180 CW 360 MINIMUM ALTITUDE 6300. ALL OTHER DATA REMAINS AS PUBLISHED. 2603160258-2803160258EST
2/13/26
2123Z
!FDC 6/4216 GEG IAP SPOKANE INTL, SPOKANE, WA.
ILS OR LOC RWY 21, AMDT 24A...
ILS RWY 21 (SA CAT I), AMDT 24A... ILS RWY 21 (CAT II AND III), AMDT 24A...
MISSED APPROACH: CLIMB TO 2800 THEN CLIMBING RIGHT TURN TO 6500 HEADING 048.00 TO INTERCEPT COE VOR/DME R-245 TO COE VOR/DME AND HOLD.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. GEG VOR 001 CW 090 UNUSABLE.
2602132123-2609252123EST
2/13/26
2123Z
!FDC 6/4215 GEG ODP SPOKANE INTL, SPOKANE, WA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
GEG VOR 001 CW 090 UNUSABLE. 2602132123-2609252123EST
2/13/26
2123Z
!FDC 6/4214 GEG SID SPOKANE INTL, SPOKANE, WA.
SPOKANE EIGHT DEPARTURE...
DEPARTURE PROCEDURE LOST COMMUNICATIONS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. GEG VOR 001 CW 090 UNUSABLE. 2602132123-2609252123EST
1/20/26
1504Z
!FDC 6/4987 GEG IAP SPOKANE INTL, SPOKANE, WA.
RNAV (RNP) Z RWY 8, AMDT 1A...
RNP 0.11 DA 2699/HAT 323 ALL CATS, VIS ALL CATS 1. TEMPORARY CRANE 2570 MSL 2161FT NW OF GEG AIRPORT (2022-ANM-1066-NRA), TEMPORARY CRANE 2575 MSL 1876FT S OF GEG AIRPORT (2024-ANM-653-NRA).
2601201504-2609012355EST
10/1/25
2200Z
!FDC 5/1946 GEG IAP SPOKANE INTL, SPOKANE, WA.
RNAV (RNP) Z RWY 8, AMDT 1A...
RNP 0.11 DA 2695/HAT 319 ALL CATS.
TEMPORARY CRANE 2570 FT MSL, 4207 FT NE OF RWY 08 (2022-ANM-1077-NRA).
2510012200-2610151543EST
11/20/24
0341Z
!FDC 4/6475 GEG IAP SPOKANE INTL, SPOKANE, WA.
VOR RWY 21, ORIG-A...
PROCEDURE NA.
2411200341-2611200340EST
Yes
ALL
SPOKANE COUNTY-CITY
ARPT BOARD 9000 W AIRPORT DRIVE
SPOKANE, WA 99224
Phone: 509-455-6455
DAVID HARING
9000 W AIRPORT DR. SUITE 204
SPOKANE, WA 99224
Phone: 509-455-6455
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
GEG
--
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

11002 ft. x 150 ft.
ASPH CONC
Excellent
GRVD
HIGH

200,000lbs
200,000lbs
400,000lbs
--
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 47° 36' 36"N 47° 37' 52"N
Longitude 117° 33' 00"W 117° 31' 06"W
Elevation 2,385' 2,322'
Threshold Crossing Height 69 ft. AGL 73 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 08/26

8199 ft. x 150 ft.
ASPH
Good
GRVD
MED

150,000lbs
180,000lbs
280,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 37' 01"N 47° 37' 00"N
Longitude 117° 33' 12"W 117° 31' 12"W
Elevation 2,376' 2,372'
Threshold Crossing Height 45 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2BE ALERT TO TURBULENCE OVER SMOKE STACKS 1 MILE EAST OF ARPT.
A110-4WATERFOWL & BIRDS ON & INVOF ARPT.
A110-6TWY K UNLGTD ON RAMP SIDE ALONG MAINTENANCE RAMP AND IS UNAVBL BELOW 1200 RVR UNLESS UNDER ESCORT BY "FOLLOW ME".
A110-7PORTIONS OF TWY K NOT VISIBLE FM ATCT.
A39-03/21PCR VALUE: 660/R/A/W/T
A39-08/26PCR VALUE: 730/R/A/W/T
A49-21ALSF 2 MAY BE OPERATED AS SSALR DURING FAVORABLE WX CONDITIONS.
E111ESTABD PRIOR 1959
SPOKANE INTL (ICAO: KGEG, IATA: GEG) is a public airport located in SPOKANE, WA, US.
