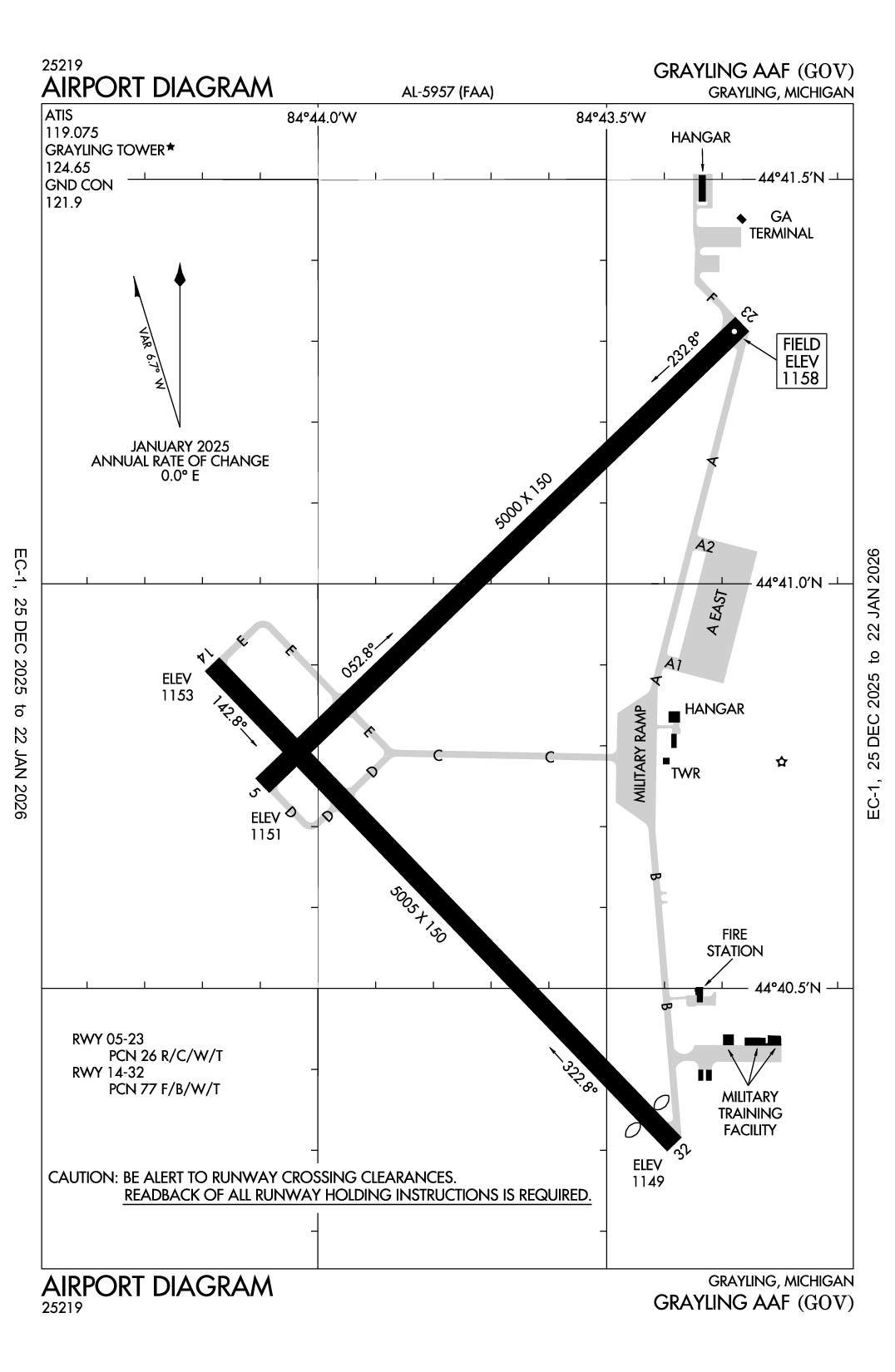

GRAYLING AAF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGOV
GRAYLING AAF
PublicPUB

1 miles NW of GRAYLING, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 40' 49"N 84° 43' 44"W
1158' MSL
2158' MSL
06W
JET A (FSII), 100LL
LANSING (LAN)
LAKE HURON
MINNEAPOLIS (ZMP)
11/28/24-12/26/24
KGOV VFR
6:55 AM EST
Overcast 5,500'
Few 4,000'
10sm
26°F
19°F
30.10"Hg
200° 7kts
AO2 SLP217 60000 T10341072 11034 21047 57017 $
KGOV 231155Z AUTO 20007KT 10SM FEW040 OVC055 M03/M07 A3010 RMK AO2 SLP217 60000 T10341072 11034 21047 57017 $
Add Your Business

KGOV FBOs

Promote Listing
Crawford County Air Terminal
UNICOM: 126.2
Phone: (989) 344-3202
Other: (989) 390-6896
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/15
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.00 6.00
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 126.2

ATIS

ATIS
Hours: 24 HRS
 119.075

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 126.2

Other

GCA
FM
 48.6
OPS
 122.8

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KTVC (36nm)
Mon, 12/23 6:33 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 8:00 AM EST
Showers in vicinity
Overcast 3,500'
Scattered 1,500'
6sm
170° 8kts
MVFR
8:00 AM EST - 10:00 AM EST
Light Snow and Mist
Overcast 2,500'
Broken 1,500'
4sm
170° 8kts
IFR
10:00 AM EST - 7:00 PM EST
Light Snow and Mist
Overcast 1,500'
2sm
180° 8kts
MVFR
7:00 PM EST - 7:00 AM EST
Light Snow and Mist
Overcast 2,500'
5sm
320° 4kts
KTVC 231133Z 2312/2412 17008KT P6SM VCSH SCT015 OVC035
   FM231300 17008KT 4SM -SN BR BKN015 OVC025
   FM231500 18008KT 2SM -SN BR OVC015
   FM240000 32004KT 5SM -SN BR OVC025
KGOV
Domestic
12/22/241343Z !GOV 12/052 GOV OBST TOWER LGT (ASR 1056763) 444225.50N0845257.20W (6.7NM WNW GOV) 1494.1FT (227.0FT AGL) U/S 2412221343-2504211343
12/20/241336Z !GOV 12/050 GOV RWY 05/23 CLSD 2412201336-2412312300
12/19/241420Z !GOV 12/047 GOV NAV CGG VOR U/S 2412191420-2503192359
12/6/242035Z !GOV 12/026 GOV TWY E CLSD TO FIXED WING 2412062035-2502062359
12/3/241317Z !GOV 12/005 GOV TWY D BTN APCH END RWY 05 AND RWY 14/32 CLSD 2412031317-2502042359
12/3/241316Z !GOV 12/004 GOV TWY E BTN APCH END RWY 14 AND RWY 05/23 CLSD 2412031316-2502042359
11/14/241825Z !GOV 11/004 GOV TWY ALL SFC MARKINGS NOT STD 2411141825-2501142359
11/14/241820Z !GOV 11/003 GOV APRON GA PRKG RAMP SFC MARKINGS NOT MARKED 2411141820-2501142359
FDC
12/26/240905Z !FDC 4/9265 GOV IAP GRAYLING AAF, GRAYLING, MI.
RNAV (GPS) RWY 14, AMDT 1...
PROCEDURE NA.
2412260905-2508011216EST
12/26/240905Z !FDC 4/9264 GOV IAP GRAYLING AAF, GRAYLING, MI.
VOR RWY 14, AMDT 3...
PROCEDURE NA.
2412260905-2508011216EST
Military
12/24/241300Z !KGOV M0107/24 GOV SVC ATC TWR CLOSED 2412241300-2412272300
12/18/241300Z !KGOV M0102/24 GOV SVC BASE OPS OPERATING HOURS NOW 0800L - 1800L EXC FEDERAL HOLIDAYS OR BY NOTAM 2412181300-2502142300
11/14/241846Z ALL SURFACE MARKINGS NON STD FOR EAST, WEST, & MILITARY APRONS.
11/14/241831Z !KGOV M0078/24 GOV RWY 05 RWY END ID LGT U/S 2411141831-2501142359
11/14/241830Z !KGOV M0077/24 GOV RWY 14 RWY END ID LGT U/S 2411141830-2501142359
11/14/241827Z !KGOV M0076/24 GOV RWY 32 RWY END ID LGT U/S 2411141827-2501142359
Yes
APR-SEP MON-FRI 0800-2400
OCT-MAR MON-FRI 0800-2000
EXC FEDERAL HOLS.
US ARMY
MI DEPT OF MILITARY & VETERANS AFF, 3411 N MLK BLVD
LANSING, MI 48906-2934
Phone: 517-483-5645
SCOTT KARNER
JMTC GAAF BLDG 1160, CAMP GRAYLING
GRAYLING, MI 49738
Phone: 989-344-4301
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
GOV
--
ACTVT REIL RWY 14, 32, 05, & 23; PAPI RWY 14, 32, 05, & 23; MIRL RWY 14/32 & 05/23 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 05/23

5000 ft. x 150 ft.
CONC
Fair
NONE
MED
26 /R/C/W/T
--
--
--
--
  Runway 05 Runway 23
True Heading 46°226°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 44° 40' 45"N 44° 41' 19"N
Longitude 84° 44' 06"W 84° 43' 16"W
Elevation 1,151' 1,158'
Threshold Crossing Height 41 ft. AGL 30 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 14/32

5005 ft. x 150 ft.
ASPH
Good
NONE
MED
77 /F/B/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 136°316°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 44° 40' 54"N 44° 40' 18"N
Longitude 84° 44' 11"W 84° 43' 23"W
Elevation 1,153' 1,149'
Threshold Crossing Height 29 ft. AGL 33 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-10MILITARY: ALL HAZUS CARGO MUST BE APVD BY AIRFIELD MGR.
A110-11ALL AIRFIELD SIGNS UNLGTD.
A110-12EXP CLOSURE OR RDCD SVC PER NOTAM.
A110-13PAVEMENT EVAL NOT CURRENT. ALL AMC ACFT CTC MGMT FOR WAIVERS & RSTRNS.
A110-2WILDLIFE ON & INVOF ARPT.
A110-5EXTSV MIL HEL TFC JUN THRU AUG.
A110-6PARTS OF THE AIRFIELD CLSD DRG WINTER MONTHS - CK NOTAMS.
A110-7CIVILIAN TRML BLDG ACES 5-3-2-1-*.
A110-8FOR FICON C989-344-4301, UNMON OUTSIDE OPRG HRS.
A110-9MILITARY: SVC: UNAVBL EXC 24 HR PPR 989-344-4301, ACFT MUST MEET PPR TIME WI 30 MINS.
GRAYLING AAF (ICAO: KGOV, IATA: GOV) is a public airport located in GRAYLING, MI.
