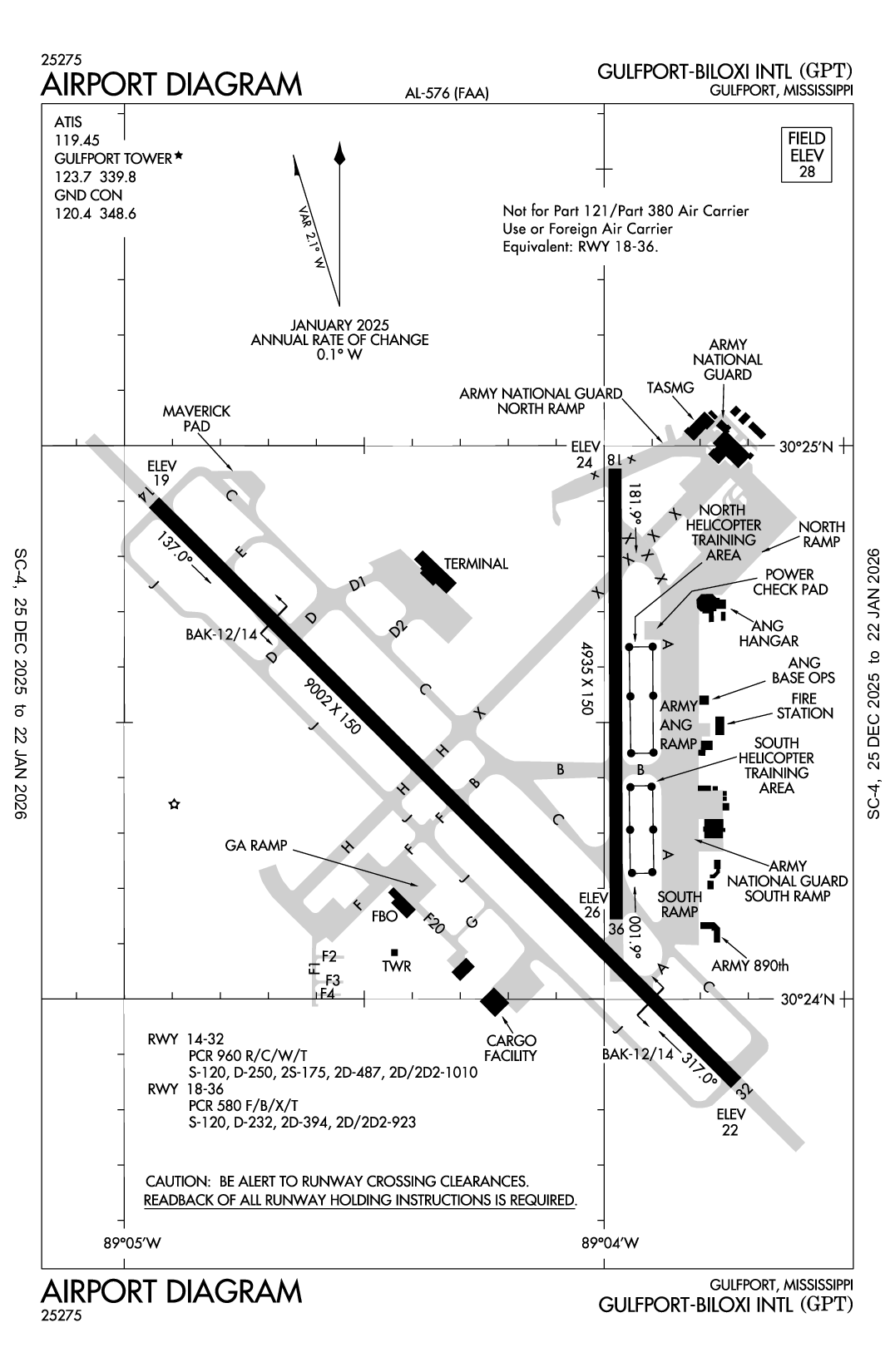

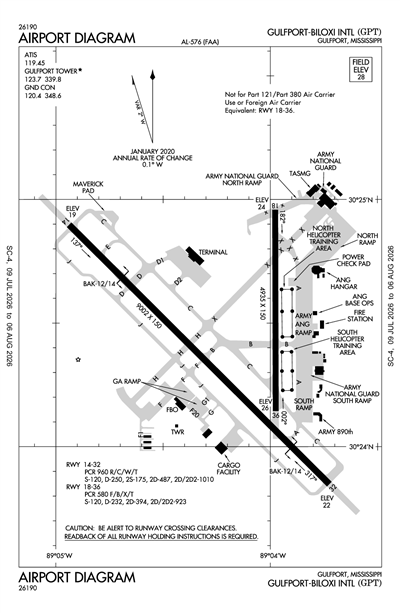

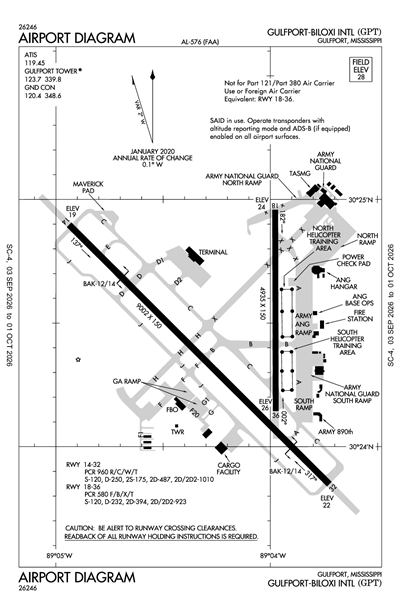

GULFPORT-BILOXI INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGPT
GULFPORT-BILOXI INTL
PublicPUB

3 miles NE of GULFPORT, MS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 24' 26"N 89° 04' 12"W
28' MSL
828' MSL
02W
JET A, 100LL
GREENWOOD (GWO)
NEW ORLEANS
HOUSTON (ZHU)
11/28/24-12/26/24
KGPT VFR
5:53 AM CST
Clear
10sm
36°F
30°F
30.34"Hg
Calm
AO2 SLP273 T00221011 10028 20006 53002 $
KGPT 231153Z AUTO 00000KT 10SM CLR 02/M01 A3034 RMK AO2 SLP273 T00221011 10028 20006 53002 $
Add Your Business

KGPT FBOs

Promote Listing
Million Air
UNICOM: 131.1
Phone: (228) 701-0400
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.76 7.51 7.61
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 123.7

ATIS

ATIS
 119.45

ASOS

ASOS
228-867-9937
 119.45

Approach/Departure

APCH/P DEP/P
130-309
 124.6
APCH/P DEP/P IC
310-129
 127.5

Emergency

EMERG
 121.5

Ground

GND/P
 120.4

Tower

LCL/P
 123.7

Other

FINAL CTL
 126.75
TRSA
130-309
 124.6
TRSA
310-129
 127.5

Terminal Area Forecast

KGPT
Mon, 12/23 5:26 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 10:00 AM CST
Sky Clear
6sm
Calm
VFR
10:00 AM CST - 6:00 AM CST
Sky Clear
6sm
070° 7kts
KGPT 231126Z 2312/2412 00000KT P6SM SKC
   FM231600 07007KT P6SM SKC
KGPT
Domestic
12/21/240846Z !GPT 12/057 GPT RWY 14 PAPI U/S 2412210846-2501102000EST
12/20/241715Z !GPT 12/055 GPT OBST TOWER LGT (ASR 1209068) 302821.70N0885659.10W (7.4NM ENE GPT) 321.5FT (308.4FT AGL) U/S 2412201715-2501202359
12/13/240025Z !GPT 12/028 GPT OBST TOWER LGT (ASR 1220201) 302340.10N0885954.20W (3.8NM ESE GPT) 232.0FT (209.0FT AGL) U/S 2412130025-2412270500
12/11/240909Z !GPT 12/026 GPT RWY 14 RAI LGT U/S 2412110909-2502262000EST
12/5/242304Z !GPT 12/016 GPT OBST TOWER LGT (ASR 1275151) 303542.70N0891120.20W (12.7NM NNW GPT) 396.0FT (304.1FT AGL) U/S 2412052304-2504042304
12/3/241916Z !GPT 12/007 GPT OBST TOWER LGT (ASN 2023-ASO-2624-OE) 303113N0890211W (7.0NM NNE GPT) 301FT (260FT AGL) U/S 2412031916-2501032300
12/1/240753Z !GPT 12/001 GPT RWY 36 PAPI U/S 2412010753-2501082000EST
10/24/240510Z !GPT 10/059 GPT OBST TOWER LGT (ASR 1056844) 303058.00N0890538.00W (6.6NM N GPT) 488.8FT (419.9FT AGL) U/S 2410240510-2501220400
10/7/241500Z !GPT 10/017 GPT APRON TXL F20 BTN GA WEST RAMP AND TXL G CLSD 2410071500-2412312300
8/5/241530Z !GPT 08/005 GPT NAV TACAN GND REC CHECKPOINT U/S 2408051530-2412312000EST
FDC
7/12/241526Z !FDC 4/1480 GPT IAP U.S. DOD GULFPORT-BILOXI INTL, GULFPORT, MS.
ILS Z OR LOC Z RWY 14, AMDT 15A...
ILS Z OR LOC Z RWY 32, AMDT 5A...
RADAR-1, AMDT 7A...
RNAV (GPS) RWY 18, AMDT 3...
RNAV (GPS) RWY 32, AMDT 2A...
RNAV (GPS) RWY 36, AMDT 2B...
VOR Y RWY 32, AMDT 21D...
VOR Z OR TACAN Z RWY 14, AMDT 4A...
VOR Z RWY 32, AMDT 5A...
CIRCLING CAT A MDA 580/HAA 552 (2024-ASO-12154-OE PERM).
2407121526-2607121526EST
Yes
ALL
GULFPORT-BILOXI RGNL APT AUTH
14035-L AIRPORT RD
GULFPORT, MS 39503
Phone: 228-863-5951
CLAY WILLIAMS
14035-L AIRPORT RD
GULFPORT, MS 39503
Phone: 228-863-5951
GREENWOOD FSS (GWO)
Toll Free: 1-800-WX-BRIEF
GPT
--
WHEN ATCT CLSD ACTVT MALSR RWY 14 & 32; HIRL RWY 14/32; MIRL RWY 18/36 - CTAF. MIRL RWY 18/36 NOT AVBL WHEN ATCT CLSD & RWY 14/32 ACTV.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 14/32

9002 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

81,000lbs
300,000lbs
555,000lbs
870,000lbs
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 30° 24' 54"N 30° 23' 51"N
Longitude 89° 04' 56"W 89° 03' 44"W
Elevation 19' 22'
Threshold Crossing Height 73 ft. AGL 72 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights No No

Runway 18/36

4935 ft. x 150 ft.
ASPH
Excellent
GRVD
MED
147/F/B/W/T
20,000lbs
--
115,000lbs
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 24' 58"N 30° 24' 09"N
Longitude 89° 03' 59"W 89° 03' 58"W
Elevation 24' 26'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1NMRS LOW FLYING FISH SPOTTER ACFT OPERG THE SHORELINE BTN PASCAGOULA & GULFPORT SR-SS.
A110-10ACFT OPERG AS SKED OR CHARTER PSGR SVC SHALL NOT TAXI ON TWY 'A' NORTH OF TWY 'B' INTXN WO ESCORT FROM GND HANDLING AGENT OR ARPT AUTH.
A110-11CIVIL ACFT WITH WING SPAN OF 132 FT OR GREATER AND ALL ACR ACFT MUST BE ESCORTED ALONG TWY 'A' NORTH OF TWY 'C' BY GND HANDLING AGENT.
A110-12MILITARY ACFT OR ACFT SUPPORTING A MIL MISSION WITH WING SPAN OF 132 FT OR GREATER MUST HAVE ESCORT OR COORD TAXI PROCS WITH GND HANDLING AGENT PRIOR TO TXG ON TWY 'A'.
A110-13MAVERICK PAD APRON AREA ON N END OF TWY C RSTRD TO MIL ARCFT USE ONLY.
A110-14ARRESTING GEAR AVBL DURING ANG OPNS WITH 30 MIN PRIOR NOTICE.
A110-15CSTMS/AG/IMG: REQR OF PPR RESPONSIBLE FOR NTFYG CSTMS 48 HRS PRIOR NOTICE.
A110-16RSTD: C-5 ACFT PRK RSTD TO 1 ACFT AT A TIME DUE TO TXY WIDTH UNLESS COORD.
A110-17MILITARY: ANG: NO COMSEC STOR. CRTC AFLD MGMT OPS OPR 1300-2130Z++ MON; 1300-2230Z++ TUES-FRI & UNIT TRNG ASSEMBLY (UTA) WKNDS, NORMALLY FIRST WKND OF MONTH; CLSD HOL. 48 HR PN PPR RQR CTC CRTC AM OPS. CTC GUARD OPS 15 MIN PRIOR TO ARR 377.800. DSN 363-6027; C228-214-6027; FAX DSN 363-6031; C228-214-6031.
A110-18MILITARY: CAUTION: BASH PHASE II IN EFCT APR-MAY AND AUG-OCT. CTC AFLD MGMT FOR CURRENT BIRD WATCH COND.
A110-21PWR CHK PAD BTN RWY 18/36 AND TWY A RSTD TO MIL ACFT ONLY.
A110-22TAXILANE F20 BTN FBO AND TAXILANE G CLSD TO ACFT WITH WINGSPAN GREATER THAN 49 FT. POLE ADJ TAXILANE F20 NOT LGTD.
A110-23FUEL A+ (MIL) A (MILLION AIR GULFPORT, (C228-701-0400).
A110-24MILITARY: RSTD: PRK RSTD WI 100 FT LOX FAC LCTD NE CORNER APRON 1.
A110-25MILITARY: ANG: LTD SVC AVBL SPACE A PERS, NO PAX TERMINAL.
A110-26MILITARY: ARNG: MSAVCRAD OPS OPR 1300-2130Z++ MON; 1300-2230Z++ TUE-FRI & UNIT TRNG ASSEMBLY (UTA) WKND. PPR RQR CTC ARNG OPS, DSN 293-1378/1312, C228-214-1378/1312. ACFT INBD TO ARNG RAMP CTC BLACKJACK OPS (241.0/41.6) 10 MIN PRIOR TO LDG FOR PRK INSTR.
A110-27RWY 18/36 NOT AVBL FOR SKEDD ACR OPS WITH MORE THAN 9 PAX SEATS OR UNSKED ACR OPS AT LEAST 31 PAX SEATS.
A110-3ACFT OVER 115,000 LBS ARE RSTRD FROM 180 DEG TURNS ON RWY 18/36. ACFT WITH WINGSPAN GREATER THAN 223 FT ARE RSTRD FM OPRG ON TWY 'C' BTN TWY 'A' AND AER 32.
A110-4ACFT OVER 155000 LBS ARE RSTRD FM USING THE N PART OF TWY 'A' AT RY 18/36. ACFT OVER 316000 LBS ARE RSTRD FM USING THE S PART OF TWY 'A' BTN TWY 'C' & RY 14/32.
A110-5DUE TO APRON ACTVTY ACFT WITH WINGSPAN GREATER THAN 170 FT SHOULD BE ALERT ON TWY 'A' BTN TWY 'C' & TWY 'B'.
A110-9150 FT AGL CRANE 4600 FT N OF RWY 18 THLD.
GULFPORT-BILOXI INTL (ICAO: KGPT, IATA: GPT) is a public airport located in GULFPORT, MS.
