GRAND RAPIDS/ITASCA COUNTY-GORDON NEWSTROM FLD - Airport Diagram

KGPZ

GRAND RAPIDS/ITASCA COUNTY-GORDON NEWSTROM FLD

PublicPUB

2 miles SE of GRAND RAPIDS, MN

View on Map

Status

Operational

Coordinates

47° 12' 33"N 93° 30' 36"W

Elevation

1356' MSL

Pattern Alt

2356' MSL

Mag Variation

02E

Fuel

JET A, 100LL

FSS

PRINCETON (PNM)

Sectional

TWIN CITIES

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

11/28/24-12/26/24

KGPZ IFR

6:04 AM CST RAW

Overcast 900'

Viz

8sm

Temp

19°F

Dew

18°F

Pres

30.02"Hg

Wind

Calm

RMK

AO2 FZRANO

KGPZ 231204Z AUTO 8SM OVC009 M07/M08 A3002 RMK AO2 FZRANO

Add Your Business

KGPZ FBOs

Promote Listing

AirWays Aviation Center

UNICOM: 122.8

Phone: (218) 326-1226

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 12/10	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	7.00		5.38

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3PT

218-326-8337

118.425

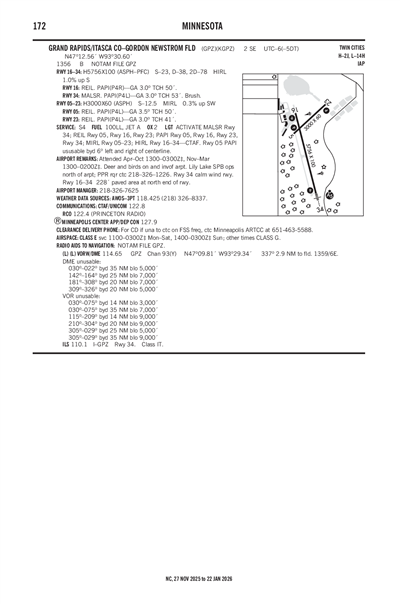

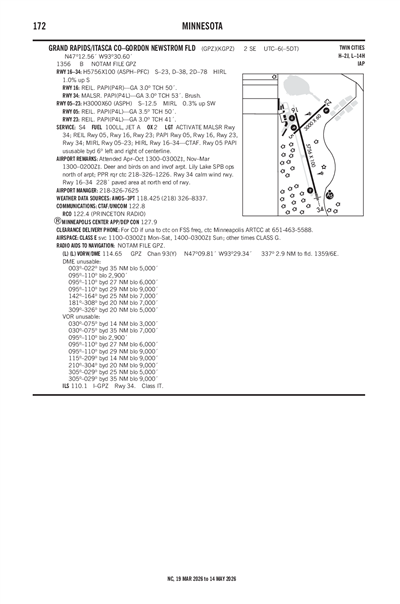

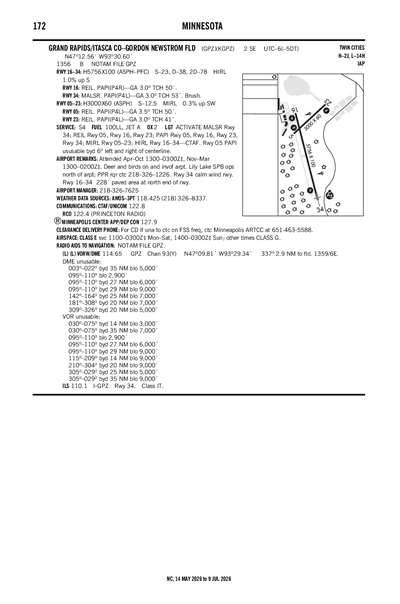

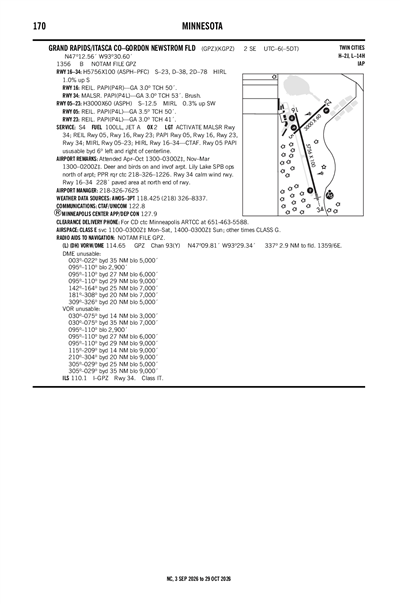

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KHIB (30nm)

RAW

Reported

Mon, 12/23 5:28 AM CST

Valid

Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST

MVFR

6:00 AM CST - 2:00 PM CST

Overcast 1,300'

Viz

6sm

Wind

VRB° 3kts

VFR

2:00 PM CST - 10:00 PM CST

Scattered 1,300'

Viz

6sm

Wind

360° 5kts

VFR

10:00 PM CST - 3:00 AM CST

Scattered 700'

Viz

6sm

Wind

Calm

LIFR

3:00 AM CST - 6:00 AM CST

Mist

Broken 300'

Viz

3sm

Wind

Calm

KHIB 231128Z 2312/2412 VRB03KT P6SM OVC013
   FM232000 36005KT P6SM SCT013
   FM240400 00000KT P6SM SCT007
   FM240900 00000KT 3SM BR BKN003

KGPZ

Domestic
12/22/241540Z	!GPZ 12/050 GPZ RWY 23 FICON 3/3/3 75 PCT COMPACTED SN 60FT WID OBS AT 2412221540. 2412221540-2412231540
12/22/241539Z	!GPZ 12/049 GPZ APRON GA APN FICON PATCHY 1/8IN DRY SN 1500FT WID OBS AT 2412221539. 2412221539-2412231539
12/22/241538Z	!GPZ 12/048 GPZ TWY ALL FICON PATCHY 1/8IN DRY SN SANDED OBS AT 2412221538. 2412221538-2412231538
12/22/241537Z	!GPZ 12/047 GPZ RWY 34 FICON 3/3/3 75 PCT COMPACTED SN 90FT WID OBS AT 2412221537. 2412221537-2412231537
12/8/241948Z	!GPZ 12/012 GPZ OBST TOWER LGT (ASR 1024447) 471639.00N0932659.00W (4.8NM NNE GPZ) 1914.7FT (444.9FT AGL) U/S 2412081948-2501082359
11/17/240536Z	!GPZ 11/005 GPZ OBST TOWER LGT (ASR 1048885) 472022.00N0932349.00W (9.1NM NNE GPZ) 2011.2FT (497.0FT AGL) U/S 2411170536-2501010535
9/5/241244Z	!GPZ 09/002 GPZ OBST CRANE (ASN 2023-AGL-22017-OE) 471220N0933100W (.5NM S GPZ) 1605FT (250FT AGL) FLAGGED 2409051244-2412252359

ATC Tower

Attendance

APR-OCT 0700-2100
NOV-MAR 0700-2000

Owner

GRAND RAPIDS / ITASCA CO
420 N POKEGAMA AVE
GRAND RAPIDS, MN 55744
Phone: 218-326-0893

Manager

MATT WEGWERTH
420 N POKEGAMA AVE
GRAND RAPIDS, MN 55744
Phone: 218-326-7625

FSS

PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF

NOTAM

GPZ

Light Schedule

Lights

ACTVT MALSR RWY 34; REIL RWY 05, 16, 23; PAPI RWY 05, 16, 23, 34; MIRL RWY 05/23; HIRL RWY 16/34 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

Low Pressure

Other Services

Air Freight
Beaching Gear
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

Dimensions

3000 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 05	Runway 23
True Heading	47°	227°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	47° 12' 39"N	47° 12' 59"N
Longitude	93° 30' 49"W	93° 30' 17"W
Elevation	1,302'	1,294'
Threshold Crossing Height	50 ft. AGL	41 ft. AGL
Visual Glide Path Angle	3.5°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

Runway 16/34

Dimensions

5756 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

PFC

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

23,000lbs

Double Wheel

38,000lbs

Double Tandem

78,000lbs

Dual Dbl Tand

	Runway 16	Runway 34
True Heading	166°	346°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	47° 12' 53"N	47° 11' 58"N
Longitude	93° 30' 47"W	93° 30' 27"W
Elevation	1,298'	1,356'
Threshold Crossing Height	50 ft. AGL	53 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	P4L
Approach Lights		MALSR
Centerline Lights	No	No
Runway End Identifier Lights	Yes	No

A110-1	LILY LAKE SPB OPS N OF ARPT; PPR RQR CTC - (218) 326-1226.
A110-3	DEER AND BIRDS ON & INVOF ARPT.
A110-4	FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.

GRAND RAPIDS/ITASCA COUNTY-GORDON NEWSTROM FLD (ICAO: KGPZ, IATA: GPZ) is a public airport located in GRAND RAPIDS, MN.
