GOSHEN MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGSH
GOSHEN MUNI
PublicPUB

3 miles SE of GOSHEN, IN
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 31' 34"N 85° 47' 39"W
827' MSL
1827' MSL
04W
JET A, 100LL
TERRE HAUTE (HUF)
CHICAGO
CHICAGO (ZAU)
11/28/24-12/26/24
KGSH VFR
6:53 AM EST
Broken 4,500'
10sm
29°F
20°F
30.20"Hg
170° 13kts
AO2 SLP236 T10171067 11017 21028 58016 $
KGSH 231153Z AUTO 17013KT 10SM BKN045 M02/M07 A3020 RMK AO2 SLP236 T10171067 11017 21028 58016 $

KGSH FBOs

Sweet Aviation
UNICOM: 123.05
Phone: (574) 533-8245
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/17
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.48 5.02
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

ASOS

ASOS
574-642-4231
121.45

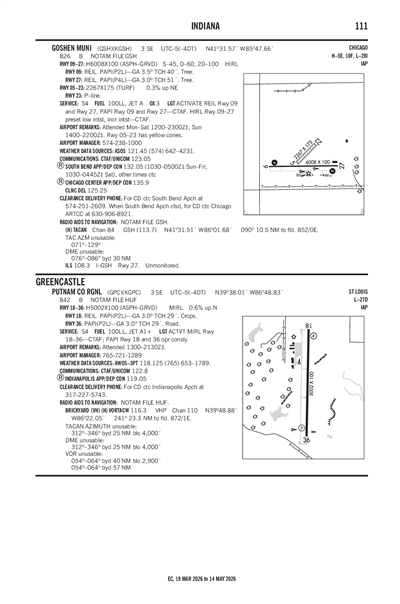

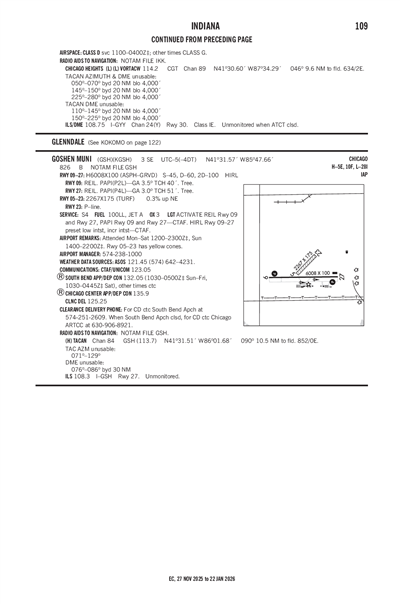

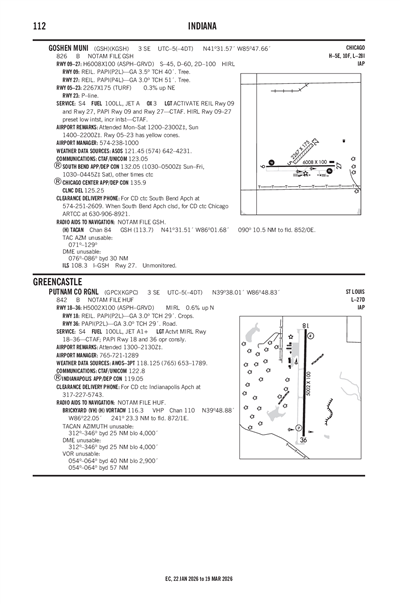

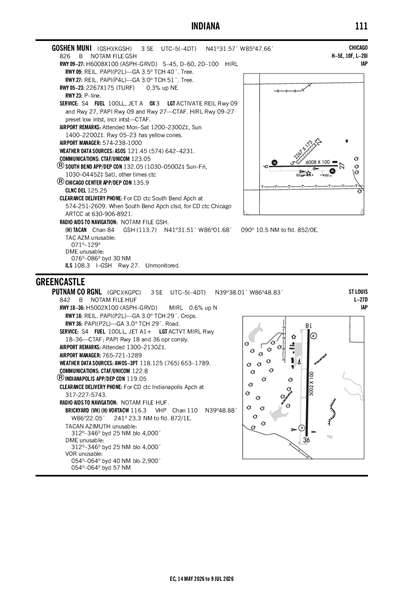

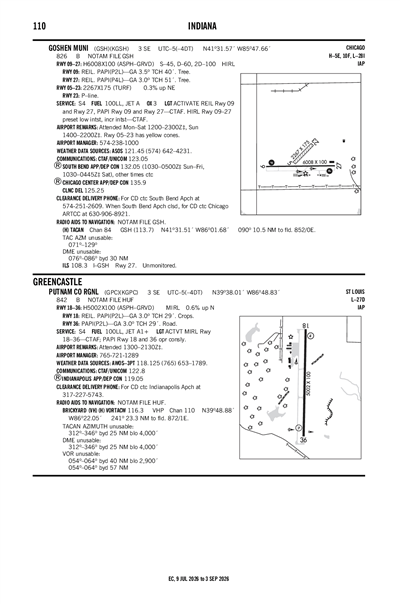

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSBN (26nm)
Mon, 12/23 6:39 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 1:00 PM EST
Overcast 5,000'
6sm
180° 14kts
Gusts 22kts
Shear 230° 45kts @ 2000'
MVFR
1:00 PM EST - 7:00 PM EST
Light Rain
Overcast 1,500'
6sm
200° 13kts
Gusts 19kts
IFR
Temporary 3:00 PM EST - 7:00 PM EST
Light Rain and Mist
Broken 800'
4sm
Calm
IFR
7:00 PM EST - 1:00 AM EST
Mist
Overcast 800'
4sm
220° 9kts
LIFR
Temporary 8:00 PM EST - 12:00 AM EST
Light Drizzle and Mist
Broken 300'
2sm
Calm
IFR
1:00 AM EST - 7:00 AM EST
Mist
Overcast 800'
5sm
290° 5kts
KSBN 231139Z 2312/2412 18014G22KT P6SM OVC050 WS020/23045KT
   FM231800 20013G19KT P6SM -RA OVC015
   TEMPO 2320/2324 4SM -RA BR BKN008
   FM240000 22009KT 4SM BR OVC008
   TEMPO 2401/2405 2SM -DZ BR BKN003
   FM240600 29005KT 5SM BR OVC008
KGSH
FDC
9/20/241349Z !FDC 4/8342 GSH IAP GOSHEN MUNI, GOSHEN, IN.
VOR RWY 9, AMDT 12D...
RADAR REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GSH TACAN OUT OF SERVICE. 2409201349-2501151349EST
9/20/241349Z !FDC 4/8341 GSH IAP GOSHEN MUNI, GOSHEN, IN.
ILS OR LOC RWY 27, AMDT 1B...
CEDOB FIX MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
RADAR REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GSH TACAN OUT OF SERVICE. 2409201349-2501151349EST
8/15/231218Z !FDC 3/4483 GSH IAP GOSHEN MUNI, GOSHEN, IN.
VOR RWY 9, AMDT 12D...
CIRCLING CAT D MDA 1580/HAA 753, VISIBILITY 2 1/2 SM.
CHANGE ALTERNATE MINIMUMS TO READ: CAT D 800-2 1/2- NA WHEN LOCAL WEATHER NOT AVAILABLE.
2308151218-2508151218EST
8/15/231218Z !FDC 3/4482 GSH IAP GOSHEN MUNI, GOSHEN, IN.
RNAV (GPS) RWY 27, ORIG-B...
LPV DA 1220/HAT 393 ALL CATS; CIRCLING CAT D MDA 1580/HAA 753, VISIBILITY 2 1/2 SM.
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WARSAW ALTIMETER SETTING AND INCREASE LPV DA TO 1259 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE LNAV/VNAV DA TO 1346 FEET; INCREASE ALL MDAS 40 FEET AND LNAV VISIBILITY CAT C/D 1/8 SM. CHANGE ALTERNATE MINIMUMS TO READ: CAT D 800-2 1/2- NA WHEN LOCAL WEATHER NOT AVAILABLE.
2308151218-2508151218EST
8/15/231218Z !FDC 3/4481 GSH IAP GOSHEN MUNI, GOSHEN, IN.
ILS OR LOC RWY 27, AMDT 1B...
S-ILS 27 DA 1220/HAT 393, VISIBILITY ALL CATS 1 1/8 SM; CIRCLING CAT D MDA 1580/HAA 753, VISIBILITY 2 1/2 SM. CEDOB FIX MINIMUMS: CIRCLING CAT D MDA 1580/HAA 753, VISIBILITY 2 1/2 SM.
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WARSAW ALTIMETER SETTING AND INCREASE S-ILS 27 DA TO 1259 FEET AND ALL VISIBILITIES 1/8 SM. INCREASE ALL MDAS 40 FEET ; AND S-LOC 27 VISIBILITY CAT C/D 1/8 SM, AND CIRCLING VISIBILITY CAT D 1/4 SM.
2308151218-2508151218EST
6/28/231228Z !FDC 3/7680 GSH PART 1 OF 3 ODP GOSHEN MUNI, GOSHEN, IN.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG-A...
TAKEOFF OBSTACLE NOTES: NOTE: RWY 9: POLE 43 FT FROM DER, 251 FT
RIGHT OF CENTERLINE, 4 FT AGL/831 FT MSL. TREE 2132 FT FROM DER,
1027 FT RIGHT OF CENTERLINE, 902 FT MSL. TREES BEGINNING 2245 FT
FROM DER, 984 FT RIGHT OF CENTERLINE, UP TO 915 FT MSL. TREE 2319
FT FROM DER, 1019 FT LEFT OF CENTERLINE, 887 FT MSL. TREES
BEGINNING 2494 FT FROM DER, 963 FT LEFT OF CENTERLINE, UP TO 91 FT
AGL/921 FT MSL. TREES BEGINNING 3049 FT FROM DER, 717 FT LEFT OF
CENTERLINE, UP TO 935 FT MSL. TREES BEGINNING 3297 FT FROM DER,
116 FT RIGHT OF CENTERLINE, UP TO 923 FT MSL. TREES BEGINNING 3450
FT FROM DER, 194 FT LEFT OF CENTERLINE, UP TO 942 FT MSL. TREES
BEGINNING 3585 FT FROM DER, 208 FT RIGHT OF CENTERLINE, UP TO 74 FT
AGL/927 FT MSL. TREES BEGINNING 3678 FT FROM DER, 874 FT RIGHT OF
CENTERLINE, UP TO 928 FT MSL. TREES BEGINNING 3919 FT FROM DER,
662 FT RIGHT OF CENTERLINE, UP TO 935 FT MSL. TREES BEGINNING 3927
FT FROM DER, 319 FT LEFT OF CENTERLINE, UP TO 946 FT MSL. TREES
BEGINNING 4079 FT FROM DER, 540 FT RIGHT OF CENTERLINE, UP TO 951
FT MSL. TREES BEGINNING 4175 FT FROM DER, 342 FT LEFT OF
CENTERLINE, UP TO 94 FT AGL/950 FT MSL. TREES BEGINNING 4186 FT
FROM DER, 317 FT LEFT OF CENTERLINE, UP TO 952 FT MSL. TREES
ALL OTHER DATA REMAINS AS PUBLISHED. 2306281228-2506281228EST
END PART 1 OF 3
!FDC 3/7680 GSH PART 2 OF 3 ODP GOSHEN MUNI, GOSHEN, IN.
BEGINNING 4288 FT FROM DER, 346 FT LEFT OF CENTERLINE, UP TO 96 FT
AGL/953 FT MSL. TREES BEGINNING 4325 FT FROM DER, 373 FT LEFT OF
CENTERLINE, UP TO 958 FT MSL. TREES BEGINNING 4370 FT FROM DER,
359 FT LEFT OF CENTERLINE, UP TO 960 FT MSL. TREES BEGINNING 4442
FT FROM DER, 412 FT LEFT OF CENTERLINE, UP TO 969 FT MSL. TREES
BEGINNING 4486 FT FROM DER, 354 FT LEFT OF CENTERLINE, UP TO 970 FT
MSL. TREES BEGINNING 4744 FT FROM DER, 410 FT LEFT OF CENTERLINE,
UP TO 971 FT MSL. NOTE: RWY 27: AGRICULTURAL EQUIPMENT 78 FT FROM
DER, 482 FT RIGHT OF CENTERLINE, 19 FT AGL/835 FT MSL.
AGRICULTURAL EQUIPMENT, TERRAIN BEGINNING 85 FT FROM DER, 301 FT
RIGHT OF CENTERLINE, UP TO 19 FT AGL/837 FT MSL. TREES BEGINNING
1571 FT FROM DER, 512 FT LEFT OF CENTERLINE, UP TO 888 FT MSL.
TREE 1691 FT FROM DER, 769 FT LEFT OF CENTERLINE, 893 FT MSL.
TREES BEGINNING 1760 FT FROM DER, 449 FT LEFT OF CENTERLINE, UP TO
901 FT MSL.
TREES BEGINNING 2227 FT FROM DER, 236 FT LEFT OF CENTERLINE, UP TO
916 FT MSL. TREES BEGINNING 2853 FT FROM DER, 105 FT LEFT OF
CENTERLINE, UP TO 113 FT AGL/917 FT MSL. TREES BEGINNING 3032 FT
FROM DER, 71 FT LEFT OF CENTERLINE, UP TO 123 FT AGL/923 FT MSL.
TREES BEGINNING 3053 FT FROM DER, 81 FT LEFT OF CENTERLINE, UP TO
ALL OTHER DATA REMAINS AS PUBLISHED. 2306281228-2506281228EST
END PART 2 OF 3
!FDC 3/7680 GSH PART 3 OF 3 ODP GOSHEN MUNI, GOSHEN, IN.
124 FT AGL/925 FT MSL. TREES BEGINNING 3105 FT FROM DER, 51 FT
RIGHT OF CENTERLINE, UP TO 111 FT AGL/916 FT MSL. TREE 3475 FT
FROM DER, 661 FT RIGHT OF CENTERLINE, 917 FT MSL. TREES BEGINNING
3478 FT FROM DER, 314 FT RIGHT OF CENTERLINE, UP TO 120 FT AGL/923
FT MSL..
ALL OTHER DATA REMAINS AS PUBLISHED. 2306281228-2506281228EST
END PART 3 OF 3
No
MON-SAT 0700-1800
SUN 0900-1700
GOSHEN BOAC
202 S 5TH ST
GOSHEN, IN 46526
Phone: (574) 533-8245
RANDY SHARKEY
17229 CR 42
GOSHEN, IN 46526
Phone: 574-238-1000
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
GSH
--
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27 - CTAF. HIRL RWY 09/27 PRESET LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High Pressure
None
Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

2267 ft. x 180 ft.
TURF
Good
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 44°224°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 41° 31' 34"N 41° 31' 50"N
Longitude 85° 47' 48"W 85° 47' 27"W
Elevation 814' 822'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 09/27

6050 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

45,000lbs
60,000lbs
100,000lbs
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition FAIR FAIR
Latitude 41° 31' 31"N 41° 31' 32"N
Longitude 85° 48' 20"W 85° 47' 00"W
Elevation 820' 826'
Threshold Crossing Height 40 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3.5°
Visual Slope Indicator P2L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC SOUTH BEND APCH AT 574-251-2609. WHEN SOUTH BEND APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
GOSHEN MUNI (ICAO: KGSH, IATA: GSH) is a public airport located in GOSHEN, IN.
