iFlightPlanner



...

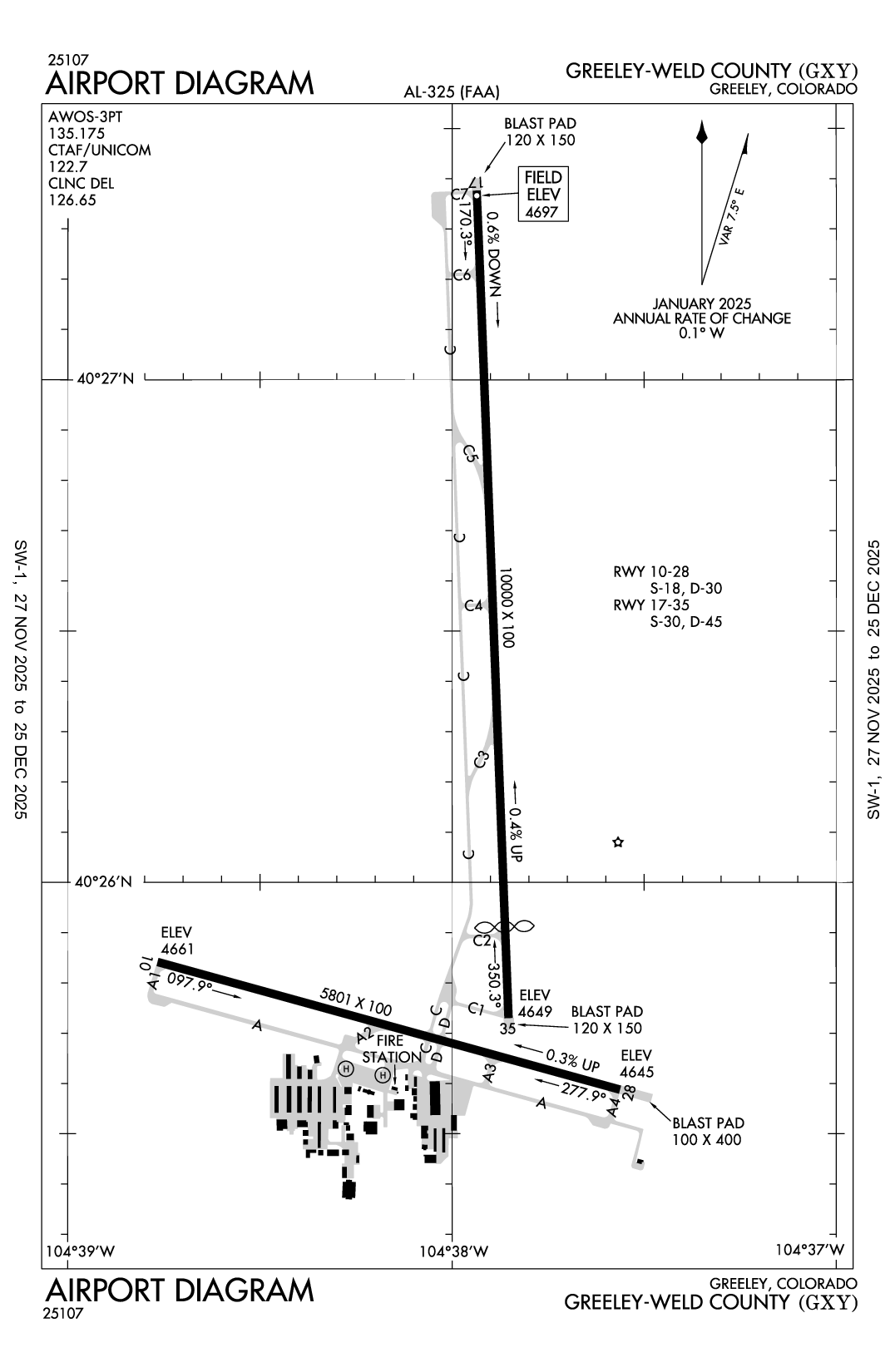

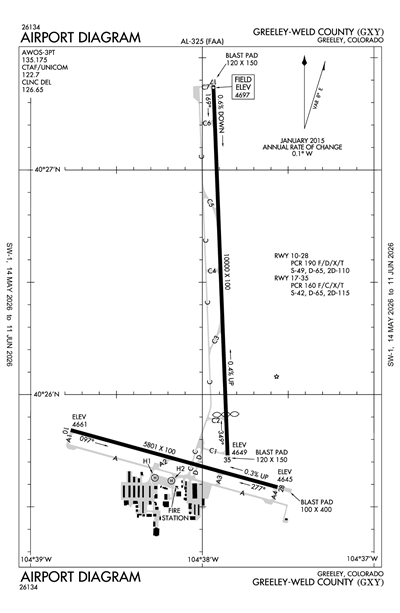

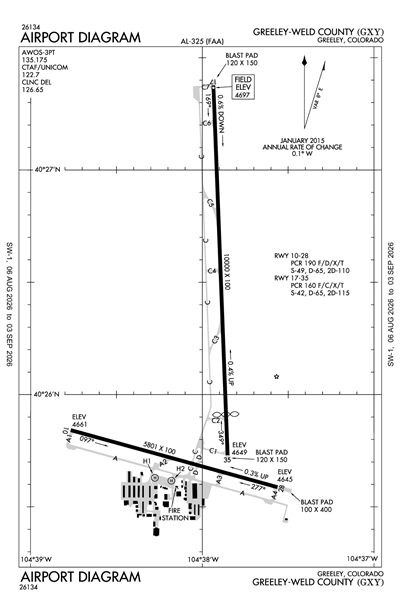

GREELEY-WELD COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGXY
GREELEY-WELD COUNTY
PublicPUB

3 miles E of GREELEY, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 26' 15"N 104° 37' 60"W
4697' MSL
5497' MSL
08E
JET A, 100LL
DENVER (DEN)
CHEYENNE
DENVER (ZDV)
2/20/25-3/20/25
KGXY VFR
7:56 AM MDT
Clear
10sm
21°F
12°F
30.18"Hg
070° 4kts
AO2 SLP255 T10611111 FZRANO
KGXY 091356Z 07004KT 10SM CLR M06/M11 A3018 RMK AO2 SLP255 T10611111 FZRANO
Add Your Business

KGXY FBOs

Promote Listing
Peak Flight Support
UNICOM: 122.8
Phone: (970) 336-3010
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 2/27
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.78
Full Serve 6.78 6.80
Fuel Notes
Prices include tax

KGXY Aircraft Service & Maintenance

Promote Listing
Western Plains Aviation
Phone: (970) 373-4550
Fax: (866) 505-5160
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Advanced Aerotechnologies Group
Phone: (970) 373-3295
Fax: (970) 373-3001
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Terminal Area Forecast

KDEN (36nm)
Sun, 3/9 5:20 AM MDT
Sun, 3/9 6:00 AM MDT - Mon, 3/10 12:00 PM MDT
VFR
6:00 AM MDT - 10:00 AM MDT
Scattered 20,000'
6sm
200° 10kts
VFR
10:00 AM MDT - 3:00 PM MDT
Few 20,000'
6sm
VRB° 5kts
VFR
3:00 PM MDT - 8:00 PM MDT
Few 20,000'
6sm
100° 7kts
VFR
8:00 PM MDT - 10:00 AM MDT
Few 20,000'
6sm
190° 10kts
VFR
10:00 AM MDT - 12:00 PM MDT
Sky Clear
6sm
260° 8kts
KDEN 091120Z 0912/1018 20010KT P6SM SCT200
   FM091600 VRB05KT P6SM FEW200
   FM092100 10007KT P6SM FEW200
   FM100200 19010KT P6SM FEW200
   FM101600 26008KT P6SM SKC
KGXY
Domestic
3/2/251923Z !GXY 03/001 GXY OBST TOWER LGT (ASR 1215004) 404241.90N1044506.80W (17.3NM NNW GXY) 5599.1FT (406.2FT AGL) U/S 2503021923-2506022359
FDC
1/21/251923Z !FDC 5/5370 GXY SID GREELEY-WELD COUNTY, GREELEY, CO.
ROCKIES SIX DEPARTURE...
DOVE CREEK TRANSITION AND MONTROSE TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MTJ VOR/DME OUT OF SERVICE.
2501211923-2509021923EST
5/20/242028Z !FDC 4/6959 GXY IAP GREELEY-WELD COUNTY, GREELEY, CO.
VOR-A, AMDT 10A...
TERMINAL ROUTE FROM SHOOP TO NOVAA RADAR REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
WESAR FIX MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
DISREGARD YURUK GLL 4.6 DME. USE TIME/DISTANCE TABLE.
DISREGARD NOTE: DME REQUIRED.
GLL DME RESTRICTED.
2405202028-2605202028EST
No
0600-1900
COORD AFT HR ARPT ACES WITH FBO'S. CALL 970-336-4866 OR 970-351-8957.
FOR ATNDNC AFT HRS CALL 970-336-3010.
GREELEY-WELD CO ARPT AUTH
PO BOX 727
GREELEY, CO 80632
Phone: 970-336-3000
COOPER ANDERSON
PO BOX 727
GREELEY, CO 80632
Phone: (970) 336-3001
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
GXY
--
ACTVT MIRL RWYS 10/28 & 17/35, & REIL RWYS 10, 28, 17, & 35 - CTAF. PAPI RWYS 10, 17, 35, & VASI RWY 28 OPR 24 HRS.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
None
Crop Dusting
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental

Runway 10/28

5801 ft. x 100 ft.
ASPH
Good
NONE
MED

18,000lbs
30,000lbs
--
--
  Runway 10 Runway 28
True Heading 105°285°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 25' 50"N 40° 25' 35"N
Longitude 104° 38' 46"W 104° 37' 34"W
Elevation 4,661' 4,645'
Threshold Crossing Height 43 ft. AGL 27 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17/35

10000 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
45,000lbs
--
--
  Runway 17 Runway 35
True Heading 177°357°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 27' 22"N 40° 25' 44"N
Longitude 104° 37' 56"W 104° 37' 51"W
Elevation 4,697' 4,648'
Threshold Crossing Height 46 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

20 ft. x 20 ft.
CONC
Good
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading 80°260°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 40° 25' 38"N N/A
Longitude 104° 38' 17"W N/A
Elevation 4,643' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

20 ft. x 20 ft.
CONC
Good
NONE
PERI

--
--
--
--
  Runway H2 Runway
True Heading 80°260°
Traffic Pattern
Markings NONE
Markings Condition POOR
Latitude 40° 25' 37"N N/A
Longitude 104° 38' 12"W N/A
Elevation 4,642' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 17/35 PREFERRED USE WHEN X WIND CMPT EXCEEDS 12 KT ON RWY 10/28.
A110-2RWY 35 PREFERRED USE WHEN WIND LESS THAN 5 KTS. RWY 35 PREFERRED FOR TGL.
A110-3WILDLIFE & BIRDS ON & INVOF APRT.
A110-4OIL DRILLING RIGS UP TO 120 FT ON AND INVOF ARPT.
A110-5BE ALERT; INTENSIVE USAF STUDENT TRNG INVOF COLORADO SPRINGS & PUEBLO COLORADO.
A110-6ACFT DEPG RWY 28 AVOID SB TURN PRIOR TO XG RWY 10 THLD.
GREELEY-WELD COUNTY (ICAO: KGXY, IATA: GXY) is a public airport located in GREELEY, CO.
