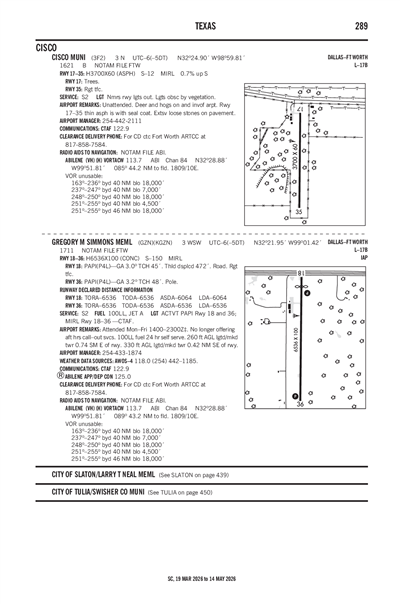

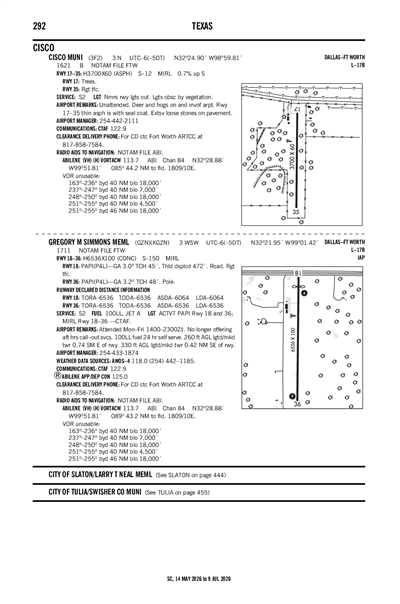

GREGORY M SIMMONS MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGZN
GREGORY M SIMMONS MEML
PublicPUB

3 miles WSW of CISCO, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 21' 57"N 99° 01' 25"W
1711' MSL
2711' MSL
04E
JET A, 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
11/28/24-12/26/24
KGZN MVFR
5:40 AM CST
Overcast 2,200'
10sm
57°F
55°F
30.03"Hg
180° 11kts
Gusts 18kts
AO2
KGZN 231140Z AUTO 18011G18KT 10SM OVC022 14/13 A3003 RMK AO2
Add Your Business

KGZN FBOs

Promote Listing
Cisco Aviation
UNICOM: 122.9
Phone: (817) 850-3670
Other: (254) 433-1874
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.57 4.60
Full Serve 5.57 5.10
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-4

AWOS-4
254-442-1185
 118.0

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KABI (34nm)
Mon, 12/23 5:20 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
MVFR
6:00 AM CST - 11:00 AM CST
Overcast 2,000'
6sm
180° 14kts
Gusts 22kts
VFR
11:00 AM CST - 6:00 PM CST
Scattered 3,000'
6sm
200° 18kts
Gusts 28kts
VFR
6:00 PM CST - 3:00 AM CST
Scattered 15,000'
6sm
180° 10kts
VFR
3:00 AM CST - 6:00 AM CST
Scattered 2,000'
6sm
300° 6kts
KABI 231120Z 2312/2412 18014G22KT P6SM OVC020
   FM231700 20018G28KT P6SM SCT030
   FM240000 18010KT P6SM SCT150
   FM240900 30006KT P6SM SCT020
KGZN
Domestic
12/23/240257Z !FTW 12/554 GZN OBST TOWER LGT (ASR 1037514) 321109.90N0991742.40W (17.5NM SW GZN) 2471.1FT (353.0FT AGL) U/S 2412230257-2504220257
12/5/242221Z !FTW 12/169 GZN SVC AUTOMATED WX BCST SYSTEM UNREL PRESENT WX 2412052221-2502062359
5/6/241349Z !FTW 05/186 GZN OBST TOWER LGT (ASR 1051970) 321558.00N0990454.00W (6.6NM SSW GZN) 2055.1FT (308.1FT AGL) U/S 2405061349-2412312359
FDC
4/24/230300Z !FDC 3/5998 GZN IAP GREGORY M SIMMONS MEMORIAL, CISCO, TX. RNAV
(GPS) Y RWY 18, AMDT 1...CIRCLING CAT D MDA 2600/HAA 889 VIS 3 SM.
THIS IS RNAV (GPS) Y RWY 18, AMDT 1A. 2304240300-PERM
4/24/230300Z !FDC 3/5997 GZN IAP GREGORY M SIMMONS MEMORIAL, CISCO, TX. RNAV
(GPS) RWY 36, AMDT 1...CIRCLING CAT D MDA 2600/HAA 889 VIS 3 SM.
THIS IS RNAV (GPS) RWY 36, AMDT 1A. 2304240300-PERM
No
MON-FRI 0800-1700
AFT HRS CALL 254-433-1874.
GREGORY SIMMONS MEML AIRPORT LLC
215 COUNTY ROAD 129
CISCO, TX 76437
Phone: 817-850-3671
SCOT PENN
215 COUNTY 129
CISCO, TX 76437
Phone: 254-433-1874
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
ACTVT PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
0
0
0
0
0
0
Minor
Minor
None
None
None

Runway 18/36

6536 ft. x 100 ft.
CONC
Good
NONE
MED

150,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 22' 29"N 32° 21' 25"N
Longitude 99° 01' 25"W 99° 01' 26"W
Elevation 1,707' 1,711'
Threshold Crossing Height 45 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3.2°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-3260 FT AGL LGTD/MKD TWR 0.74 SM E OF RWY.
A110-4330 FT AGL LGTD/MKD TWR 0.42 NM SE OF RWY.
GREGORY M SIMMONS MEML (ICAO: KGZN, IATA: GZN) is a public airport located in CISCO, TX.
