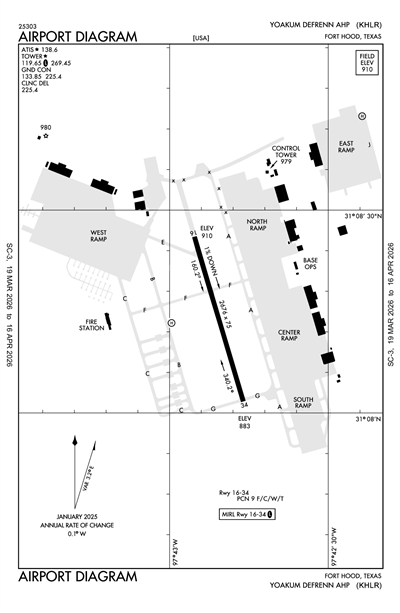

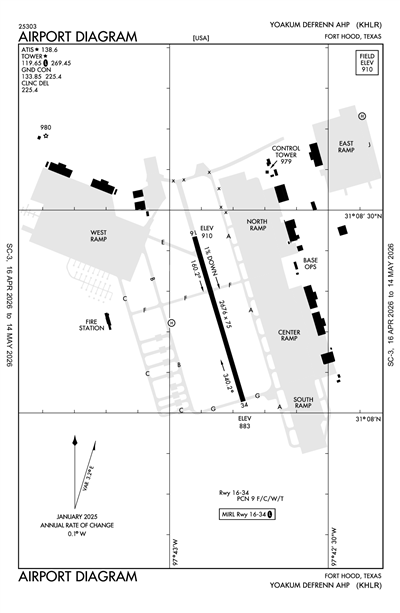

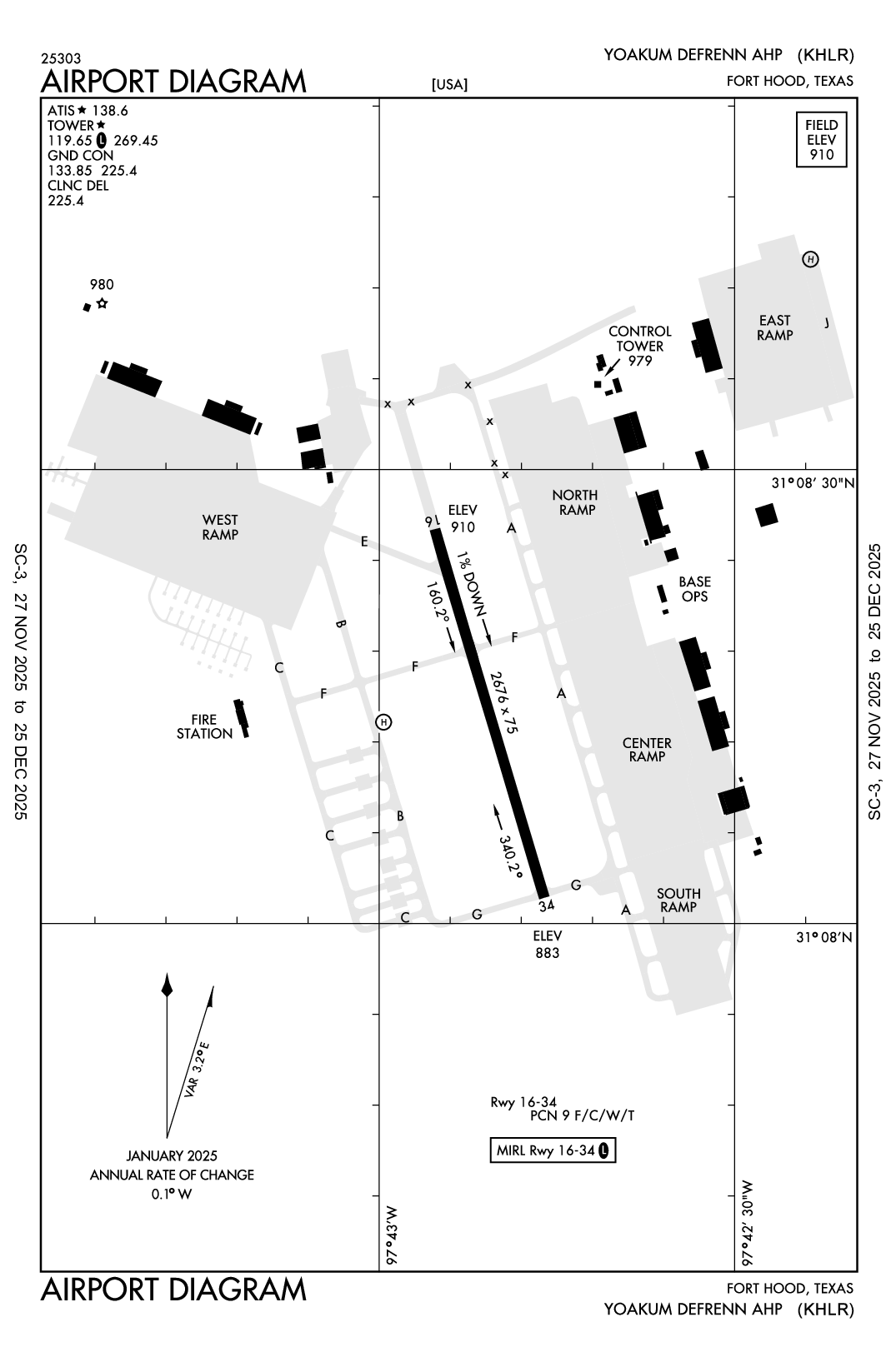

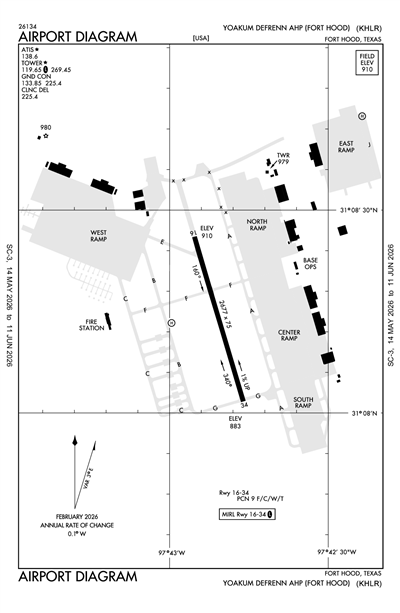

YOAKUM-DEFRENN AHP - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHLR
YOAKUM-DEFRENN AHP
PrivatePVT

1 miles NE of FORT CAVAZOS (KILLEEN), TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 08' 15"N 97° 42' 51"W
910' MSL
1910' MSL
05E
None Listed
SAN ANGELO (SJT)
SAN ANTONIO
HOUSTON (ZHU)
5/16/24-6/13/24
KHLR VFR
11:55 PM CDT
Clear
10sm
72°F
68°F
N/A
140° 3kts
AO2 SLPNO T02230198 $
KHLR 010455Z AUTO 14003KT 10SM CLR 22/20 M RMK AO2 SLPNO T02230198 $
Add Your Business

KHLR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
Hours: OPR 1400-0600Z++ MON-FRI EXC HOL, OT CTC ROBERT GRAY TWR 120.75 285.5
 138.6

Emergency

EMERG
 121.5

Ground

GND/P
 133.85

Tower

LCL/P
 119.65

Other

FLT FLW
 141.175
RANGE CTL
 30.45
RANGE CTL
 38.3

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGRK (7nm)
Fri, 5/31 7:00 PM CDT
Fri, 5/31 7:00 PM CDT - Sun, 6/2 1:00 AM CDT
VFR
7:00 PM CDT - 8:00 PM CDT
Broken 25,000'
Scattered 12,000'
Scattered 2,500'
6sm
29.88"Hg
080° 12kts
IFR
Temporary 7:00 PM CDT - 9:00 PM CDT
Light Thunderstorm and Rain
Broken 12,000'
Broken 3,000'
Scattered 2,000'
2.98sm
100° 12kts
Gusts 18kts
VFR
Becoming 8:00 PM CDT - 3:00 AM CDT
Broken 25,000'
Broken 4,000'
6sm
29.91"Hg
120° 12kts
MVFR
Becoming 3:00 AM CDT - 5:00 AM CDT
Mist
Broken 1,500'
3.73sm
29.94"Hg
130° 8kts
IFR
Becoming 5:00 AM CDT - 11:00 AM CDT
Mist
Overcast 1,500'
Broken 800'
2.98sm
29.94"Hg
130° 6kts
VFR
Becoming 11:00 AM CDT - 4:00 PM CDT
Thunderstorm in vicinity
Broken 4,500'
Scattered 2,000'
6sm
29.91"Hg
140° 12kts
VFR
Becoming 4:00 PM CDT - 8:00 PM CDT
Broken 3,500'
Scattered 2,500'
6sm
29.88"Hg
140° 10kts
Gusts 15kts
VFR
Becoming 8:00 PM CDT - 1:00 AM CDT
Broken 25,000'
Scattered 3,500'
6sm
29.94"Hg
150° 8kts
TAF KGRK 010000Z 0100/0206 08012KT 9999 SCT025 SCT120 BKN250 QNH2989INS
   TEMPO 0100/0102 10012G18KT 4800 -TSRA SCT020 BKN030CB BKN120
   BECMG 0101/0102 12012KT 9999 BKN040 BKN250 QNH2992INS
   BECMG 0108/0109 13008KT 6000 BR BKN015 QNH2994INS
   BECMG 0110/0111 13006KT 4800 BR BKN008 OVC015 QNH2995INS
   BECMG 0116/0117 14012KT 9999 VCTS SCT020CB BKN045 QNH2992INS
   BECMG 0121/0122 14010G15KT 9999 NSW SCT025 BKN035 QNH2989INS
   BECMG 0201/0202 15008KT 9999 SCT035 BKN250 QNH2993INS TX31/0121Z TN21/0113Z
KHLR
FDC
5/13/241200Z !FDC 4/2817 HLR SID YOAKUM-DEFRENN AHP, FORT CAVAZOS (KILLEEN), TX.
LAMPS EIGHT DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGJ VORTAC OUT OF SERVICE. 2405131200-2407112100EST
Military
6/6/241330Z AERODROME CORRIDOR 2 AND HELIPAD 11 CLSD TO NON-PARTICIPATING ACFT, NO FLT WI 2KM BLO 2,000FT AGL OF COOPER FIELD (PV 1597 4597) FOR MULTI ACFT OPS ISO 1CD CEREMONY. POC: 1LT WARREN (330) 244-7118
6/6/240501Z AERODROME CTN, MULT 10M LIT ANTENNAS, IVO TA45, TA46, TA47, TA48, TA52, AND TA53 (14R PV1069562443, PV10938 61911, PV04407 57447, PV08563 59885, PV08563 59885, RPV0719 560400, PV07304 58824, PV05395 55929, PV06083 54841, PV06623 56459, PV07911 55964, PV09600 57007, PV06194 59438, PV08078 61501, PV07975 56966, PV06732 59884). POC: MR MURRAY (571) 327-6607
6/5/241800Z AERODROME CORRIDOR 2 AND HELIPAD 11 CLSD TO NON-PARTICIPATING ACFT, NO FLT WI 2KM BLO 2,000FT AGL OF COOPER FIELD (PV 1597 4597) FOR MULTI ACFT OPS ISO 1CD CEREMONY. POC: 1LT WARREN (330) 244-7118
6/5/241600Z AERODROME TA60, TA61, AND TA63A1, ROZ, SUAS OPS, LAUNCH AND RECOVERY, SFC TO 2000 FT AGL. EXCEPT FOR PARTICIPATING ACFT NO FLT BLO 5,000 FT MSL WHEN ACTIVE, CTC UNIT: SABER 32, 46.70 SC/PT FOR APVL BFR ENTRY. POC: MAJ DRAPER (865) 776-5208
6/5/240045Z AERODROME TA16A1 AND TA23A1, ROZ, MULTI ACFT LOW LVL HEL OPS, 2,000 MSL AND BLO, NONPARTICIPATING ACFT CTC ROYAL A/A 64.35 SC/PT FOR APVL BFR ENTRY. POC ROYAL SCC, 254-288-7605
6/4/241400Z AERODROME CORRIDOR 2 AND HELIPAD 11 CLSD TO NON-PARTICIPATING ACFT, NO FLT WI 2KM BLO 2,000FT AGL OF COOPER FIELD (PV 1597 4597) FOR MULTI ACFT OPS ISO 1CD CEREMONY. POC: 1LT WARREN (330) 244-7118
6/3/241200Z AERODROME UAS OPS WI R-6302A, C, AND D, MQ-1C, 5,500FT MSL, 10,500FT MSL, 11,500FT MSL AND R6302A 21,000FT MSL
6/3/240501Z AERODROME TA8 (ALF8), TA21 (ALF21), TA30 (ALF30), TA31 (ALF31), AND TA 32 (ALF32), ARTILLERY LIVE FIRE INTO PD94, EXCEPT FOR PARTICIPATING ACFT, NO OVERFLIGHT SFC TO 22,000 FT MSL, REDLINE CLSD TA30 TO TA21 WHEN ACTIVE. FOR STS CK RANGE INFO ATIS 142.9 OR 254-288-7827, RANGE OPS (P) 30.45, (A) 38.30 SC/PT. POC: 1LT MOODY (772) 207-6623
6/2/241300Z AERODROME CTN, MULT LOW LVL HEL OPS BTN TA111 (14R PV 14634785) IVO HENRY LAKE, FH103 (14R PV 16674718) AND TA 41 FOR MEDEVAC TNG, SFC TO 1000FT AGL. MEDEVAC ACFT (MOJO 16 OR 83) MONTR A/A 46.70 SC/PT. POC: CPT WASHINGTON (504) 621-6387
6/1/240500Z AERODROME TA44, ROZ, ATHP, NO OVERFLIGHT SFC-1500FT AGL WITHIN 500M OF 14RPV 07500 51400. POC: SSG REDMOND (201) 968-6821
5/31/241441Z !KHLR M0372/24 HLR SVC ATC TWR NOT AVBL UHF 269.45 AND 225.40 OUT OF SERVICE. FOR CLEARANCE DELIVERY CONTACT GROUND 133.85. 2405311441-2407152359
5/30/241942Z M0367/24 NOTAMC M0290/24
5/30/241210Z M0358/24 NOTAMC M0356/24
5/29/240501Z AERODROME TA31 (ALF31), ARTILLERY LIVE FIRE INTO PD94, EXCEPT FOR PARTICIPATING ACFT, NO OVERFLIGHT SFC TO 22,000FT MSL, REDLINE CLSD TA31 WHEN ACTIVE. FOR STS: RANGE INFO ATIS 142.9 OR 254-288-7827, RANGE OPS (P) 30.45, (A) 38.30 SC/PT. POC: 1LT MOODY (772) 207-6623
5/28/241600Z AERODROME UAS OPS WI R-6302A, C, AND D, MQ-1C, 5,500FT MSL, 10,500FT MSL, 11,500FT MSL AND R6302A 21,000FT MSL
5/28/240501Z AERODROME TA 13, TA14 AND TA51, ROZ, SFC- 5000 FT AGL (SDZ), FOR GUNNERY/LFX AT DMMU AND HMMU. REDLINE CLSD TA13, TA14 AND TA51. UNIT: 278 ACR, POC: MSG GOFF (931) 265 8841
5/19/240501Z AERODROME CTN, 108FT-118FT AGL LIT ANTENNA TWRS, NFC (PV 24610 69953), TA65 (PV 15488 70299), TA60 (PV 17059 64824), TA51 (PV 16568 58519), TA48 (PV 06239 59444), TA41 (PV 09341 52133), TA13 (PV 25019 67840). POC: MRS GARRISON (206) 475-2904
5/15/241251Z AERODROME CTN, 254FT AGL UNLIT ANTENNA (14R PV 1349 741), IVO CARS WEST 4. POC MR. NUTTER (254) 288-1424
5/15/240501Z AERODROME CTN, MULT 10M LIT ANTENNAS, IVO TA45, TA46, TA47, TA48, TA 52, AND TA53 (14R PV 08263 63648, PV09970 63686, PV10695 62443, PV10938 61911, PV04407 57447, PV08563 59885, PV07195 60400, PV07304 58824, PV05395 55929, PV06083 54841, PV06623 56453, PV07911 55964, PV09600 57007, PV08577 54724, PV09920 59100, PV06194 59438, PV06732 59884. POC: MR MURRAY (571) 327-6607
5/3/241510Z AERODROME ALL TAXIWAYS NON-STANDARD AND FADED MARKINGS
5/3/241509Z AERODROME HELIPAD 2 CLOSED FOR ARRIVALS AND DEPARTURES
5/3/241508Z AERODROME HELIPAD 3 CLOSED FOR ARRIVALS AND DEPARTURES.
5/1/240501Z AERODROME TA44, ROZ, ATHP, NO OVERFLIGHT SFC-1500FT AGL WITHIN 500M OF 14RPV 07500 51400. POC: SSG REDMOND (201) 968-6821
3/15/241342Z AERODROME CTN, 376FT UNLIT ANTENNA (14R PV 2135 4715), LF89, IVO BLK MT, RANGE OPS. POC MR. NUTTER (254) 288-1424
Yes
MON-FRI 1400-0600Z++
EXC HOL
US ARMY
US ARMY AERONAUTICAL SVCS AGENCY, 9325 GUNSTON RD, STE N319
FORT BELVOIR, VA 22060-5582
DIRECTORATE OF AVIATION OPERATIONS
BLDG 90029, CLARKE RD
FORT CAVAZOS, TX 76544
Phone: 254-553-0501
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
--
LGT-MIRL AHP 16-34 OPR 1400-0600++ WKD EXC FED HOL OT PCL 119.65.
N/A
N/A
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 16/34

2676 ft. x 75 ft.
ASPH
Good
NONE
MED
9 /F/C/W/T
--
--
--
--
  Runway 16 Runway 34
True Heading 164°344°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 31° 08' 28"N 31° 08' 03"N
Longitude 97° 42' 55"W 97° 42' 46"W
Elevation 910' 883'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1CAUTION: R6302 LCTD 1.1 NM N OF AFLD.
A110-10TRAN ALERT: LTD TRAN PRK.
A110-11RSTD: PPR ALL TRAN ACFT, C254-288-3811, DSN 738-3811 OR C254-287-7585 DSN 737-7585. RSTD FROM F/W ACFT.
A110-12MISC: NO TRML FCST ISSUED FOR YOAKUM-DEFRENN AHP.
A110-16SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-2CAUTION: SOME ACFT OPR IN AREA WO CONSPICUOUS MRK AND BLEND WITH TERRAIN.
A110-22TFC PAT: LEFT AND RGT TFC ALT 1500'.
A110-23SERVICE - FUEL - A++. RAPID REFUEL OPR TIMES BY NOTAM.
A110-24PMSV GRAY METRO: WX OBSN FULLY AUTOMATED. MANUAL BACK-UP PRVDD FOR EQUIPMENT/COMMUNICATION FAILURE ONLY DURING AFLD OPERATING HRS.
A110-25H-1 AND TWY J CLSD 1200-1330Z++ MON-FRI EXC HOL.
A110-26CAUTION - EXTSV UAS ACT WI CLASS D ASP AND BTN ROBERT GRAY AAF AND R6302.
A110-4CAUTION: INST FINAL APCH CRS CROSS 1 NM SW KILLEEN MUNI.
A110-5CAUTION: INTS COPTER OPR VCNTY FT CAVAZOS.
A110-7RSTD: NO BASE OPS SVC AVBL AT YOAKUM-DEFRENN AHP, CTC ROBERT GRAY BASE OPS C254-288-9200, DSN 738-9200.
A110-9OIL: SOAP.
YOAKUM-DEFRENN AHP (ICAO: KHLR, IATA: HLR) is a private heliport located in FORT CAVAZOS (KILLEEN), TX.
