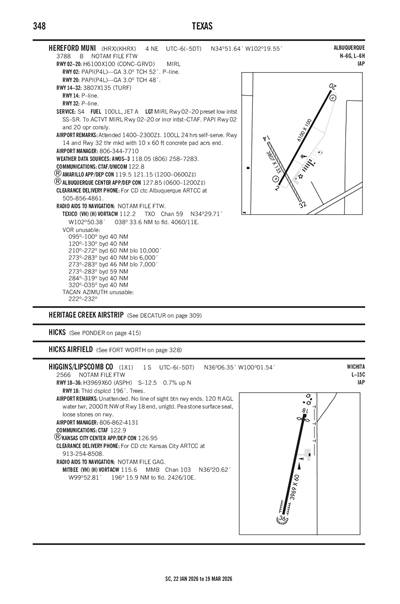

HEREFORD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHRX
HEREFORD MUNI
PublicPUB

4 miles NE of HEREFORD, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 51' 39"N 102° 19' 33"W
3788' MSL
4788' MSL
09E
JET A, 100LL
FORT WORTH (FTW)
ALBUQUERQUE
ALBUQUERQUE (ZAB)
11/28/24-12/26/24
KHRX VFR
6:15 AM CST
Clear
10sm
35°F
25°F
29.96"Hg
250° 7kts
AO2 T00141041 TSNO
KHRX 231215Z AUTO 25007KT 10SM CLR 01/M04 A2996 RMK AO2 T00141041 TSNO
Add Your Business

KHRX FBOs

Hereford Municipal Airport
UNICOM: 122.8
Phone: (806) 258-7289
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.49 3.99
Full Serve 4.49 3.99
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
806-258-7283
 118.05

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAMA (37nm)
Mon, 12/23 5:20 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 1:00 PM CST
Few 24,000'
6sm
320° 6kts
VFR
1:00 PM CST - 6:00 PM CST
Scattered 23,000'
6sm
360° 11kts
MVFR
6:00 PM CST - 5:00 AM CST
Broken 1,700'
6sm
020° 9kts
VFR
5:00 AM CST - 6:00 AM CST
Scattered 3,500'
6sm
340° 7kts
KAMA 231120Z 2312/2412 32006KT P6SM FEW240
   FM231900 36011KT P6SM SCT230
   FM240000 02009KT P6SM BKN017
   FM241100 34007KT P6SM SCT035
KHRX
Domestic
12/11/242038Z !FTW 12/328 HRX SVC AUTOMATED WX BCST SYSTEM TS U/S 2412112038-2502272359
8/4/161200Z !FTW 08/006 HRX OBST TOWER LGT (ASR 1260287) 344927.80N1023045.70W
(9.5NM WSW HRX) 4200.8FT (295.9FT AGL) OUT OF SERVICE 1608041200-PERM
FDC
9/26/241915Z !FDC 4/1077 HRX IAP HEREFORD MUNI, HEREFORD, TX.
RNAV (GPS) RWY 20, ORIG-C...
ADD NOTE: CIRCLING NA TO RWYS 14 AND 32.
DELETE NOTE: BARO-VNAV NA WHEN USING RICK HUSBAND AMARILLO INTL
ALTIMETER SETTING.
DELETE NOTE: VDP NA WITH RICK HUSBAND AMARILLO INTL ALTIMETER
SETTING.
ADD NOTE: BARO-VNAV AND VDP NA WHEN USING AMA ALTIMETER SETTING.
CHANGE NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV
NA BELOW -22°C OR ABOVE 41°C.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
AMA ALTIMETER SETTING: INCREASE LPV DA TO 4098 FEET AND ALL
VISIBILITIES 1/4 SM; INCREASE LNAV/VNAV DA TO 4232 FEET AND ALL
VISIBILITIES 1/4 SM; INCREASE ALL MDAS 120 FEET AND LNAV VISIBILITY
CATS C AND D 1/2 SM, INCREASE CIRCLING VISIBILITY CAT C 1/2 SM AND
CAT D 1/4 SM.
PBN REQUIREMENTS NOTE: RNP APCH - GPS.
DELETE PROFILE NOTE: *LNAV ONLY.
DELETE ASTERISK FROM MINIMUM ALTITUDE 4420 AT OLIVY 1.9 NM TO RW20.
DELETE ASTERISK FROM VDP AT 1.2 NM TO RW20.
THIS IS RNAV (GPS) RWY 20, ORIG-D. 2409261915-PERM
9/26/241915Z !FDC 4/1076 HRX IAP HEREFORD MUNI, HEREFORD, TX.
RNAV (GPS) RWY 2, ORIG-B...
ADD NOTE: CIRCLING NA TO RWYS 14 AND 32.
DELETE NOTE: DME/DME RNP-0.3 NA.
DELETE NOTE: BARO-VNAV NA WHEN USING RICK HUSBAND AMARILLO INTL
ALTIMETER SETTING.
DELETE NOTE: VDP NA WITH RICK HUSBAND AMARILLO INTL ALTIMETER
SETTING.
ADD NOTE: BARO-VNAV AND VDP NA WHEN USING AMA ALTIMETER SETTING.
CHANGE NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV
NA BELOW -22°C OR ABOVE 41°C.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
AMA ALTIMETER SETTING: INCREASE LPV DA TO 4098 FEET AND ALL
VISIBILITIES 1/4 SM; INCREASE LNAV/VNAV DA TO 4238 FEET AND ALL
VISIBILITIES 1/4 SM; INCREASE ALL MDAS 120 FEET AND LNAV VISIBILITY
CATS C AND D 1/4 SM, INCREASE CIRCLING VISIBILITY CAT C 1/2 SM AND
CAT D 1/4 SM.
PBN REQUIREMENTS NOTE: RNP APCH - GPS.
DELETE PROFILE NOTE: *LNAV ONLY.
DELETE ASTERISK FROM MINIMUM ALTITUDE 4400 AT CIPVU 1.8 NM TO RW02.
DELETE ASTERISK FROM VDP AT 1.3 NM TO RW02.
THIS IS RNAV (GPS) RWY 2, ORIG-C. 2409261915-PERM
No
0800-1700
CITY OF HEREFORD
BOX 2277
HEREFORD, TX 79045
Phone: 806-363-7100
CAYDEN FINCH
4175 US HWY 60
HEREFORD, TX 79045
Phone: 806-344-7710
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
MIRL RWY 02/20 PRESET LOW INTST SS-SR. TO ACTVT MIRL 02/20 OR INCR INTST - CTAF. PAPI RWY 02 & 20 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Crop Dusting
Pilot Instruction

Runway 02/20

6100 ft. x 100 ft.
CONC
Excellent
GRVD
MED

--
--
--
--
  Runway 02 Runway 20
True Heading 29°209°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 51' 19"N 34° 52' 12"N
Longitude 102° 19' 46"W 102° 19' 10"W
Elevation 3,786' 3,786'
Threshold Crossing Height 52 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

3807 ft. x 135 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 14 Runway 32
True Heading 151°331°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition FAIR FAIR
Latitude 34° 51' 43"N 34° 51' 10"N
Longitude 102° 19' 53"W 102° 19' 31"W
Elevation 3,783' 3,783'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
HEREFORD MUNI (ICAO: KHRX, IATA: HRX) is a public airport located in HEREFORD, TX.
