iFlightPlanner



...

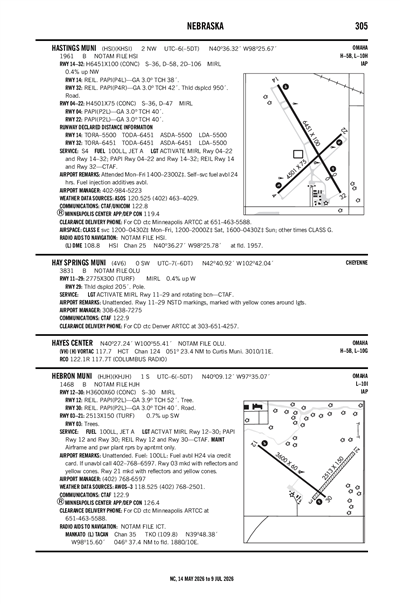

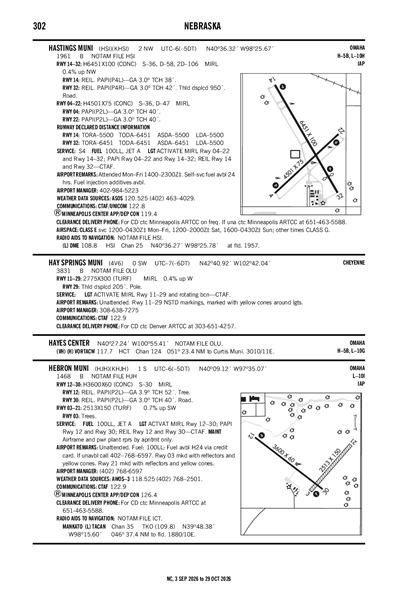

HASTINGS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHSI
HASTINGS MUNI
PublicPUB

2 miles NW of HASTINGS, NE
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 36' 19"N 98° 25' 40"W
1961' MSL
2961' MSL
07E
JET A, 100LL
COLUMBUS (OLU)
OMAHA
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KHSI VFR
10:53 PM CDT
Scattered 2,900'
10sm
62°F
60°F
30.03"Hg
020° 3kts
AO2 SLP160 T01670156
KHSI 010353Z AUTO 02003KT 10SM SCT029 17/16 A3003 RMK AO2 SLP160 T01670156
Add Your Business

KHSI FBOs

Promote Listing
Hastings Air
UNICOM: 122.8
Phone: (402) 303-6400
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.46 4.69
Full Serve 5.46 4.69
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
402-463-4029
 120.525

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGRI (22nm)
Fri, 5/31 10:28 PM CDT
Fri, 5/31 10:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
10:00 PM CDT - 12:00 AM CDT
Sky Clear
6sm
040° 7kts
MVFR
12:00 AM CDT - 2:00 AM CDT
Broken 1,500'
6sm
VRB° 5kts
IFR
2:00 AM CDT - 11:00 AM CDT
Broken 800'
6sm
VRB° 4kts
MVFR
11:00 AM CDT - 1:00 PM CDT
Broken 2,000'
6sm
VRB° 5kts
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 4,000'
6sm
150° 10kts
KGRI 010328Z 0103/0124 04007KT P6SM SKC
   FM010500 VRB05KT P6SM BKN015
   FM010700 VRB04KT P6SM BKN008
   FM011600 VRB05KT P6SM BKN020
   FM011800 15010KT P6SM BKN040
KHSI
Domestic
5/21/241639Z !HSI 05/005 HSI OBST TOWER LGT (ASR 1211867) 403822.10N0984214.30W (12.8NM W HSI) 2470.1FT (392.1FT AGL) U/S 2405211639-2407312359
4/23/241946Z !HSI 04/008 HSI OBST TOWER LGT (ASR 1259662) 404059.20N0981823.50W (7.2NM NE HSI) 2157.8FT (259.8FT AGL) U/S 2404231946-2407232359
3/4/241925Z !HSI 03/001 HSI OBST TOWER LGT (ASR 1023336) 404344.00N0983414.00W (9.9NM NW HSI) 2649.0FT (625.0FT AGL) U/S 2403041925-2408312359
No
MON-FRI 0800-1700
CITY OF HASTINGS
220 N. HASTINGS AVENUE
HASTINGS, NE 68901-5144
Phone: 402-984-5223
MATTHEW KUHR
220 N. HASTINGS AVENUE
HASTINGS, NE 68901-5144
Phone: 402-984-5223
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
HSI
--
ACTVT MIRL RYS 04/22 & 14/32 AND PAPI RYS 04/22 & 14/32 AND REIL RYS 14 & 32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
26
5
0
0
0
0
None
None
None
None
Crop Dusting
Air Ambulance
Pilot Instruction
Aircraft Rental

Runway 04/22

4501 ft. x 75 ft.
CONC
Good
NONE
MED

36,000lbs
47,000lbs
--
--
  Runway 04 Runway 22
True Heading 47°227°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 40° 35' 56"N 40° 36' 27"N
Longitude 98° 26' 02"W 98° 25' 19"W
Elevation 1,939' 1,948'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

6451 ft. x 100 ft.
CONC
Good
NONE
MED

36,000lbs
58,000lbs
106,000lbs
--
  Runway 14 Runway 32
True Heading 150°330°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 36' 52"N 40° 35' 56"N
Longitude 98° 26' 01"W 98° 25' 20"W
Elevation 1,961' 1,938'
Threshold Crossing Height 38 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
HASTINGS MUNI (ICAO: KHSI, IATA: HSI) is a public airport located in HASTINGS, NE.
