iFlightPlanner



...

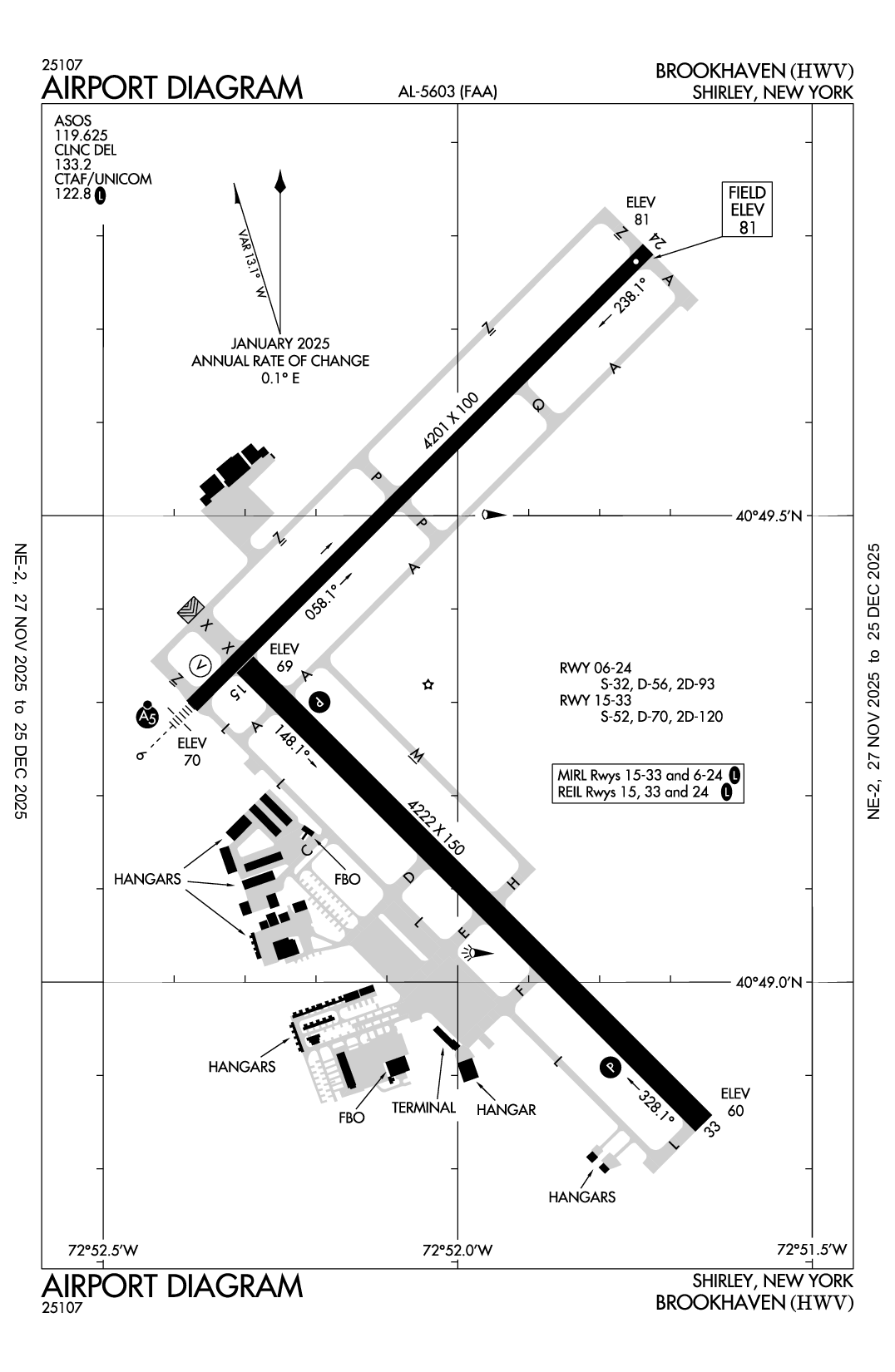

BROOKHAVEN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHWV
BROOKHAVEN
PublicPUB

1 miles N of SHIRLEY, NY
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 49' 19"N 72° 52' 01"W
81' MSL
1081' MSL
14W
JET A, 100LL
NEW YORK (ISP)
NEW YORK
NEW YORK (ZNY)
11/28/24-12/26/24
KHWV VFR
6:56 AM EST
Clear
10sm
7°F
2°F
30.64"Hg
Calm
AO2 SLP377 I1000 I6000 T11391167 11094 21139 53013 $
KHWV 231156Z AUTO 00000KT 10SM CLR M14/M17 A3064 RMK AO2 SLP377 I1000 I6000 T11391167 11094 21139 53013 $

KHWV FBOs

Pilot & Aircraft
UNICOM: 122.8
Phone: (631) 772-6540
No Rating Available
0 Reviews (Read | Sign In To Write)
Mid-Island Air Service
UNICOM: 122.8
Phone: (631) 281-5400
No Rating Available
0 Reviews (Read | Sign In To Write)
Northeast Aviation Services
UNICOM: 122.85
Phone: (631) 521-7033
Other: (631) 399-3348
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 12/17
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.13
Full Serve 7.63 6.49 6.49
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
631-399-7095
119.625

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KISP (11nm)
Mon, 12/23 6:32 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 4:00 PM EST
Few 25,000'
6sm
VRB° 4kts
VFR
4:00 PM EST - 3:00 AM EST
Broken 15,000'
6sm
200° 5kts
VFR
3:00 AM EST - 7:00 AM EST
Broken 10,000'
Few 4,000'
6sm
230° 5kts
KISP 231132Z 2312/2412 VRB04KT P6SM FEW250
   FM232100 20005KT P6SM BKN150
   FM240800 23005KT P6SM FEW040 BKN100
KHWV
Domestic
12/19/241305Z !HWV 12/008 HWV RWY 33 PAPI U/S 2412191305-2505012359
12/19/241305Z !HWV 12/007 HWV RWY 15 PAPI U/S 2412191305-2505012359
12/11/241845Z !HWV 12/005 HWV RWY 24 RWY END ID LGT U/S 2412111845-2506112111EST
12/3/241829Z !HWV 12/002 HWV NAV ILS RWY 06 OM U/S 2412031829-2502282111EST
11/1/242120Z !HWV 11/001 HWV RWY 15/33 N 290FT CLSD TO TKOF AND LDG DELCARED DIST: RWY 15 TORA 3932FT TODA 3932FT ASDA 3932FT LDA 3932FT. RWY 33 TORA 3932FT TODA 3932FT ASDA 3932FT LDA 3932FT. 2411012120-2505012359
FDC
11/4/242340Z !FDC 4/8869 HWV IAP BROOKHAVEN, SHIRLEY, NY.
ILS OR LOC RWY 6, AMDT 2C...
ADD NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 490FT MSL.
2411042340-2611042340EST
10/31/240001Z !FDC 4/5550 HWV IAP BROOKHAVEN, SHIRLEY, NY.
RNAV (GPS) RWY 15, ORIG-B...
STRAIGHT-IN MINIMUMS NA. CIRCLING RWY 6,15 NA AT NIGHT.
2410310001-2610311616EST
7/10/241411Z !FDC 4/9636 HWV IAP BROOKHAVEN, SHIRLEY, NY.
RNAV (GPS) RWY 6, AMDT 2C...
LPV DA 340/HAT 263. LNAV/VNAV DA 327/HAT 250. LNAV MDA 420/HAT 343. RWY 6 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. CIRCLING RWY 6,15 NA AT NIGHT. TDZE 77.
2407101411-2607101411EST
7/10/241355Z !FDC 4/9555 HWV IAP BROOKHAVEN, SHIRLEY, NY.
RNAV (GPS) RWY 33, ORIG-B...
CIRCLING RWY 6,15 NA AT NIGHT.
2407101355-2607101355EST
7/10/241343Z !FDC 4/9545 HWV IAP BROOKHAVEN, SHIRLEY, NY.
ILS OR LOC RWY 6, AMDT 2C...
S-ILS 6 DA 339/HAT 262 ALL CATS. ILS LOCALIZER UNUSABLE 0.5 NM TO THRESHOLD. RWY 6 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. CIRCLING RWY 6,15 NA AT NIGHT. TDZE 77.
2407101343-2607101343EST
9/20/231909Z !FDC 3/2688 HWV IAP BROOKHAVEN, SHIRLEY, NY.
VOR RWY 6, AMDT 4A...
STRAIGHT-IN RWY 6 NA AT NIGHT, CIRCLING RWY 6, 15 NA AT NIGHT. VDP NA. RWY 6 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED.
2309201909-2509191909EST
9/20/231640Z !FDC 3/2602 HWV IAP BROOKHAVEN, SHIRLEY, NY.
RNAV (GPS)-A, ORIG-A...
RWY 6, 15, 33 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA. CIRCLING RWY 6, 15, 33 NA AT NIGHT.
2309201640-2509191640EST
9/18/231813Z !FDC 3/1513 HWV PART 1 OF 3 ODP BROOKHAVEN, SHIRLEY, NY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
NOTE: RWY 15: SOLAR PANELS BEGINNING 1 FT FROM DER, 251 FT RIGHT OF
CENTERLINE, UP TO 7 FT AGL/64 FT MSL.
SOLAR PANELS BEGINNING 1 FT FROM DER, 485 FT RIGHT OF CENTERLINE,
UP TO 7 FT AGL/66 FT MSL.
TREES BEGINNING 35 FT FROM DER, 407 FT LEFT OF CENTERLINE, UP TO 63
FT AGL/123 FT MSL.
TRAVERSE WAY 56 FT FROM DER, 493 FT RIGHT OF CENTERLINE, 76 FT MSL.
TREE 167 FT FROM DER, 469 FT LEFT OF CENTERLINE, 65 FT AGL/125 FT
MSL.
TREES BEGINNING 241 FT FROM DER, 231 FT LEFT OF CENTERLINE, UP TO
127 FT MSL.
TREES BEGINNING 446 FT FROM DER, 242 FT RIGHT OF CENTERLINE, UP TO
127 FT MSL.
TREES BEGINNING 2337 FT FROM DER, 334 FT LEFT OF CENTERLINE, UP TO
84 FT AGL/139 FT MSL.
TREE 2556 FT FROM DER, 616 FT RIGHT OF CENTERLINE, 133 FT MSL.
NOTE: RWY 24: ELECTRICAL SYSTEM 13 FT FROM DER, 124 FT LEFT OF
CENTERLINE, 3 FT AGL/71 FT MSL.
TERRAIN 42 FT FROM DER, 270 FT LEFT OF CENTERLINE, 72 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2309181813-2509181813EST
END PART 1 OF 3
!FDC 3/1513 HWV PART 2 OF 3 ODP BROOKHAVEN, SHIRLEY, NY.
TRAVERSE WAY, TERRAIN BEGINNING 55 FT FROM DER, 287 FT RIGHT OF
CENTERLINE, UP TO 73 FT MSL.
SOLAR PANELS BEGINNING 198 FT FROM DER, 503 FT RIGHT OF CENTERLINE,
UP TO 7 FT AGL/77 FT MSL.
TREE 785 FT FROM DER, 686 FT LEFT OF CENTERLINE, 137 FT MSL.
TREE, POLE BEGINNING 941 FT FROM DER, 425 FT LEFT OF CENTERLINE, UP
TO 67 FT AGL/138 FT MSL.
TREES BEGINNING 1099 FT FROM DER, 600 FT RIGHT OF CENTERLINE, UP TO
135 FT MSL.
TREES BEGINNING 1262 FT FROM DER, 199 FT RIGHT OF CENTERLINE, UP TO
140 FT MSL.
TREES BEGINNING 1314 FT FROM DER, 242 FT LEFT OF CENTERLINE, UP TO
141 FT MSL.
TREES BEGINNING 1655 FT FROM DER, 280 FT RIGHT OF CENTERLINE, UP TO
153 FT MSL.
TREES BEGINNING 1672 FT FROM DER, 635 FT LEFT OF CENTERLINE, UP TO
143 FT MSL.
TREES BEGINNING 1747 FT FROM DER, 215 FT LEFT OF CENTERLINE, UP TO
144 FT MSL.
TREES BEGINNING 1996 FT FROM DER, 165 FT LEFT OF CENTERLINE, UP TO
ALL OTHER DATA REMAINS AS PUBLISHED. 2309181813-2509181813EST
END PART 2 OF 3
!FDC 3/1513 HWV PART 3 OF 3 ODP BROOKHAVEN, SHIRLEY, NY.
145 FT MSL.
TREES BEGINNING 2090 FT FROM DER, 417 FT RIGHT OF CENTERLINE, UP TO
157 FT MSL.
TREE 3036 FT FROM DER, 288 FT LEFT OF CENTERLINE, 77 FT AGL/147 FT
MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2309181813-2509181813EST
END PART 3 OF 3
No
0700-1900
TOWN OF BROOKHAVEN
135 DAWN DRIVE
SHIRLEY, NY 11967
Phone: 631-451-5300
DAVID MORAN
135 DAWN DRIVE
SHIRLEY, NY 11967
Phone: 631-451-6299
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
HWV
--
ACTVT MALSR RWY 06; REIL RWYS 24, 15, & 33; PAPI RWYS 15 & 33; MIRL RWYS 06/24 & 15/33 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Charter Service
Glider Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Glider Towing

Runway 06/24

4201 ft. x 100 ft.
ASPH
Good
NONE
MED

32,000lbs
56,000lbs
93,000lbs
--
  Runway 06 Runway 24
True Heading 45°225°
Traffic Pattern Left Left
Markings PIR BSC
Markings Condition FAIR FAIR
Latitude 40° 49' 18"N 40° 49' 47"N
Longitude 72° 52' 23"W 72° 51' 44"W
Elevation 70' 81'
Threshold Crossing Height 47 ft. AGL --
Visual Glide Path Angle --
Visual Slope Indicator V4L --
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 15/33

4222 ft. x 150 ft.
ASPH CONC
Good
NONE
MED

52,000lbs
70,000lbs
120,000lbs
--
  Runway 15 Runway 33
True Heading 135°315°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR GOOD
Latitude 40° 49' 20"N 40° 48' 51"N
Longitude 72° 52' 18"W 72° 51' 39"W
Elevation 69' 60'
Threshold Crossing Height 47 ft. AGL 46 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1GLIDER OPNS DALGT HOURS.
A110-11OVERNIGHT RAMP PARKING $5.00.
A110-13EXTENSIVE PARACHUTE JUMPING ACTIVITY INVOF ARPT.
A110-14ALL TWY LIGHTS OPR.
A110-16FOR CD CTC NEW YORK APCH AT 516-683-2449 OR 133.2
A110-17TGL ON HOL, WKENDS & NON-DALGT HRS NOT RCMDD.
A110-18RELOCATED THRESHOLD IS TAXIWAY Z1
A110-19DINER/LUNCHEONETTE OPN 7 DAYS/WEEK 0700-1600.
A110-2GLIDERS USE RIGHT TRAFFIC PATTERN FOR RYS 24 & 33; GLIDERS USE LEFT TRAFFIC PATTERN FOR RYS 06 & 15
A110-5UPPER AIR OBSERVATION BALLOONS LAUNCHED 3 MI NORTH OF ARPT 0600 & 1800.
A110-8PILOTS BE AWARE WHEN CONDUCTING PRACTICE ILS APCHS: EXTENSIVE LIGHT ACFT TRAINING ON & INVOF ARPT ALL HRS.
A110-9DEER ALL AREAS OF ARPT ESPECIALLY AT NIGHT.
BROOKHAVEN (ICAO: KHWV, IATA: HWV) is a public airport located in SHIRLEY, NY.
