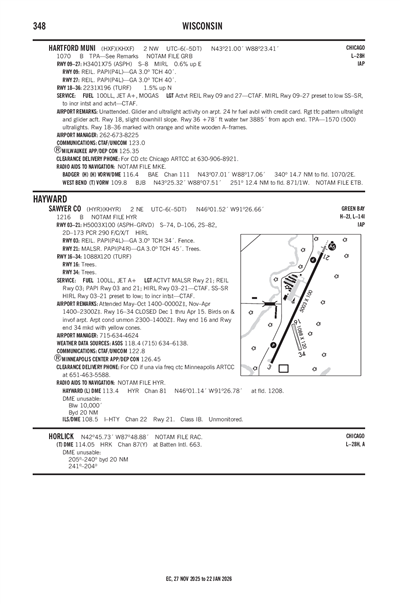

SAWYER COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHYR
SAWYER COUNTY
PublicPUB

2 miles NE of HAYWARD, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 01' 31"N 91° 26' 39"W
1216' MSL
2216' MSL
00E
JET A (FSII), 100LL
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
11/28/24-12/26/24
KHYR MVFR
5:53 AM CST
Overcast 1,800'
10sm
28°F
23°F
29.96"Hg
030° 3kts
AO2 SLP162 T10221050 11022 21028 53005 $
KHYR 231153Z AUTO 03003KT 10SM OVC018 M02/M05 A2996 RMK AO2 SLP162 T10221050 11022 21028 53005 $
Add Your Business

KHYR FBOs

Promote Listing
Hayward Aviation
UNICOM: 122.8
Phone: (715) 634-4624
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 12/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 4.97 5.69
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
715-634-6138
 118.4

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHYR
Mon, 12/23 5:28 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
MVFR
6:00 AM CST - 9:00 AM CST
Overcast 2,000'
6sm
Calm
MVFR
9:00 AM CST - 2:00 PM CST
Overcast 1,400'
6sm
VRB° 2kts
VFR
9:00 AM CST - 12:00 PM CST
Light Freezing Drizzle and Mist
No Clouds
6sm
Calm
IFR
2:00 PM CST - 7:00 PM CST
Overcast 1,200'
Broken 800'
6sm
010° 5kts
MVFR
7:00 PM CST - 3:00 AM CST
Broken 1,300'
6sm
VRB° 2kts
IFR
3:00 AM CST - 6:00 AM CST
Mist
Broken 700'
6sm
Calm
KHYR 231128Z 2312/2412 00000KT P6SM OVC020
   FM231500 VRB02KT P6SM OVC014
   PROB30 2315/2318 6SM -FZDZ BR
   FM232000 01005KT P6SM BKN008 OVC012
   FM240100 VRB02KT P6SM BKN013
   FM240900 00000KT 6SM BR BKN007
KHYR
Domestic
12/11/242231Z !HYR 12/022 HYR AD AP ABN U/S WHITE ONLY 2412112231-2412262231
12/5/242126Z !HYR 12/009 HYR OBST TOWER LGT (ASR 1035891) 455907.00N0913224.00W (4.7NM WSW HYR) 1646.0FT (465.9FT AGL) U/S 2412052126-2506302359
12/4/241655Z !HYR 12/004 HYR OBST TOWER LGT (ASN 2023-AGL-10757-OE) 455351N0905806W (21.3NM ESE HYR) 1620FT (235FT AGL) U/S 2412041655-2501181645
12/2/242255Z !HYR 12/002 HYR OBST TOWER LGT (ASN 2023-AGL-20042-OE) 455112N0912625W (10.3NM S HYR) 1637FT (255FT AGL) U/S 2412022255-2501162245
2/22/241654Z !HYR 02/016 HYR NAV ILS RWY 21 GP NOT MNT 2402221654-2512312000EST
FDC
9/11/231449Z !FDC 3/8312 HYR IAP SAWYER COUNTY, HAYWARD, WI.
ILS OR LOC RWY 21, ORIG-B...
MISSED APPROACH: MISSED APPROACH: CLIMB TO 2200 THEN CLIMBING RIGHT TURN TO 3300 ON HEADING 060 AND I-HTY NORTHEAST COURSE TO OBBEY/I-HTY 6.37 DME AND HOLD, CONTINUE CLIMB-IN-HOLD TO 3300.
2309111449-2509111449EST
No
MAY-OCT 0800-1800
NOV - APR 0800 -1700
SAWYER COUNTY
COURTHOUSE
HAYWARD, WI 54843
Phone: 715-634-4866
DEREK LESLIE
10930 N ARPT RD
HAYWARD, WI 54843
Phone: 715-634-4624
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
HYR
--
MIRL RWY 03/21 PRESET TO LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 03; MALSR RWY 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Pilot Instruction
Aircraft Rental

Runway 03/21

5002 ft. x 100 ft.
ASPH
Fair
NONE
MED

40,000lbs
65,000lbs
--
--
  Runway 03 Runway 21
True Heading 25°205°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 46° 01' 11"N 46° 01' 55"N
Longitude 91° 26' 54"W 91° 26' 24"W
Elevation 1,209' 1,216'
Threshold Crossing Height 34 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 16/34

1088 ft. x 120 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading 163°343°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 46° 01' 26"N 46° 01' 16"N
Longitude 91° 26' 42"W 91° 26' 37"W
Elevation 1,212' 1,210'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RY 16/34 CLSD DEC 1 THRU APR 15.
A110-2BIRDS ON & INVOF ARPT.
A110-3ARPT COND UNMON 1700-0800.
A110-4FOR CD IF UNA VIA FREQ CTC MINNEAPOLIS ARTCC AT 651-463-5588.
SAWYER COUNTY (ICAO: KHYR, IATA: HYR) is a public airport located in HAYWARD, WI.
