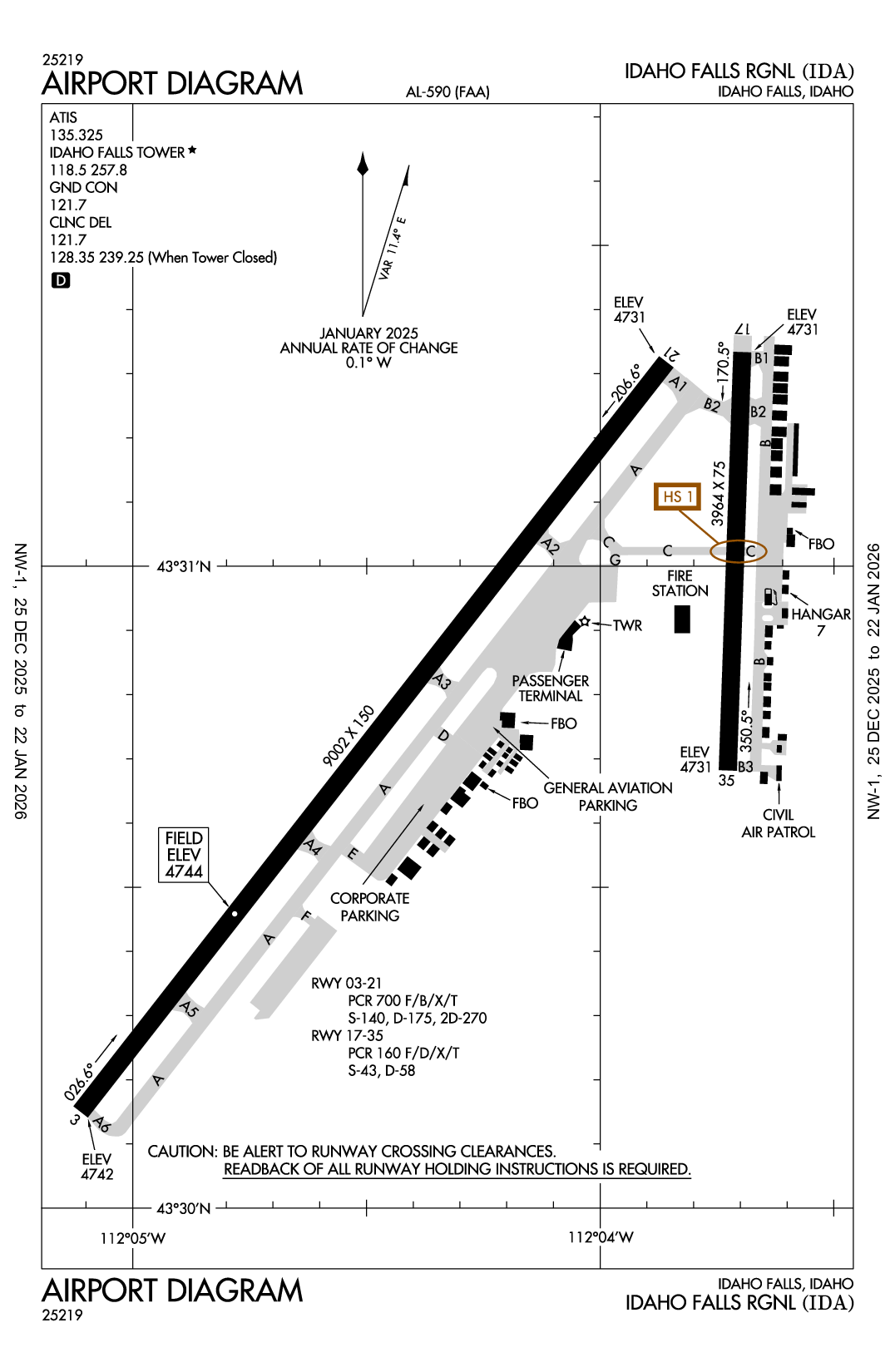

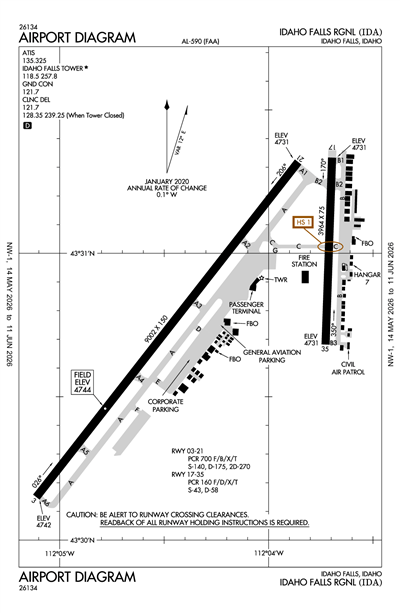

IDAHO FALLS RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIDA
IDAHO FALLS RGNL
PublicPUB

2 miles NW of IDAHO FALLS, ID
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 30' 49"N 112° 04' 15"W
4744' MSL
5744' MSL
12E
JET A-1, 100LL
BOISE (BOI)
SALT LAKE CITY
SALT LAKE CITY (ZLC)
11/28/24-12/26/24
KIDA MVFR
5:17 AM MST
Light Freezing Rain
Overcast 1,500'
5sm
32°F
29°F
30.16"Hg
Calm
AO2 FZRAB15 P0000 I1001 T00001017
KIDA 231217Z AUTO 00000KT 5SM -FZRA OVC015 00/M02 A3016 RMK AO2 FZRAB15 P0000 I1001 T00001017
Add Your Business

KIDA FBOs

Promote Listing
Aero Mark
UNICOM: 122.95
Phone: (208) 524-1202
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.15
Full Serve 6.45 6.15 6.24
Fuel Notes
Prices include tax

KIDA Aircraft Service & Maintenance

Promote Listing
Intermountain Aerospace
Phone: (208) 524-2666
Fax: (208) 524-2792
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.5

ATIS

ATIS
208-524-6048
 135.325

Clearance Delivery

CD/P
 121.7

Ground

GND/P
 121.7

Tower

LCL/P
 118.5
LCL/S
T
 109.0

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KIDA
Mon, 12/23 4:42 AM MST
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
MVFR
5:00 AM MST - 12:00 PM MST
Light Rain and Snow and Mist
Overcast 2,500'
Broken 2,000'
Scattered 900'
5sm
VRB° 5kts
MVFR
Temporary 5:00 AM MST - 9:00 AM MST
Light Freezing Rain
Broken 1,500'
Scattered 500'
6sm
Calm
MVFR
12:00 PM MST - 5:00 AM MST
Showers in vicinity
Overcast 3,500'
Broken 2,500'
Scattered 1,500'
6sm
230° 10kts
Gusts 20kts
KIDA 231142Z 2312/2412 VRB05KT 5SM -RASN BR SCT009 BKN020 OVC025
   TEMPO 2312/2316 6SM -FZRA SCT005 BKN015
   FM231900 23010G20KT P6SM VCSH SCT015 BKN025 OVC035
KIDA
Domestic
12/23/241112Z !IDA 12/094 IDA RWY 21 FICON 5/5/5 100 PCT WET OBS AT 2412231112. 2412231112-2412241112
12/23/241112Z !IDA 12/093 IDA RWY 17 FICON 5/5/5 100 PCT WET OBS AT 2412231112. 2412231112-2412241112
12/23/241111Z !IDA 12/092 IDA TWY ALL FICON WET OBS AT 2412231111. 2412231111-2412241111
12/23/241111Z !IDA 12/091 IDA APRON ALL FICON WET OBS AT 2412231111. 2412231111-2412241111
12/23/240456Z !IDA 12/090 IDA RWY 21 RAI LGT U/S 2412230456-2502262000EST
12/11/241828Z !IDA 12/009 IDA OBST TOWER LGT (ASR 1045626) 433116.00N1115934.00W (3.4NM E IDA) 5001.0FT (254.9FT AGL) U/S 2412111828-2506112359
12/9/242108Z !IDA 12/008 IDA OBST TOWER LGT (ASR 1042078) 433123.00N1120035.00W (2.7NM ENE IDA) 5007.2FT (256.6FT AGL) U/S 2412092108-2501092359
10/24/241417Z !IDA 10/018 IDA RWY 17/35 EDGE MARKINGS FADED 2410241417-2501011400
2/23/240730Z !IDA 02/232 IDA AD AP SFC COND NOT REP DLY 0730-1130 2402230730-2511011130
Yes
0530-2130
ON CALL 24 HRS PHONE 208-390-8746 OR 208-390-3624.
CITY OF IDAHO FALLS
PO BOX 50220
IDAHO FALLS, ID 83405
Phone: 208-612-8224
IAN TURNER
2140 N SKYLINE
IDAHO FALLS, ID 83402
Phone: (208) 612-8224
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
IDA
--
WHEN ATCT CLSD, ACTVT MALSR RWY 21; REIL RWY 03; PAPI RWY 03; HIRL RWY 03/21 - CTAF. PAPI 17 & 35 U/S EXC WHEN ATCT AVBL.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

9002 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
57 /F/B/X/T
140,000lbs
175,000lbs
270,000lbs
--
  Runway 03 Runway 21
True Heading 38°218°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 43° 30' 09"N 43° 31' 19"N
Longitude 112° 05' 07"W 112° 03' 52"W
Elevation 4,742' 4,731'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 17/35

3964 ft. x 75 ft.
ASPH
Good
NONE
MED
7 /F/B/X/T
43,000lbs
58,000lbs
--
--
  Runway 17 Runway 35
True Heading 182°2°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 43° 31' 20"N 43° 30' 41"N
Longitude 112° 03' 42"W 112° 03' 44"W
Elevation 4,731' 4,731'
Threshold Crossing Height 40 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P2L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10FQT VEHICLE TFC ON EAST RAMP ADJ TO TWY B.
A110-11FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A110-2FLOCKS OF BIRDS & WATERFOWL ON & INVOF ARPT ALL YEAR.
A110-3EXTSV AGRICULTURAL OPNS INVOF OF ARPT.
A110-4ACFT OPS BE ALERT FOR POSSIBLE INCURSIONS; NO LINE OF SIGHT BTN RWYS.
A110-5SFC CONDITIONS UNMONITORED 2300-0530.
A110-6RWY 21 AND RWY 17 APCH ENDS IN CLOSE PROXIMITY. WRONG RWY DEP/ARR RISK. CHK RWY ALNMT. INTERSECTING FLT PATHS FOR RWYS 21 & 17, AND RWYS 03 & 35.
A110-7SELF SVC FUEL EAST OF TWY BRAVO AVBL 24 HRS.
A110-8ALL COMMERCIAL ACFT ADVISE PRIOR TO PUSHBACK.
A110-9IDA SVC GND COM OUTLET CMSND KEY FREQ 121.725: 2 TIMES FUEL DLVY; 4 TIMES SLC ARTCC; 6 TIMES BOI FSS; 8 TIMES 911 DISPATCH SVC WHEN TWR CLSD.
IDAHO FALLS RGNL (ICAO: KIDA, IATA: IDA) is a public airport located in IDAHO FALLS, ID.
