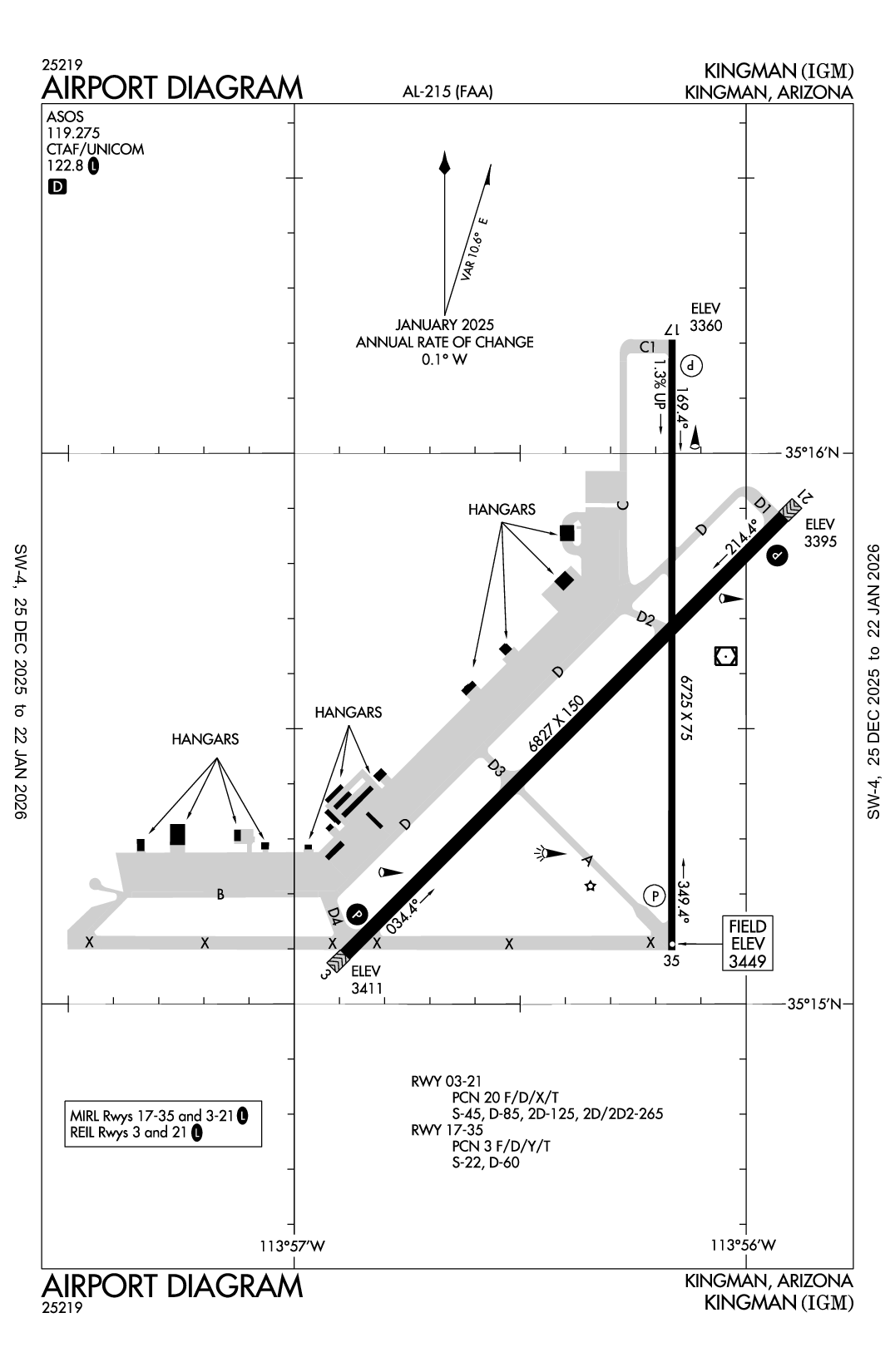

KINGMAN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIGM
KINGMAN
PublicPUB

8 miles NE of KINGMAN, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 15' 34"N 113° 56' 17"W
3449' MSL
4249' MSL
12E
JET A, 100LL
PRESCOTT (PRC)
PHOENIX
LOS ANGELES (ZLA)
11/28/24-12/26/24
KIGM VFR
4:51 AM MST
Clear
10sm
40°F
18°F
30.15"Hg
110° 7kts
AO2 SLP171 T00441078 10117 20039 51004 $
KIGM 231151Z AUTO 11007KT 10SM CLR 04/M08 A3015 RMK AO2 SLP171 T00441078 10117 20039 51004 $
Add Your Business

KIGM FBOs

Promote Listing
Air'Zona Aircraft Services
UNICOM: 122.8
Phone: (928) 757-7744
No Rating Available
0 Reviews (Read | Sign In To Write)
EPIC
As of 12/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.61 4.76
Full Serve 5.86 5.01
Fuel Notes
Prices include tax
JET A is premixed with Prist (FSII).
Fuel Hours
Hours of operation 6am - 5PM Monday - Friday. Closed Saturday & Sunday. Call out fee $130.00 after 5pm weekdays, Holidays, Saturday & Sunday.
Volume Discounts
Ramp fee waived with purchase of fuel
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
928-692-8104
 119.275

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KIFP (31nm)
Mon, 12/23 4:25 AM MST
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
VFR
5:00 AM MST - 8:00 AM MST
Scattered 20,000'
6sm
010° 9kts
VFR
8:00 AM MST - 8:00 PM MST
Scattered 20,000'
Few 15,000'
6sm
350° 14kts
VFR
8:00 PM MST - 5:00 AM MST
Broken 20,000'
Scattered 15,000'
6sm
030° 9kts
KIFP 231125Z 2312/2412 01009KT P6SM SCT200
   FM231500 35014KT P6SM FEW150 SCT200
   FM240300 03009KT P6SM SCT150 BKN200
KIGM
Domestic
10/24/241311Z !IGM 10/008 IGM RWY 03 PAPI UNUSABLE 2410241311-2504282111EST
FDC
3/25/241831Z !FDC 4/1394 IGM IAP KINGMAN, KINGMAN, AZ.
RNAV (GPS) Z RWY 21, ORIG-C...
LPV DA 3678/HAT 275.
DISREGARD NOTE: DME/DME RNP-0.3 NA. PBN REQUIREMENTS NOTE: RNP APCH.
2403251831-2603251831EST
No
MON-FRI 0600-1600
SAT-SUN 0600-1400
CITY OF KINGMAN
7000 FLIGHTLINE DR
KINGMAN, AZ 86401
Phone: 928-757-2134
DOUG BRECKENRIDGE
7000 FLIGHTLINE DR.
KINGMAN, AZ 86401
Phone: 928-757-2134
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
IGM
--
ACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 & 17/35; TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Air Freight
Air Ambulance
Aircraft Rental

Runway 03/21

6827 ft. x 150 ft.
ASPH
Good
NONE
MED
20 /F/D/X/T
45,000lbs
85,000lbs
125,000lbs
265,000lbs
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 15' 05"N 35° 15' 53"N
Longitude 113° 56' 53"W 113° 55' 55"W
Elevation 3,411' 3,395'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 17/35

6725 ft. x 75 ft.
ASPH
Good
NONE
MED
3 /F/D/Y/T
22,000lbs
60,000lbs
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 16' 12"N 35° 15' 06"N
Longitude 113° 56' 10"W 113° 56' 10"W
Elevation 3,360' 3,449'
Threshold Crossing Height 49 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RWY 21 CALM WIND RWY.
A110-3DISTANCE REMAINING SIGNS RIGHT SIDE RWY 03, LEFT SIDE RWY 21.
A110-4ULTRALIGHT & MODEL AIRPLANE ACTVT NW OF ARPT.
A110-6FOR CD IF UNA TO CTC ON FSS FREQ, CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-7VEHICLE AND PEDESTRIAN GATE CODE IS THE PUBLISHED LENGTH OF RWY 03/21.
KINGMAN (ICAO: KIGM, IATA: IGM) is a public airport located in KINGMAN, AZ.
