JACKSONVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIJX
JACKSONVILLE MUNI
PublicPUB

3 miles N of JACKSONVILLE, IL
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 46' 29"N 90° 14' 18"W
624' MSL
1624' MSL
03E
JET A, 100LL
SAINT LOUIS (STL)
ST LOUIS
KANSAS CITY (ZKC)
11/28/24-12/26/24
KIJX VFR
5:55 AM CST
Overcast 3,800'
10sm
37°F
27°F
30.09"Hg
170° 11kts
AO2 T00301026 10030 20011
KIJX 231155Z AUTO 17011KT 10SM OVC038 03/M03 A3009 RMK AO2 T00301026 10030 20011

KIJX FBOs

Jacksonville Municipal Airport
UNICOM: 122.8
Phone: (217) 243-5824
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/17
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.45 5.75
Full Serve 5.45 5.75
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
217-243-6379
120.525

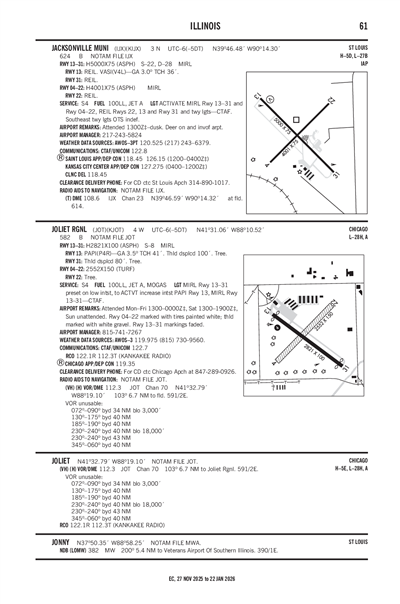

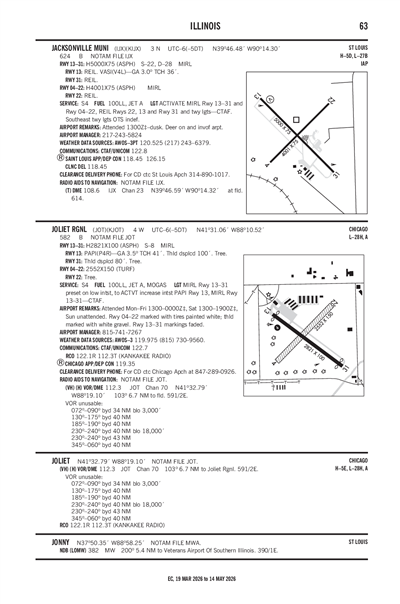

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSPI (26nm)
Mon, 12/23 5:26 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
MVFR
6:00 AM CST - 12:00 PM CST
Overcast 2,500'
6sm
190° 12kts
Gusts 21kts
VFR
12:00 PM CST - 6:00 PM CST
Overcast 3,500'
6sm
210° 13kts
Gusts 22kts
VFR
6:00 PM CST - 2:00 AM CST
Scattered 12,000'
6sm
220° 7kts
MVFR
2:00 AM CST - 4:00 AM CST
Mist
Overcast 1,500'
4sm
VRB° 4kts
IFR
4:00 AM CST - 6:00 AM CST
Mist
Broken 600'
3sm
VRB° 4kts
KSPI 231126Z 2312/2412 19012G21KT P6SM OVC025
   FM231800 21013G22KT P6SM OVC035
   FM240000 22007KT P6SM SCT120
   FM240800 VRB04KT 4SM BR OVC015
   FM241000 VRB04KT 3SM BR BKN006
KIJX
Domestic
12/24/241800Z !IJX 12/034 IJX AD AP NOT ATTENDED MAIN TERMINAL CLSD 2412241800-2412261200
12/22/240143Z !IJX 12/036 IJX OBST TOWER LGT (ASR 1247188) 395108.50N0901317.20W (4.7NM NE IJX) 965.2FT (345.1FT AGL) U/S 2412220143-2504210143
12/11/241600Z !IJX 12/026 IJX AD AP WINDCONE OBST LGT U/S 2412111600-2501312359
12/11/241559Z !IJX 12/025 IJX RWY 31 RWY END ID LGT U/S 2412111559-2501312359
12/11/241559Z !IJX 12/024 IJX TWY ALL SIGNS LGT U/S 2412111559-2501312359
12/11/241559Z !IJX 12/023 IJX RWY 22 RWY END ID LGT U/S 2412111559-2501312359
12/11/241559Z !IJX 12/022 IJX RWY 22 SIGNS LGT U/S 2412111559-2501312359
12/11/241559Z !IJX 12/021 IJX TWY ALL LGT U/S 2412111559-2501312359
12/11/241559Z !IJX 12/020 IJX RWY 13 RWY END ID LGT U/S 2412111559-2501312359
12/11/241558Z !IJX 12/019 IJX AD AP ALL SFC WIP CONST LGT INSTALLATION
2412111558-2501312359
12/11/241558Z !IJX 12/018 IJX RWY 04 SIGNS LGT U/S 2412111558-2501312359
1/2/241955Z !IJX 01/002 IJX AIRSPACE SEE ZKC 01/022 HIGH SPEED ACFT 2401021955-2501010600
FDC
9/8/231916Z !FDC 3/7540 IJX PART 1 OF 2 ODP JACKSONVILLE MUNI,
JACKSONVILLE, IL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
CHANGE TAKEOFF OBSTACLE NOTES TO READ RWY 4: LIGHT POLES 20 FT FROM
DER, 78 FT LEFT OF CENTERLINE, 620 FT MSL. LIGHT POLES 20 FT FROM
DER, 76 FT RIGHT OF CENTERLINE, 3 FT AGL/621 FT MSL. POLE 973 FT
FROM DER, 591 FT LEFT OF CENTERLINE, 650 FT MSL. POLE 1026 FT FROM
DER, 589 FT RIGHT OF CENTERLINE, 646 FT MSL. TREES BEGINNING 1156
FT FROM DER, 450 FT LEFT OF CENTERLINE, UP TO 654 FT MSL. ANTENNA,
TREE BEGINNING 1281 FT FROM DER, 261 FT LEFT OF CENTERLINE, UP TO
54 FT AGL/671 FT MSL. TREES BEGINNING 1411 FT FROM DER, 409 FT LEFT
OF CENTERLINE, UP TO 58 FT AGL/676 FT MSL& RWY 13: LIGHT POLES 21
FT FROM DER, 77 FT RIGHT OF CENTERLINE, 2 FT AGL/622 FT MSL. POLE
689 FT FROM DER, 605 FT LEFT OF CENTERLINE, 650 FT MSL. POLE 785 FT
FROM DER, 562 FT RIGHT OF CENTERLINE, 650 FT MSL. TREES BEGINNING
928 FT FROM DER, 368 FT LEFT OF CENTERLINE, UP TO 78 FT AGL/690 FT
MSL. TREE, POLE BEGINNING 1093 FT FROM DER, 11 FT LEFT OF
CENTERLINE, UP TO 93 FT AGL/698 FT MSL& RWY 22: TREE, POLE
BEGINNING 696 FT FROM DER, 315 FT LEFT OF CENTERLINE, UP TO 666 FT
MSL. TREE 902 FT FROM DER, 516 FT RIGHT OF CENTERLINE, 667 FT MSL.
TREES BEGINNING 982 FT FROM DER, 369 FT RIGHT OF CENTERLINE, UP TO
668 FT MSL. TREES BEGINNING 1148 FT FROM DER, 343 FT LEFT OF
2309081916-2509081916EST
END PART 1 OF 2
!FDC 3/7540 IJX PART 2 OF 2 ODP JACKSONVILLE MUNI,
JACKSONVILLE, IL.
CENTERLINE, UP TO 682 FT MSL. TREE 1260 FT FROM DER, 628 FT LEFT OF
CENTERLINE, 684 FT MSL. TREES BEGINNING 1345 FT FROM DER, 157 FT
LEFT OF CENTERLINE, UP TO 687 FT MSL& RWY 31: LIGHT POLES 19 FT
FROM DER, 76 FT LEFT OF CENTERLINE, 2 FT AGL/618 FT MSL. LIGHT
POLES 20 FT FROM DER, 79 FT RIGHT OF CENTERLINE, 618 FT MSL. POLE
674 FT FROM DER, 558 FT RIGHT OF CENTERLINE, 640 FT MSL...
2309081916-2509081916EST
END PART 2 OF 2
No
0700-DUSK
JACKSONVILLE AIRPORT AUTH
1956 BALDWIN RD
JACKSONVILLE, IL 62650
Phone: 217-243-5824
SHASTIN SAXER
1956 BALDWIN RD, JACKSONVILLE AIRPORT
JACKSONVILLE, IL 62650
Phone: 217-243-5824
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
IJX
--
ACTVT MIRL RY 13/31, 04/22, REIL RYS 22, 13 & 31, & TWY LGTS - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 04/22

4001 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 39° 46' 15"N 39° 46' 43"N
Longitude 90° 14' 35"W 90° 13' 59"W
Elevation 617' 618'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 13/31

5000 ft. x 75 ft.
ASPH
Good
NONE
MED

22,000lbs
28,000lbs
--
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 39° 46' 46"N 39° 46' 11"N
Longitude 90° 14' 41"W 90° 13' 56"W
Elevation 617' 621'
Threshold Crossing Height 36 ft. AGL --
Visual Glide Path Angle --
Visual Slope Indicator V4L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1DEER ON & INVOF OF ARPT.
A110-2FOR CD CTC ST LOUIS APCH 314-890-1017.
JACKSONVILLE MUNI (ICAO: KIJX, IATA: IJX) is a public airport located in JACKSONVILLE, IL.
