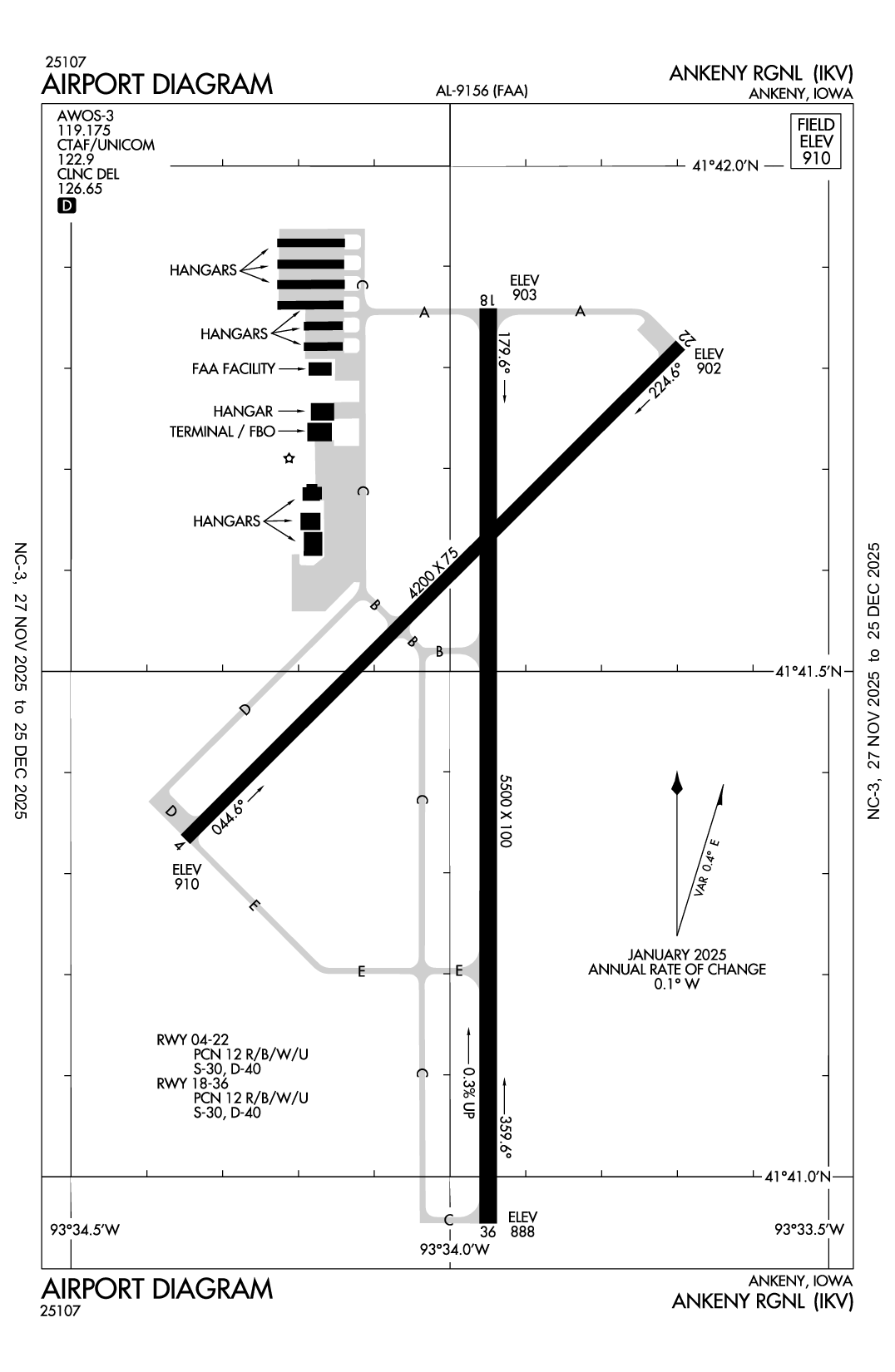

ANKENY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIKV
ANKENY RGNL
PublicPUB

1 miles SE of ANKENY, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 41' 29"N 93° 33' 59"W
910' MSL
1910' MSL
03E
JET A, 100LL
FORT DODGE (FOD)
OMAHA
MINNEAPOLIS (ZMP)
11/28/24-12/26/24
KIKV VFR
6:15 AM CST
Clear
10sm
37°F
34°F
29.95"Hg
270° 8kts
AO2
KIKV 231215Z AUTO 27008KT 10SM CLR 03/01 A2995 RMK AO2
Add Your Business

KIKV FBOs

Promote Listing
Exec 1 Aviation
UNICOM: 122.9
Phone: (515) 965-1020
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/20
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.68
Full Serve 5.68 6.65
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3

AWOS-3
515-965-5764
 119.175

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDSM (10nm)
Mon, 12/23 5:21 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 7:00 AM CST
Broken 15,000'
6sm
220° 8kts
VFR
7:00 AM CST - 1:00 PM CST
Broken 12,000'
Few 4,000'
6sm
300° 10kts
VFR
1:00 PM CST - 6:00 PM CST
Broken 15,000'
Scattered 3,000'
6sm
320° 9kts
MVFR
6:00 PM CST - 12:00 AM CST
Broken 2,200'
Scattered 1,200'
6sm
340° 5kts
IFR
12:00 AM CST - 6:00 AM CST
Mist
Broken 800'
4sm
VRB° 3kts
KDSM 231121Z 2312/2412 22008KT P6SM BKN150
   FM231300 30010KT P6SM FEW040 BKN120
   FM231900 32009KT P6SM SCT030 BKN150
   FM240000 34005KT P6SM SCT012 BKN022
   FM240600 VRB03KT 4SM BR BKN008
KIKV
Domestic
12/21/240643Z !IKV 12/061 IKV OBST TOWER LGT (ASR 1230786) 414548.60N0934826.30W (11.6NM WNW IKV) 1244.8FT (249.0FT AGL) U/S 2412210643-2501050543
12/13/241038Z !IKV 12/012 IKV OBST TOWER LGT (ASR 1028281) 413910.00N0932102.00W (9.9NM ESE IKV) 1700.8FT (745.7FT AGL) U/S 2412131038-2501271037
12/12/241750Z !IKV 12/010 IKV OBST TOWER LGT (ASR 1250803) 414334.70N0935138.40W (13.3NM W IKV) 1509.8FT (500.0FT AGL) U/S 2412121750-2501132359
12/12/240047Z !IKV 12/003 IKV OBST TOWER LGT (ASR 1043707) 414833.00N0933654.00W (7.4NM NNW IKV) 2988.2FT (2000.0FT AGL) U/S 2412120047-2501122359
11/25/241601Z !IKV 11/008 IKV OBST TOWER LGT (ASR 1016626) 413805.00N0933444.90W (3.5NM S IKV) 1445.5FT (517.7FT AGL) U/S 2411251601-2501091600
FDC
6/11/241100Z !FDC 4/6458 IKV IAP ANKENY RGNL, ANKENY, IA.
RNAV (GPS) RWY 36, AMDT 2...
LPV DA 1168/HAT 277 ALL CATS, VIS ALL CATS 7/8. TEMPORARY CRANE 980 MSL 773FT SW OF RWY 36 (2024-ACE-2190-OE).
2406111100-2501152134EST
6/11/241100Z !FDC 4/6457 IKV IAP ANKENY RGNL, ANKENY, IA.
ILS OR LOC RWY 36, AMDT 3A...
S-ILS 36 DA 1168/HAT 277 ALL CATS, VIS ALL CATS 7/8. TEMPORARY CRANE 980 MSL 773FT SW OF RWY 36 (2024-ACE-2190-OE).
2406111100-2501152134EST
12/1/231511Z !FDC 3/9620 IKV IAP ANKENY RGNL, ANKENY, IA.
ILS OR LOC RWY 36, AMDT 3A...
S-LOC 36 MDA 1400/HAT 509 ALL CATS. VIS CAT C/D 1 3/8.
VDP AT I-FVH 2.53 DME; DISTANCE VDP TO THLD 1.44 MILES.
2312011511-2512011511EST
11/6/231926Z !FDC 3/7621 IKV IAP ANKENY RGNL, ANKENY, IA.
RNAV (GPS) RWY 36, AMDT 2...
LNAV MDA 1420/HAT 529 ALL CATS. VIS CAT C/D 1 1/2.
VDP 1.50 NM TO RW36.
2311061926-2511061926EST
No
0600-2100
POLK COUNTY AVIATION AUTH
410 WEST 1ST STREET
ANKENY, IA 50023
Phone: 515-965-6400
PAUL MORITZ
410 WEST 1ST STREET
ANKENY, IA 50023
Phone: 515-965-6428
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
IKV
--
ACTVT PAPI RY 4/22; MIRL RWYS 04/22 & 18/36; REIL RWYS 4 & 18/36 - CTAF
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
0
0
0
0
0
0
Major
Major
High Pressure
High Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

4200 ft. x 75 ft.
CONC
Fair
NONE
MED
12 /R/B/W/U
30,000lbs
40,000lbs
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 41' 20"N 41° 41' 49"N
Longitude 93° 34' 21"W 93° 33' 42"W
Elevation 910' 902'
Threshold Crossing Height 40 ft. AGL 32 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

5500 ft. x 100 ft.
CONC
Fair
NONE
MED
12 /R/B/W/U
30,000lbs
40,000lbs
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 41° 41' 52"N 41° 40' 57"N
Longitude 93° 33' 57"W 93° 33' 57"W
Elevation 903' 888'
Threshold Crossing Height 40 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2EXEC 1 AVIATION - (515) 965-1020.
A110-3AMGR REQ USE OF PREFERENTIAL RY 18 WHEN WINDS ARE LESS THAN 5 KNOTS.
A110-5FOR CD CTC DES MOINES ATCT ON 126.65 OR CALL 515-974- 8016.
ANKENY RGNL (ICAO: KIKV, IATA: IKV) is a public airport located in ANKENY, IA.
