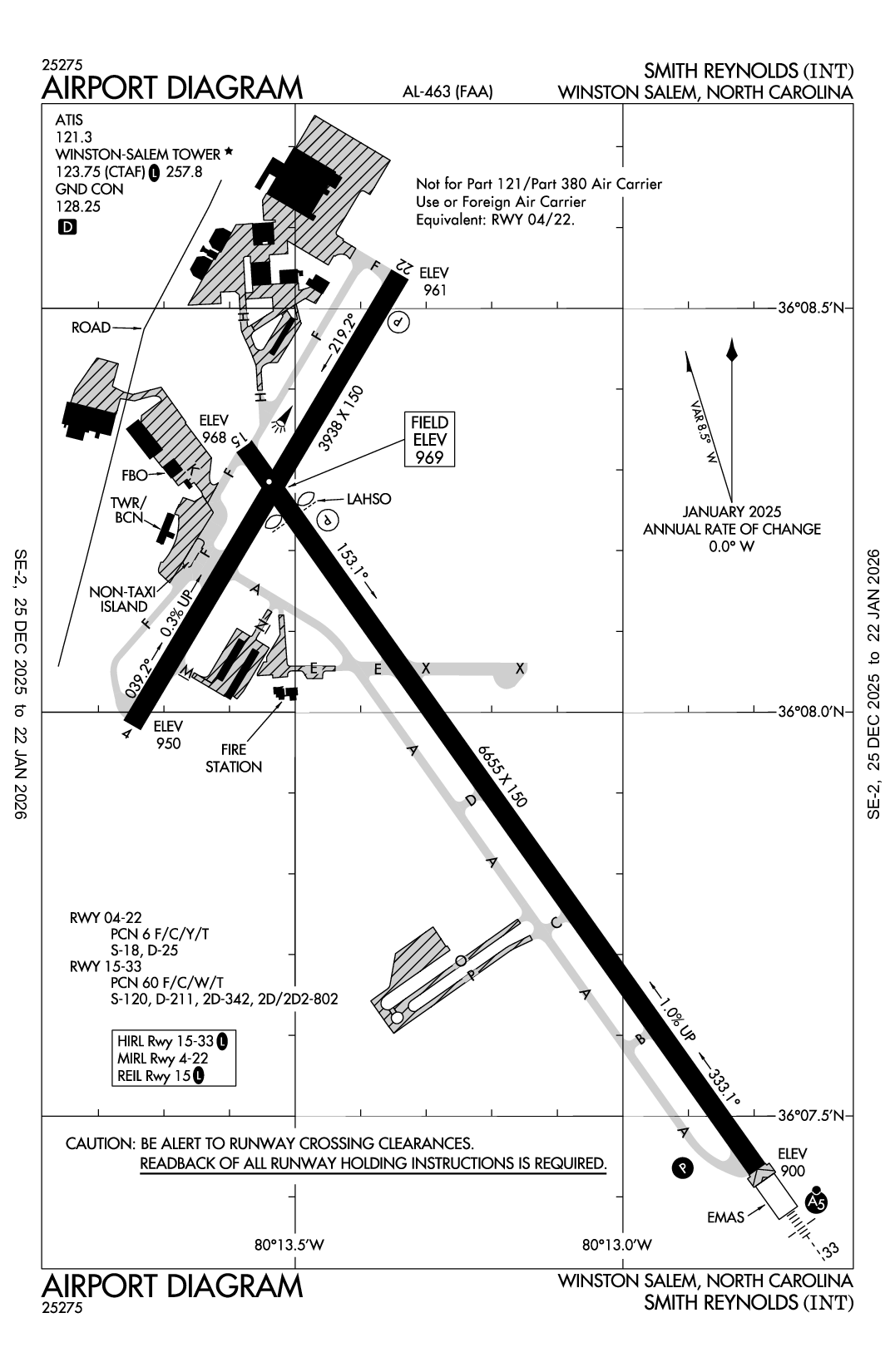

SMITH REYNOLDS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KINT
SMITH REYNOLDS
PublicPUB

3 miles NE of WINSTON SALEM, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 08' 01"N 80° 13' 19"W
969' MSL
1969' MSL
07W
JET A, 100LL
RALEIGH (RDU)
CINCINNATI
ATLANTA (ZTL)
2/20/25-3/20/25
KINT VFR
10:54 AM EDT
No Clouds
10sm
47°F
22°F
30.15"Hg
020° 4kts
AO2 SLP211 T00831056 $
KINT 091454Z 02004KT 10SM 08/M06 A3015 RMK AO2 SLP211 T00831056 $
Add Your Business

KINT FBOs

Promote Listing
Signature Aviation
UNICOM: 130.575
Phone: (336) 745-1819
Fax: (336) 776-6228
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 3/7
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.00
Full Serve 6.86 6.99
Fuel Notes
Prices include tax

KINT Other Businesses

Promote Listing
Guilford Technical Community College
UNICOM: 122.95
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 123.75

ATIS

ATIS
 121.3

Ground

GND/P
 128.25

Tower

LCL/P
 123.75

Other

VFR ADZY
 123.75

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KINT
Sun, 3/9 7:20 AM EDT
Sun, 3/9 8:00 AM EDT - Mon, 3/10 8:00 AM EDT
VFR
8:00 AM EDT - 8:00 AM EDT
Broken 20,000'
6sm
280° 5kts
KINT 091120Z 0912/1012 28005KT P6SM BKN200
KINT
Domestic
3/10/251200Z !INT 03/007 INT RWY 15 RWY END ID LGT U/S 2503101200-2503101500
3/9/250808Z !INT 03/011 INT OBST TOWER LGT (ASR 1313933) 360330.86N0801010.36W (5.1NM SSE INT) 1113FT (310FT AGL) U/S 2503090808-2506070400
3/9/250746Z !INT 03/010 INT OBST TOWER LGT (ASR 1018705) 360341.40N0801604.60W (4.9NM SSW INT) 1211.3FT (407.2FT AGL) U/S 2503090746-2504230745
3/9/250256Z !INT 03/009 INT OBST TOWER LGT (ASR 1006653) 360643.00N0800610.00W (5.9NM ESE INT) 1539.0FT (608.9FT AGL) U/S 2503090256-2504242359
3/8/252240Z !INT 03/008 INT OBST TOWER LGT (ASR 1007744) 360835.00N0801512.20W (1.6NM WNW INT) 1163.1FT (170.9FT AGL) U/S 2503082240-2503230500
3/6/251640Z !INT 03/005 INT AD AP WINDCONE FOR RWY 33 UNREL 2503061640-2503112100
2/19/251608Z !INT 02/007 INT APRON TERMINAL APN CLSD TO HEL 2502191608-2504302100
1/30/251657Z !INT 01/028 INT OBST TOWER LGT (ASR 1230607) 360426.00N0801517.00W (4.0NM SSW INT) 1102.0FT (384.8FT AGL) U/S 2501301657-2503302359
12/31/242200Z !INT 12/024 INT RWY 33 PAPI U/S 2412312200-2612312200
12/31/242200Z !INT 12/023 INT RWY 15 PAPI U/S 2412312200-2612312200
12/31/242200Z !INT 12/021 INT TWY A HLDG PSN SIGN FOR APCH END RWY 33 NOT STD 2412312200-2612312200
12/31/242200Z !INT 12/020 INT TWY A, B, C, D, E, N SIGNS LGT U/S 2412312200-2612312200
12/31/242200Z !INT 12/019 INT TWY A, B, C, D, E, N LGT U/S 2412312200-2612312200
12/19/242235Z !INT 12/013 INT OBST TOWER LGT (ASR 1226505) 360511.60N0802108.40W (7.0NM WSW INT) 1081.0FT (257.9FT AGL) U/S 2412192235-2503190500
FDC
3/4/251837Z !FDC 5/9115 INT ODP SMITH REYNOLDS, WINSTON SALEM, NC.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 6...
TAKEOFF MINIMUMS: RWY 22: 500 - 2 3/4 OR STANDARD WITH MINIMUM CLIMB OF 332 FT/NM TO 1600.
ALL OTHER DATA REMAINS AS PUBLISHED. 2503041837-2710141837EST
3/4/251825Z !FDC 5/9111 INT SID SMITH REYNOLDS, WINSTON SALEM, NC.
QUAKER EIGHT DEPARTURE...
TRIAD NINE DEPARTURE...
TAKEOFF MINIMUMS: RWY 22: 500 - 2 3/4 OR STANDARD WITH MINIMUM CLIMB OF 332 FT/NM TO 1600.
ALL OTHER DATA REMAINS AS PUBLISHED. 2503041825-2710141825EST
2/13/250238Z !FDC 5/2608 INT SID SMITH REYNOLDS, WINSTON SALEM, NC.
QUAKER EIGHT DEPARTURE...
ROANOKE TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ROA VOR OUT OF SERVICE. 2502130238-2503130338EST
12/20/241617Z !FDC 4/9556 INT SID SMITH REYNOLDS, WINSTON SALEM, NC.
QUAKER EIGHT DEPARTURE...
RALEIGH-DURHAM TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
RDU VORTAC OUT OF SERVICE. 2412201617-2508011617EST
Yes
ALL
FORSYTH COUNTY
3801 N LIBERTY ST., STE 204
WINSTON SALEM, NC 27105
Phone: 336-607-6120
MARK R. DAVIDSON, A.A.E.
3801 N. LIBERTY ST., STE 204
WINSTON SALEM, NC 27105
Phone: 336-607-6120
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
INT
--
WHEN TWR CLSD ACTVT MALSR RWY 33; REIL RWY 15; PAPI RWY 33; HIRL RWY 15/33 - CTAF. MIRL RWY 04/22 UNAVBL WHEN TWR CLSD.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

3938 ft. x 150 ft.
ASPH
Good
NONE
MED
6 /F/C/Y/T
18,000lbs
25,000lbs
--
--
  Runway 04 Runway 22
True Heading 31°211°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 36° 07' 59"N 36° 08' 32"N
Longitude 80° 13' 45"W 80° 13' 20"W
Elevation 950' 960'
Threshold Crossing Height -- 39 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

6655 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH
60 /F/C/W/T
120,000lbs
211,000lbs
342,000lbs
802,000lbs
  Runway 15 Runway 33
True Heading 145°325°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 36° 08' 20"N 36° 07' 26"N
Longitude 80° 13' 35"W 80° 12' 48"W
Elevation 968' 900'
Threshold Crossing Height 38 ft. AGL 58 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No
A110-10FOR CD CTC GREENSBORO APCH AT 743-222-6129.
A110-8RWY 04/22 CLSD TO AIR CARRIER OPS EXC TAX.
A110-9ARPT SFC COND NOT RPRT DLY 1630-0830L, OR ON WKEND AND HOL.
SMITH REYNOLDS (ICAO: KINT, IATA: INT) is a public airport located in WINSTON SALEM, NC.
