iFlightPlanner



...

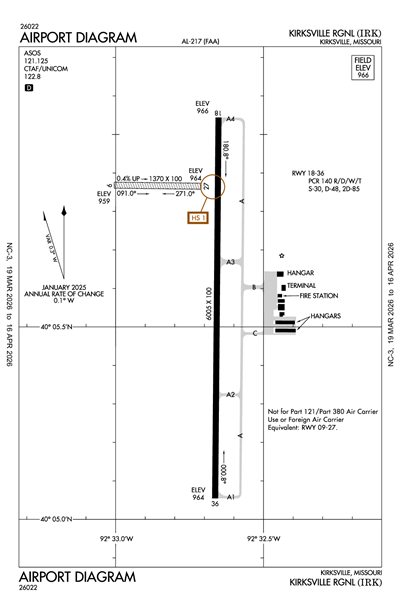

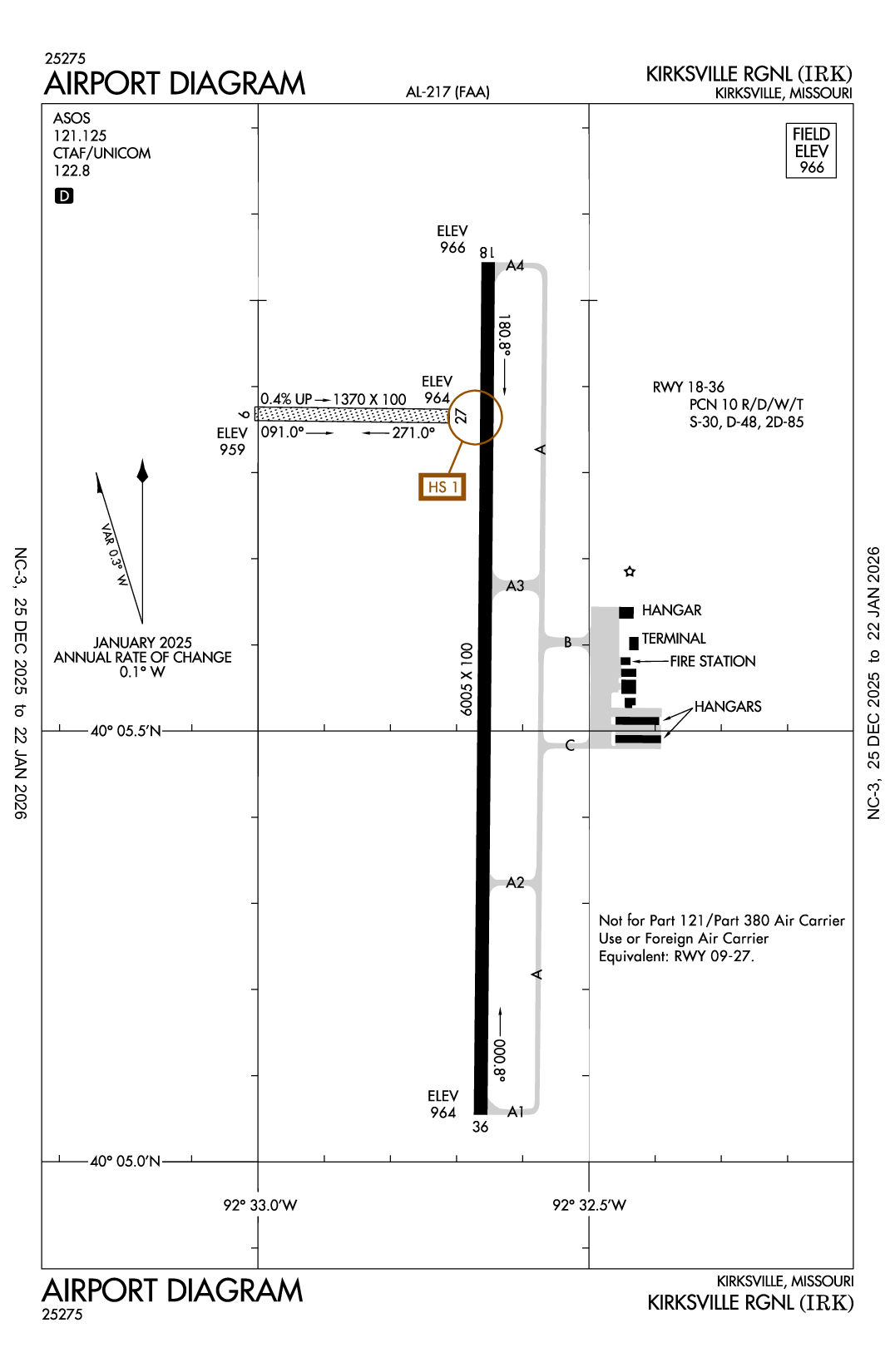

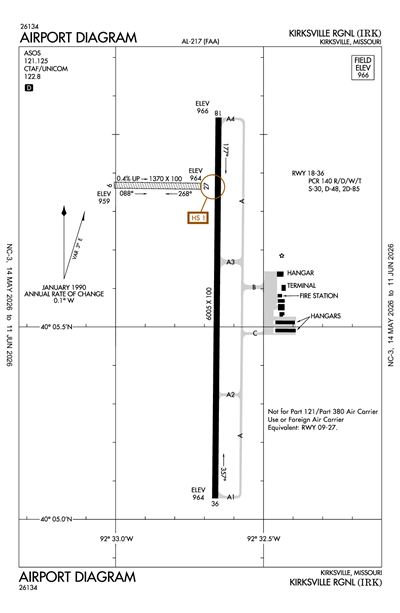

KIRKSVILLE RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIRK
KIRKSVILLE RGNL
PublicPUB

6 miles SE of KIRKSVILLE, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 05' 37"N 92° 32' 42"W
966' MSL
1966' MSL
03E
JET A, 100LL
COLUMBIA (COU)
CHICAGO
KANSAS CITY (ZKC)
12/26/24-1/23/25
KIRK VFR
10:55 AM CST
Overcast 9,000'
Broken 8,000'
10sm
25°F
7°F
30.10"Hg
230° 12kts
Gusts 29kts
AO2 PK WND 19029/1651 SLP213 T10391139
KIRK 221655Z AUTO 23012G29KT 10SM BKN080 OVC090 M04/M14 A3010 RMK AO2 PK WND 19029/1651 SLP213 T10391139
Add Your Business

KIRK FBOs

Promote Listing
Kirksville Regional Airport
UNICOM: 122.8
Phone: (660) 665-5020
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 1/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 4.99 4.39
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
660-627-6059
 121.125

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KOTM (61nm)
Wed, 1/22 5:30 AM CST
Wed, 1/22 6:00 AM CST - Thu, 1/23 6:00 AM CST
VFR
6:00 AM CST - 12:00 PM CST
Overcast 5,000'
6sm
200° 13kts
MVFR
Temporary 6:00 AM CST - 7:00 AM CST
Light Snow
Broken 3,000'
5sm
Calm
VFR
12:00 PM CST - 7:00 PM CST
Overcast 6,000'
Scattered 3,500'
6sm
240° 12kts
MVFR
3:00 PM CST - 7:00 PM CST
Light Snow
Broken 2,200'
3sm
Calm
VFR
7:00 PM CST - 11:00 PM CST
Broken 3,500'
6sm
290° 9kts
MVFR
11:00 PM CST - 6:00 AM CST
Overcast 2,900'
Scattered 1,500'
6sm
320° 14kts
Gusts 21kts
KOTM 221130Z 2212/2312 20013KT P6SM OVC050
   TEMPO 2212/2213 5SM -SN BKN030
   FM221800 24012KT P6SM SCT035 OVC060
   PROB30 2221/2301 3SM -SN BKN022
   FM230100 29009KT P6SM BKN035
   FM230500 32014G21KT P6SM SCT015 OVC029
KIRK
Domestic
1/20/250010Z !IRK 01/010 IRK OBST TOWER LGT (ASR 1265696) 401349.60N0923513.40W (8.4NM NNW IRK) 1231.0FT (257.9FT AGL) U/S 2501200010-2502032310
1/2/251712Z !IRK 01/001 IRK AIRSPACE SEE ZKC 12/329 HIGH SPEED ACFT DLY SR-SS 2501021712-2512312359
12/27/240445Z !IRK 12/018 IRK OBST TOWER LGT (ASR 1270732) 400748.30N0924005.20W (6.1NM WNW IRK) 1189.0FT (259.8FT AGL) U/S 2412270445-2503292359
12/25/241734Z !IRK 12/017 IRK OBST TOWER LGT (ASR 1239669) 401259.50N0923824.40W (8.6NM NNW IRK) 1276.6FT (319.9FT AGL) U/S 2412251734-2503260500
12/23/241704Z !IRK 12/016 IRK OBST TOWER LGT (ASR 1005849) 401434.00N0922543.00W (10.5NM NNE IRK) 1948.8FT (997.4FT AGL) U/S 2412231704-2512232359
12/12/240238Z !IRK 12/009 IRK OBST TOWER LGT (ASR 1262714) 401332.30N0924355.20W (11.7NM NW IRK) 1198.8FT (259.8FT AGL) U/S 2412120238-2502282359
12/3/241833Z !IRK 12/003 IRK OBST TOWER LGT (ASR 1004147) 401029.00N0923258.00W (4.9NM N IRK) 1274.6FT (329.7FT AGL) U/S 2412031833-2502032359
11/12/240107Z !IRK 11/002 IRK OBST TOWER LGT (ASR 1005848) 401224.00N0923432.00W (6.9NM NNW IRK) 1364.8FT (404.9FT AGL) U/S 2411120107-2503122359
FDC
9/12/231452Z !FDC 3/8970 IRK IAP KIRKSVILLE RGNL, KIRKSVILLE, MO.
RNAV (GPS) RWY 18, AMDT 2B...
DELETE DESCENT ANGLE 3.04/TCH 45. PROFILE NOTE: VISUAL SEGMENT - OBSTACLES.
DISREGARD NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT.
2309121452-2509121452EST
No
0530-2000
CITY OF KIRKSVILLE
CITY HALL, 201 SOUTH FRANKLIN
KIRKSVILLE, MO 63501
Phone: 660-627-1225
JEFFERY LAFOUNTAIN
27161 DAVID HALL TRAIL
KIRKSVILLE, MO 63501
Phone: 660-665-5020
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
IRK
--
ACTVT HIRL RY 18/36; VASI RYS 18 & 36; REIL RY 18 & MALSR RY 36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

1370 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 91°271°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 40° 05' 52"N 40° 05' 52"N
Longitude 92° 33' 00"W 92° 32' 43"W
Elevation 959' 964'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

6005 ft. x 100 ft.
CONC
Fair
NONE
HIGH
10 /R/D/W/T
30,000lbs
48,000lbs
85,000lbs
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition FAIR FAIR
Latitude 40° 06' 03"N 40° 05' 03"N
Longitude 92° 32' 39"W 92° 32' 40"W
Elevation 966' 964'
Threshold Crossing Height 33 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY ARTCC AT 913-254-8508.
KIRKSVILLE RGNL (ICAO: KIRK, IATA: IRK) is a public airport located in KIRKSVILLE, MO.
