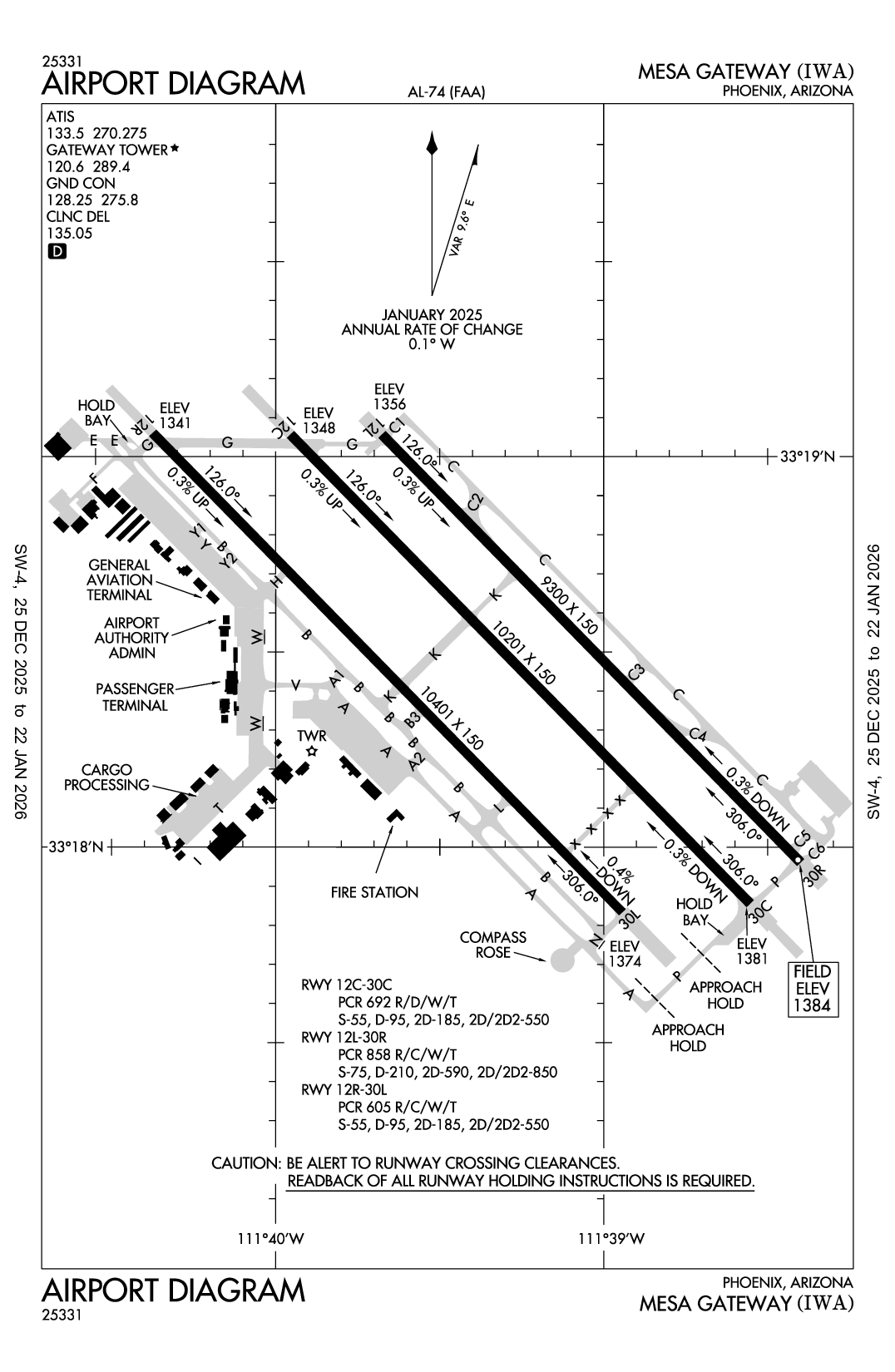

PHOENIX-MESA GATEWAY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIWA
PHOENIX-MESA GATEWAY
PublicPUB

20 miles SE of PHOENIX, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 18' 28"N 111° 39' 20"W
1384' MSL
2602' MSL
13E
JET A, 100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
12/26/24-1/23/25
KIWA VFR
8:55 AM MST
Clear
10sm
37°F
-2°F
30.32"Hg
Calm
KIWA 221555Z 00000KT 10SM CLR 03/M19 A3032
Add Your Business

KIWA FBOs

Promote Listing
Gateway Aviation Services
ASRI: 129.875, UNICOM: 129.875
Phone: (480) 988-7700
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 1/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.40 6.00 6.07
Fuel Notes
Prices include tax

KIWA Aircraft Service & Maintenance

Promote Listing
International Air Response
Phone: (480) 818-0249
Fax: (480) 840-9866
No Rating Available
0 Reviews (Read | Sign In To Write)

KIWA Flight Schools & Aircraft Rental

Promote Listing
CGCC/Williams Education Center
Phone: (480) 988-8112
Fax: (480) 988-8129
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 120.6

ATIS

ATIS
Hours: 0500-0000 (MST)
 133.5

AWOS-3

AWOS-3
480-988-9428
 133.5

Clearance Delivery

CD/P
 135.05

Emergency

EMERG
 121.5

Ground

GND/P
 128.25

Tower

LCL/P
 120.6

Terminal Area Forecast

KIWA
Wed, 1/22 4:30 AM MST
Wed, 1/22 5:00 AM MST - Thu, 1/23 5:00 AM MST
VFR
5:00 AM MST - 11:00 AM MST
Scattered 25,000'
6sm
090° 7kts
VFR
11:00 AM MST - 8:00 PM MST
Scattered 25,000'
6sm
280° 5kts
VFR
8:00 PM MST - 5:00 AM MST
Few 25,000'
6sm
050° 8kts
KIWA 221130Z 2212/2312 09007KT P6SM SCT250
   FM221800 28005KT P6SM SCT250
   FM230300 05008KT P6SM FEW250
KIWA
Domestic
1/28/251400Z !IWA 01/034 IWA OBST CRANE (ASN 2024-AWP-8539-NRA) 331857N1114030W (0.16NM SW OF RWY 12R) 1436 FT (100FT AGL) FLAGGED 2501281400-2501282359
1/22/251930Z !IWA 01/032 IWA AIRSPACE UAS WI AN AREA DEFINED AS 330849N1112930W
(12.7NM SE IWA) TO 330851N1112751W (12.8NM NNW P08) TO
330924N1112800W (13.1NM ESE IWA) TO 330923N1112914W (12.4NM SE IWA)
TO 330909N1112914W (12.6NM SE IWA) TO 330909N1112931W (12.4NM SE
IWA) TO POINT OF ORIGIN SFC-400FT AGL 2501221930-2501222200
1/22/251800Z !IWA 01/028 IWA OBST CRANE (ASN 2024-AWP-10318-OE) 331848N1113658W (2.01NM E OF IWA) UNKNOWN (185FT AGL) FLAGGED AND LGTD 2501221800-2501222000
1/22/251601Z !IWA 01/036 IWA AD AP ARFF NOW INDEX B 2501221601-2501222200
1/15/251300Z !IWA 01/023 IWA OBST CRANE (ASN 2024-AWP-9346-OE) 331958N1113844W (1.57NM NE APCH END RWY 12L) UNKNOWN (177FT AGL) FLAGGED AND LGTD 2501151300-2503202359
12/31/241254Z !IWA 12/027 IWA TWY W CLSD TO ACFT WINGSPAN MORE THAN 118FT 2412311254-2506302359
12/31/241254Z !IWA 12/026 IWA TWY V CLSD TO ACFT WINGSPAN MORE THAN 118FT 2412311254-2506302359
12/31/241209Z !IWA 12/025 IWA OBST POLE (ASN UNKNOWN) 331926N1114039W (0.56NM NNW APCH END RWY 12R)
UNKNOWN (20FT AGL) NOT LGTD 2412311209-2505302359
12/10/242204Z !IWA 12/011 IWA OBST CRANE (ASN 2024-AWP-15650-OE) 332103N1114047W (2.85NM NW OF IWA) UNKNOWN (300FT AGL) FLAGGED AND LGTD 2412102204-2606102359
11/1/240352Z !IWA 11/002 IWA AD AP WILDLIFE HAZARD COYOTES AND AVIARY 2411010352-2503312359
10/21/241646Z !IWA 10/040 IWA RWY 12R/30L CLSD EXC SINGLE PROPELLOR DRIVEN NON-TURBOJET AIRCRAFT AND ACFT LESS THAN 12500LB 2410211646-2508020100
10/15/240116Z !IWA 10/031 IWA TWY K BTN RWY 12R/30L AND TWY B CLSD 2410150116-2508020100
10/15/240115Z !IWA 10/030 IWA TWY K BTN RWY 12C/30C AND RWY 12R/30L CLSD 2410150115-2508020100
10/15/240114Z !IWA 10/029 IWA RWY 12R/30L SE 7201FT CLSD. DECLARED DIST: RWY 12R TORA 0FT TODA 0FT
ASDA 3200FT LDA 3200FT. RWY 30L TORA 3200FT TODA 3200FT ASDA 0FT LDA 0FT. 2410150114-2508020100
10/14/241400Z !IWA 10/015 IWA TWY N BTN APCH END RWY 30L AND TWY B CLSD 2410141400-2508020100
10/14/241400Z !IWA 10/014 IWA TWY L BTN RWY 12R/30L AND TWY B CLSD 2410141400-2508020100
10/14/241400Z !IWA 10/013 IWA TWY B3 BTN RWY 12R/30L AND TWY B CLSD 2410141400-2508020100
FDC
1/23/251600Z !FDC 5/5556 IWA ODP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
PHOENIX ONE DEPARTURE ...
DEPARTURE PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PXR VORTAC OUT OF SERVICE. 2501231600-2501301600EST
1/22/250643Z !FDC 5/5514 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 12C, AMDT 1C...
LNAV/VNAV DA 1840/HAT 481 ALL CATS, VIS ALL CATS 1 3/8. LNAV MDA 1840/HAT 481 ALL CATS. VIS CATS C/D/E 1 3/8. CIRCLING CAT A/B MDA 2000/HAA 616, CAT C/D/E MDA 2140/HAA 756, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. CRANE 1776 MSL 2.5NM NE OF IWA AIRPORT (2021-AWP-19857-OE), CRANES UP TO 1554 MSL BEGINNING 1.9NM SW OF IWA AIRPORT (2022-AWP-16564/16565-OE), CRANES UP TO 1602 MSL BEGINNING 2.2NM S OF IWA AIRPORT (2022-AWP-16570/16571-OE), CRANE 1525 MSL 4.2NM NW OF RWY 12C (2023-AWP-6152-OE), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1729 MSL 2.8NM NE OF IWA AIRPORT (2024-AWP-8590-OE), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1639 MSL 2.8NM NW OF IWA AIRPORT (2024-AWP-15650-OE), CRANE 1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA), TEMPORARY CRANE 1555 MSL 1.6NM NE OF IWA AIRPORT (2024-AWP-9346-OE), CRANE 1619 MSL 2.2NM NE OF IWA AIRPORT (2024-AWP-14931-OE), CRANE 1538 MSL 2.7NM SE OF IWA AIRPORT (2024-AWP-2410-OE), CRANE 1588 MSL 2.0NM E OF IWA AIRPORT (2024-AWP-10318-OE).
2501220643-2502280643EST
1/22/250643Z !FDC 5/5513 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
VOR OR TACAN RWY 30C, AMDT 2C...
CIRCLING CAT A/B MDA 2000/HAA 616, CATS C/D/E MDA 2140/HAA 756, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. DME MINIMUMS: S-30C MDA 1920/HAT 540 ALL CATS, VIS CAT C/D 1 1/2. SIDESTEP 30R MDA 1960/HAT 558 ALL CATS. CIRCLING CAT A/B MDA 2000/HAA 616, CAT C/D/E MDA 2140/HAA 756, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. ALTITUDE AT ALBNY FIX 1960. VDP NA. ALTERNATE MINIMUMS: CATEGORY C 800 2 1/4, CATEGORY D 800 2 1/2, CATEGORY E 800 2 3/4. CRANE 1776 MSL 2.5NM NE OF IWA AIRPORT (2021-AWP-19857-OE), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1729 MSL 2.8NM NE OF IWA AIRPORT (2024-AWP-8590-OE), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1639 MSL 2.8NM NW OF IWA AIRPORT (2024-AWP-15650-OE), CRANE 1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA), TEMPORARY CRANE 1555 MSL 1.6NM NE OF IWA AIRPORT (2024-AWP-9346-OE), CRANE 1619 MSL 2.2NM NE OF IWA AIRPORT (2024-AWP-14931-OE), CRANE 1538 MSL 2.7NM SE OF IWA AIRPORT (2024-AWP-2410-OE), CRANE 1588 MSL 2.0NM E OF IWA AIRPORT (2024-AWP-10318-OE).
2501220643-2502280643EST
1/22/250643Z !FDC 5/5512 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 30R, ORIG-A...
LNAV/VNAV DA 1748/HAT 364 ALL CATS, VIS ALL CATS 1. LNAV MDA 1840/HAT 456 ALL CATS, VIS CAT C/D 1 3/8. CIRCLING CAT A/B MDA 2000/HAA 616, CAT C/D/E MDA 2140/HAA 756, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. VDP 1.37NM TO RW30R. CRANE 1776 MSL 2.5NM NE OF IWA AIRPORT (2021-AWP-19857-OE), CRANE 1484 MSL 4563FT E OF RWY 30R (2022-AWP-22247-OE), CRANE 1587 MSL 2445FT NE OF RWY 30R (2023-AWP-723-NRA), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1729 MSL 2.8NM NE OF IWA AIRPORT (2024-AWP-8590-OE), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1639 MSL 2.8NM NW OF IWA AIRPORT (2024-AWP-15650-OE), CRANE 1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA), TEMPORARY CRANE 1555 MSL 1.6NM NE OF IWA AIRPORT (2024-AWP-9346-OE), CRANE 1619 MSL 2.2NM NE OF IWA AIRPORT (2024-AWP-14931-OE), CRANE 1538 MSL 2.7NM SE OF IWA AIRPORT (2024-AWP-2410-OE), CRANE 1588 MSL 2.0NM E OF IWA AIRPORT (2024-AWP-10318-OE).
2501220643-2502280643EST
1/22/250643Z !FDC 5/5511 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
ILS OR LOC RWY 30C, AMDT 3C...
S-LOC 30C MDA 1960/HAT 580 ALL CATS, VIS CAT C/D/E 1 5/8. CIRCLING CATS A/B MDA 2000/HAA 616, CATS C/D/E MDA 2140/HAA 756, VISIBILITY CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. ORIYE FIX MINIMUMS: CIRCLING CAT A/B MDA 1960/HAA 576, CATS C/D/E MDA 2140/HAA 756, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. ALTITUDE AT ORIYE FIX 1960. CRANE 1776 MSL 2.5NM NE OF IWA AIRPORT (2021-AWP-19857-OE), CRANE UP TO 1602 MSL 2.2NM S OF IWA AIRPORT (2022-AWP-16571-OE), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1729 MSL 2.8NM NE OF IWA AIRPORT (2024-AWP-8590-OE), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1639 MSL 2.8NM NW OF IWA AIRPORT (2024-AWP-15650-OE), CRANE 1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA), TEMPORARY CRANE 1555 MSL 1.6NM NE OF IWA AIRPORT (2024-AWP-9346-OE), CRANE 1619 MSL 2.2NM NE OF IWA AIRPORT (2024-AWP-14931-OE), CRANE 1538 MSL 2.7NM SE OF IWA AIRPORT (2024-AWP-2410-OE), CRANE 1588 MSL 2.0NM E OF IWA AIRPORT (2024-AWP-10318-OE).
2501220643-2502280643EST
1/22/250643Z !FDC 5/5510 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 30L, AMDT 1D...
LNAV MDA 1840/HAT 466 ALL CATS, VIS CAT C/D 1 1/2. CIRCLING CAT A /B MDA 2000/HAA 616, CAT C/D/E MDA 2140/HAA 756, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. VDP 1.29NM TO RW30L. CRANE 1776 MSL 2.5NM NE OF IWA AIRPORT (2021-AWP-19857-OE), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1729 MSL 2.8NM NE OF IWA AIRPORT (2024-AWP-8590-OE), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1639 MSL 2.8NM NW OF IWA AIRPORT (2024-AWP-15650-OE), CRANE 1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA), TEMPORARY CRANE 1555 MSL 1.6NM NE OF IWA AIRPORT (2024-AWP-9346-OE), CRANE 1619 MSL 2.2NM NE OF IWA AIRPORT (2024-AWP-14931-OE), CRANE 1538 MSL 2.7NM SE OF IWA AIRPORT (2024-AWP-2410-OE), CRANE 1588 MSL 2.0NM E OF IWA AIRPORT (2024-AWP-10318-OE).
2501220643-2502280643EST
1/22/250643Z !FDC 5/5509 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 12R, AMDT 1D...
LP MDA CATS A/B/C/D 1800/HAT 451, VISIBILITY CATS C/D 1 3/8. LNAV MDA CATS A/B/C/D 1880/HAT 531, VISIBILITY CATS C/D 1 1/2. CIRCLING CAT A/B MDA 2000/HAA 616, CAT C/D/E MDA 2140/HAA 756, VISIBILITY CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. VDP NA. CRANE 1776 MSL 2.5NM NE OF IWA AIRPORT (2021-AWP-19857-OE), CRANES UP TO 1554 MSL BEGINNING 1.9NM SW OF IWA AIRPORT (2022-AWP-16564/16565-OE), CRANES UP TO 1602 MSL BEGINNING 2.2NM S OF IWA AIRPORT (2022-AWP-16570/16571-OE), CRANE 1525 MSL 3.9NM NW OF RWY 12R (2023-AWP-6152-OE), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1729 MSL 2.8NM NE OF IWA AIRPORT (2024-AWP-8590-OE), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1639 MSL 2.8NM NW OF IWA AIRPORT (2024-AWP-15650-OE), CRANE 1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA), TEMPORARY CRANE 1555 MSL 1.6NM NE OF IWA AIRPORT (2024-AWP-9346-OE), CRANE 1619 MSL 2.2NM NE OF IWA AIRPORT (2024-AWP-14931-OE), CRANE 1538 MSL 2.7NM SE OF IWA AIRPORT (2024-AWP-2410-OE), CRANE 1588 MSL 2.0NM E OF IWA AIRPORT (2024-AWP-10318-OE).
2501220643-2502280643EST
1/22/250643Z !FDC 5/5508 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) Y RWY 30C, AMDT 1C...
LNAV/VNAV DA 1748/HAT 368 ALL CATS, VIS ALL CATS 1. LNAV MDA 1840/HAT 460 ALL CATS, VIS CAT C/D/E 1 3/8. CIRCLING CAT A MDA 2000/HAA 616, CAT B MDA 2020/HAA 636, CAT C/D/E MDA 2140/HAA 756, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. VDP 1.40NM TO RW30C. CRANE 1776 MSL 2.5NM NE OF IWA AIRPORT (2021-AWP-19857-OE), CRANE 1587 MSL 3372FT NE OF RWY 30C (2023-AWP-723-NRA), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1729 MSL 2.8NM NE OF IWA AIRPORT (2024-AWP-8590-OE), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1639 MSL 2.8NM NW OF IWA AIRPORT (2024-AWP-15650-OE), CRANE 1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA), TEMPORARY CRANE 1555 MSL 1.6NM NE OF IWA AIRPORT (2024-AWP-9346-OE), CRANE 1619 MSL 2.2NM NE OF IWA AIRPORT (2024-AWP-14931-OE), CRANE 1538 MSL 2.7NM SE OF IWA AIRPORT (2024-AWP-2410-OE), CRANE 1588 MSL 2.0NM E OF IWA AIRPORT (2024-AWP-10318-OE).
2501220643-2502280643EST
1/10/250318Z !FDC 5/2076 IWA ODP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
PHOENIX ONE DEPARTURE ...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
IWA VOR OUT OF SERVICE. 2501100318-2502100318EST
1/10/250318Z !FDC 5/2075 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
VOR OR TACAN RWY 30C, AMDT 2C...
VOR PORTION NA,
IWA VOR OUT OF SERVICE. 2501100318-2502100318EST
1/10/250318Z !FDC 5/2074 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
ILS OR LOC RWY 30C, AMDT 3C...
MISSED APPROACH: CLIMB TO 2800 THEN CLIMBING RIGHT TURN TO 5000 VIA 162.00 HEADING AND TFD VORTAC R-012 TO TFD VORTAC AND HOLD SE, RT, 314.00 INBOUND. (TACAN AIRCRAFT CLIMB TO 2800 THEN CLIMBING RIGHT TURN TO 5000 VIA HEADING 162.00 AND TFD VORTAC R-012 TO JIPON/TFD 14.41 DME AND HOLD N, RT, 192.00 INBOUND),
IWA VOR OUT OF SERVICE. 2501100318-2502100318EST
12/5/241612Z !FDC 4/2302 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 30R, ORIG-A...
LNAV/VNAV DA 1813/HAT 429.
LNAV MDA 1780/HAT 396 ALL CATS.
CIRCLING CAT C MDA 1900/HAA 516.
2412051612-2612051612EST
10/29/241735Z !FDC 4/5578 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (RNP) Z RWY 30C, ORIG-B...
RNP 0.21 DA 1758/HAT 377 ALL CATS, VIS ALL CATS 1. RNP 0.30 DA 1796/HAT 415 ALL CATS, VIS ALL CATS 1 1/8. POLE 1518 MSL 4089FT E OF RWY 30C (04-081247), POLE 1519 MSL 4973FT E OF RWY 30C (04-081258).
2410291735-2610291735EST
4/2/241548Z !FDC 4/5440 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
ILS OR LOC RWY 30C, AMDT 3C...
ORIYE FIX MINIMUMS CIRCLING CAT C MDA 1900/HAA 516.
2404021548-2604021547EST
4/2/241546Z !FDC 4/5439 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
VOR OR TACAN RWY 30C, AMDT 2C...
TDZE 30R 1384. SIDESTEP 30R MDA 1940/HAT 556 ALL CATS. DME MINIMUMS: S-30C MDA 1840/HAT 460 ALL CATS. VIS CAT C 1 3/8. SIDESTEP 30R MDA 1840/HAT 456 ALL CATS. CIRCLING CAT C MDA 1900/HAA 516.
2404021546-2604021546EST
4/2/241542Z !FDC 4/5437 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 30L, AMDT 1D...
LNAV MDA 1840/HAT 466 ALL CATS. CIRCLING CAT C MDA 1900/HAA 516.
2404021542-2604021542EST
4/2/241542Z !FDC 4/5432 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) Y RWY 30C, AMDT 1C...
LNAV MDA 1840/HAT 460 ALL CATS. CIRCLING CAT C MDA 1900/HAA 516.
2404021542-2604021542EST
4/2/241542Z !FDC 4/5431 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 12C, AMDT 1C...
RNAV (GPS) RWY 12R, AMDT 1D...
CIRCLING CAT C MDA 1900/HAA 516.
2404021542-2604021542EST
Yes
ALL
PHX MESA GATEWAY AIRPORT AUTHORITY
5835 S. SOSSAMAN RD
MESA, AZ 85212-0919
Phone: 480-988-7570
J. BRIAN O'NEILL
PHX-MESA GATEWAY AIRPORT AUTHORITY, 5835 S. SOSSAMAN ROAD
MESA, AZ 85212-0919
Phone: 480-988-7708
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
IWA
--
WHEN ATCT CLSD LGTS ON CONSLY.
N/A
Yes
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Major
High & Low Pressure
None
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 12C/30C

10201 ft. x 150 ft.
ASPH CONC
Good
NONE
HIGH

55,000lbs
95,000lbs
185,000lbs
550,000lbs
  Runway 12C Runway 30C
True Heading 136°316°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 19' 03"N 33° 17' 51"N
Longitude 111° 39' 57"W 111° 38' 33"W
Elevation 1,348' 1,380'
Threshold Crossing Height 50 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12L/30R

9300 ft. x 150 ft.
CONC
Good
NONE
HIGH

75,000lbs
210,000lbs
590,000lbs
850,000lbs
  Runway 12L Runway 30R
True Heading 136°316°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 19' 03"N 33° 17' 58"N
Longitude 111° 39' 41"W 111° 38' 24"W
Elevation 1,356' 1,384'
Threshold Crossing Height 74 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 12R/30L

10401 ft. x 150 ft.
CONC
Good
NONE
MED

55,000lbs
95,000lbs
185,000lbs
550,000lbs
  Runway 12R Runway 30L
True Heading 136°316°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 19' 04"N 33° 17' 50"N
Longitude 111° 40' 22"W 111° 38' 57"W
Elevation 1,341' 1,374'
Threshold Crossing Height 60 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No
Runway End Identifier Lights
A110-23NOISE ABATEMENT PROC IN EFCT; AVOID LOW OVR FLT OF NOISE SENSITIVE AREAS; INFO - 480-988-7637.
A110-28TWY Y RSTD TO WINGSPAN LESS THAN 79 FT.
A110-297 FT FENCE S PORTION OF TWY W APRON.
A110-30LRG/HVY INBOARD ENGINE TAX ONLY.
A110-34NON EMERG AV-8 MODEL OPS LMTD TO RWY 12L/30R.
A110-3524 HR PPR FOR UNSKED ACR GTR THAN 30 PAX SEATS - ARPT OPS.
A110-38FOR CD WHEN ATCT CLSD, CTC PHOENIX APCH AT 602-306-2565.
A110-39FUEL AVBL H24 - 480-988-7700 OR 129.875.
A110-8WILDLIFE INVOF ARPT.
PHOENIX-MESA GATEWAY (ICAO: KIWA, IATA: IWA) is a public airport located in PHOENIX, AZ.
