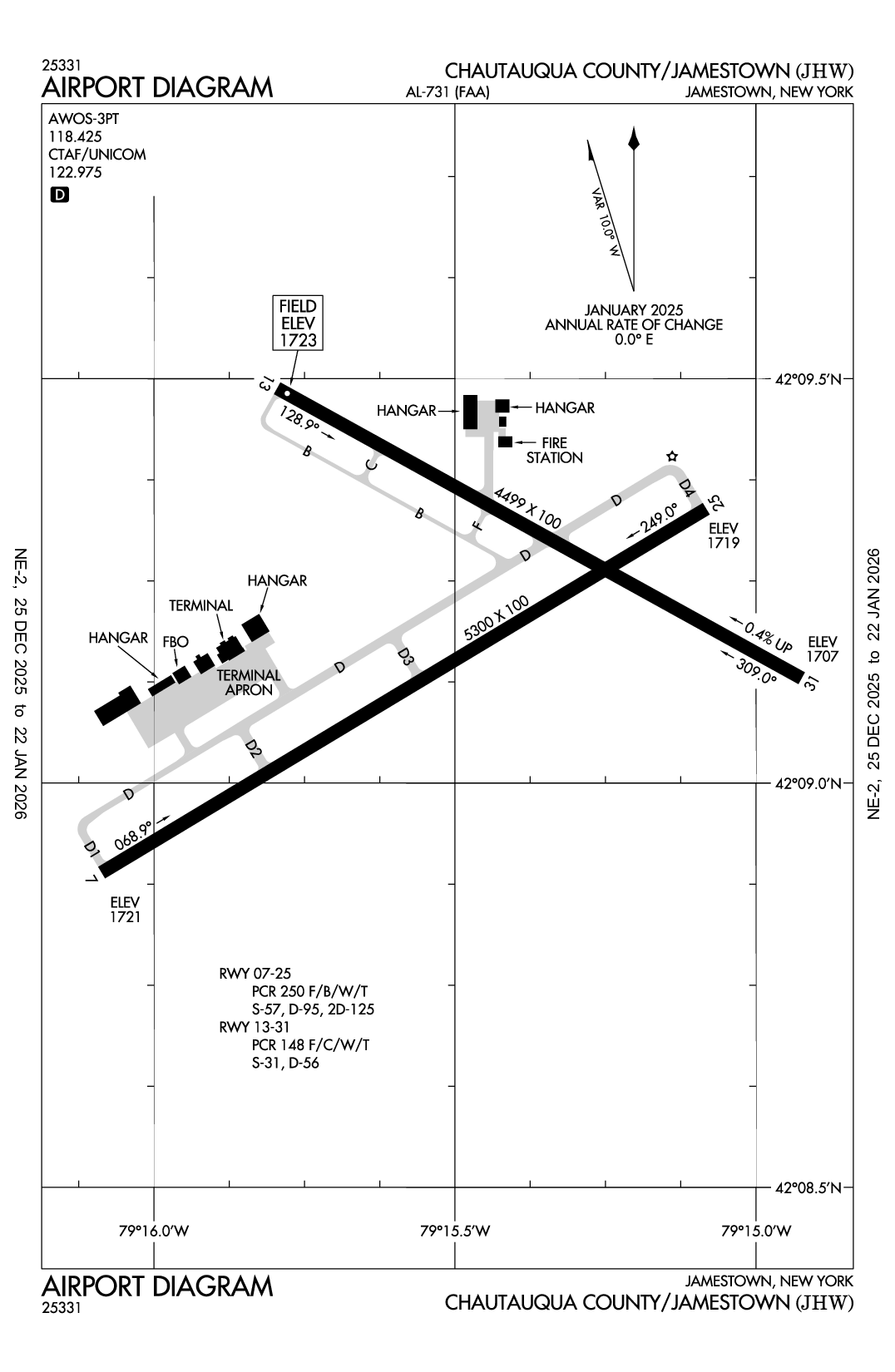

CHAUTAUQUA COUNTY/JAMESTOWN - Airport Diagram

KJHW

CHAUTAUQUA COUNTY/JAMESTOWN

PublicPUB

3 miles N of JAMESTOWN, NY

View on Map

Status

Operational

Coordinates

42° 09' 12"N 79° 15' 29"W

Elevation

1723' MSL

Pattern Alt

2723' MSL

Mag Variation

10W

Fuel

JET A, 100LL

FSS

BUFFALO (BUF)

Sectional

DETROIT

ARTCC

CLEVELAND (ZOB)

Data Effective

2/20/25-3/20/25

KJHW VFR

10:56 AM EDT RAW

Overcast 4,900'

Viz

10sm

Temp

35°F

Dew

24°F

Pres

29.89"Hg

Wind

280° 13kts

RMK

AO2 SLP147 T00171044 53016 FZRANO

KJHW 091456Z AUTO 28013KT 10SM OVC049 02/M04 A2989 RMK AO2 SLP147 T00171044 53016 FZRANO

Add Your Business

KJHW FBOs

Promote Listing

Centric Aviation

UNICOM: 122.975

Other: (716) 201-1297

0 Reviews (Read | Sign In To Write)

Avfuel

As of 3/4	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.95	6.39	6.49

Fuel Notes

Prices include tax

KJHW Aircraft Service & Maintenance

Promote Listing

Mustang Avionics

Phone: (716) 664-7700

Fax: (716) 664-7714

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM 122.975 CTAF 122.975

AWOS-3PT

716-664-6005

118.425

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

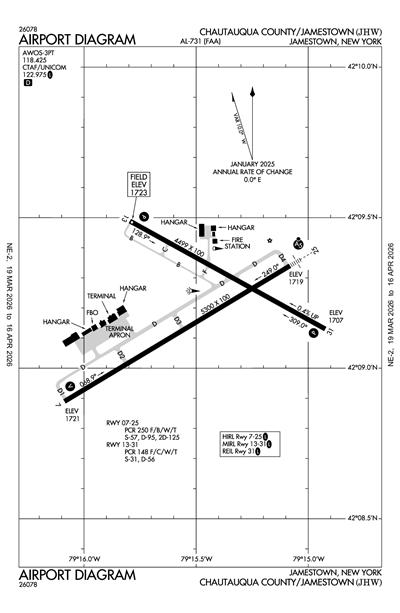

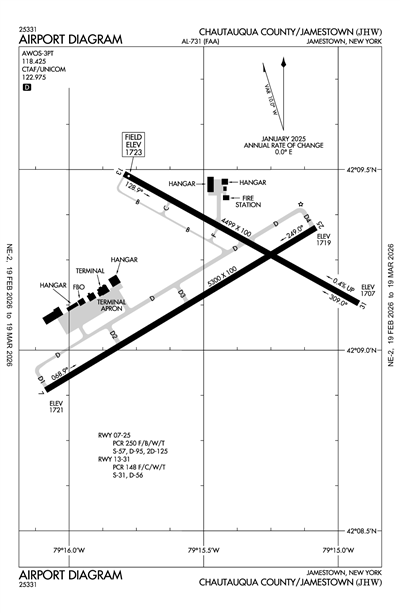

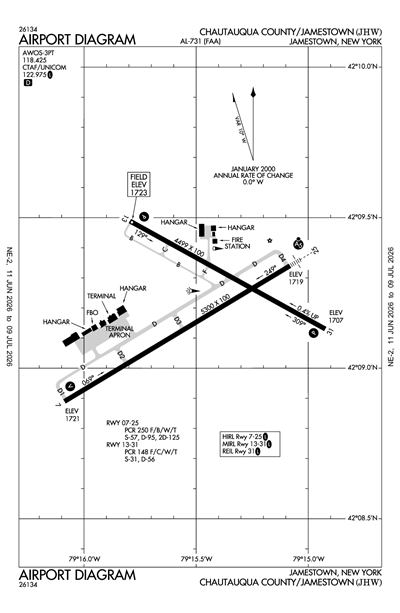

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KJHW

RAW

Reported

Sun, 3/9 7:25 AM EDT

Valid

Sun, 3/9 8:00 AM EDT - Mon, 3/10 8:00 AM EDT

MVFR

8:00 AM EDT - 10:00 AM EDT

Broken 3,000'

Viz

6sm

Wind

230° 10kts

VFR

10:00 AM EDT - 5:00 PM EDT

Broken 5,000'

Viz

6sm

Wind

270° 12kts

Gusts 19kts

VFR

5:00 PM EDT - 9:00 PM EDT

Few 14,000'

Viz

6sm

Wind

260° 13kts

Gusts 21kts

VFR

9:00 PM EDT - 4:00 AM EDT

Scattered 10,000'

Viz

6sm

Wind

230° 9kts

Shear 250° 40kts @ 2000'

VFR

4:00 AM EDT - 8:00 AM EDT

Scattered 20,000'

Viz

6sm

Wind

240° 9kts

KJHW 091125Z 0912/1012 23010KT P6SM BKN030
   FM091400 27012G19KT P6SM BKN050
   FM092100 26013G21KT P6SM FEW140
   FM100100 23009KT P6SM SCT100 WS020/25040KT
   FM100800 24009KT P6SM SCT200

KJHW

Domestic
3/8/251019Z	!JHW 03/011 JHW RWY 25 FICON 3/5/5 80 PCT 1/4IN DRY SN, 40 PCT 1/8IN DRY SN, 40 PCT 1/8IN DRY SN OBS AT 2503081019. 2503081019-2503091019
3/7/251920Z	!JHW 03/010 JHW AD AP SFC COND NOT REP 2503071920-2503101015
2/28/250526Z	!JHW 02/080 JHW OBST TOWER LGT (ASR 1261548) 420817.30N0785749.80W (13.0NM E JHW) 1992.8FT (257.9FT AGL) U/S 2502280526-2503150426

ATC Tower

Attendance

M-F 0600-1430 LCL

Owner

CHAUTAUQUA COUNTY
NORTH ERIE ST., COUNTY OFFICE BLDGS
MAYVILLE, NY 14757
Phone: 716-753-4000

Manager

SHANNON FISCHER
3163 AIRPORT DR
JAMESTOWN, NY 14701
Phone: 716-484-0204

FSS

BUFFALO FSS (BUF)
Toll Free: 1-800-WX-BRIEF

NOTAM

JHW

Light Schedule

Lights

ACTVT MALSR RWY 25; REIL RWY 31; PAPI RWY 13 & 31; VASI RWY 07; HIRL RWY 07/25; MIRL RWY 13/31 & TWY LGTS - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

High & Low Pressure

Other Services

Air Freight
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

Dimensions

5300 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

57,000lbs

Double Wheel

95,000lbs

Double Tandem

125,000lbs

Dual Dbl Tand

	Runway 07	Runway 25
True Heading	59°	239°
Traffic Pattern	Left	Left
Markings	NPI	PIR
Markings Condition	GOOD	GOOD
Latitude	42° 08' 53"N	42° 09' 20"N
Longitude	79° 16' 05"W	79° 15' 05"W
Elevation	1,721'	1,719'
Threshold Crossing Height	52 ft. AGL	--
Visual Glide Path Angle	3°	--
Visual Slope Indicator	V4L	--
Approach Lights		MALSR
Centerline Lights
Runway End Identifier Lights

Runway 13/31

Dimensions

4499 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

31,000lbs

Double Wheel

56,000lbs

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	119°	299°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	42° 09' 29"N	42° 09' 08"N
Longitude	79° 15' 48"W	79° 14' 55"W
Elevation	1,723'	1,707'
Threshold Crossing Height	45 ft. AGL	51 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights		Yes

A110-1	DEER AND BIRDS ON & INVOF ARPT.
A110-3	SNOW REMOVAL OPS AVBL DURING NORMAL ATTENDANCE HRS; SNOW REMOVAL MAY BE LIMITED ON HOLIDAYS & WEEKENDS.
A110-4	FOR CD CTC BUFFALO APCH AT 716-626-6920, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0232.
A110-5	ATTENDANCE HRS AND SERVICES AVAILABLE ARE SUBJECT TO CHANGE, CALL AIRPORT MANAGER AT 716-484-0204 TO CONFIRM.
A110-7	RWY/TWY CONDITIONS NOT MONITORED OUTSIDE OF NORMAL ATTENDANCE HRS.
A110-8	24 HR PPR FOR AIR CARRIER OPS WITH MORE THAN 9 PAX SEATS. CONTACT ARPT MGR AT 716-484-0204. FOR EMERGENCIES AFTER HRS, CALL 911 FOR MUTUAL AID SERVICE.
A110-9	ARFF INDEX B CPBL.

CHAUTAUQUA COUNTY/JAMESTOWN (ICAO: KJHW, IATA: JHW) is a public airport located in JAMESTOWN, NY.
