DOWNTOWN MANHATTAN/WALL ST - Airport Diagram

KJRB

DOWNTOWN MANHATTAN/WALL ST

PublicPUB

3 miles SE of NEW YORK, NY

View on Map

Status

Operational

Coordinates

40° 42' 04"N 74° 00' 33"W

Elevation

7' MSL

Pattern Alt

1007' MSL

Mag Variation

13W

Fuel

JET A

FSS

NEW YORK (ISP)

Sectional

NEW YORK

ARTCC

NEW YORK (ZNY)

Data Effective

11/28/24-12/26/24

KJRB VFR

6:56 AM EST RAW

Clear

Viz

10sm

Temp

18°F

Dew

10°F

Pres

30.67"Hg

Wind

100° 5kts

RMK

AO2 SLP384 6//// 7//// T10781122 11061 21083 53010 FZRANO PNO $

KJRB 231156Z AUTO 10005KT 10SM CLR M08/M12 A3067 RMK AO2 SLP384 6//// 7//// T10781122 11061 21083 53010 FZRANO PNO $

Add Your Business

KJRB FBOs

Promote Listing

Saker Aviation Services

UNICOM: 123.05

Phone: (212) 248-7240

Other: (212) 248-7241

0 Reviews (Read | Sign In To Write)

Avfuel

As of 12/12	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve		7.89

Fuel Notes

Prices include tax
Prist (FSII) is available.

Your Information

Business

UNICOM 123.05 CTAF 123.05

AWOS-3PT

212-425-1534

128.175

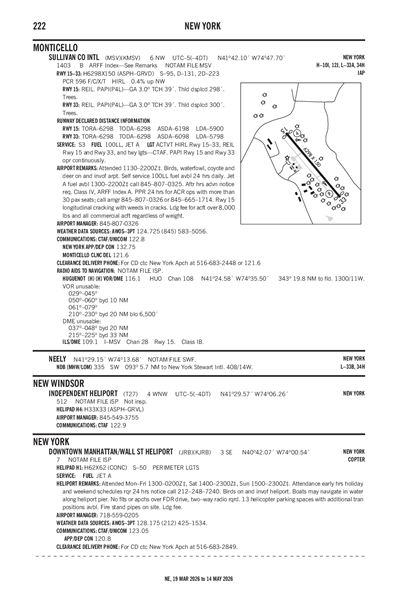

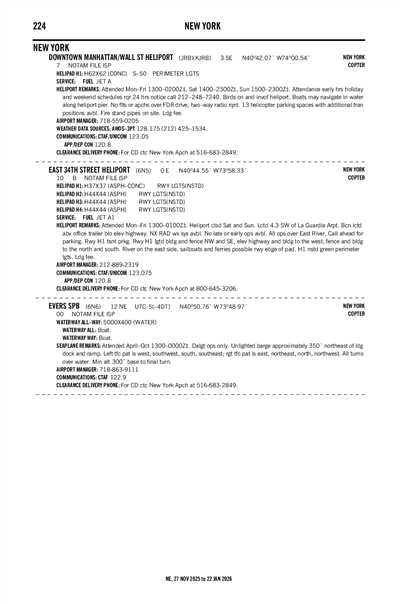

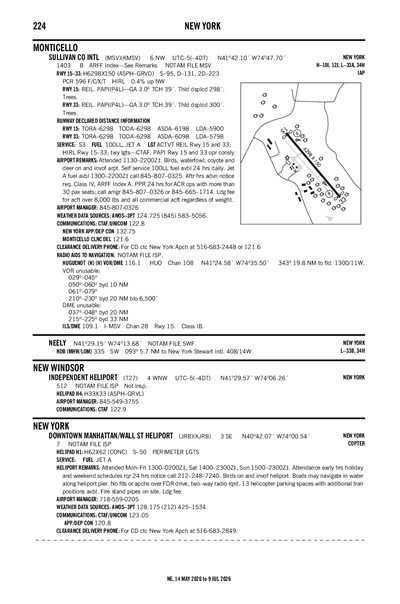

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

No Documents

Terminal Area Forecast

KEWR (7nm)

RAW

Reported

Mon, 12/23 6:32 AM EST

Valid

Mon, 12/23 7:00 AM EST - Tue, 12/24 1:00 PM EST

VFR

7:00 AM EST - 8:00 AM EST

Few 25,000'

Viz

6sm

Wind

010° 6kts

VFR

8:00 AM EST - 4:00 PM EST

Scattered 25,000'

Viz

6sm

Wind

VRB° 5kts

VFR

4:00 PM EST - 1:00 AM EST

Broken 15,000'

Viz

6sm

Wind

190° 6kts

VFR

1:00 AM EST - 8:00 AM EST

Broken 15,000'

Viz

6sm

Wind

230° 6kts

MVFR

6:00 AM EST - 8:00 AM EST

Light Snow

Overcast 5,000'
Scattered 1,500'

Viz

5sm

Wind

Calm

VFR

8:00 AM EST - 1:00 PM EST

Overcast 5,000'

Viz

6sm

Wind

270° 10kts

IFR

8:00 AM EST - 1:00 PM EST

Light Snow

Broken 1,200'

Viz

2sm

Wind

Calm

KEWR 231132Z 2312/2418 01006KT P6SM FEW250
   FM231300 VRB05KT P6SM SCT250
   FM232100 19006KT P6SM BKN150
   FM240600 23006KT P6SM BKN150
   PROB30 2411/2413 5SM -SN SCT015 OVC050
   FM241300 27010KT P6SM OVC050
   PROB30 2413/2418 2SM -SN BKN012

KJRB

Domestic
12/23/241155Z	!ISP 12/465 JRB AIRSPACE SEE CRI 12/317 UAS 2412231155-2412231930
12/23/241140Z	!ISP 12/462 JRB AIRSPACE UAS WI AN AREA DEFINED AS 404033.60N0735645.40W (3.7NM S 6N7) TO 404027.80N0735721.20W (3.7NM S 6N7) TO 404011.50N0735750.80W (3.9NM S 6N7) TO 403947.50N0735809.10W (4.2NM S 6N7) TO 403919.80N0735812.90W (4.7NM SSW 6N7) TO 403853.40N0735801.60W (5.2NM S 6N7) TO 403832.80N0735737.10W (5.5NM S 6N7) TO 403821.50N0735703.70W (5.8NM S 6N7) TO 403821.50N0735627.10W (5.9NM S 6N7) TO 403832.80N0735553.70W (5.8NM S 6N7) TO 403853.40N0735529.20W (5.6NM S 6N7) TO 403919.80N0735517.90W (5.3NM SSE 6N7) TO 403947.50N0735521.70W (4.8NM SSE 6N7) TO 404011.50N0735540W (4.4NM SSE 6N7) TO 404027.80N0735609.60W (4.0NM SSE 6N7) TO POINT OF ORIGIN SFC-400FT AGL 2412231140-2412232000
6/18/241200Z	!ISP 06/164 JRB AIRSPACE UAS WI AN AREA DEFINED AS .25NM RADIUS OF 403922N0740034W (5NM S 6N7) SFC-300FT AGL DLY 1200-2030 2406181200-2506202030

ATC Tower

Attendance

MON-FRI 0700-2200
SAT 0700-1900
SUN 0700-1700
ATTENDANCE EARLY HRS HOL & WKND SKEDS REQUIRES 24 HRS NOTICE CALL 212-248-7240.

Owner

ECONOMIC DEVELOPMENT CORP
110 WILLIAM ST
NEW YORK, NY 10038
Phone: 212-248-7240

Manager

MR. BRIAN TOLBERT
PIER 6 EAST RIVER
NEW YORK, NY 10004
Phone: 212-248-7240

FSS

NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF

NOTAM

ISP

Light Schedule

Sunset to Sunrise

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Yes

Parking

None

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Charter Service

Runway H1

Dimensions

62 ft. x 62 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

PERI

Pavement Class

Single Wheel

50,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway H1	Runway
True Heading	101°	281°
Traffic Pattern	Left
Markings	BSC
Markings Condition	FAIR
Latitude	40° 42' 04"N	N/A
Longitude	74° 00' 33"W	N/A
Elevation	7'	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	NO FLTS OR APCHS OVER FDR DRIVE; TWO-WAY RDO RQRD.
A110-2	BIRDS ON & INVOF HELIPORT.
A110-3	BOATS MAY NAVIGATE IN WATER ALONG HELIPORT PIER.
A110-5	13 HELICOPTER PARKING SPACES WITH ADDITIONAL TRANSIENT POSITIONS AVBL. FIRE STAND PIPES ON SITE.
A110-6	FOR CD CTC NEW YORK APCH AT 516-683-2849.

DOWNTOWN MANHATTAN/WALL ST (ICAO: KJRB, IATA: JRB) is a public heliport located in NEW YORK, NY.
