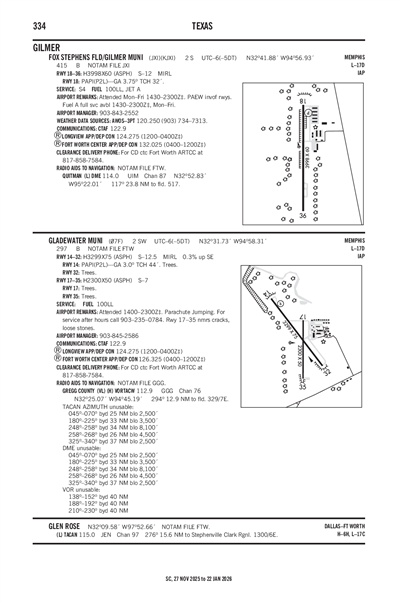

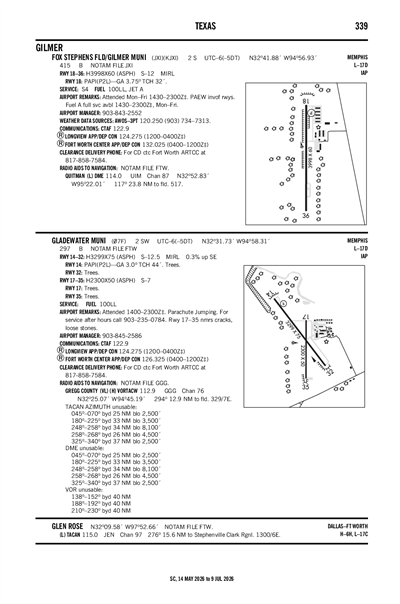

FOX STEPHENS FLD / GILMER MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJXI
FOX STEPHENS FLD / GILMER MUNI
PublicPUB

2 miles S of GILMER, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 41' 53"N 94° 56' 56"W
415' MSL
1415' MSL
03E
JET A, 100LL
FORT WORTH (FTW)
MEMPHIS
FORT WORTH (ZFW)
5/16/24-6/13/24
KJXI VFR
11:15 PM CDT
Clear
10sm
69°F
67°F
29.96"Hg
Calm
AO2 T02050194
KJXI 010415Z AUTO 00000KT 10SM CLR 21/19 A2996 RMK AO2 T02050194
Add Your Business

KJXI FBOs

X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3PT

AWOS-3PT
903-734-7313
 120.25

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGGG (22nm)
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 1:00 AM CDT
Scattered 20,000'
Few 2,000'
6sm
VRB° 4kts
MVFR
1:00 AM CDT - 7:00 AM CDT
Broken 2,500'
6sm
150° 3kts
MVFR
7:00 AM CDT - 11:00 AM CDT
Overcast 1,000'
6sm
140° 3kts
MVFR
11:00 AM CDT - 1:00 PM CDT
Broken 1,500'
6sm
250° 5kts
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 5,000'
6sm
230° 4kts
KGGG 312320Z 0100/0124 VRB04KT P6SM FEW020 SCT200
   FM010600 15003KT P6SM BKN025
   FM011200 14003KT P6SM OVC010
   FM011600 25005KT P6SM BKN015
   FM011800 23004KT P6SM BKN050
KJXI
Domestic
5/30/242118Z !JXI 05/016 JXI OBST TOWER LGT (ASR 1278658) 323929.60N0950105.60W (4.3NM SW JXI) 732.9FT (310.0FT AGL) U/S 2405302118-2406142018
5/22/240433Z !JXI 05/011 JXI OBST TOWER LGT (ASR 1280056) 324353.40N0944621.00W (9.2NM ENE JXI) 669.0FT (310.0FT AGL) U/S 2405220433-2406060333
5/20/241956Z !JXI 05/010 JXI OBST TOWER LGT (ASR 1057506) 323536.00N0944452.00W (11.9NM ESE JXI) 717.5FT (259.8FT AGL) U/S 2405201956-2406041856
5/4/242127Z !JXI 05/001 JXI OBST TOWER LGT (ASR 1051437) 324632.40N0950430.70W (7.9NM NW JXI) 802.8FT (313.0FT AGL) U/S 2405042127-2408152359
3/17/240615Z !JXI 03/002 JXI OBST TOWER LGT (ASR 1054449) 323631.50N0945203.70W (6.7NM SE JXI) 1074.8FT (454.7FT AGL) U/S 2403170615-2406150400
10/28/231233Z !JXI 10/011 JXI AIRSPACE AEROBATIC ACFT WI AN AREA DEFINED AS 3NM RADIUS OF JXI SFC-3000FT AVOIDANCE ADZ DLY SR-SS 2310281233-2410272333
FDC
8/28/231910Z !FDC 3/2503 JXI IAP FOX STEPHENS FLD / GILMER MUNI, GILMER, TX.
RNAV (GPS) RWY 36, ORIG-B...
DISREGARD PROFILE NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT (VGSI ANGLE 4.00/TCH 50).
2308281910-2508281909EST
No
MON-FRI 0700-1700
CITY OF GILMER
PO BOX 760
GILMER, TX 75644
Phone: 903-843-2552
GREG HUTSON
PO BOX 760
GILMER, TX 75644
Phone: 903-843-2552
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
JXI
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
30
4
0
1
0
0
Major
Major
None
None
None

Runway 18/36

3998 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 42' 13"N 32° 41' 33"N
Longitude 94° 56' 56"W 94° 56' 56"W
Elevation 415' 413'
Threshold Crossing Height 32 ft. AGL --
Visual Glide Path Angle 3.75° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
FOX STEPHENS FLD / GILMER MUNI (ICAO: KJXI, IATA: JXI) is a public airport located in GILMER, TX.
