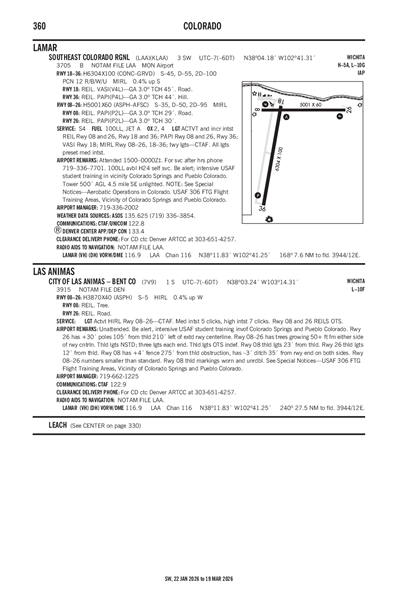

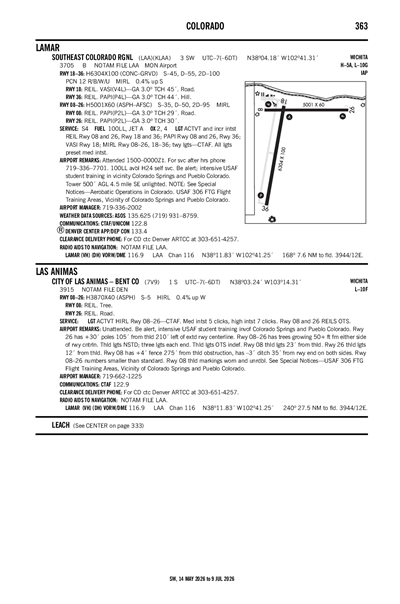

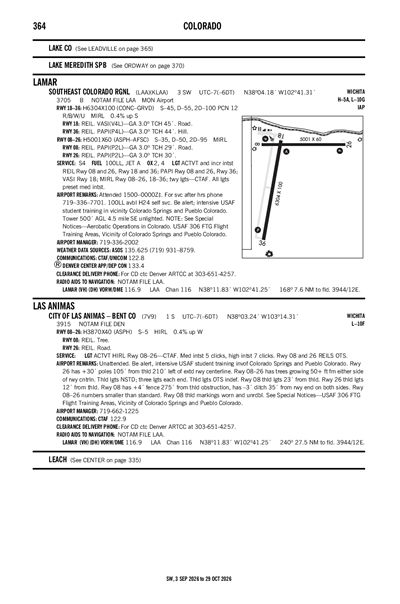

SOUTHEAST COLORADO RGNL - Airport Diagram

KLAA

SOUTHEAST COLORADO RGNL

PublicPUB

3 miles SW of LAMAR, CO

View on Map

Status

Operational

Coordinates

38° 04' 11"N 102° 41' 19"W

Elevation

3705' MSL

Pattern Alt

4705' MSL

Mag Variation

07E

Fuel

JET A, 100LL

FSS

DENVER (DEN)

Sectional

WICHITA

ARTCC

DENVER (ZDV)

Data Effective

12/26/24-1/23/25

KLAA VFR

8:53 AM MST RAW

Clear

Viz

10sm

Temp

27°F

Dew

12°F

Pres

30.18"Hg

Wind

020° 21kts

Gusts 29kts

RMK

AO2 PK WND 01029/1539 SLP262 T10281111

KLAA 221553Z AUTO 02021G29KT 10SM CLR M03/M11 A3018 RMK AO2 PK WND 01029/1539 SLP262 T10281111

Add Your Business

KLAA FBOs

Promote Listing

Southeast Colorado Regional Airport

ASRI: 135.62, UNICOM: 122.8

Phone: (719) 336-7701

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 1/2	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.62
Full Serve	5.87		4.77

Fuel Notes

Prices include tax

KLAA Aircraft Service & Maintenance

Promote Listing

Allen Aviation LLC

Phone: (719) 688-7998

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM 122.8 CTAF 122.8

ASOS

719-336-3854

135.625

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KPUB (87nm)

RAW

Reported

Wed, 1/22 4:34 AM MST

Valid

Wed, 1/22 5:00 AM MST - Thu, 1/23 5:00 AM MST

VFR

5:00 AM MST - 8:00 AM MST

Few 20,000'

Viz

6sm

Wind

330° 12kts

VFR

8:00 AM MST - 12:00 PM MST

Scattered 20,000'
Few 11,000'

Viz

6sm

Wind

360° 10kts

VFR

12:00 PM MST - 6:00 PM MST

Broken 10,000'
Scattered 6,000'

Viz

6sm

Wind

010° 14kts

Gusts 24kts

VFR

6:00 PM MST - 10:00 PM MST

Scattered 20,000'
Scattered 10,000'

Viz

6sm

Wind

340° 8kts

VFR

10:00 PM MST - 5:00 AM MST

Few 20,000'

Viz

6sm

Wind

VRB° 6kts

KPUB 221134Z 2212/2312 33012KT P6SM FEW200
   FM221500 36010KT P6SM FEW110 SCT200
   FM221900 01014G24KT P6SM SCT060 BKN100
   FM230100 34008KT P6SM SCT100 SCT200
   FM230500 VRB06KT P6SM FEW200

KLAA

Domestic
1/12/251416Z	!LAA 01/009 LAA OBST TOWER LGT (ASR 1023202) 380210.00N1023600.00W (4.7NM ESE LAA) 4282.8FT (500.0FT AGL) U/S 2501121416-2502261416
8/7/241146Z	!LAA 08/002 LAA RWY 26 PAPI U/S 2408071146-2502072111EST
FDC
1/19/241918Z	!FDC 4/5806 LAA IAP SOUTHEAST COLORADO RGNL, LAMAR, CO. VOR RWY 36, AMDT 1D... S-36 MDA 4220/HAT 514 ALL CATS. 2401191918-2601191918EST

ATC Tower

Attendance

0800-1700
FOR SVC AFT HRS PHONE 719-336-7701.

Owner

CITY OF LAMAR
102 EAST PARMENTER
LAMAR, CO 81052
Phone: 719-336-4376

Manager

PATRICK MASON
102 E PARMENTER
LAMAR, CO 81052
Phone: 719-336-2002

FSS

DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF

NOTAM

LAA

Light Schedule

Lights

ACTVT & INCR INTST REIL RWY 08 & 26, RWY 18 & 36; PAPI RWY 08 & 26, RWY 36; VASI RWY 18; MIRL RWY 08/26, 18/36; TWY LGTS - CTAF. ALL LGTS PRESET MED INTST.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

Low Pressure

Bulk Oxygen

Low Pressure

Other Services

Crop Dusting
Charter Service
Pilot Instruction
Aircraft Rental
Annual Surveying

Runway 08/26

Dimensions

5001 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

AFSC

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

35,000lbs

Double Wheel

50,000lbs

Double Tandem

95,000lbs

Dual Dbl Tand

	Runway 08	Runway 26
True Heading	90°	270°
Traffic Pattern
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	38° 04' 26"N	38° 04' 26"N
Longitude	102° 41' 37"W	102° 40' 34"W
Elevation	3,683'	3,689'
Threshold Crossing Height	29 ft. AGL	30 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 18/36

Dimensions

6304 ft. x 100 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

12 /R/B/W/U

Single Wheel

45,000lbs

Double Wheel

55,000lbs

Double Tandem

100,000lbs

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	190°	10°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	38° 04' 29"N	38° 03' 28"N
Longitude	102° 41' 22"W	102° 41' 36"W
Elevation	3,679'	3,705'
Threshold Crossing Height	45 ft. AGL	44 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	V4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	TOWER 500 FT AGL 4.5 MI SE UNLIGHTED.
A110-3	BE ALERT; INTENSIVE USAF STUDENT TRAINING IN VICINITY OF COLORADO SPRINGS & PUEBLO COLORADO.
A110-4	FOR CD CTC DENVER ARTCC AT 303-651-4257.

SOUTHEAST COLORADO RGNL (ICAO: KLAA, IATA: LAA) is a public airport located in LAMAR, CO.
