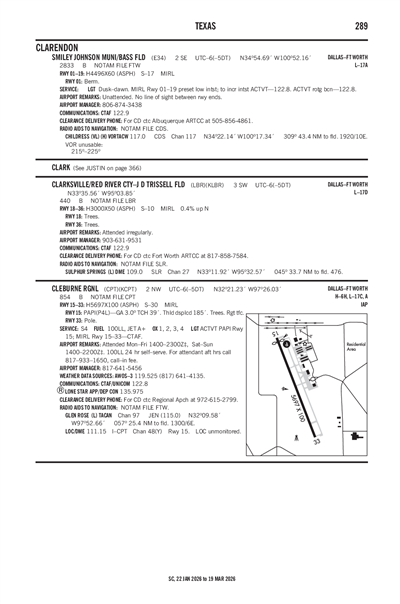

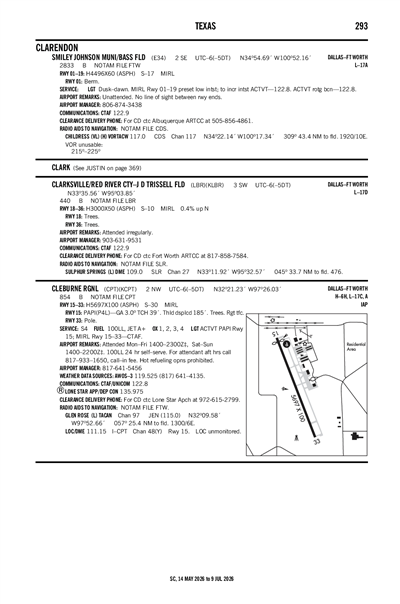

CLARKSVILLE/RED RIVER CTY-J D TRISSELL FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLBR
CLARKSVILLE/RED RIVER CTY-J D TRISSELL FLD
PublicPUB

3 miles SW of CLARKSVILLE, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 35' 34"N 95° 03' 51"W
440' MSL
1440' MSL
02E
None Listed
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
5/16/24-6/13/24
KPRX (20nm) VFR
11:56 PM CDT
Clear
10sm
70°F
70°F
29.97"Hg
100° 4kts
AO2 SLP145 T02110211
KPRX 010456Z AUTO 10004KT 10SM CLR 21/21 A2997 RMK AO2 SLP145 T02110211
Add Your Business

KLBR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KTXK (55nm)
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 4:00 AM CDT
Overcast 3,500'
6sm
140° 3kts
MVFR
4:00 AM CDT - 7:00 AM CDT
Mist
Overcast 1,000'
6sm
180° 3kts
IFR
7:00 AM CDT - 11:00 AM CDT
Overcast 900'
6sm
210° 3kts
MVFR
11:00 AM CDT - 1:00 PM CDT
Overcast 1,500'
6sm
250° 5kts
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 25,000'
6sm
240° 6kts
KTXK 312320Z 0100/0124 14003KT P6SM OVC035
   FM010900 18003KT 6SM BR OVC010
   FM011200 21003KT P6SM OVC009
   FM011600 25005KT P6SM OVC015
   FM011800 24006KT P6SM BKN250
KLBR
Domestic
5/30/242001Z !LBR 05/027 LBR OBST TOWER LGT (ASR 1274594) 334239.90N0950258.80W (7.1NM NE LBR) 728.0FT (305.1FT AGL) U/S 2405302001-2406141901
5/29/240436Z !LBR 05/026 LBR OBST TOWER LGT (ASR 1223965) 333314.50N0944606.20W (15.0NM E LBR) 783.8FT (319.9FT AGL) U/S 2405290436-2406130336
5/25/240521Z !LBR 05/024 LBR OBST TOWER LGT (ASR 1243829) 332852.90N0951219.20W (9.8NM SW LBR) 759.8FT (309.7FT AGL) U/S 2405250521-2406090421
5/25/240518Z !LBR 05/023 LBR OBST TOWER LGT (ASR 1052595) 332521.60N0950905.00W (11.1NM SSW LBR) 850.7FT (500.0FT AGL) U/S 2405250518-2406090418
5/25/240139Z !LBR 05/022 LBR OBST TOWER LGT (ASR 1224878) 333921.20N0950956.50W (6.3NM NW LBR) 842.2FT (346.1FT AGL) U/S 2405250139-2406090039
5/18/240438Z !LBR 05/015 LBR OBST TOWER LGT (ASR 1223806) 333517.40N0945506.50W (7.3NM E LBR) 726.7FT (319.9FT AGL) U/S 2405180438-2406020338
No
IREG
CLARKSVILLE-RED RIVER CO
400 N. WALNUT
CLARKSVILLE, TX 75426
Phone: (903) 427-0370
DAN HALLEY
550 S AUSTIN
AVERY, TX 75554
Phone: (903) 631-9531
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
LBR
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
18
0
0
0
0
0
None
None
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 18/36

3000 ft. x 50 ft.
ASPH
Fair
NONE
MED

10,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 33° 35' 48"N 33° 35' 19"N
Longitude 95° 03' 51"W 95° 03' 51"W
Elevation 435' 422'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
CLARKSVILLE/RED RIVER CTY-J D TRISSELL FLD (ICAO: KLBR, IATA: LBR) is a public airport located in CLARKSVILLE, TX.
