iFlightPlanner



...

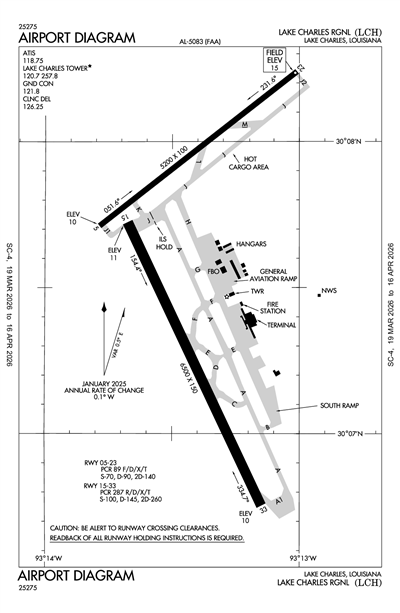

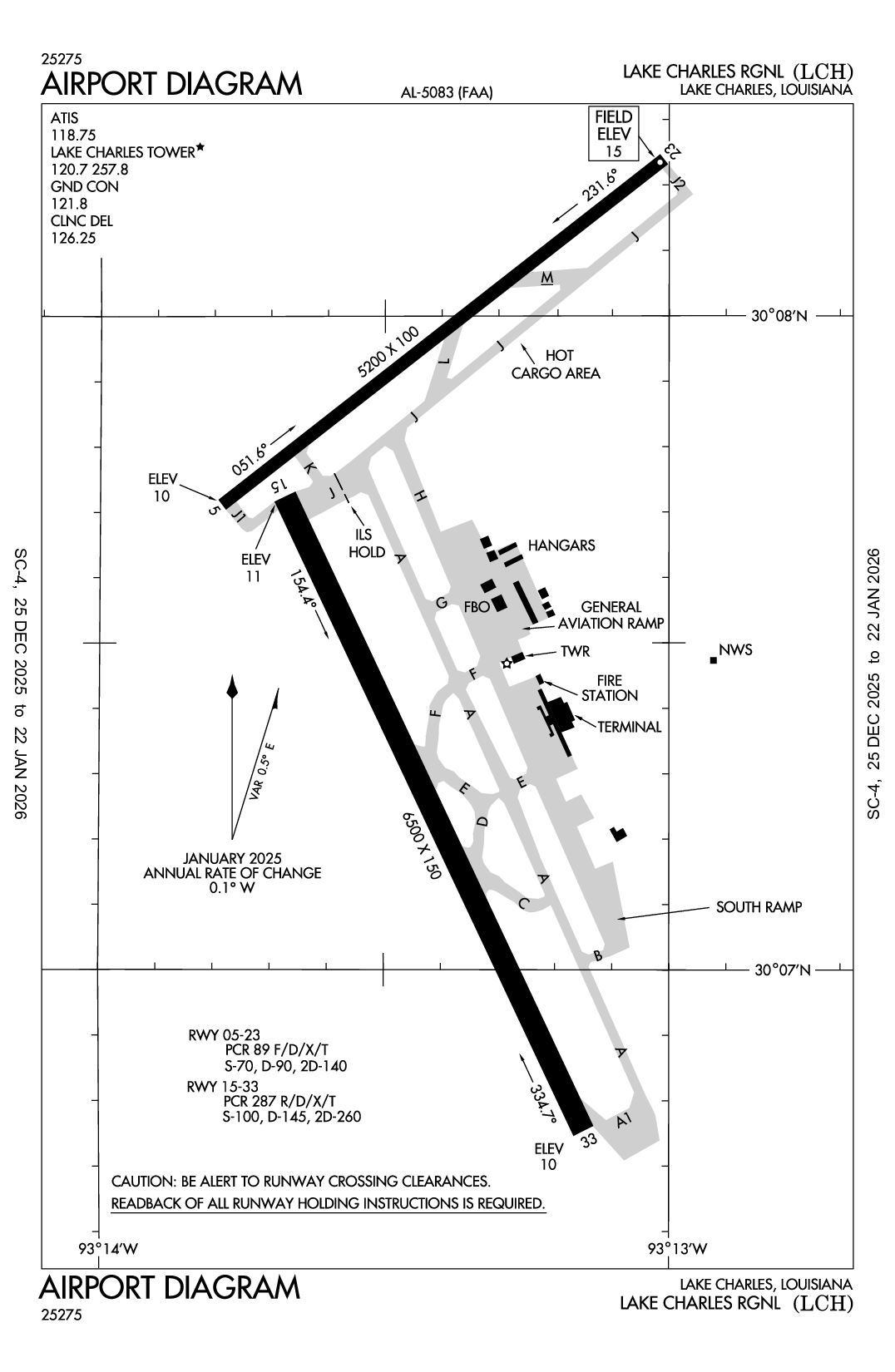

LAKE CHARLES RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLCH
LAKE CHARLES RGNL
PublicPUB

5 miles S of LAKE CHARLES, LA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 07' 34"N 93° 13' 24"W
14' MSL
1014' MSL
03E
JET A-1+, 100LL
DE RIDDER (DRI)
HOUSTON
HOUSTON (ZHU)
11/28/24-12/26/24
KLCH VFR
5:53 AM CST
Clear
10sm
43°F
38°F
30.27"Hg
090° 4kts
AO2 SLP258 T00610033 10072 20061 56004
KLCH 231153Z AUTO 09004KT 10SM CLR 06/03 A3027 RMK AO2 SLP258 T00610033 10072 20061 56004
Add Your Business

KLCH FBOs

Promote Listing
Freeman Jet Center
UNICOM: 122.95
Phone: (337) 478-7722
Other: (337) 478-7723
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/12
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.10
Full Serve 6.40 5.66 5.77
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.7

ATIS

ATIS
 118.75

Approach/Departure

APCH/P DEP/P
EAST
 119.8
APCH/P DEP/P IC
WEST
 119.35

Clearance Delivery

CD/P
 126.25

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 120.7

Other

HEL OPS
OFFSHORE HELICOPTER OPERATIONS
 119.75
TRSA
WEST
 119.35
TRSA
EAST
 119.8

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLCH
Mon, 12/23 5:32 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 10:00 AM CST
Sky Clear
6sm
100° 6kts
VFR
10:00 AM CST - 12:00 AM CST
Few 25,000'
Few 15,000'
6sm
130° 10kts
VFR
12:00 AM CST - 6:00 AM CST
Broken 10,000'
6sm
110° 6kts
KLCH 231132Z 2312/2412 10006KT P6SM SKC
   FM231600 13010KT P6SM FEW150 FEW250
   FM240600 11006KT P6SM BKN100
KLCH
Domestic
12/18/241814Z !LCH 12/046 LCH RWY 33 PAPI U/S 2412181814-2501232000EST
12/18/241433Z !LCH 12/040 LCH OBST TOWER LGT (ASR 1316206) 294730.47N0931806.06W (20.4NM S LCH) 207FT (205FT AGL) U/S 2412181433-2501021333
12/17/241536Z !LCH 12/031 LCH COM REMOTE TRANS/REC 119.750 U/S 2412171536-2412272000EST
12/13/241625Z !LCH 12/029 LCH TWY A CL MARKINGS BTN TWY B AND TWY J NOT STD 2412131625-2501031600
12/11/241747Z !LCH 12/019 LCH OBST TOWER LGT (ASR 1225183) 300401.20N0931457.90W (3.8NM SSW LCH) 365.2FT (361.9FT AGL) U/S 2412111747-2504101747
12/10/241535Z !LCH 12/014 LCH OBST TOWER LGT (ASR 1243378) 300931.70N0931045.70W (3.0NM NE LCH) 147.6FT (129.9FT AGL) U/S 2412101535-2504091535
10/11/241501Z !LCH 10/011 LCH OBST TOWER LGT (ASN 2006-ASW-2752-OE) 294515N0925416W (27.7NM SE LCH) 298FT (295FT AGL) U/S 2410111501-2501092359
10/4/241107Z !LCH 10/001 LCH RWY 23 VASI U/S 2410041107-2510022000EST
1/18/240202Z !LCH 01/022 LCH RWY 15 PAPI U/S 2401180202-2501162000EST
FDC
10/15/241247Z !FDC 4/9122 LCH IAP LAKE CHARLES RGNL, LAKE CHARLES, LA.
RNAV (GPS) RWY 5, AMDT 1...
LP MDA 360/HAT 346.
2410151247-2610151247EST
9/16/241653Z !FDC 4/6210 LCH IAP LAKE CHARLES RGNL, LAKE CHARLES, LA.
RNAV (GPS) RWY 33, AMDT 2C...
DISREGARD PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 54).
2409161653-2609161653EST
1/9/231217Z !FDC 3/2150 LCH IAP LAKE CHARLES RGNL, LAKE CHARLES, LA.
RNAV (GPS) RWY 15, AMDT 1C...
CHANGE LINE OF MINIMA FROM LPV DA TO LPV DA **.
2301091217-2501091217EST
Yes
0500-2230
CALCASIEU PARISH
PO BOX 5820
LAKE CHARLES, LA 70607
Phone: 337-477-6051
HEATH ALLEN
PO DRAWER 5820
LAKE CHARLES, LA 70607-5820
Phone: 337-477-6051
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
LCH
--
WHEN ATCT CLSD ACTVT MALSR RWY 15; MALSF RWY 33; HIRL RWY 15/33; MIRL RWY 05/23 - CTAF. PAPI RWY 33 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

5200 ft. x 100 ft.
ASPH
Good
NONE
MED

70,000lbs
90,000lbs
140,000lbs
--
  Runway 05 Runway 23
True Heading 52°232°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 30° 07' 43"N 30° 08' 14"N
Longitude 93° 13' 47"W 93° 13' 00"W
Elevation 10' 14'
Threshold Crossing Height 51 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15/33

6500 ft. x 150 ft.
CONC
Good
GRVD
HIGH

100,000lbs
145,000lbs
260,000lbs
--
  Runway 15 Runway 33
True Heading 155°335°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 30° 07' 43"N 30° 06' 45"N
Longitude 93° 13' 41"W 93° 13' 09"W
Elevation 11' 10'
Threshold Crossing Height 70 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR MALSF
Centerline Lights
Runway End Identifier Lights
A110-1ATCT BLIND SPOT ON TWY J.
A110-2BIRDS ON & INVOF ARPT.
A110-4FOR CD IF UNA TO CTC ON FSS FREQ, CTC HOUSTON ARTCC AT 281-230-5622.
LAKE CHARLES RGNL (ICAO: KLCH, IATA: LCH) is a public airport located in LAKE CHARLES, LA.
