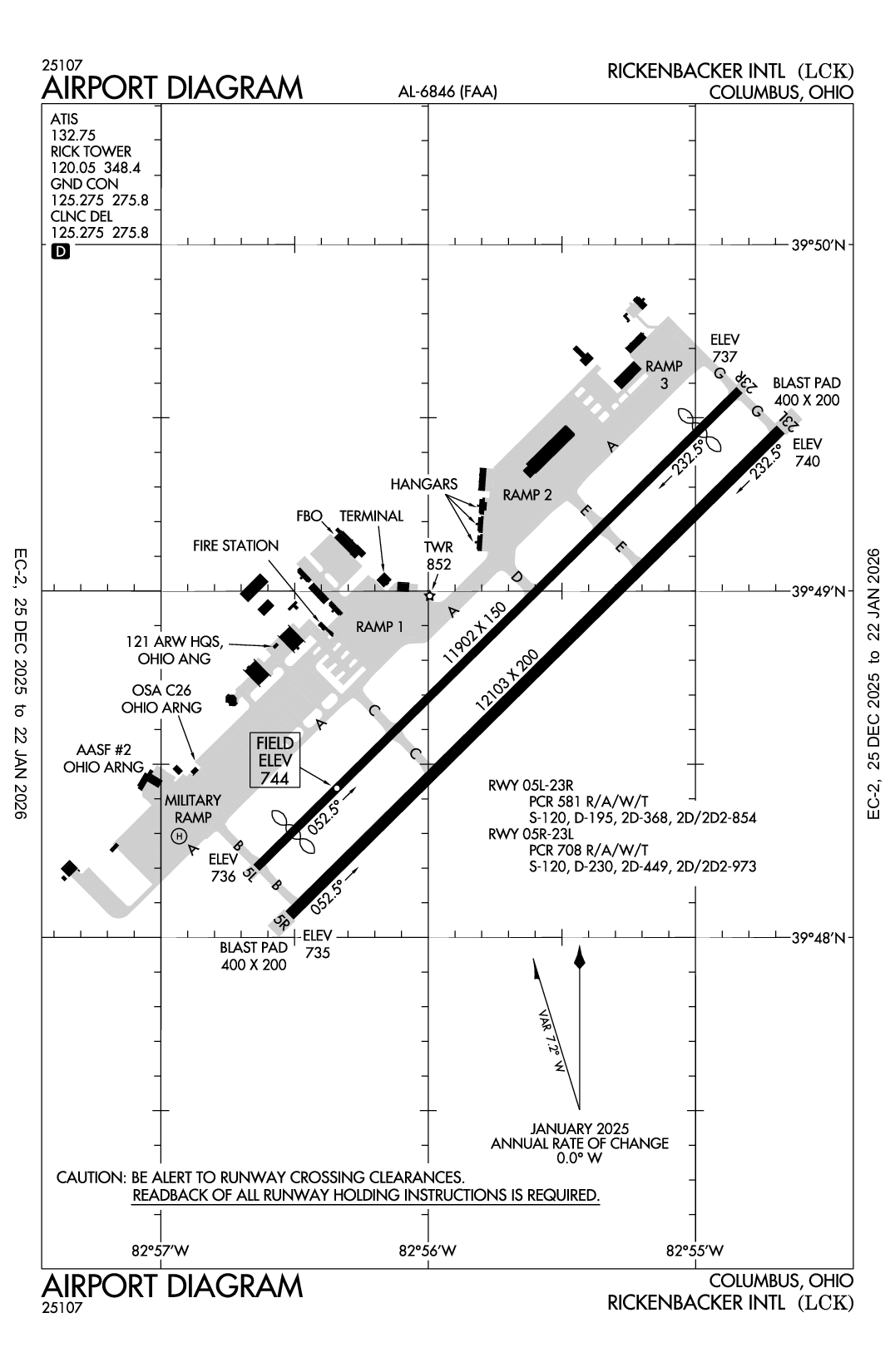

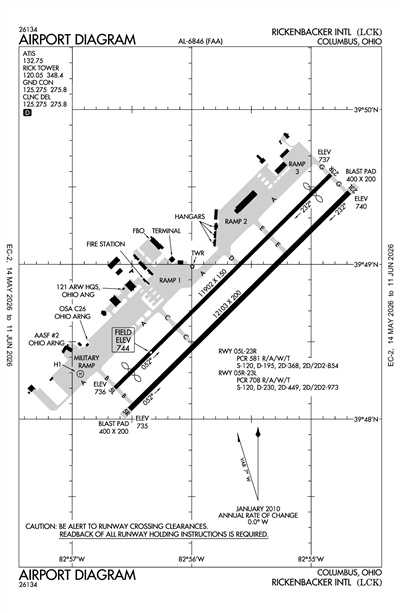

RICKENBACKER INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLCK
RICKENBACKER INTL
PublicPUB

10 miles S of COLUMBUS, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 48' 50"N 82° 55' 40"W
744' MSL
1744' MSL
07W
JET A, JET A+, CILI, 100LL
DAYTON (DAY)
CINCINNATI
INDIANAPOLIS (ZID)
11/28/24-12/26/24
KLCK VFR
6:55 AM EST
Scattered 12,000'
10sm
24°F
17°F
30.38"Hg
140° 4kts
AO2 T10421085 11038 21058
KLCK 231155Z AUTO 14004KT 10SM SCT120 M04/M08 A3038 RMK AO2 T10421085 11038 21058
Add Your Business

KLCK FBOs

Promote Listing
Rickenbacker Aviation
UNICOM: 122.95
Phone: (614) 409-3660
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.02 5.47 5.52
Fuel Notes
Prices include tax

KLCK Aircraft Service & Maintenance

Promote Listing
AirNet II LLC
Phone: (614) 409-4757
Fax: (614) 409-7806
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
 132.75

Clearance Delivery

CD/P
 125.275

Emergency

EMERG
 121.5

Ground

GND/P
 125.275

Tower

LCL/P
 120.05

Other

ARNG OPS
FM
 36.7
ARNG OPS
 123.09
ARNG OPS
 142.6
OPS
ARNG C-26 CALL TORSO OPS
 139.3

Terminal Area Forecast

KLCK
Mon, 12/23 6:35 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 10:00 AM EST
Broken 12,000'
6sm
150° 5kts
VFR
10:00 AM EST - 10:00 PM EST
Overcast 10,000'
Scattered 6,000'
6sm
180° 8kts
VFR
10:00 PM EST - 1:00 AM EST
Light Rain
Overcast 3,500'
6sm
210° 9kts
MVFR
1:00 AM EST - 4:00 AM EST
Overcast 2,800'
6sm
220° 8kts
MVFR
4:00 AM EST - 7:00 AM EST
Overcast 1,500'
6sm
230° 6kts
IFR
Temporary 4:00 AM EST - 7:00 AM EST
Overcast 800'
N/A
Calm
KLCK 231135Z 2312/2412 15005KT P6SM BKN120
   FM231500 18008KT P6SM SCT060 OVC100
   FM240300 21009KT P6SM -RA OVC035
   FM240600 22008KT P6SM OVC028
   FM240900 23006KT P6SM OVC015
   TEMPO 2409/2412 OVC008
KLCK
Domestic
12/22/241845Z !LCK 12/098 LCK RWY 05R ALS NOT MNT 2412221845-2503312359
12/22/241845Z !LCK 12/097 LCK RWY 23R RWY END ID LGT U/S 2412221845-2503312300
12/18/242251Z !LCK 12/077 LCK NAV ILS RWY 23L PICKL LOM U/S 2412182251-PERM
12/6/241513Z !LCK 12/031 LCK NAV ILS RWY 23L OM U/S 2412061513-PERM
12/6/241507Z !LCK 12/029 LCK NAV ILS RWY 05R OM U/S 2412061507-PERM
12/6/241507Z !LCK 12/028 LCK NAV ILS RWY 05R COBBS LOM U/S 2412061507-PERM
12/6/240025Z !LCK 12/024 LCK NAV ILS RWY 05R U/S 2412060025-2506262000EST
12/6/240012Z !LCK 12/023 LCK NAV ILS RWY 23L NOT MNT 2412060012-2506262000EST
12/6/240007Z !LCK 12/022 LCK NAV ILS RWY 05L NOT MNT 2412060007-2506262000EST
12/5/241432Z !LCK 12/019 LCK NAV ILS RWY 05R CAT II NA 2412051432-2501202000EST
12/2/240352Z !LCK 12/007 LCK NAV ILS RWY 05R IM U/S 2412020352-2501062000EST
FDC
12/21/240926Z !FDC 4/0050 LCK IAP RICKENBACKER INTL, COLUMBUS, OH.
ILS OR LOC RWY 23L, AMDT 1B...
ILS OR LOC RWY 5L, AMDT 1C...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
XUB VOR UNMONITORED. 2412210926-2501220926EST
12/21/240922Z !FDC 4/0044 LCK IAP RICKENBACKER INTL, COLUMBUS, OH.
ILS OR LOC RWY 5L, AMDT 1C...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
APE VORTAC UNMONITORED. 2412210922-2501220922EST
12/3/241536Z !FDC 4/0549 LCK IAP RICKENBACKER INTL, COLUMBUS, OH.
ILS OR LOC RWY 5L, AMDT 1C...
ZOGAM FIX MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
I-FQS DME OUT OF SERVICE..
2412031536-2501151535EST
Yes
ALL
COLUMBUS RGNL AIRPORT AUTHORITY
4600 INTERNATIONAL GTWY
COLUMBUS, OH 43219-1779
Phone: 614-239-4000
JOSEPH NARDONE
7250 STAR CHECK DR
COLUMBUS, OH 43217-1025
Phone: 614-239-4000
DAYTON FSS (DAY)
Toll Free: 1-800-WX-BRIEF
LCK
--
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 05L/23R

11902 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

120,000lbs
195,000lbs
368,000lbs
854,000lbs
  Runway 05L Runway 23R
True Heading 45°225°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 48' 12"N 39° 49' 35"N
Longitude 82° 56' 39"W 82° 54' 50"W
Elevation 736' 737'
Threshold Crossing Height 70 ft. AGL 79 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 05R/23L

12103 ft. x 200 ft.
ASPH CONC
Excellent
GRVD
HIGH

120,000lbs
230,000lbs
449,000lbs
973,000lbs
  Runway 05R Runway 23L
True Heading 45°225°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 48' 04"N 39° 49' 28"N
Longitude 82° 56' 31"W 82° 54' 41"W
Elevation 735' 740'
Threshold Crossing Height 69 ft. AGL 78 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway H1

50 ft. x 50 ft.

CONC
NONE


--
--
--
--
  Runway H1 Runway
True Heading 95°275°
Traffic Pattern
Markings
Markings Condition
Latitude 39° 48' 14"N N/A
Longitude 82° 56' 55"W N/A
Elevation 728' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-11RSTD: ALL F/W MIL ACFT REQUIRING PARKING AND/OR SERVICE ON 121 ARW RAMP MUST HAVE PPR NR 48 HR PRIOR FR BASE OPS CALL DSN 696-4595 OR C614-492-4595.
A110-12RSTD; AMC ACFT OPR RSTD DUR BIRD WATCH CONDITION MODERATE (TKOF AND LDG PERMS ONLY WHEN DEP/ARR RTE AVOID IDENT BIRD ACT, NO LCL IFR/VFR TFC PAT) AND SEVERE(TKOF AND LDG PROH WO OG/CC APVL). CTC COMD POST FOR CURRENT BIRD WATCH COND CODE.
A110-13ANG; 121 ARW KC-135 R COMD POST DSN696-4468. LTD TRAN SVC AVBL , WKD 1200-2000++ EXE HOL. LTD TRAN FUEL/PRK, TRAN AIRCREW MUST ASSIST/PERFORM REFUEL OPR. FUEL AVBL ON ANG RAMP ON PRIOR REQ ONLY. ACFT SUPPORT NOT COORD BY PPR 48 HR PRIOR WITH 121 ARW MAY NOT BE AVBL.
A110-14ARNG; OPR 1200-2100Z++ WKD EXC HOL. NO TRAN SVC AFTER 1900Z++, DSN346-6411,C614-336-6411.
A110-15REMARK; SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-16LGT; BDRY LGT AVBL.
A110-17JASU: 6(A/M32A-86) 9(B809) 4(AM32-95).
A110-18FLUID: SP PRESAIR LHOX.
A110-19OIL; O-128.
A110-20TRAN ALERT: LTD SVC AVBL BUT NO PPR RQR. NO ANG TRAN SVC OFF ANG RAMP.
A110-21ACFT GTR THAN 300000 LB RSTRD TO RWY 05R/23L WHEN BOTH RWYS AVBL.
A110-4ARNG; CTC C-26 OPS PRIOR TO ENTERING C-26 RAMP/PARKING AREA. DSN346-6473, C6143366473.
A110-5BIRDS ON & INVOF ARPT.
A110-7CONTACT GND CTL FOR CLNC PRIOR TO PUSHBACK ONTO TWY 'A' FM CARGO RAMP 2.
A110-8NOISE ABATEMENT PROC IN EFCT FM 2300-0700; DEP RWY 23L & 23R WINDS 10 KNOTS OR LESS; ARR RWY 05L & 05R WINDS 10 KNOTS OR LESS; ARPT OPS 614-374-1869.
RICKENBACKER INTL (ICAO: KLCK, IATA: LCK) is a public airport located in COLUMBUS, OH.
