KLDM
MASON COUNTY
PublicPUB

2 miles NE of LUDINGTON, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 57' 45"N 86° 24' 28"W
647' MSL
1647' MSL
03W
JET A (FSII), 100LL
LANSING (LAN)
CHICAGO
MINNEAPOLIS (ZMP)
2/20/25-3/20/25
KLDM VFR
10:15 AM EDT
Clear
10sm
40°F
33°F
29.90"Hg
230° 7kts
AO2 T00470003
KLDM 091415Z AUTO 23007KT 10SM CLR 05/00 A2990 RMK AO2 T00470003
Add Your Business

KLDM FBOs

Promote Listing
Mason County Airport
UNICOM: 123.0
Phone: (231) 843-2049
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 3/4
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.87
Full Serve 4.96
Fuel Notes
Prices include tax
JET A is premixed with Prist (FSII). No fuel truck available.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3

AWOS-3
231-843-0459
 119.925

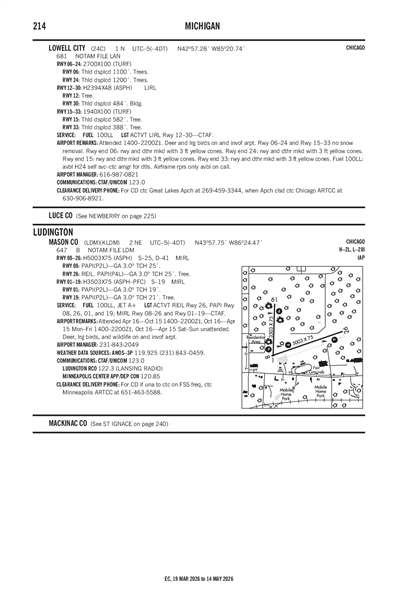

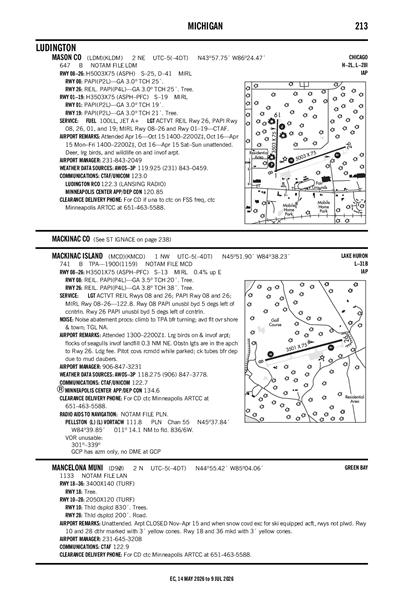

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMBL (20nm)
Sun, 3/9 7:20 AM EDT
Sun, 3/9 8:00 AM EDT - Mon, 3/10 8:00 AM EDT
VFR
8:00 AM EDT - 11:00 AM EDT
Few 25,000'
6sm
VRB° 3kts
VFR
11:00 AM EDT - 5:00 PM EDT
Broken 15,000'
Scattered 5,000'
6sm
210° 8kts
VFR
5:00 PM EDT - 10:00 PM EDT
Broken 15,000'
6sm
230° 12kts
Gusts 21kts
Shear 260° 40kts @ 2000'
VFR
10:00 PM EDT - 8:00 AM EDT
Few 25,000'
6sm
260° 6kts
KMBL 091120Z 0912/1012 VRB03KT P6SM FEW250
   FM091500 21008KT P6SM SCT050 BKN150
   FM092100 23012G21KT P6SM BKN150 WS020/26040KT
   FM100200 26006KT P6SM FEW250
KLDM
Domestic
2/20/251200Z !LDM 02/019 LDM OBST CRANE (ASN 2024-AGL-7422-OE) 435730N0862545W (1.0NM WSW LDM) 843FT (196FT AGL) FLAGGED AND LGTD DLY 1200-2100 2502201200-2503142100
2/15/251817Z !LDM 02/028 LDM RWY 26 PAPI U/S 2502151817-2504302200EST
2/15/251817Z !LDM 02/027 LDM RWY 01 PAPI U/S 2502151817-2504302200EST
2/15/251817Z !LDM 02/026 LDM RWY 19 PAPI U/S 2502151817-2504302200EST
1/29/250322Z !LDM 01/040 LDM OBST TOWER LGT (ASR 1044960) 440339.80N0862503.60W (5.9NM N LDM) 990.8FT (305.8FT AGL) U/S 2501290322-2503150321
1/10/251445Z !LDM 01/009 LDM RWY 08 PAPI UNUSABLE 2501101445-2507102111EST
FDC
2/20/251400Z !FDC 5/4136 LDM IAP MASON COUNTY, LUDINGTON, MI.
RNAV (GPS) RWY 26, ORIG-D...
CIRCLING CAT A MDA 1200/HAA 553.
TEMPORARY CRANE, 843 MSL, 5820FT WEST OF KLDM AIRPORT (2024-AGL-7422-OE).
2502201400-2503282355EST
2/20/251400Z !FDC 5/4135 LDM IAP MASON COUNTY, LUDINGTON, MI.
RNAV (GPS) RWY 8, ORIG-F...
LNAV MDA 1160/HAT 517 ALL CATS.
CIRCLING CAT A MDA 1200/HAA 553.
TEMPORARY CRANE, 843 MSL, 4168FT WEST OF RWY 8 (2024-AGL-7422-OE).
2502201400-2503282355EST
2/20/251400Z !FDC 5/4134 LDM ODP MASON COUNTY, LUDINGTON, MI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7...
TAKEOFF MINIMUMS RWY 26, 300-1 OR PROCEDURE NA. TAKEOFF OBSTACLE NOTES: RWY 26, TEMPORARY CRANE, 3795FT FROM DER, 1004FT RIGHT OF CENTERLINE, 196 AGL/843 MSL (2024-AGL-7422-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2502201400-2503282355EST
No
APR 16-OCT 15 0900-1700
OCT 16-APR 15 MON-FRI 0900-1700
OCT 16-APR 15 SAT-SUN UNATNDD
COUNTY OF MASON
COURTHOUSE, 304 E LUDINGTON AVE
LUDINGTON, MI 49431-2121
Phone: 231-843-8202
JOHN L O'CONNOR
5300 W US HIGHWAY 10
LUDINGTON, MI 49431-8704
Phone: 231-843-2049
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LDM
--
ACTVT REIL RWY 26; PAPI RWY 08, 26, 01, & 19; MIRL RWY 08/26 & 01/19 - CTAF.
N/A
Yes
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 01/19

3503 ft. x 75 ft.
ASPH
Good
PFC
MED

19,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 2°182°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 43° 57' 33"N 43° 58' 08"N
Longitude 86° 24' 47"W 86° 24' 46"W
Elevation 641' 637'
Threshold Crossing Height 19 ft. AGL 21 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 08/26

5003 ft. x 75 ft.
ASPH
Excellent
NONE
MED

25,000lbs
41,000lbs
--
--
  Runway 08 Runway 26
True Heading 71°251°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 57' 33"N 43° 57' 49"N
Longitude 86° 24' 48"W 86° 23' 44"W
Elevation 642' 646'
Threshold Crossing Height 25 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-1BIRDS, DEER, & WILDLIFE ON & INVOF ARPT.
A110-2FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
MASON COUNTY (ICAO: KLDM, IATA: LDM) is a public airport located in LUDINGTON, MI.
