iFlightPlanner



...

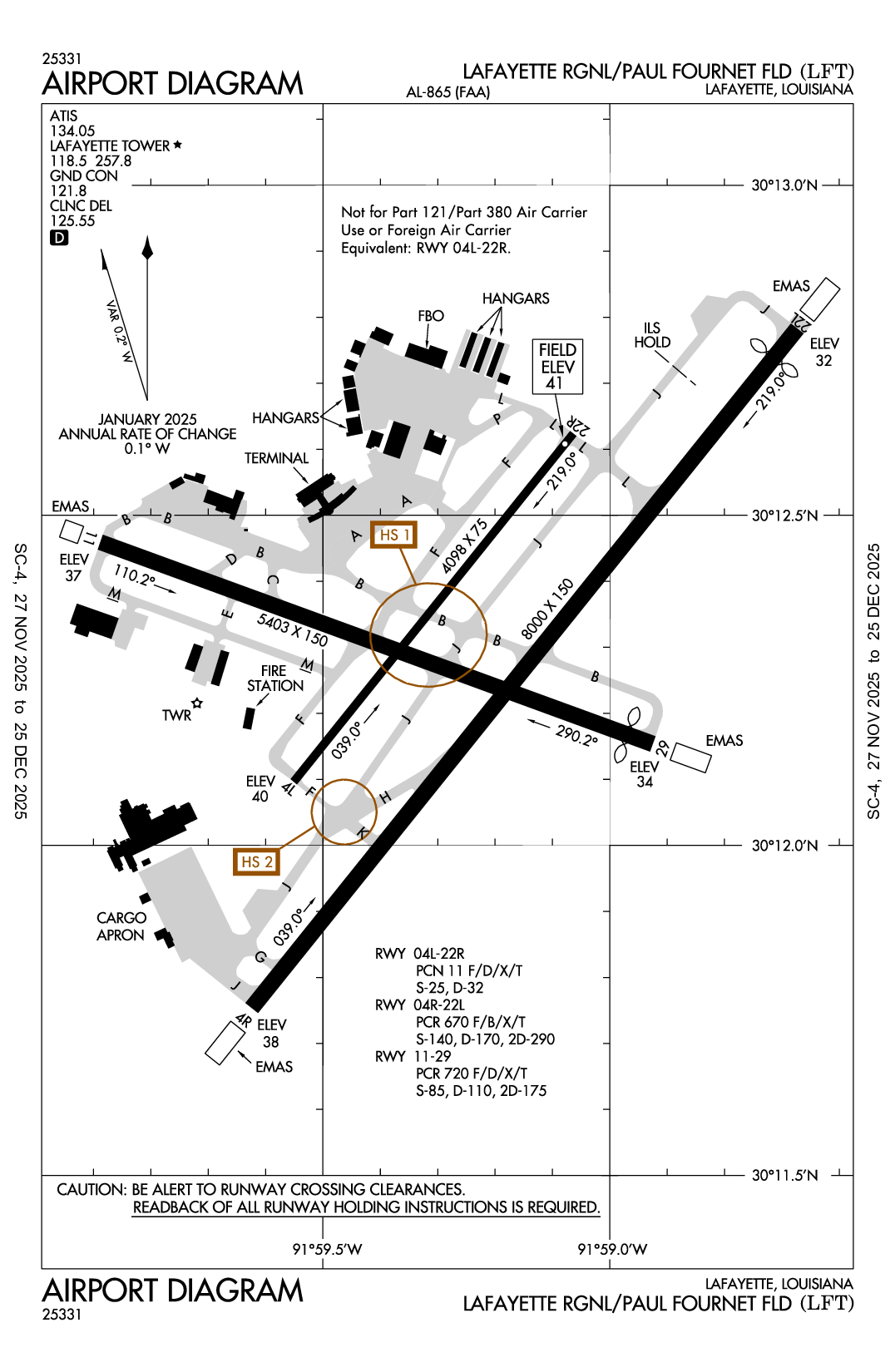

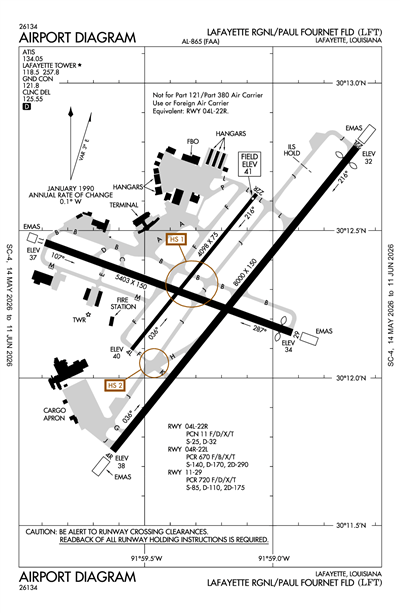

LAFAYETTE RGNL/PAUL FOURNET FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLFT
LAFAYETTE RGNL/PAUL FOURNET FLD
PublicPUB

2 miles SE of LAFAYETTE, LA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 12' 18"N 91° 59' 16"W
42' MSL
1042' MSL
03E
Jet A, Jet A+, 100LL
DE RIDDER (DRI)
HOUSTON
HOUSTON (ZHU)
4/18/24-5/16/24
KLFT VFR
6:53 PM CDT
Clear
10sm
86°F
64°F
29.81"Hg
050° 3kts
AO2 SLP094 T03000178 10322 20300 55004
KLFT 152353Z 05003KT 10SM CLR 30/18 A2981 RMK AO2 SLP094 T03000178 10322 20300 55004
List Your Business

KLFT FBOs, Flight Schools and Ground Support

Promote Listing
Signature Aviation
Freq: 122.95
Phone: (337) 234-3100
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/15
 100LL Jet A Jet A+ Mogas UL94
Self Serve 8.10
Full Serve 7.98 7.67

KLFT Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLFT Hotels

No hotels are listed for this airport.

KLFT Restaurants

No restaurants are listed for this airport.

KLFT Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.5

ATIS

ATIS
 134.05

ASOS

ASOS
(337)262-2757
 134.05

Approach/Departure

APCH/P DEP/P
211-019
 128.7
APCH/P DEP/P IC
020-210
 121.1

Clearance Delivery

CD/P
 125.55

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 118.5

Other

CLASS C
020-210
 121.1
CLASS C
211-019
 128.7

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLFT
Wed, 5/15 6:20 PM CDT
Wed, 5/15 7:00 PM CDT - Thu, 5/16 7:00 PM CDT
VFR
7:00 PM CDT - 12:00 PM CDT
Few 25,000'
6sm
VRB° 6kts
VFR
12:00 PM CDT - 3:00 PM CDT
Scattered 22,000'
6sm
140° 7kts
VFR
3:00 PM CDT - 7:00 PM CDT
Overcast 10,000'
6sm
140° 7kts
Gusts 15kts
KLFT 152320Z 1600/1624 VRB06KT P6SM FEW250
   FM161700 14007KT P6SM SCT220
   FM162000 14007G15KT P6SM OVC100
KLFT
Domestic
5/16/241400Z !LFT 05/058 LFT RWY 22L ALS U/S 2405161400-2405161700
5/14/241113Z !LFT 05/050 LFT OBST TOWER LGT (ASR 1231098) 301456.10N0921023.90W (10.0NM WNW LFT) 354.0FT (319.9FT AGL) U/S 2405141113-2409111113
5/14/240115Z !LFT 05/045 LFT OBST TOWER LGT (ASR 1025303) 301723.00N0915602.00W (5.8NM NNE LFT) 229.0FT (205.1FT AGL) U/S 2405140115-2408110400
5/14/240042Z !LFT 05/043 LFT OBST TOWER LGT (ASR 1283418) 302101.70N0915645.20W (9.0NM NNE LFT) 301.8FT (286.1FT AGL) U/S 2405140042-2405282342
5/14/240016Z !LFT 05/040 LFT OBST TOWER LGT (ASR 1285437) 301551.80N0914745.70W (10.7NM ENE LFT) 296.6FT (290.0FT AGL) U/S 2405140016-2406280016
5/14/240000Z !LFT 05/038 LFT OBST TOWER LGT (ASR 1021567) 300611.80N0915932.30W (6.1NM S LFT) 577.8FT (549.9FT AGL) U/S 2405140000-2408110400
5/13/242345Z !LFT 05/036 LFT OBST TOWER LGT (ASR 1023303) 301918.00N0914831.00W (11.7NM NE LFT) 328.1FT (310.0FT AGL) U/S 2405132345-2408110400
5/13/242342Z !LFT 05/035 LFT OBST TOWER LGT (ASR 1272134) 301124.60N0915238.30W (5.8NM E LFT) 274.6FT (259.8FT AGL) U/S 2405132342-2409102342
5/13/242325Z !LFT 05/034 LFT OBST TOWER LGT (ASR 1215451) 300735.20N0920718.90W (8.5NM SW LFT) 281.8FT (258.9FT AGL) U/S 2405132325-2405280400
5/13/242325Z !LFT 05/033 LFT OBST TOWER LGT (ASR 1227016) 301149.40N0920555.50W (5.8NM W LFT) 295.9FT (266.1FT AGL) U/S 2405132325-2405280400
5/13/242320Z !LFT 05/032 LFT OBST TOWER LGT (ASR 1264275) 301454.80N0921340.70W (12.8NM WNW LFT) 381.9FT (350.1FT AGL) U/S 2405132320-2408110400
5/13/241910Z !LFT 05/029 LFT OBST TOWER LGT (ASR 1021365) 301126.00N0920447.00W (4.9NM W LFT) 419.0FT (390.1FT AGL) U/S 2405131910-2406132359
5/13/240240Z !LFT 05/028 LFT OBST TOWER LGT (ASN 2010-ASW-2570-OE) 301419.10N0915247.50W (6.8NM ENE LFT) 384FT (360FT AGL) U/S 2405130240-2405272300
4/26/241322Z !LFT 04/049 LFT TWY B WEST 200FT CLSD LGTD AND BARRICADED 2404261322-2405312200
4/26/241317Z !LFT 04/048 LFT TWY C, D, E CLSD 2404261317-2405312200
4/26/241316Z !LFT 04/047 LFT RWY 11/29 CLSD 2404261316-2405312200
4/26/241308Z !LFT 04/046 LFT TWY M BTN APCH END RWY 11 AND TWY E CLSD 2404261308-2405312200
4/25/241933Z !LFT 04/041 LFT RWY 11/29 SFC MARKINGS NOT STD 2404251933-2405312100
4/18/240515Z !LFT 04/029 LFT OBST TOWER LGT (ASR 1022612) 301022.90N0920802.20W (7.9NM WSW LFT) 627.0FT (601.0FT AGL) U/S 2404180515-2408160515
2/20/241227Z !LFT 02/023 LFT NAV VOR GND REC CHECKPOINT FOR TWY F U/S 2402201227-2405312000
1/3/242222Z !LFT 01/009 LFT OBST TOWER LGT (ASR 1026813) 301207.00N0914637.00W (10.95NM E LFT) 1049FT (1040FT AGL) U/S 2401032222-2406302359
12/19/231334Z !LFT 12/018 LFT TWY B BTN APCH END RWY 29 AND RWY 04R/22L CLSD 2312191334-2412272300
12/19/231333Z !LFT 12/017 LFT RWY 04L/22R CLSD 2312191333-2412272300
12/19/231332Z !LFT 12/016 LFT RWY 29 E 1250FT CLSD 2312191332-2412272300
FDC
4/28/241055Z !FDC 4/5951 LFT IAP LAFAYETTE RGNL/PAUL FOURNET FLD, LAFAYETTE, LA.
ILS OR LOC RWY 4R, AMDT 2F...
VOR/DME RWY 11, AMDT 1G...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LSU VORTAC UNMONITORED. 2404281055-2405281055EST
4/3/241648Z !FDC 4/6232 LFT IAP LAFAYETTE RGNL/PAUL FOURNET FLD, LAFAYETTE, LA.
RNAV (GPS) RWY 29, AMDT 1...
RNAV (GPS) RWY 4R, AMDT 2...
CIRCLING CATS A/B MDA 600/HAA 558.
TEMPORARY TERMINAL EQUIPMENT, 249 MSL, BEGINNING 3428FT NW OF APCH END RWY 29 (2019-ASW-625 THRU 628-NRA).
2404031648-2411131648EST
4/3/241648Z !FDC 4/6230 LFT IAP LAFAYETTE RGNL/PAUL FOURNET FLD, LAFAYETTE, LA.
ILS OR LOC RWY 22L, AMDT 5E...
ILS OR LOC RWY 4R, AMDT 2F...
RNAV (GPS) RWY 22L, AMDT 1D...
CIRCLING CATS A/B MDA 600/HAA 558. TEMPORARY TERMINAL EQUIPMENT, 249 MSL, BEGINNING 3428FT NW OF APCH END RWY 29 (2019-ASW-625 THRU 628-NRA).
2404031648-2411131648EST
6/21/231547Z !FDC 3/4203 LFT ODP LAFAYETTE RGNL/PAUL FOURNET FLD, LAFAYETTE, LA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2A...
TAKEOFF OBSTACLE NOTES: RWY 22R, SIDE MOUNT ANTENNA, 2889 FT FROM DER, 1047 FT RIGHT OF CENTERLINE, 130 AGL/164 MSL (2021-ASW-7276-OE PERMANENT).
ALL OTHER DATA REMAINS AS PUBLISHED. 2306211547-2506211547EST
5/2/231932Z !FDC 3/0169 LFT IAP LAFAYETTE RGNL/PAUL FOURNET FLD, LAFAYETTE, LA.
RNAV (GPS) RWY 29, AMDT 1...
PROCEDURE NA.
2305021932-2505021932EST
Yes
ALL
CITY PARISH OF LAFAYETTE
200 TERMINAL DRIVE, SUITE 200
LAFAYETTE, LA 70508
Phone: 337-703-4800
STEVEN L. PICOU, EXECUTIVE DIRECTOR
200 TERMINAL DRIVE, SUITE 200
LAFAYETTE, LA 70508-2124
Phone: 337-703-4800
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
LFT
--
DUSK-DAWN. WHEN ATCT CLSD ACTVT MALSR RWY 22L - CTAF; MIRL RWY 04L/22R NOT AVBL.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
66
14
31
5
0
0
Major
Major
Low Pressure
High Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04L/22R

4099 ft. x 75 ft.
ASPH
Fair
NONE
MED
11 /F/D/X/T
25,000lbs
32,000lbs
--
--
  Runway 04L Runway 22R
True Heading 39°219°
Traffic Pattern Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 30° 12' 06"N 30° 12' 37"N
Longitude 91° 59' 33"W 91° 59' 04"W
Elevation 41' 42'
Threshold Crossing Height 26 ft. AGL 26 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 04R/22L

8000 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
67 /F/C/X/T
140,000lbs
170,000lbs
290,000lbs
--
  Runway 04R Runway 22L
True Heading 39°219°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 30° 11' 45"N 30° 12' 47"N
Longitude 91° 59' 37"W 91° 58' 40"W
Elevation 39' 33'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 11/29

5400 ft. x 148 ft.
ASPH
Good
GRVD
MED
5 /F/D/X/T
85,000lbs
110,000lbs
175,000lbs
--
  Runway 11 Runway 29
True Heading 110°290°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 12' 28"N 30° 12' 09"N
Longitude 91° 59' 53"W 91° 58' 55"W
Elevation 37' 35'
Threshold Crossing Height 36 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1RWY 11/29; RWY 04L/22R & RWY 04R/22L LGTD DISTANCE REMAINING SIGNS.
A110-11CTC GND CTL PRIOR TO PUSH BACK FM TERMINAL.
A110-13USE CTN TWR BLIND SPOTS ON TWY M EAST & WEST OF TWY E.
A110-14FOR CD IF UNA TO CTC ON FSS FREQ, CTC HOUSTON ARTCC AT 281-230-5622.
A110-15TAXILANE A AND ALL PRKG RAMPS ARE NON-MOVEMENT AREAS.
A110-16ATCT HAS LTD VIS OF NORTH PRKG RAMP.
A110-4155 FT OIL RIG 1 NM SE OF ARPT.
A110-6MIGRATORY BIRDS ON & INVOF ARPT.
LAFAYETTE RGNL/PAUL FOURNET FLD (ICAO: KLFT, IATA: LFT) is a public airport located in LAFAYETTE, LA.
