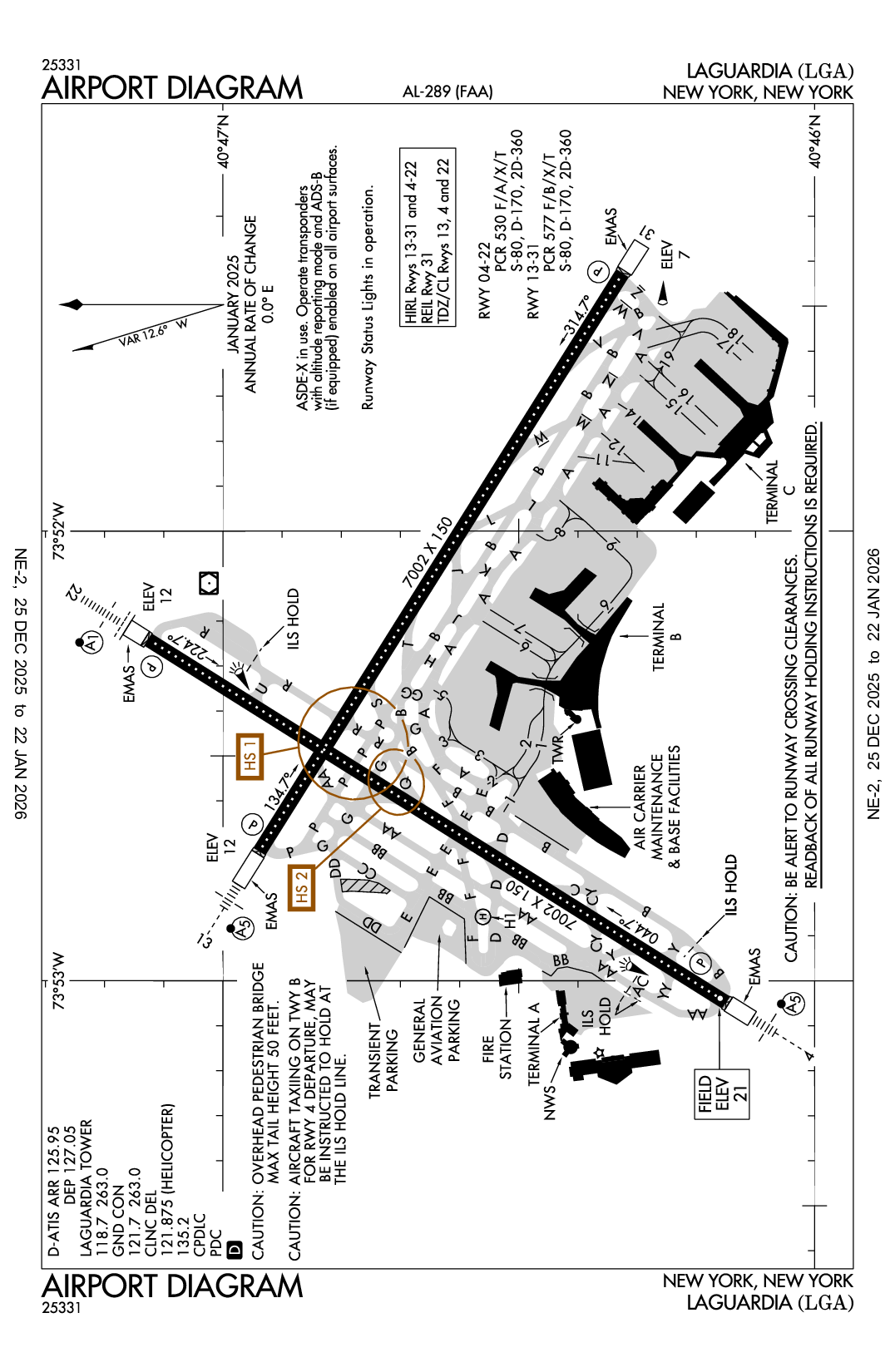

LAGUARDIA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLGA
LAGUARDIA
PublicPUB

4 miles E of NEW YORK, NY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 46' 38"N 73° 52' 21"W
21' MSL
1021' MSL
12W
JET A, 100LL
NEW YORK (ISP)
NEW YORK
NEW YORK (ZNY)
11/28/24-12/26/24
KLGA VFR
6:51 AM EST
Few 25,000'
10sm
13°F
0°F
30.65"Hg
360° 5kts
AO2 SLP379 T11061178 11094 21111 53008
KLGA 231151Z 36005KT 10SM FEW250 M11/M18 A3065 RMK AO2 SLP379 T11061178 11094 21111 53008
Add Your Business

KLGA FBOs

Promote Listing
Modern Aviation
UNICOM: 129.7
Phone: (718) 779-4040
No Rating Available
0 Reviews (Read | Sign In To Write)
Chevron, Titan
As of 12/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.11 9.16 9.26
Fuel Notes
Prices include tax

KLGA Ground Transportation (Taxi, Limo, Car Service)

Bermuda Limousine International
Phone: (212) 647-8400
Fax: (212) 633-2685
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
718-424-4713
 125.95
D-ATIS
718-424-4713
 127.05

Clearance Delivery

CD PRE TAXI CLNC
 135.2
CD/P
HELICOPTER
 121.875

Emergency

EMERG
 121.5

Ground

GND/P
 121.7
GND/S
 121.85
GND/S
 127.675

Tower

LCL/P
 118.7

Other

CLASS B
NORTH, FREQS WITHIN 6 NM ARE TWR CNT
 126.05
CLASS B
SOUTH
 126.05

Terminal Area Forecast

KLGA
Mon, 12/23 6:32 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 1:00 PM EST
VFR
7:00 AM EST - 10:00 AM EST
Few 25,000'
6sm
010° 7kts
VFR
10:00 AM EST - 4:00 PM EST
Scattered 25,000'
6sm
VRB° 5kts
VFR
4:00 PM EST - 1:00 AM EST
Broken 15,000'
6sm
190° 7kts
VFR
1:00 AM EST - 8:00 AM EST
Broken 15,000'
6sm
220° 9kts
MVFR
6:00 AM EST - 8:00 AM EST
Light Snow
Overcast 5,000'
Scattered 2,000'
5sm
Calm
VFR
8:00 AM EST - 1:00 PM EST
Overcast 5,000'
6sm
250° 10kts
IFR
9:00 AM EST - 1:00 PM EST
Light Snow
Broken 1,200'
2sm
Calm
KLGA 231132Z 2312/2418 01007KT P6SM FEW250
   FM231500 VRB05KT P6SM SCT250
   FM232100 19007KT P6SM BKN150
   FM240600 22009KT P6SM BKN150
   PROB30 2411/2413 5SM -SN SCT020 OVC050
   FM241300 25010KT P6SM OVC050
   PROB30 2414/2418 2SM -SN BKN012
KLGA
Domestic
12/23/241039Z !LGA 12/373 LGA TWY DD CLSD 2412231039-2412231500
12/23/240157Z !LGA 12/370 LGA TWY AC BTN TERMINAL A RAMP AND TWY AA CLSD 2412230157-2412261100
11/29/240416Z !LGA 11/387 LGA AD AP BIRD ACT MIGRATORY 2411290416-2412311100
11/23/240523Z !LGA 11/318 LGA APRON TXL NUMBER 1 DIRECTION MARKINGS REMOVED 2411230523-2412311200
11/17/241604Z !LGA 11/229 LGA RWY 13 LEAD OFF CL MARKINGS SE SIDE OBSC 2411171604-2501311000
11/17/241554Z !LGA 11/228 LGA RWY 13/31 CL MARKINGS E SIDE OBSC 2411171554-2502281000
11/5/241846Z !LGA 11/064 LGA TWY S HLDG PSN SIGN FOR RWY 13/31 EAST SHOULDER NOT STD 2411051846-2412311000
11/5/241841Z !LGA 11/063 LGA TWY T HLDG PSN SIGN FOR RWY 13/31 EAST SHOULDER NOT STD 2411051841-2412311000
11/5/241824Z !LGA 11/062 LGA TWY J HLDG PSN SIGN FOR RWY 13/31 EAST SHOULDER NOT STD 2411051824-2412311000
11/5/241808Z !LGA 11/061 LGA RWY 22 LEAD OFF CL MARKINGS OBSC 2411051808-2412271000
10/17/242011Z !LGA 10/287 LGA OBST BLDG (ASN UNKNOWN) 404602N0735238W (0.4201698NM NE APCH END RWY 04)
UNKNOWN (71FT AGL) NOT LGTD 2410172011-2506300001
10/11/241305Z !LGA 10/198 LGA OBST CRANE (ASN 2023-AEA-3981-NRA) 404618N0735141W (0.6NM ESE LGA) 101FT (100FT AGL) FLAGGED AND LGTD 2410111305-2412311000
9/30/240618Z !LGA 09/431 LGA APRON TXL NUMBER 15 WIP OPN EXCAVATION ADJ W SIDE LGTD AND BARRICADED 2409300618-2412311100
9/30/240617Z !LGA 09/430 LGA APRON TXL NUMBER 15 WIP OPN EXCAVATION ADJ E SIDE LGTD AND BARRICADED 2409300617-2412311100
9/25/241801Z !LGA 09/361 LGA APRON TXL 3 CL MARKIINGS BTN TWY A AND TERMINAL B RAMP REMOVED 2409251801-2506300400
9/21/241044Z !LGA 09/301 LGA APRON TXL NUMBER 3 BTN TWY A AND TERMINAL B RAMP CLSD 2409211044-2412311100
9/20/241207Z !LGA 09/289 LGA TWY A BTN TWY E AND TWY GG CLSD TO ACFT WINGSPAN MORE THAN 118FT 2409201207-2412311000
9/20/241205Z !LGA 09/288 LGA TWY A BTN TWY E AND TWY GG WIP CONST OPEN EXCAVATIONS LGTD AND BARRICADED 2409201205-2506011000
9/20/241056Z !LGA 09/285 LGA TWY B BTN TWY E AND TXL NUMBER 1 WIP OPN EXCAVATION ADJ LGTD AND BARRICADED 2409201056-2412310001
9/10/241812Z !LGA 09/138 LGA OBST CRANE (ASN 2024-AEA-1039-NRA) 404627N0735224W (0.2NM S LGA) 259FT (250FT AGL) FLAGGED AND LGTD 2409101812-2510051000
4/19/241501Z !LGA 04/212 LGA OBST BUILDING (ASN UNKNOWN) 404415N0734700W (4.8NM SE LGA) 289FT (215FT AGL) NOT LGTD 2404191501-2604192359
3/30/240926Z !LGA 03/315 LGA TWY A BTN TXL NUMBER 11 AND TXL NUMBER 18 CLSD TO ACFT WINGSPAN MORE THAN 118FT 2403300926-2412311200
3/6/241508Z !LGA 03/074 LGA APRON TXL NUMBER 14 NONMOVEMENT AREA BDRY MARKINGS REMOVED 2403061508-2412311200
3/6/241502Z !LGA 03/070 LGA APRON TXL NUMBER 15 NONMOVEMENT AREA BDRY MARKINGS REMOVED 2403061502-2412311200
3/6/241502Z !LGA 03/069 LGA APRON TXL NUMBER 12 NONMOVEMENT AREA BDRY MARKINGS REMOVED 2403061502-2412311200
3/6/241501Z !LGA 03/068 LGA APRON TXL NUMBER 11 NONMOVEMENT AREA BDRY MARKINGS REMOVED 2403061501-2412311200
1/10/241525Z !LGA 01/103 LGA OBST CRANE (ASN 2017-AEA-831-NRA) 404605N0735139W (.8NM SE LGA) 236FT (230FT AGL) FLAGGED AND LGTD 2401101525-2412311200
9/15/231826Z !LGA 09/167 LGA OBST BLDG (ASN 2023-AEA-3548-OE) 404530N0735708W (4.28NM SW LGA) 340FT (314FT AGL) NOT LGTD 2309151826-2504302359
FDC
12/11/241320Z !FDC 4/4850 LGA ODP LAGUARDIA, NEW YORK, NY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 10...
ADD TAKEOFF OBSTACLE NOTES: RWY 22, TEMPORARY CELL TOWER 1809FT FROM DER, 294FT LEFT OF CENTERLINE, 51FT AGL/74FT MSL (2023-AEA-689-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2412111320-2502261319EST
12/5/242127Z !FDC 4/2518 LGA SID LAGUARDIA, NEW YORK, NY.
LAGUARDIA SEVEN DEPARTURE...
COATE, ELIOT, ZIMMZ, NEWEL DEPARTURES: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, SAX VORTAC OUT OF SERVICE. 2412052127-2507172127EST
7/23/241141Z !FDC 4/6075 LGA IAP LAGUARDIA, NEW YORK, NY.
RNAV (GPS) Z RWY 13, AMDT 1D...
PROCEDURE NA.
2407231141-2503041141EST
6/26/241611Z !FDC 4/3958 LGA SID LAGUARDIA, NEW YORK, NY.
LAGUARDIA SEVEN DEPARTURE...
NOTE: PARKE DEPARTURE VIA BWZ R-250 NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BWZ VOR/DME OUT OF SERVICE. 2406261611-2502051611EST
6/4/241659Z !FDC 4/3139 LGA IAP LAGUARDIA, NEW YORK, NY.
ILS OR LOC RWY 13, AMDT 2C...
S-LOC 13 MDA 880/HAT 868 ALL CATS. VISIBILITY CAT C/D 2. CIRCLING MDA 880/HAA 859 CAT A/B. VDP AT I-GDI 2.86 DME; DISTANCE VDP TO THLD 2.46 NM. COROR FIX MINIMUMS NA. DISREGARD NOTE: FOR INOP ALS, INCREASE S-LOC 13 CATS C/D VISIBILITY TO 2 1/2 SM. ALTERNATE MINS: LOC, CAT A/B 900-2, CAT C 1100-3, CAT D 1300-3. PERM BLDG (36-197371) 611FT MSL (1A).
2406041659-2606041659EST
4/4/241435Z !FDC 4/6855 LGA ODP LAGUARDIA, NEW YORK, NY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 10...
TAKEOFF MINIMUMS: RWY 22, STANDARD WITH MINIMUM CLIMB OF 213 FT PER NM TO 1400.
ALL OTHER DATA REMAINS AS PUBLISHED. 2404041435-2604141435EST
3/12/241412Z !FDC 4/6150 LGA SID LAGUARDIA, NEW YORK, NY.
LAGUARDIA SEVEN DEPARTURE...
DIXIE AND WHITE DEPARTURES: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, COL VOR OUT OF SERVICE. 2403121412-2603121412EST
Yes
ALL
PORT. AUTH. OF N.Y. & N.J.
4 WORLD TRADE CENTER
NEW YORK, NY 10048
Phone: 212-435-3703
ANTHONY VERO
HANGAR #7, THIRD FLOOR
FLUSHING, NY 11371
Phone: 718-533-3401
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
LGA
--
--
N/A
Yes - Lighted
No
Yes
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service

Runway 04/22

7002 ft. x 150 ft.
ASPH CONC
Excellent
GRVD
HIGH

80,000lbs
170,000lbs
360,000lbs
--
  Runway 04 Runway 22
True Heading 32°212°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 46' 09"N 40° 47' 08"N
Longitude 73° 53' 03"W 73° 52' 14"W
Elevation 20' 12'
Threshold Crossing Height 54 ft. AGL 67 ft. AGL
Visual Glide Path Angle 3.14° 3°
Visual Slope Indicator P4R P4R
Approach Lights MALSR ALSF1
Centerline Lights Yes Yes
Runway End Identifier Lights No

Runway 13/31

7002 ft. x 150 ft.
ASPH CONC
Excellent
GRVD
HIGH

80,000lbs
170,000lbs
360,000lbs
--
  Runway 13 Runway 31
True Heading 122°302°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 46' 56"N 40° 46' 19"N
Longitude 73° 52' 43"W 73° 51' 26"W
Elevation 12' 6'
Threshold Crossing Height 55 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3.1° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No Yes

Runway H1

45 ft. x 45 ft.
ASPH
Excellent
NONE


--
--
--
--
  Runway H1 Runway
True Heading 101°281°
Traffic Pattern
Markings
Markings Condition
Latitude 40° 46' 34"N N/A
Longitude 73° 52' 51"W N/A
Elevation 12' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FLOCKS OF BIRDS ON & INVOF ARPT.
A110-14CODED TRANSPONDER RQRD. VFR RSVN INFO AVBL ON ATIS.
A110-17SHIP MASTS IN APCH RWY 31.
A110-22FOR NOISE ABATEMENT RSTRNS CALL 212-435-3782 DURG NML BUS HRS.
A110-23B767-400 ACFT RSTRD TO 10 KTS ON TWYS DD, Z, B & AA.
A110-24RWY 13 PAPI & ILS NOT COINCIDENT.
A110-28H1 LCTD INTXN TWYS BB BTN TWYS D & F.
A110-30TWYS F & D WEST OF TWY BB CLSD TO ACFT WITH WINGSPANS IN EXCESS OF 125 FT.
A110-32OBST SIGN STRUCTURE UNKN (39 AGL) 500 FT E RWY 4/22 CNTRLN & 4800 FT S RWY 13/31 CNTRLN.
A110-36HEL PAD LCTD AT INTXN OF TWY D & TWY F CLSD INDEFLY.
A110-38RUNWAY STATUS LIGHTS IN OPERATION.
A110-4SPECIAL AIR TFC RULES-PART 93; HIGH DENSITY ARPT; PRIOR RSVN RQRD; SEE AIM.
A110-40OVHD PAX BRIDGES ON N SIDE OF TERMINAL B PRVD 50 FT TAIL HGT CLNC WHEN ON TAXILANE CNTRLN.
A110-41RWY 13/31: NW 944 FT OF RWY IS A DECK OVR WTR; RWY FRICTION MAY BE DIFFERENT THAN RMNG PTN OF RWY DURG WINT WX.
A110-42RWY 04/22: NE 1776 FT OF RWY IS A DECK OVR WTR; RWY FRICTION MAY BE DIFFERENT THAN RMNG PTN OF RWY DURG WINT WX.
A110-6MAG ANOMALIES MAY AFFECT COMPASS HDG WHEN USING EXTENSION RWYS 13 & 22 FOR TKOF.
A110-7TWYS G, P, R & U CONCRETE DECK RSTD TO 5KT TURNS; 10KTS STRAIGHT.
LAGUARDIA (ICAO: KLGA, IATA: LGA) is a public airport located in NEW YORK, NY.
