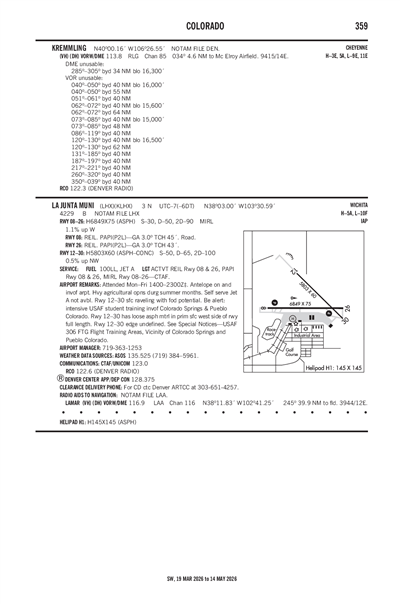

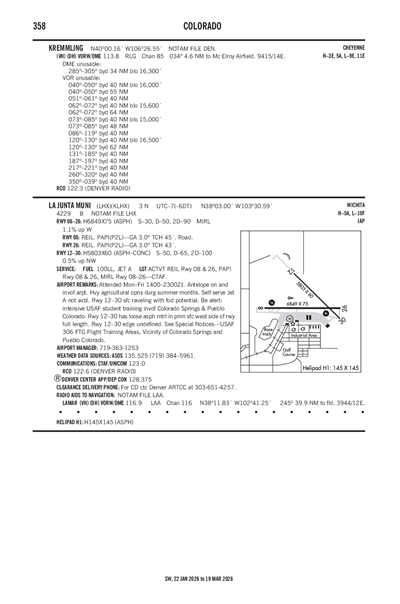

LA JUNTA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLHX
LA JUNTA MUNI
PublicPUB

3 miles N of LA JUNTA, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 02' 60"N 103° 30' 35"W
4229' MSL
5229' MSL
09E
JET A, 100LL
DENVER (DEN)
WICHITA
DENVER (ZDV)
12/26/24-1/23/25
KLHX VFR
8:53 AM MST
Clear
10sm
24°F
10°F
30.21"Hg
010° 15kts
AO2 SLP276 T10441122 $
KLHX 221553Z AUTO 01015KT 10SM CLR M04/M12 A3021 RMK AO2 SLP276 T10441122 $
Add Your Business

KLHX FBOs

Promote Listing
La Junta Municipal Airport
UNICOM: 123.0
Phone: (719) 384-8407
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/23/2024
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.30
Full Serve 6.50 6.35
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
719-384-5961
 135.525

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPUB (49nm)
Wed, 1/22 4:34 AM MST
Wed, 1/22 5:00 AM MST - Thu, 1/23 5:00 AM MST
VFR
5:00 AM MST - 8:00 AM MST
Few 20,000'
6sm
330° 12kts
VFR
8:00 AM MST - 12:00 PM MST
Scattered 20,000'
Few 11,000'
6sm
360° 10kts
VFR
12:00 PM MST - 6:00 PM MST
Broken 10,000'
Scattered 6,000'
6sm
010° 14kts
Gusts 24kts
VFR
6:00 PM MST - 10:00 PM MST
Scattered 20,000'
Scattered 10,000'
6sm
340° 8kts
VFR
10:00 PM MST - 5:00 AM MST
Few 20,000'
6sm
VRB° 6kts
KPUB 221134Z 2212/2312 33012KT P6SM FEW200
   FM221500 36010KT P6SM FEW110 SCT200
   FM221900 01014G24KT P6SM SCT060 BKN100
   FM230100 34008KT P6SM SCT100 SCT200
   FM230500 VRB06KT P6SM FEW200
KLHX
Domestic
12/12/240022Z !LHX 12/001 LHX OBST TOWER LGT (ASR 1023531) 375915.00N1033404.00W (4.6NM SW LHX) 4527.6FT (429.8FT AGL) U/S 2412120022-2501260015
11/19/241853Z !LHX 11/005 LHX OBST TOWER LGT (ASR 1026306) 373931.80N1032757.50W (23.5NM S LHX) 5172.9FT (368.1FT AGL) U/S 2411191853-2503191853
6/21/242126Z !LHX 06/015 LHX RWY 08 VASI DECOMMISSIONED 2406212126-PERM
6/21/242126Z !LHX 06/014 LHX RWY 26 VASI DECOMMISSIONED 2406212126-PERM
No
0700-1600
CITY OF LA JUNTA
PO BOX 489
LA JUNTA, CO 81050
Phone: 719-384-8454
BILL JACKSON
P O BOX 489
LA JUNTA, CO 81050
Phone: (719) 384-2698
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
LHX
--
ACTVT PAPI RWY 08 & 26 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Crop Dusting
Air Ambulance
Pilot Instruction

Runway 08/26

6849 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
50,000lbs
90,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 02' 53"N 38° 02' 54"N
Longitude 103° 31' 24"W 103° 29' 58"W
Elevation 4,229' 4,154'
Threshold Crossing Height 45 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 12/30

5803 ft. x 60 ft.
ASPH CONC
Poor
NONE


50,000lbs
65,000lbs
100,000lbs
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 38° 03' 28"N 38° 02' 47"N
Longitude 103° 30' 53"W 103° 30' 02"W
Elevation 4,186' 4,158'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

145 ft. x 145 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway H1 Runway
True Heading 82°262°
Traffic Pattern
Markings BSC
Markings Condition POOR
Latitude 38° 02' 46"N N/A
Longitude 103° 30' 51"W N/A
Elevation 4,197' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ANTELOPE ON & INVOF ARPT.
A110-2HVY AGRICULTURAL OPNS DURG SUMMER MONTHS.
A110-3RWY 12/30 HAS LOOSE ASPH MTRL IN PRIM SFC WEST SIDE OF RWY FULL LENGTH.
A110-4RWY 12/30 EDGE UNDEFINED.
A110-5BE ALERT; INTENSIVE USAF STUDENT TRNG INVOF COLORADO SPRINGS & PUEBLO COLORADO.
A110-6SELF SERVE JET-A NOT AVAIL.
A110-7FOR CD CTC DENVER ARTCC AT 303-651-4257.
LA JUNTA MUNI (ICAO: KLHX, IATA: LHX) is a public airport located in LA JUNTA, CO.
