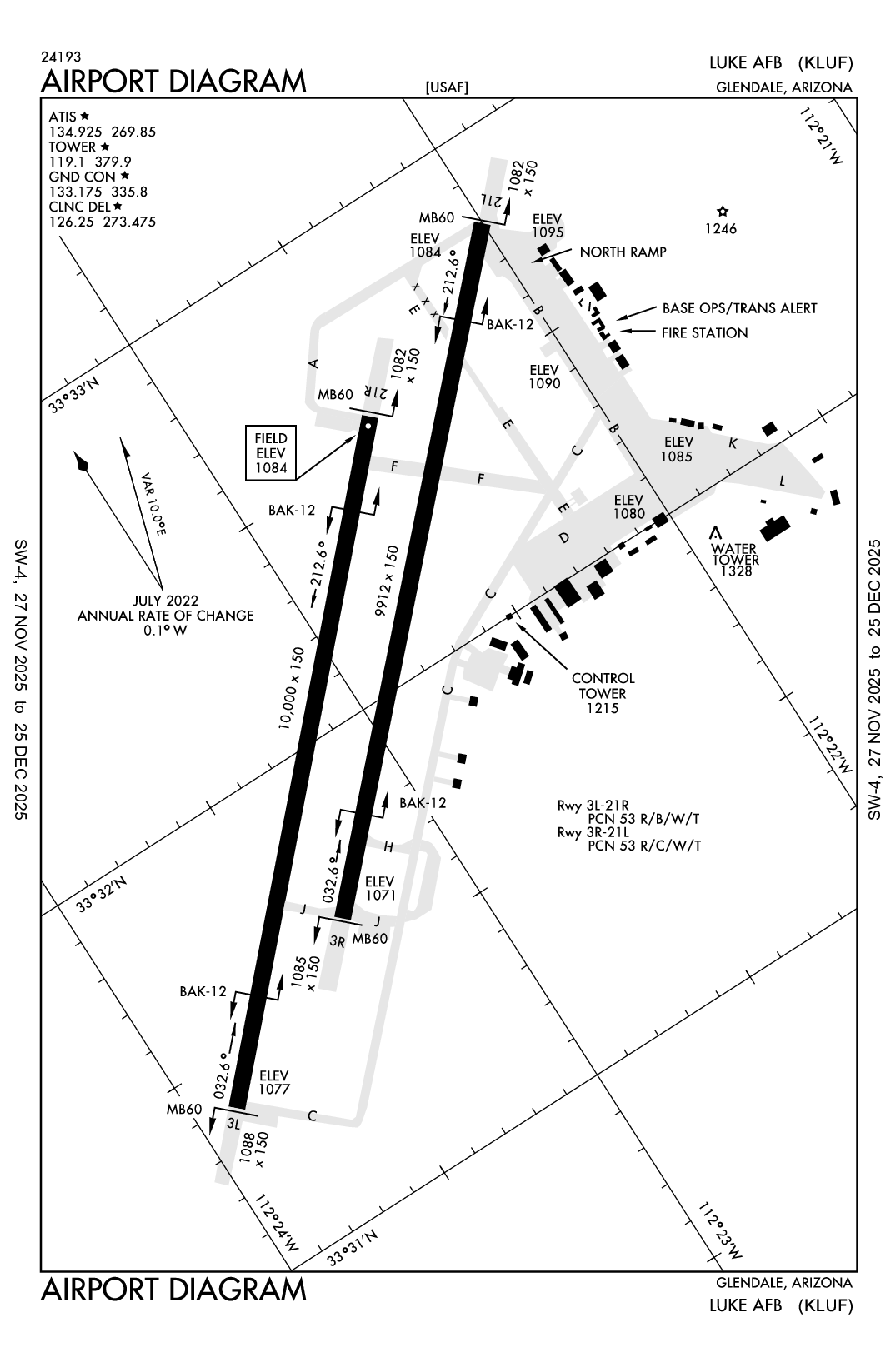

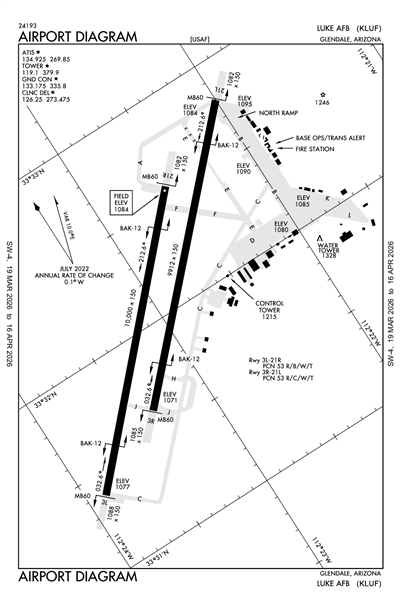

LUKE AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLUF
LUKE AFB
PrivatePVT

7 miles W of GLENDALE, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 32' 06"N 112° 22' 60"W
1084' MSL
2084' MSL
10E
None Listed
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
11/28/24-12/26/24
KLUF VFR
4:55 AM MST
Clear
10sm
51°F
24°F
30.01"Hg
030° 4kts
AO2 SLP158 T01051047 10163 20100 58001 $
KLUF 231155Z AUTO 03004KT 10SM CLR 11/M05 A3001 RMK AO2 SLP158 T01051047 10163 20100 58001 $
Add Your Business

KLUF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
Hours: OPR 1330Z-0530Z MON-THU, 1330Z-0130Z FRI, CLSD WEEKENDS, HOL, AND AETC FAMILY DAYS.
 134.925

Approach/Departure

APCH/P DEP/P
NORTH
 118.15
APCH/P DEP/P IC
SOUTH
 125.45

Clearance Delivery

CD/P
 126.25

Emergency

EMERG
 121.5

Ground

GND/P
 133.175

Tower

LCL/P
 119.1

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KLUF
Mon, 12/23 5:00 AM MST
Mon, 12/23 5:00 AM MST - Tue, 12/24 11:00 AM MST
VFR
5:00 AM MST - 11:00 AM MST
Few 27,000'
6sm
30.00"Hg
VRB° 6kts
TAF KLUF 231200Z 2312/2418 VRB06KT 9999 FEW270 QNH3001INS TX23/2323Z TN10/2313Z
KLUF
Domestic
12/7/232252Z !LUF 12/001 LUF NAV AUX1 ILS RWY 11 U/S 2312072252-2412312359
Military
12/23/241330Z AERODROME CLOSED
12/23/241300Z RAPCON CLOSED
12/17/240408Z OBSTRUCTION LIGHT ON APRON LIGHTING POLE ADJACENT TO PARKING ROWS 30, 35, AND 37 NOT ILLUMINATED
12/16/241400Z OBST TEMPORARY 238 FT AGL CRANE (1338 FT MSL) LOCATED 1.50-1.65 NM SOUTHWEST OF APPROACH END RWY 3L
12/12/241400Z OBST TEMPORARY 180 FT AGL CRANE (1271 FT MSL) LOCATED 1.51-1.71 NM SOUTHWEST OF APPROACH END RWY 03L.
12/10/241600Z OBST TEMPORARY 170 FT AGL CRANE (1238 FT MSL) LOCATED 0.57-0.62 NM SOUTH OF APPROACH END RWY 03L. CRANE WILL BE LOWERED TO 100 FT AGL (1168 FT MSL) WHEN NOT IN USE.
12/5/240321Z USE CAUTION RWY 03R/21L RUNWAY DISTANCE REMAINING SIGNS INACCURATE DUE TO DISPLACED THRESHOLD. 8,851 FT AVAILABLE ON SHORTENED RUNWAY
12/5/240317Z TAXILANE BRAVO BETWEEN ROW 1 AND RWY 03R/21L RESTRICTED TO ACFT WITH A WINGSPAN OF 60 FEET OR LESS.
12/5/240305Z PERSONNEL AND HEAVY EQUIPMENT ON TWY B WITHIN 100 FT OF RWY 21L EDGE, WILL BE SURROUNDED BY LOW PROFILE LIT BARRICADES. MAX EQUIPMENT HEIGHT 35FT.
12/5/240304Z HI-LOC RWY 21L VERTICAL DESCENT ANGLE 2.85°, TCH 47 AND VISUAL DESCENT POINT LUF TACAN 2 DME.
12/5/240304Z HI-LOC RWY 21L MISSED APPROACH POINT (MAP) TO RUNWAY THRESHOLD DISTANCE 0.8 NM.
12/5/240303Z RWY 21L ALSF-1 U/S
12/5/240303Z ILS RWY 21L SIDESTEP RWY 21R PROCEDURE NOT AUTHORIZED, EXPECT LOC-ONLY APPROACH RWY 21L SIDESTEP RWY 21R.
12/5/240302Z RWY 21L TDZE 1080 FT MSL.
12/5/240302Z RWY 03R DEP END BAK-12B(B) (LCTD 99FT DISPLACED OVRN), DEP END MB60 (LCTD 1585FT DISPLACED OVRN).
12/5/240302Z HI-LOC RWY 21L AND HI-TACAN RWY 21L VISUAL SEGMENT OBSTACLE, TAXIING AIRCRAFT 1435 FT BEFORE SER, 242 FT RIGHT OF CENTERLINE, 16 FT AGL/1119 FT MSL.
12/5/240301Z HI-LOC RWY 21L LANDING MINIMUMS 1600-1 3/8 SM 520 (600-1 3/8).
12/5/240300Z TRANSIENT AIRCRAFT CAN EXPECT TO LAND RWY 03L/21R DUE TO ACTIVE CONSTRUCTION ON RWY 03R/21L
12/5/240300Z DURING RWY 21L OPERATIONS NON-STANDARD BARRIER CONFIGURATION NORTH BAK-12 RAISED.
12/5/240257Z HI-TACAN RWY 21L LANDING MINIMUMS 1640-1 5/8 SM 560 (600-1 5/8).
12/5/240255Z ADDITIONAL RWY 3R TAKEOFF OBSTACLES FOR RWY 3R ODP AND ALL RWY 3R SIDS: BUILDING 1434 FT FROM DER 845 FT RIGHT OF CENTERLINE, 30 FT AGL/1120 FT MSL. TAXIING AIRCRAFT 1004 FT FROM DER 744 FT LEFT OF CENTERLINE, 16 FT AGL/1119 FT MSL. TAXIING AIRCRAFT 1435 FT FROM DER 242 FT LEFT OF CENTERLINE, 16 FT AGL/1119 FT MSL. WEATHER ANTENNA 554 FT FROM DER 500 FT LEFT OF CENTERLINE, 35 FT AGL/1118 FT MSL. TAXIING AIRCRAFT 1376 FT FROM DER 439 FT RIGHT OF CENTERLINE, 16 FT AGL/1116 FT MSL. GLIDESLOPE TOWER 612 FT FROM DER 500 FT LEFT OF CENTERLINE, 32 FT AGL/1106 FT MSL. WINDSOCK 477 FT FROM DER 453 FT LEFT OF CENTERLINE, 16 FT AGL/1099 FT MSL. BARRIER SHACK LEFT SIDE 102 FT FROM DER 220 FT LEFT OF CENTERLINE, 9 FT AGL/1090 FT MSL. BARRIER SHACK RIGHT SIDE 98 FT FROM DER 209 FT RIGHT OF CENTERLINE, 8 FT AGL/1088 FT MSL.
12/5/240254Z HI-TACAN RWY 21L VERTICAL DESCENT ANGLE 2.90° AND VISUAL DESCENT POINT LUF TACAN 2.2 DME.
12/5/240254Z ILS RWY 21L PROCEDURE NOT AUTHORIZED, EXPECT LOC-ONLY APPROACH.
12/5/240253Z RWY 21L THR DISPLACED 1553FT DUE TO WIP. RWY 21L DECLARED DISTANCE: TORA 8359FT TODA 8359FT ASDA 8359FT LDA 8359FT. RWY 03R DECLARED DISTANCE: TORA 8359FT TODA 9912FT ASDA 9912FT LDA 9912FT.
12/5/240252Z RWY 21L PAPI GA 3 DEG TCH 47 WITH TD PT 935 FT PAST DISPLACED THR
12/5/240250Z HI-TACAN RWY 21L MISSED APPROACH POINT (MAP) TO RUNWAY THRESHOLD DISTANCE 0.7 NM.
12/5/240246Z RWY 03R RWY EDGE LIGHT NON-STANDARD. SHORTENED, LAST 1K FT AMBER.
12/5/240245Z DISPLACED THRESHOLD CHEVRON MARKINGS ARE NON-STANDARD.
11/26/242215Z EXTRANEOUS GROUND RECEIVER CHECKPOINT MARKING ON TWY BRAVO
10/30/242000Z OBST FOUR TEMPORARY 250 FEET AGL CRANES (1338-1353 FEET MSL) LOCATED 1.02-1.67 NM NORTHWEST OF APPROACH END RWY 21L
10/23/240425Z FLOOD LIGHT TO INCLUDE OBSTRUCTION LIGHT ADJACENT TO BLDG. 983 LOCATED AT 33°32'0.2 N, 112°22'26.67 W UNSERVICEABLE.
10/18/241801Z ELECTRIC SWITCH PANEL WITH OBSTRUCTION LIGHT UNSERVICEABLE LOCATED AT COORDINATES 33°31'34.79 N, 112°23'35.63 W
Yes
MON-THU 1330-0530Z
FRI 1330-0130Z
CLSD WKEND, HOL & AETC FAMILY DAYS.
USAF
LUKE AFB
GLENDALE, AZ 85301
Phone: 623-856-1110
BASE OPERATIONS
LUKE AFB
GLENDALE, AZ 85301
Phone: 623-856-7131
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
LUF
--
AFLD UNLGT WHEN CLSD.
DUSK-0530Z MON-THUR, DUSK-0130Z FRI.
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Cargo Handling

Runway 03L/21R

10000 ft. x 150 ft.

CONC
NONE
HIGH
53 /R/B/W/T
--
--
--
--
  Runway 03L Runway 21R
True Heading 43°223°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 31' 23"N 33° 32' 36"N
Longitude 112° 23' 55"W 112° 22' 35"W
Elevation 1,077' 1,084'
Threshold Crossing Height 49 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 03R/21L

9912 ft. x 150 ft.

CONC
NONE
HIGH
53 /R/C/W/T
--
--
--
--
  Runway 03R Runway 21L
True Heading 43°223°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 31' 37"N 33° 32' 49"N
Longitude 112° 23' 24"W 112° 22' 04"W
Elevation 1,071' 1,084'
Threshold Crossing Height 51 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-100CTN ON FNL USE DUE TO VFR FLYWAYS.
A110-101RSTD: PPR ALL ACFT - D896-7131/ C623-856-7131/7132; ADHERE TO ARR BLOCK TIME +/- 30 MIN OF SKED LDG. PPR NOT ISSUED MORE THAN 7 DAYS OUT OR LESS THAN 24 HR OF ARR DATE.
A110-103PMSV METRO - 267.4
A110-21RSTD: HOVER LDG NA WO ATCT PERM.
A110-40TSNT MUST COORD APVL FOR LCL SORTIES PRIOR TO ARR. TSNT CLASSIFIED STORAGE NA AT AMOPS; CTC COMMAND POST FOR STORAGE - D896-5600/C623-856-5600.
A110-42RSTD: ALL ACFT REQ FLT PLAN PRIOR TO DEP.
A110-43RSTD: CIV PRAC APCH NA.
A110-44CTN: JET TRNG ACT.
A110-46CTN: HYDROPLANING PSBL ALL RWYS WHEN WET; MOWERS WI 100 FT OF RWYS & TWYS 1530-0001Z MON-FRI.
A110-52NOISE ABATEMENT; NOISE SENSITIVE AREA 5 NM NE.
A110-55JASU: 2(AM32A-60A) 2(MC-1A) FUEL: A++ FLUID - SP PRESAIR LPOX LOX.
A110-56OIL: O-128-PACKAGED ONLY, RQR HAND TRANSFER; 133-148-156 SOAP.
A110-57TRAN ALERT; LTD PRKG; EXP UP TO 4 HR DLA. FLW ME & MIN FLEET SVC AVBL - 24 HR PPR - AMOPS; F16 ENG TSNT SUPPORT NA.
A110-67CTN: 90 FT LGT POLES NEAR FIRE TRNG FAC 1358.3 FT FM RWY 21R CNTRLN.
A110-69MISC: FOUR ENG ACFT WHEN AUTH SHUT DOWN OUTBOARD ENG AFT LNDG PRIOR TO TAXI; KC130 OR LRGR EXP BACK TAXI AFT LNDG RWY 21L/R; USE TWY B TO TSNT PRKG.
A110-70SVC-LGT: PAPI TOUCHDOWN POINT BYD THR; RWY 03L 941 FT; RWY 03R 948 FT; RWY 21L 942 FT; RWY 21R 937 FT. RWY THR LGTS GATED.
A110-77TWY H RSTRD TO FIGHTER OR SMLR.
A110-79CSTMS/AG/IMG: 24 HR PPR - D896-6322/C623-856-6322. CUST & IMB NA FOR SPACE AVBL AND CIV PAX. PAX TRML & SPACE AVBL PAX NA. CIV PAX PROCESS AT APVD BOARDING POINT PRIOR TO ARR.
A110-86TRAN ALERT & N RAMP APVL RQR - AFLD MGMT.
A110-87SERVICE-A GEAR: NA WHEN AFLD CLSD; RWY 03L/21R: APCH & DEP END BAK-12A RAISED POSN WITH 8 PT TIE DOWNS; DEP END MB60 IN OVRN RAISED POSN. RWY 03R/21L: DEP END BAK-12A & MB60 IN OVRN RAISED POSN; APCH END BAK-12A IN RAISED POSN WITH 30 MIN PN. DURG EXTN SINGLE RWY OPS APP & DEP END BAK-12B & DEP END MB60 RAISED POSN FOR OPEN RWY. ALL 8 BAK-12 SHELTERS 200 FT FM RWY CNTRLN.
A110-88SVC: FUEL REQ OVR 24000 GAL/160000 LB 72 HR PPR.
A110-90BASH PHASE I: SEP-JUN; PHASE II: JUL-AUG.
A110-91RWY 03R/21L & RWY 03L/21R BAK-12 SHELTERS 8 TOTAL 200 FT FM RWY CNTRLN.
A110-93ARFF STATUS LEVEL 3 WKEND, HOL & DOWN DAYS.
A110-94HOP OVR RAISED MB60 ARRESTING SYS RMN 500 FT UNTIL 1000 FT PAST RWY THR.
A110-95WX OPR 1000-0500Z MON -THU AND 1000-0130Z FRI, OR UNTIL AFLD CLOSES, WHICHEVER COMES FIRST, SDBY WKEND, HOL & 56FW TRNG DAYS. WX FLT D896-2992/C623-856-2992; AFT HR SDBY - COMD POST D896-5600/C623-856-5600.
A110-98TSNT FIGHTER ACFT 2 OR MORE REQ 15 MIN BTW ARR.
A110-99CTN: HOT AIR BLN INVOF AUX1 FLD AT OR BLW 5000 FT MSL.
LUKE AFB (ICAO: KLUF, IATA: LUF) is a private airport located in GLENDALE, AZ.
