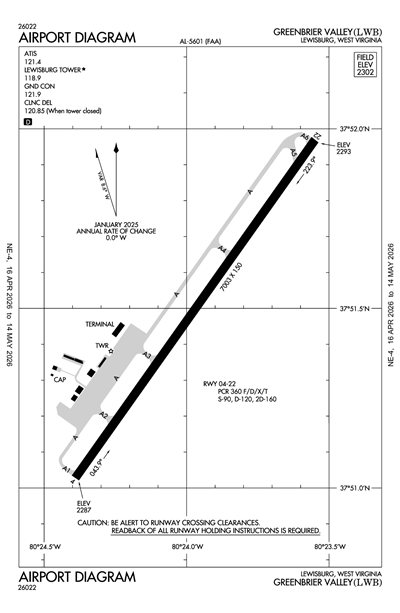

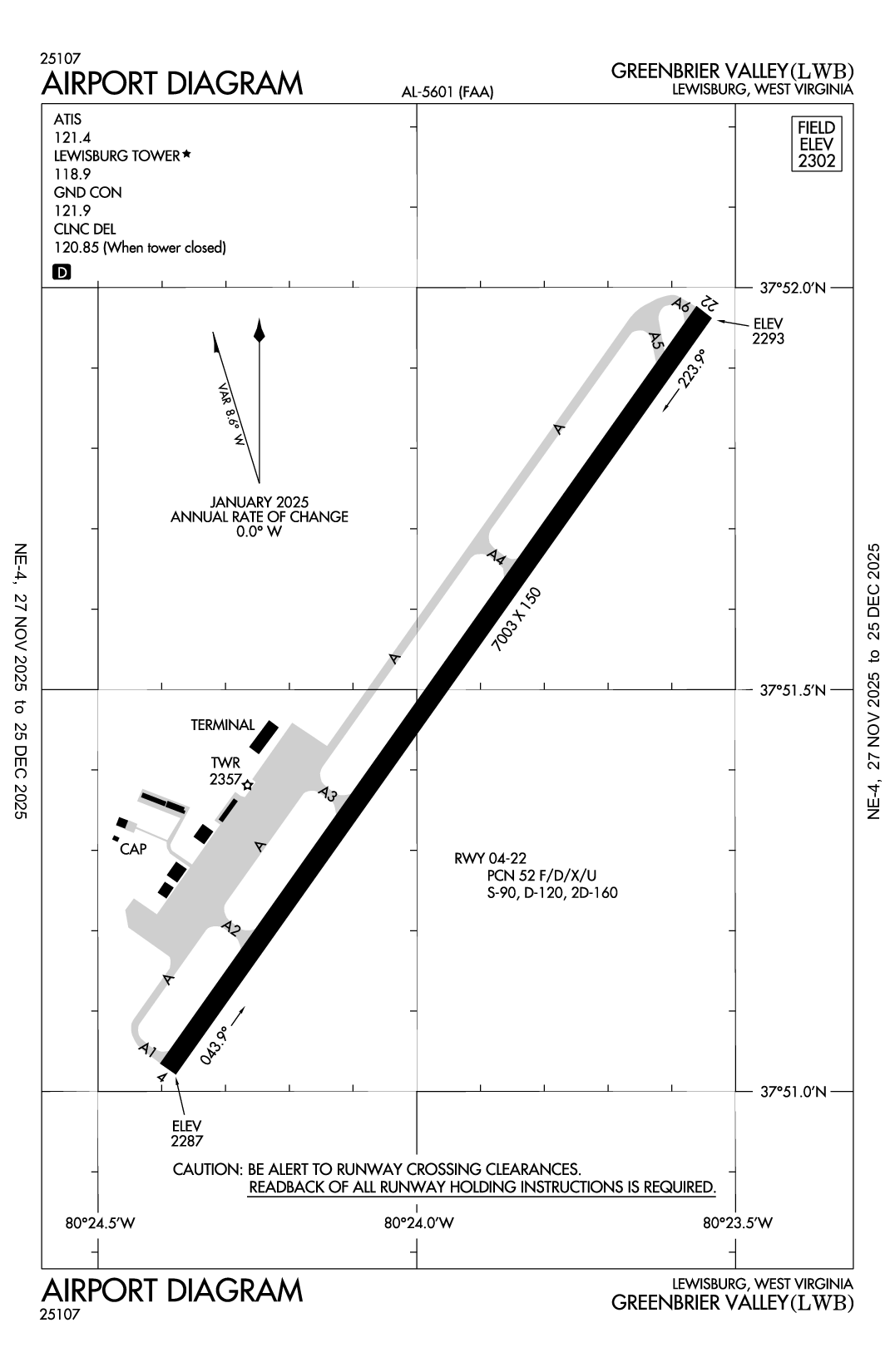

GREENBRIER VALLEY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLWB
GREENBRIER VALLEY
PublicPUB

3 miles N of LEWISBURG, WV
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 51' 30"N 80° 23' 58"W
2302' MSL
3302' MSL
08W
JET A, 100LL
ELKINS (EKN)
CINCINNATI
WASHINGTON (ZDC)
11/28/24-12/26/24
KLWB VFR
7:35 AM EST
Clear
10sm
14°F
10°F
30.44"Hg
Calm
AO2 T11021120
KLWB 231235Z AUTO 00000KT 10SM CLR M10/M12 A3044 RMK AO2 T11021120
Add Your Business

KLWB FBOs

Promote Listing
Greenbrier Valley Airport
UNICOM: 122.95
Phone: (304) 645-3961
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 12/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.84 6.89 6.99
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.9

ATIS

ATIS
Hours: 0900L-1900L
 121.4

AWOS-3

AWOS-3
304-645-4533
 121.4

Ground

GND/P
 121.9

Tower

LCL/P
 118.9

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLWB
Mon, 12/23 6:34 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 3:00 AM EST
Few 25,000'
6sm
VRB° 3kts
VFR
3:00 AM EST - 7:00 AM EST
Overcast 12,000'
6sm
Calm
KLWB 231134Z 2312/2412 VRB03KT P6SM FEW250
   FM240800 00000KT P6SM OVC120
KLWB
Domestic
11/8/241607Z !LWB 11/004 LWB OBST TOWER LGT (ASR 1035531) 375935.00N0804102.00W (15.6NM WNW LWB) 3607.0FT (208.0FT AGL) U/S 2411081607-2511082359
FDC
9/8/231956Z !FDC 3/7558 LWB IAP GREENBRIER VALLEY, LEWISBURG, WV.
ILS OR LOC RWY 4, AMDT 12...
DISREGARD NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 2700.
ADD AUTOPILOT NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 2770.
2309081956-2509081956EST
1/24/231457Z !FDC 3/6612 LWB CHART GREENBRIER VALLEY,
LEWISBURG, WV.
ILS OR LOC RWY 4, AMDT 12...
CHANGE TIME DISTANCE TABLE TO READ FAF TO MAP 4.6 NM INSTEAD OF 5
NM. CHANGE MIN:SEC ROW TO READ THE FOLLOWING VALUES FROM LEFT TO
RIGHT, 4:36, 3:04, 2:18, 1:50, 1:32, INSTEAD OF 5:00, 3:20, 2:30,
2:00, 1:40. ALL OTHER DATA REMAINS AS PUBLISHED.
2301241457-PERM
Yes
ALL
GREENBRIER CO ARPT AUTH
584 AIRPORT RD BOX 1
LEWISBURG, WV 24901
Phone: 304-645-3961
MARTHA LIVESAY
584 AIRPORT RD BOX 1
LEWISBURG, WV 24901
Phone: 304-646-7382
ELKINS FSS (EKN)
Toll Free: 1-800-WX-BRIEF
LWB
--
ACTVT MALSR RWY 04; REIL RWY 22; HIRL RWY 04/22; TWY LGTS - CTAF.
N/A
Yes - Lighted
N/A
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

7003 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
52 /F/D/X/U
90,000lbs
120,000lbs
160,000lbs
--
  Runway 04 Runway 22
True Heading 35°215°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 37° 51' 02"N 37° 51' 58"N
Longitude 80° 24' 23"W 80° 23' 33"W
Elevation 2,287' 2,292'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1BIRDS & DEER ON & INVOF ARPT.
A110-2USE CTAF 118.9 WHEN TWR CLSD. FREQ 121.5 NOT AVBL AT TWR.
GREENBRIER VALLEY (ICAO: KLWB, IATA: LWB) is a public airport located in LEWISBURG, WV.
