KLWC
LAWRENCE RGNL
Public
PUB
3 miles N of LAWRENCE, KS
View on
Map
Status
Operational
Coordinates
39° 00' 40"N
95° 12' 59"W
Elevation
833' MSL
Pattern Alt
1833' MSL
Mag Variation
04E
Fuel
JET A, 100LL
FSS
WICHITA (ICT)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
11/28/24-12/26/24
KLWC
MVFR
5:52 AM CST
RAW
Overcast 2,800'
Viz
10sm
Temp
45°F
Dew
34°F
Pres
30.06"Hg
Wind
220° 5kts
RMK
AO1 SLP183 T00720011 10083 20061 53007
KLWC 231152Z AUTO 22005KT 10SM OVC028 07/01 A3006 RMK AO1 SLP183 T00720011 10083 20061 53007
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KLWC FBOs
Promote Listing
Hetrick Air Services
UNICOM: 123.0
Phone: (785) 842-0000
0 Reviews
(
Read
|
Sign In To Write
)
Phillips 66
As of
12/21
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
Full Serve
6.37
5.45
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
123.0
CTAF
123.0
ASOS
ASOS
785-749-1309
121.225
FAA A/FD Pages
FAA A/FD Page

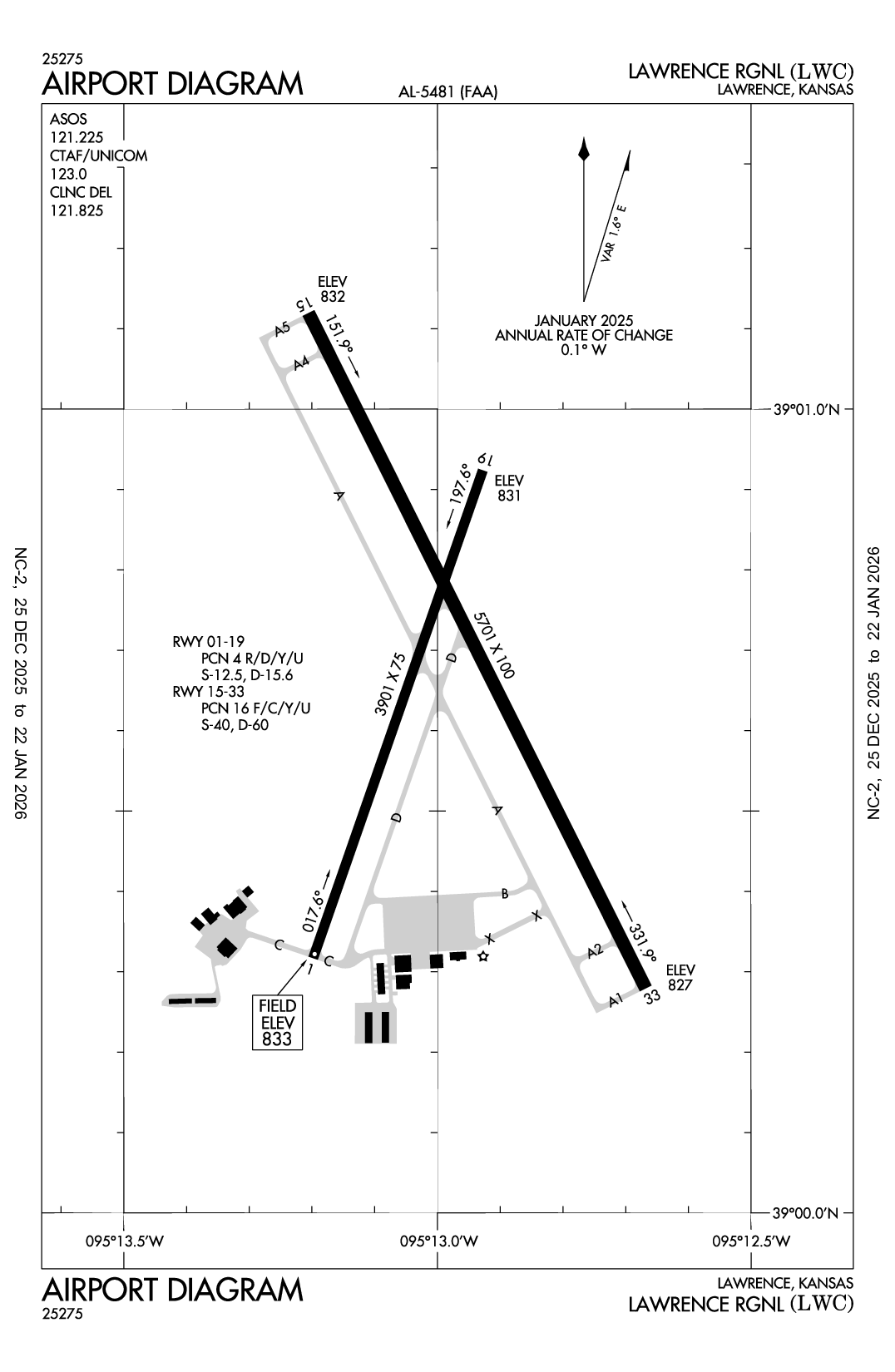

Airport Diagrams
AIRPORT DIAGRAM
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
ILS OR LOC RWY 33
RNAV (GPS) RWY 15
RNAV (GPS) RWY 33
VOR/DME-A
Terminal Area Forecast
KIXD (19nm)
RAW
Reported
Mon, 12/23 5:23 AM CST
Valid
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
MVFR
6:00 AM CST - 10:00 AM CST
Broken 2,500'
Viz
6sm
Wind
220° 13kts
Gusts 22kts
VFR
10:00 AM CST - 3:00 PM CST
Broken 10,000'
Scattered 2,000'
Viz
6sm
Wind
250° 8kts
VFR
3:00 PM CST - 6:00 PM CST
Broken 12,000'
Viz
6sm
Wind
320° 7kts
VFR
6:00 PM CST - 6:00 AM CST
Overcast 7,000'
Viz
6sm
Wind
VRB° 4kts
KIXD 231123Z 2312/2412 22013G22KT P6SM BKN025
FM231600 25008KT P6SM SCT020 BKN100
FM232100 32007KT P6SM BKN120
FM240000 VRB04KT P6SM OVC070
KLWC
Domestic
12/1/24
0417Z
!LWC 12/001 LWC OBST TOWER LGT (ASN 2022-ACE-3316-OE) 385622.92N0950502.41W (7.53NM SE LWC) 1081FT (189FT AGL) U/S 2412010417-2502282359
10/24/24
0436Z
!LWC 10/010 LWC OBST TOWER LGT (ASR 1006683) 385949.30N0952319.80W (8.1NM W LWC) 1420.3FT (305.1FT AGL) U/S 2410240436-2502210436
FDC
7/30/24
1336Z
!FDC 4/9939 LWC IAP LAWRENCE RGNL, LAWRENCE, KS.
RNAV (GPS) RWY 15, ORIG-D...
LNAV MDA 1360/HAT 529 ALL CATS.
2407301336-2607311336EST
ATC Tower
No
Attendance
0800-2000
Owner
CITY OF LAWRENCE
6 E 6TH ST., PO BOX 708
LAWRENCE, KS 66044
Phone: 785-832-3467
Manager
SCOTT WAGNER
6 EAST 6TH STREET
LAWRENCE, KS 66044
Phone: 785-832-3467
FSS
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
NOTAM
LWC
Light Schedule
--
Lights
ACTVT MALSR RWY 33; REIL RWY 01, 15, & 19; PAPI RWY 01, 19, 15 & 33; MIRL RWY 01/19 & 15/33 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
High Pressure
Bulk Oxygen
High Pressure
Other Services
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Runway 01/19
Dimensions
3901 ft. x 75 ft.
Surface Type
CONC
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
4 /R/D/Y/U
Single Wheel
12,000lbs
Double Wheel
16,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 01
Runway 19
True Heading
19°
199°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
FAIR
FAIR
Latitude
39° 00' 19"N
39° 00' 55"N
Longitude
95° 13' 12"W
95° 12' 56"W
Elevation
832'
831'
Threshold Crossing Height
40 ft. AGL
40 ft. AGL
Visual Glide Path Angle
3.5°
3.5°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
Runway 15/33
Dimensions
5700 ft. x 100 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
16 /F/C/Y/U
Single Wheel
40,000lbs
Double Wheel
60,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 15
Runway 33
True Heading
153°
333°
Traffic Pattern
Markings
NPI
PIR
Markings Condition
GOOD
GOOD
Latitude
39° 01' 07"N
39° 00' 17"N
Longitude
95° 13' 12"W
95° 12' 40"W
Elevation
831'
827'
Threshold Crossing Height
45 ft. AGL
52 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4R
Approach Lights
MALSR
Centerline Lights
Runway End Identifier Lights
Yes
No remarks are listed for this airport.
LAWRENCE RGNL (ICAO: KLWC, IATA: LWC) is a public airport located in LAWRENCE, KS.
