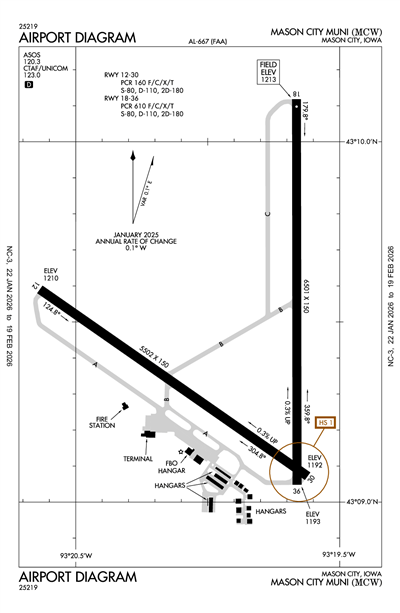

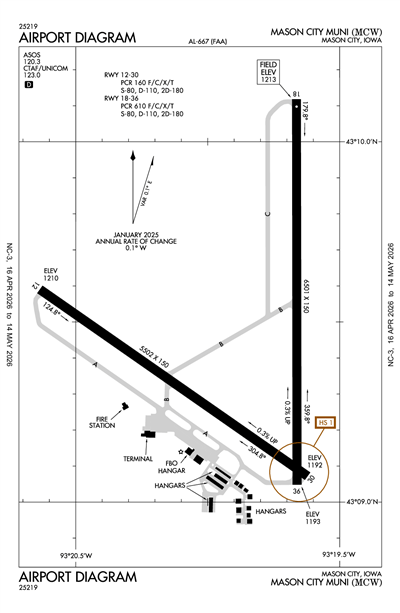

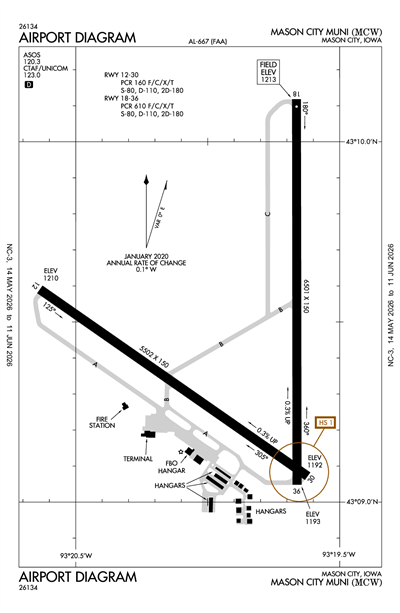

MASON CITY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMCW
MASON CITY MUNI
PublicPUB

5 miles W of MASON CITY, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 09' 28"N 93° 19' 52"W
1213' MSL
2013' MSL
00E
JET A, 100LL
FORT DODGE (FOD)
OMAHA
MINNEAPOLIS (ZMP)
12/26/24-1/23/25
KMCW VFR
9:53 AM CST
Light Snow
Overcast 7,500'
Broken 3,800'
6sm
23°F
13°F
29.93"Hg
240° 13kts
AO2 SNB49 SLP151 P0000 T10501106
KMCW 221553Z AUTO 24013KT 6SM -SN BKN038 OVC075 M05/M11 A2993 RMK AO2 SNB49 SLP151 P0000 T10501106
Add Your Business

KMCW FBOs

Promote Listing
North Iowa Air Service
UNICOM: 123.0
Phone: (308) 995-8446
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 1/15
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.45 4.85
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
641-255-0381
 120.3

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMCW
Wed, 1/22 5:30 AM CST
Wed, 1/22 6:00 AM CST - Thu, 1/23 6:00 AM CST
VFR
6:00 AM CST - 11:00 AM CST
Overcast 6,000'
6sm
230° 13kts
VFR
11:00 AM CST - 3:00 PM CST
Broken 4,500'
6sm
260° 10kts
VFR
3:00 PM CST - 7:00 PM CST
Broken 3,500'
6sm
290° 12kts
MVFR
7:00 PM CST - 6:00 AM CST
Broken 2,300'
6sm
330° 18kts
Gusts 27kts
KMCW 221130Z 2212/2312 23013KT P6SM OVC060
   FM221700 26010KT P6SM BKN045
   FM222100 29012KT P6SM BKN035
   FM230100 33018G27KT P6SM BKN023
KMCW
Domestic
1/21/251131Z !MCW 01/081 MCW OBST TOWER LGT (ASR 1023692) 431007.80N0930728.40W (9.1NM E MCW) 1545.9FT (381.9FT AGL) U/S 2501211131-2503071131
1/21/250153Z !MCW 01/079 MCW OBST TOWER LGT (ASR 1304162) 431157.00N0931243.40W (5.78NM ENE MCW) 1380FT (265FT AGL) U/S 2501210153-2502202359
1/16/252157Z !MCW 01/070 MCW RWY 36 RAI LGT U/S 2501162157-2501292000EST
1/5/250323Z !MCW 01/008 MCW OBST WIND TURBINE (ASN UNKNOWN) 430824N0930636W (9.5NM E MCW) UNKNOWN (700FT AGL) NOT LGTD 2501050323-2504052359
1/3/251330Z !MCW 01/007 MCW OBST TOWER LGT (ASR 1016618) 430715.00N0931137.00W (6.4NM ESE MCW) 1614.8FT (440.0FT AGL) U/S 2501031330-2502171315
12/10/242358Z !MCW 12/040 MCW OBST TOWER LGT (ASR 1017360) 430528.00N0932359.00W (5.0NM SW MCW) 1665.0FT (395.0FT AGL) U/S 2412102358-2504052359
FDC
12/30/242226Z !FDC 4/2002 MCW IAP MASON CITY MUNI, MASON CITY, IA.
RNAV (GPS) RWY 12, ORIG...
PROCEDURE NA AT NIGHT.
2412302226-2612302226EST
No
0700-1700
FOR SVC OR FUEL AFT HRS PPR CALL 641-430-9898.
CITY OF MASON CITY
9184 - 265TH STREET
MASON CITY, IA 50428-1484
Phone: 641-421-3397
DAVID K. SIMS
9184 - 265TH STREET
CLEAR LAKE, IA 50428-1484
Phone: 641-421-3397
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
MCW
--
ACTVT HIRL RY 18/36; MIRL RY 12/30; REIL RY 12; MALS RY 18; MALSR RY 36; VASI RY 18; PAPI RYS 12; 30; & 36 - CTAF. ALL PAPIS ON DURG DALGT HRS.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental

Runway 12/30

5502 ft. x 150 ft.
ASPH
Excellent
GRVD
MED
45 /F/C/X/T
80,000lbs
110,000lbs
180,000lbs
--
  Runway 12 Runway 30
True Heading 125°305°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 09' 35"N 43° 09' 04"N
Longitude 93° 20' 38"W 93° 19' 37"W
Elevation 1,210' 1,192'
Threshold Crossing Height 39 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 18/36

6501 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
58 /F/C/X/T
80,000lbs
110,000lbs
180,000lbs
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 43° 10' 07"N 43° 09' 03"N
Longitude 93° 19' 40"W 93° 19' 40"W
Elevation 1,213' 1,193'
Threshold Crossing Height 39 ft. AGL 62 ft. AGL
Visual Glide Path Angle 3° 2.9°
Visual Slope Indicator V4L P4L
Approach Lights MALS MALSR
Centerline Lights
Runway End Identifier Lights
A110-1BIRD ACTVTY ON & INVOF ARPT.
A110-2LANDING FEE FOR ALL COMMERCIAL OPERATED ACFT.
A110-3DUE TO RY & TWY END ELEV DIFFERENTIALS & ACFT HEIGHT; PILOTS MAY LOSE LINE OF SIGHT OF OTHER ACFT ON OPPOSING RY & TWY ENDS. ALL DEP/ARR ACFT USE CTAF.
A110-4RY 30 IS CALM WIND RY.
A110-6AIRPORT OPERATIONS 641-430-0980.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
MASON CITY MUNI (ICAO: KMCW, IATA: MCW) is a public airport located in MASON CITY, IA.
